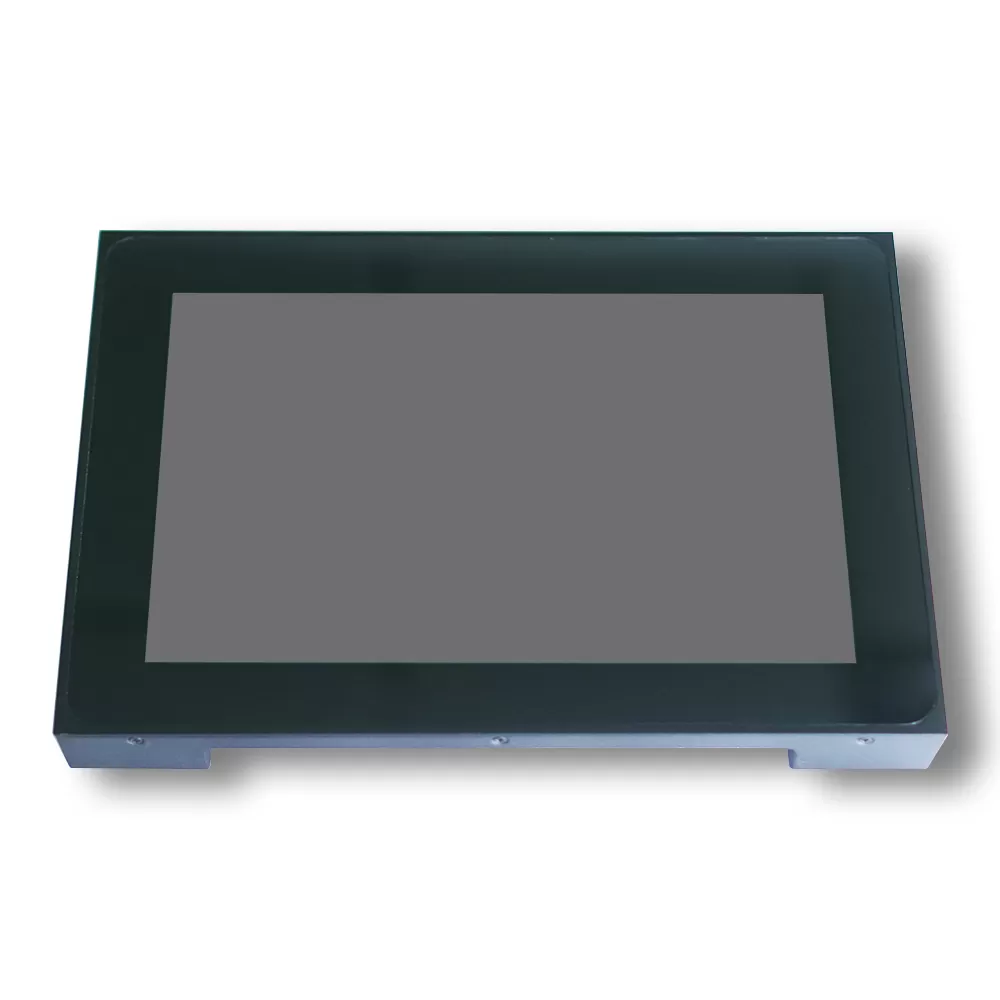

Model: SATA121M
Features:

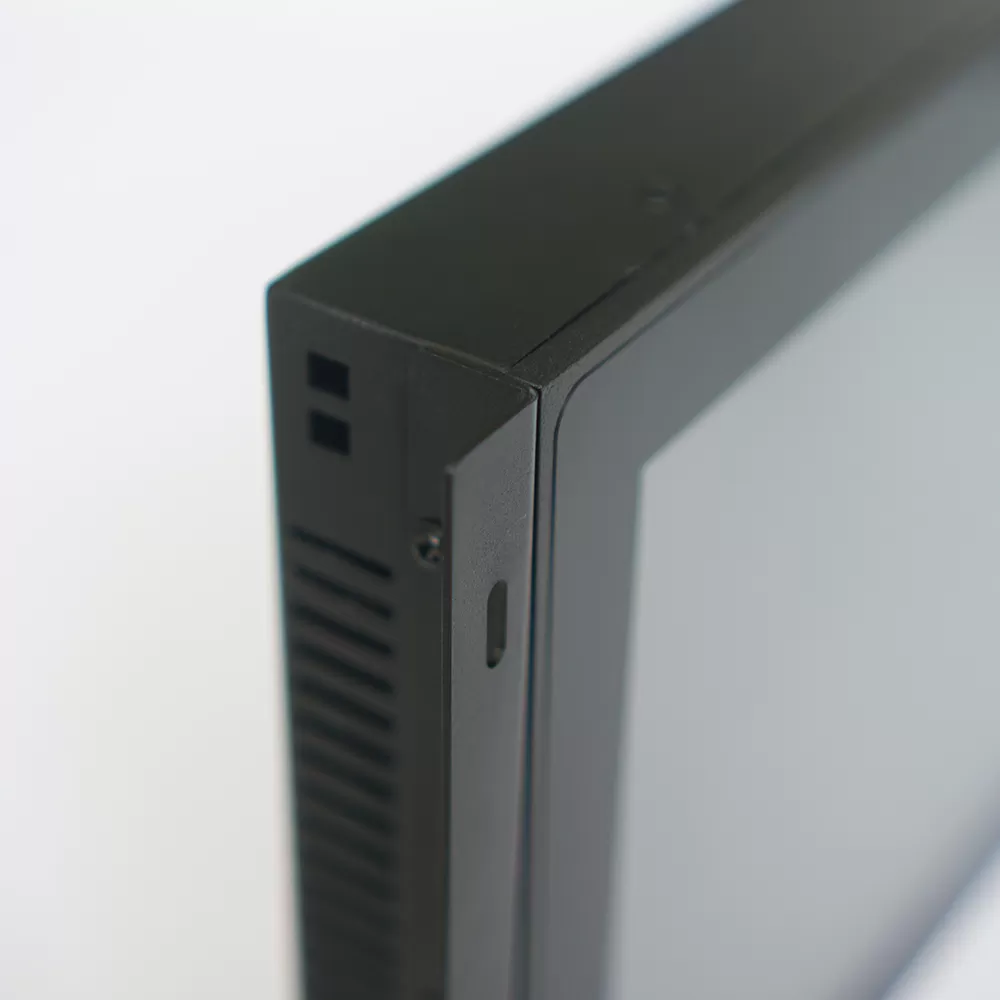

1. Aluminum alloy bezel, seamless design, front IP65 waterproof and dustproof .
2. Industrial LCD panel, 1000 nits, sunlight readable, high nits, true color.
3. Adopt 10 points PCAP touch panel, high sensitive and fast-response, with 2mm tempered glass for shockproof.
4. Super performance driver board, 7x24 continuous operation.
5. Open frame design, support embedded mount, wall mount or desktop mount and etc.
6. Widely use for parking system, gas station, EV-Charging facility, Vending machine, Self-service payment machine and etc.
| LCD panel | |
| Panel size | 12" |
| Resolution | 1280*800 |
| Aspect ratio | 16:10 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000nits, sunlight readable |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Hardness | 7H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 Optional) |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (4 or 5 wires restive touch, non touch Optional) |

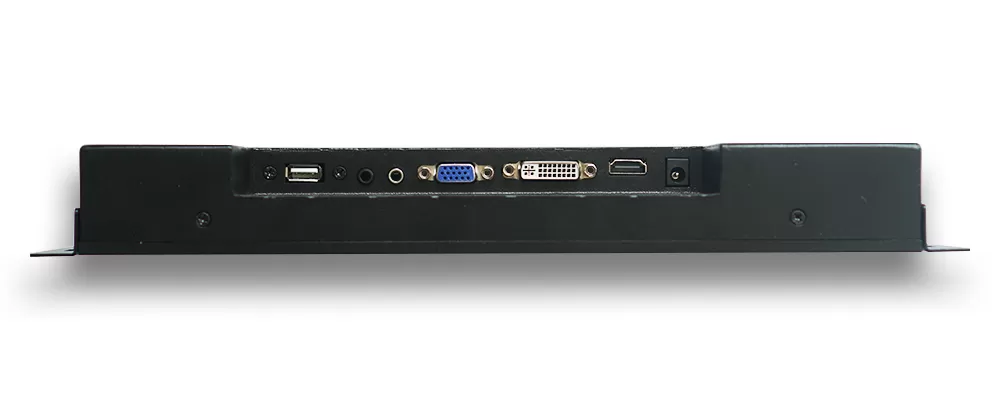

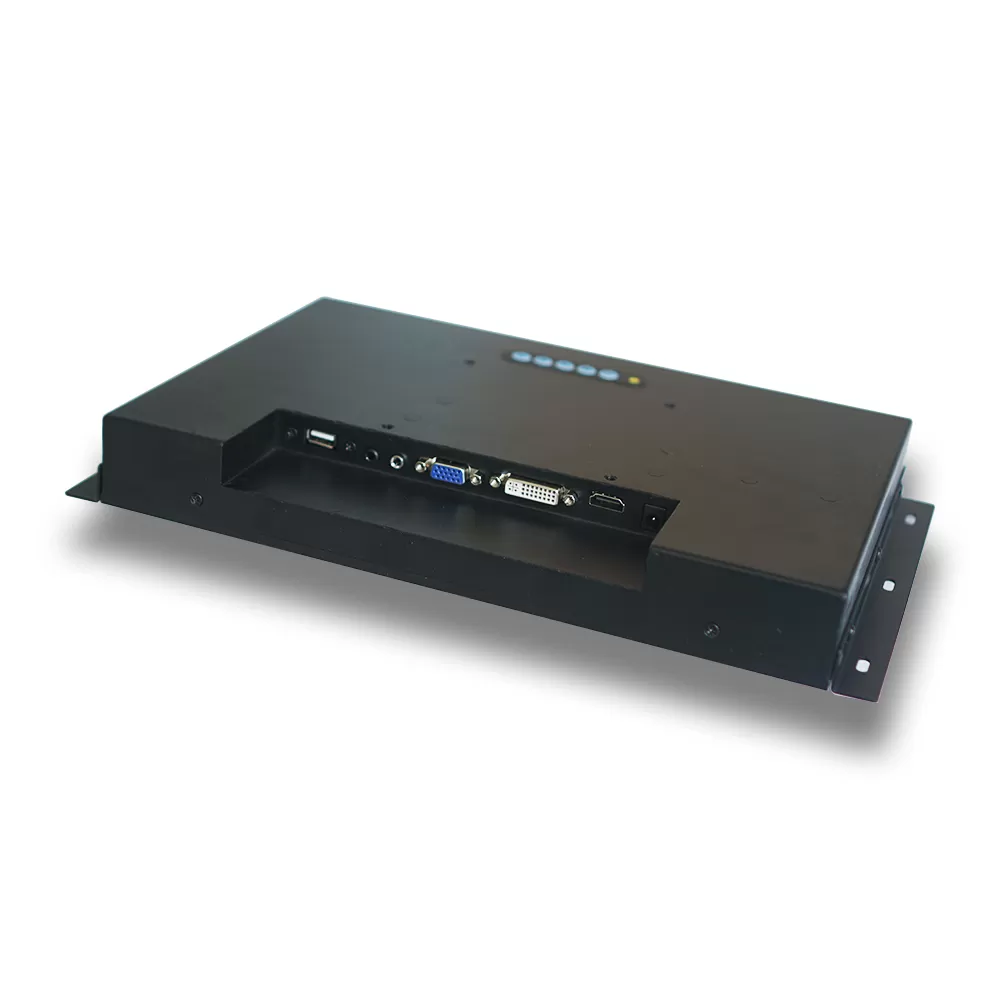

| Signal Ports | |
| VGA | 1×VGA |
| DVI | 1×DVI |
| HDMI | 1×HDMI |
| Audio in/out | Optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP, Windows 7/8/10, Linux, Mac OS X, Android and etc. |
| Power Supply | |
| External Power Supply | AC 100-240V, 50-60Hz |
| Working voltage | DC 12V |
| Power consumption | ≤35W |
| Enclosure | |
| Material | Aluminium alloy bezel+High strength cold rolled steel back case |
| Color | Black (Color can customize) |
| VESA mounting | 100×100mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | Operating: -30 to 80°C, storage :-30 to 80°C |
| Relative humidity | Operating: 10% to 80% , storage :5% to 90% |
| Packing Details | |
| Net weight | 3kgs |
| Gross weight | 4kgs |

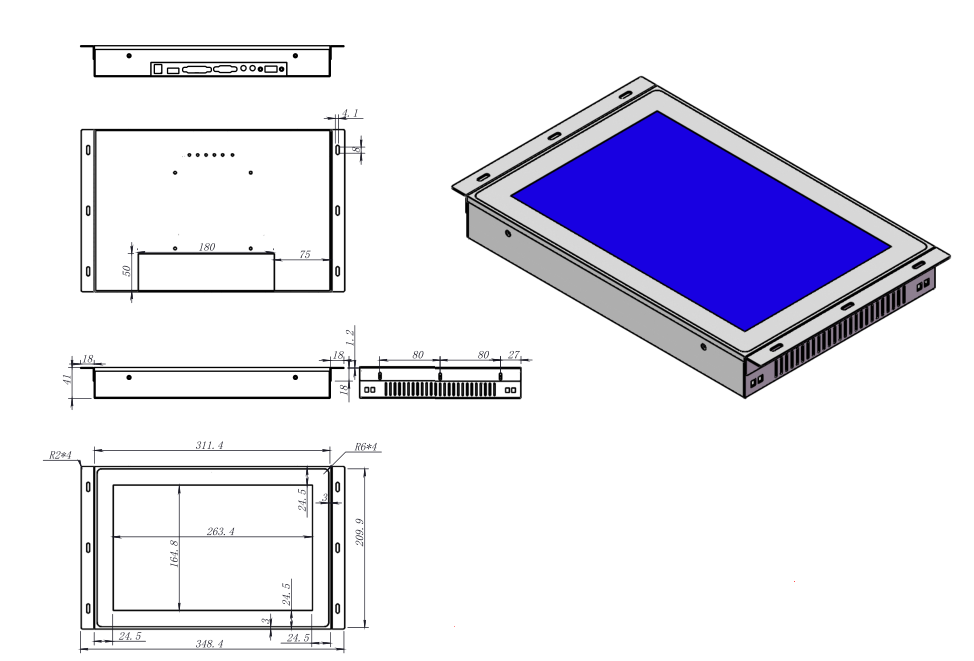

| Product Dimension | 31.14×20.99×4.1cm |
| Packing size | 40×33×16cm |

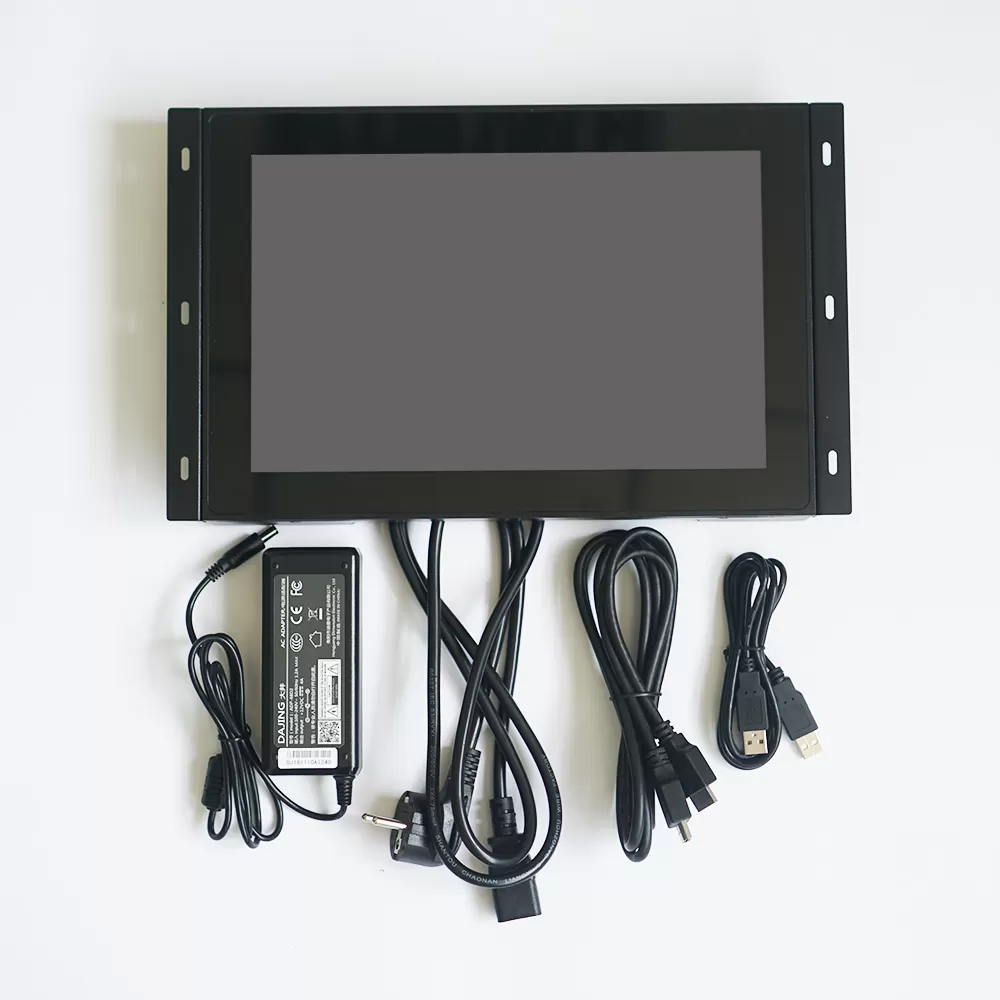

| Accessories | Power adapter, USB touch cable, HDMI cable, open frame kits |
| Other | |
| Mounting | Open frame |
| Wall mounting brackets (Optional) | |
| Desk stand holder (Optional) | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
