Model: SATA15M
Features:

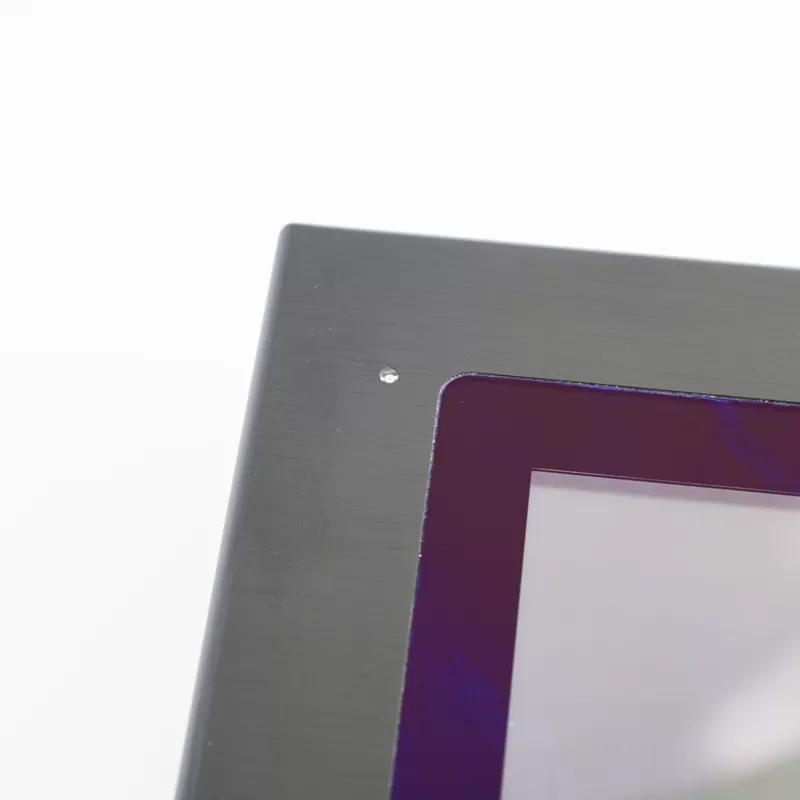

1. Front bezel aluminum alloy brushed metal craft, seamless design, front IP65 waterproof and dustproof.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt multi-points PCAP touch panel, high sensitive and fast-response.
4. EETI waterproof solution, touch function can work well with drop water on the screen.
5. 1000 nits, sunlight readable, with light sensor for auto dimming.
6. Cover with 3MM AR glass, Anti UV, Anti glare, Anti-oxidation.
7. High performance mainboard, 7x24 continuous operation.
8. Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.
9. Ideal for full or semi outdoor embedded (wall mounting, desk stand mounting Optional)
| LCD panel | |
| Panel size | 15" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits, sunlight readable |
| Brightness control | Light sensor for auto dimming |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/70°/70° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Treatment | Anti glare |
| Surface Hardness | 7H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 Optional) |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (5 wires Resistive touch, non touch Optional) |

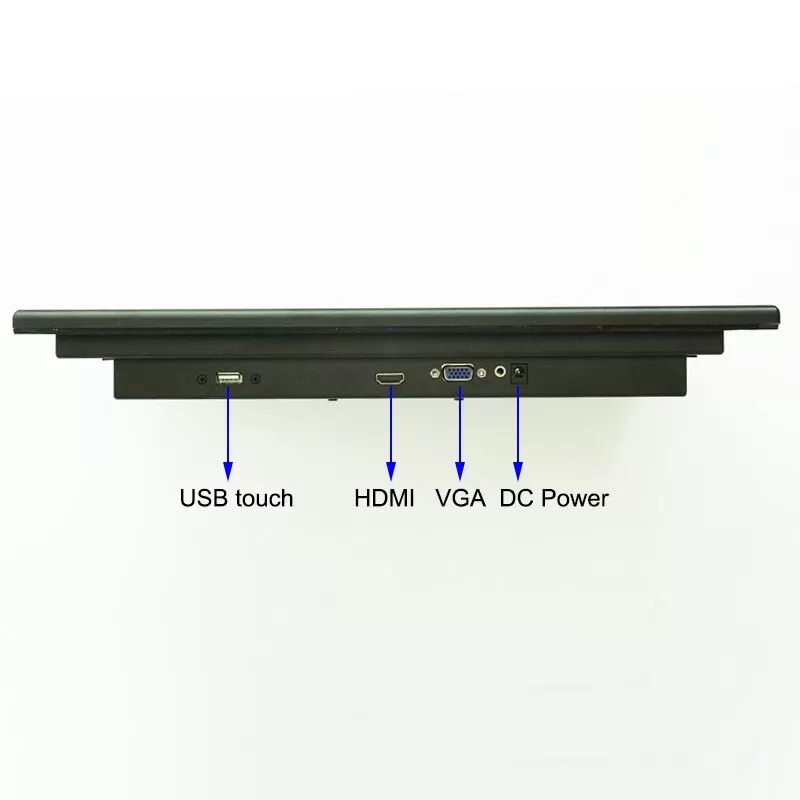

| Signal Ports | |
| VGA | 1x VGA |
| HDMI | 1x HDMI |
| DVI | Optional |
| Audio in/out | Optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
| Support OS | Windows XP, Windows 7/8/10, Linux, Mac OS X, Android and etc. |
| Power Supply | |
| External Power Supply | AC 100-240V, 50-60Hz |
| Working voltage | DC 12V |
| Power consumption | ≤35W |
| Enclosure | |
| Material | Aluminum alloy bezel+High strength cold rolled steel back case |
| Color | Black |

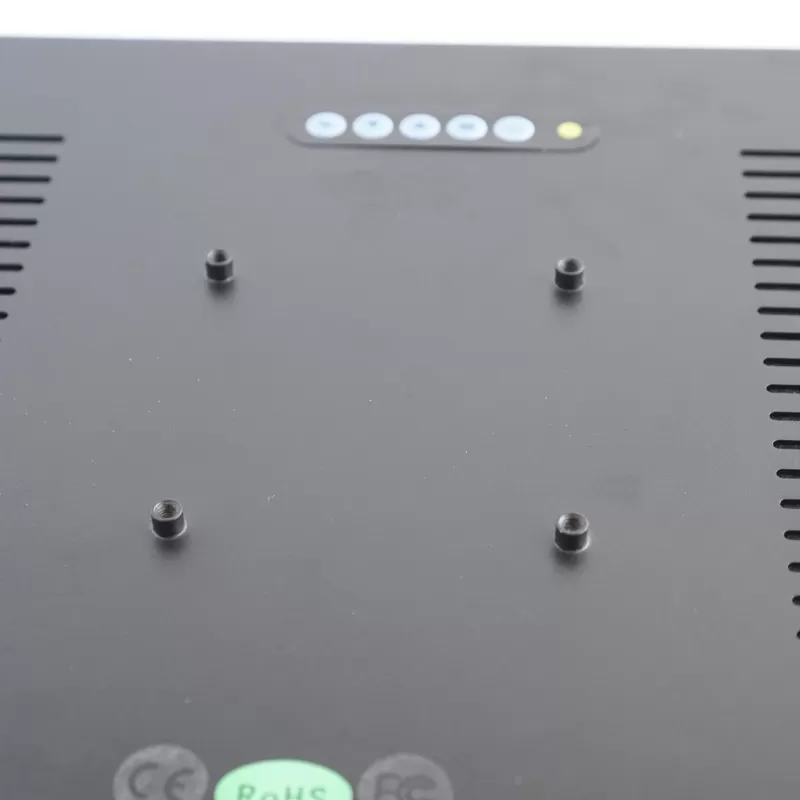

| VESA mounting | 75x75mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | Operating: -20 to 70°C, storage: -30 to 80°C |
| Relative humidity | Operating: 10% to 80%, storage: 5% to 90% |
| Packing Details | |
| Net weight | 4.5kgs |
| Gross weight | 6kgs |
| Product Dimension | 40x32x5.98cm |
| Packing size | 47x44x18cm |
| Accessories | Power adapter, power cord, USB touch cable, HDMI/ VGA cable, embedded screws |
| Other | |
| Mounting | Embedded mounting screws |
| Wall mounting brackets (Optional) | |
| Desk stand holder (Optional) | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
