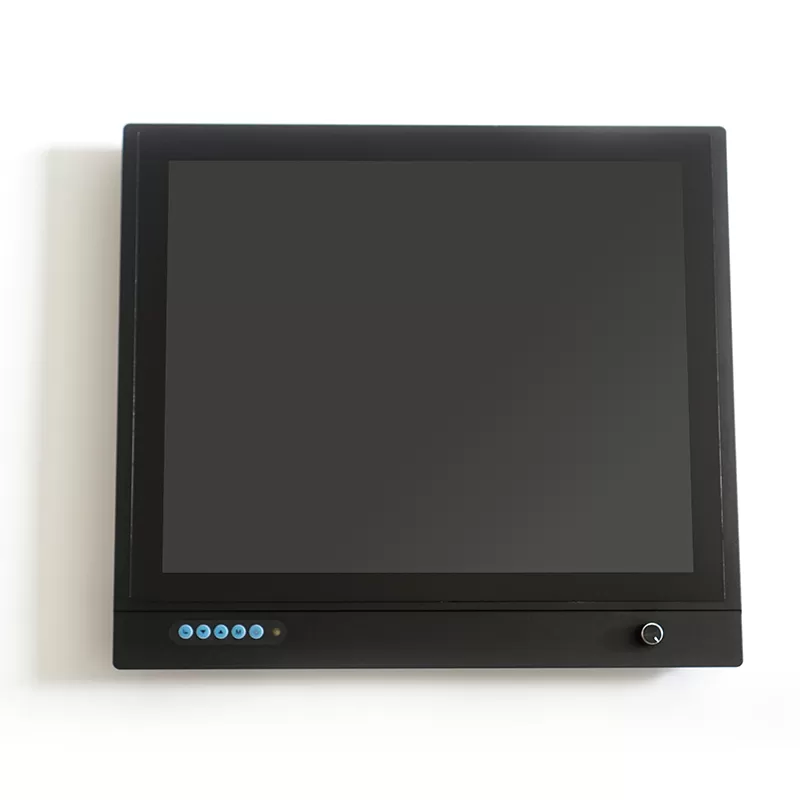

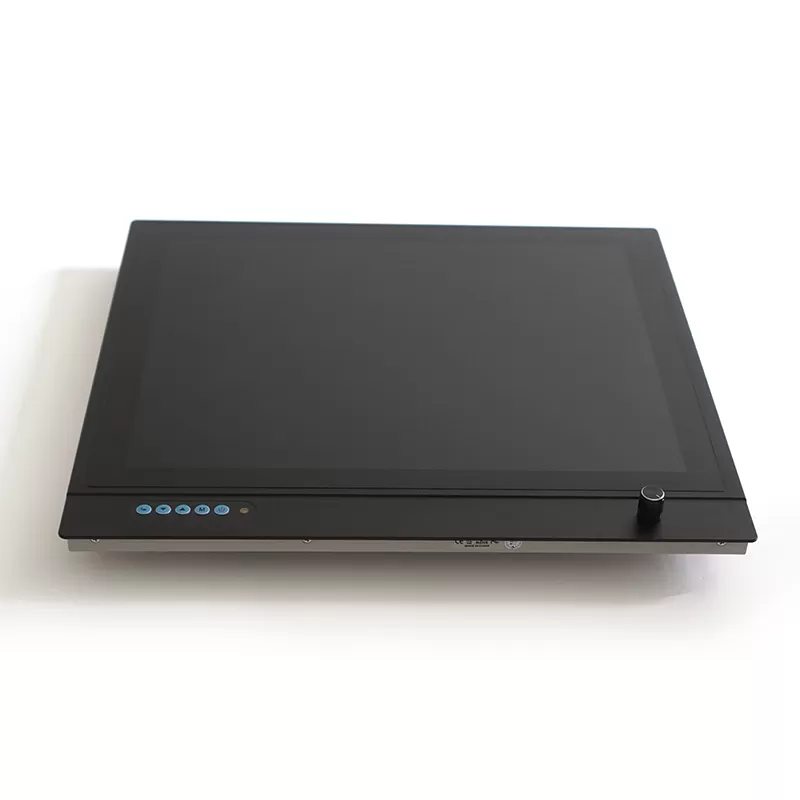

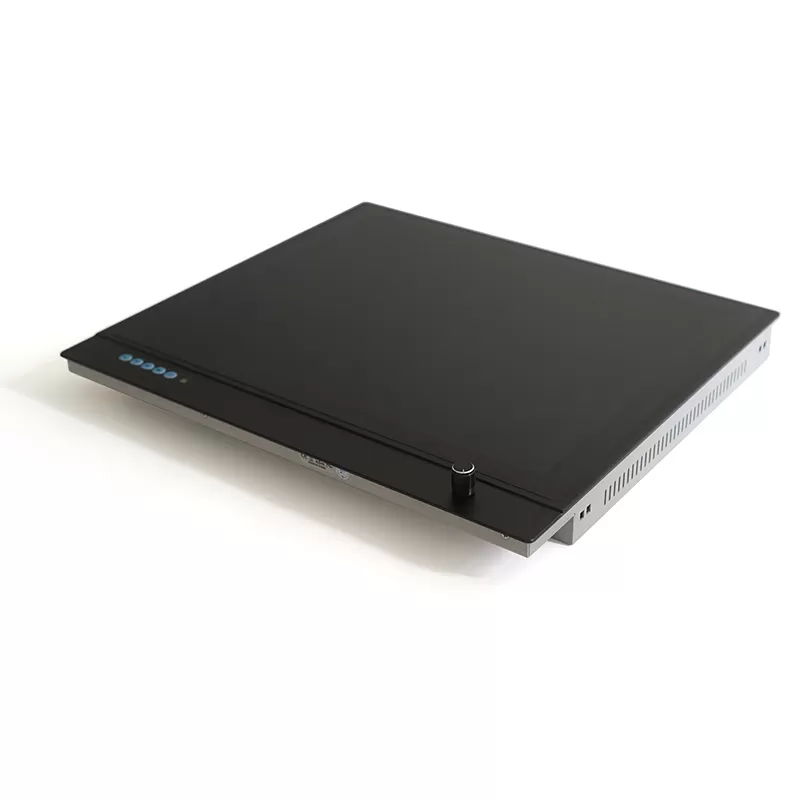

Model: SATA17M
Features:
1. Industrial 17'' LCD panel, 1280*1024 resolution, wide viewing angle, high nits, true color.
2. Adopt multi-points PCAP touch panel , high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof. Optical bonding technique.
3. EETI waterproof solution, touch function can work well with drop water on the screen.
4. High brightness 1000 nits, sunlight readable.
5. Anti glare.

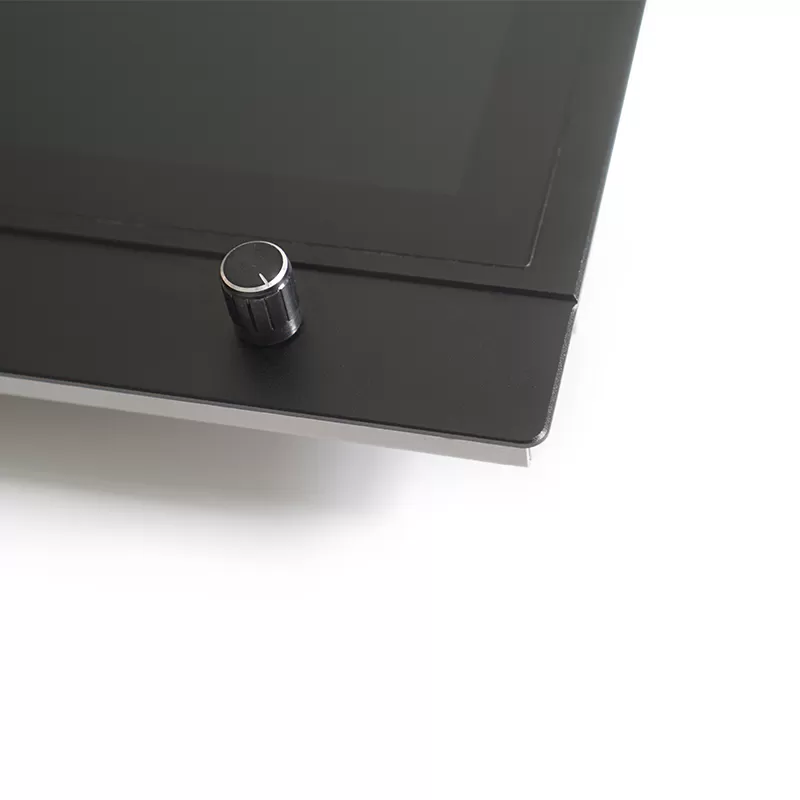

6. With a dimmer for adjusting the brightness, can adjust the brightness from 100% to 0.
7. High performance mainboard, 7x24 continuous operation.
8. VGA+HDMI+DVI+USB for touch.
9. Support embedded mounting, ceiling monut, wall mounting, desk stand mouting etc.
| LCD panel | |
| Panel size | 17" |
| Resolution | 1280*1024 |
| Aspect ratio | 5:4 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits, sunlight readable |
| Brightness control | Manual dimmer |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Treatment | Anti glare |
| Surface Hardness | 7H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 Optional) |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (5 wires resistive touch, non touch Optional) |

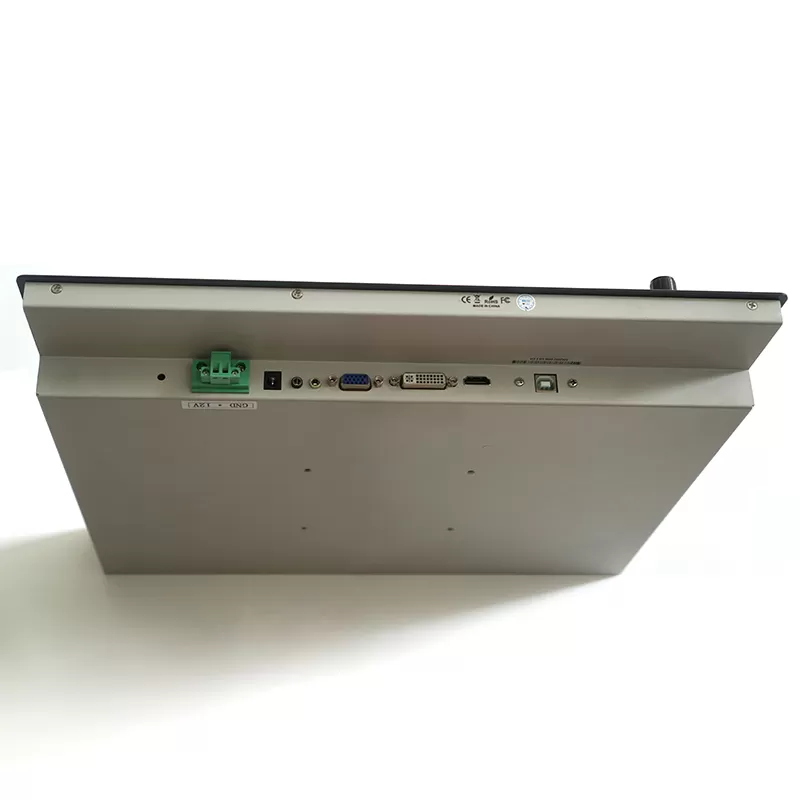

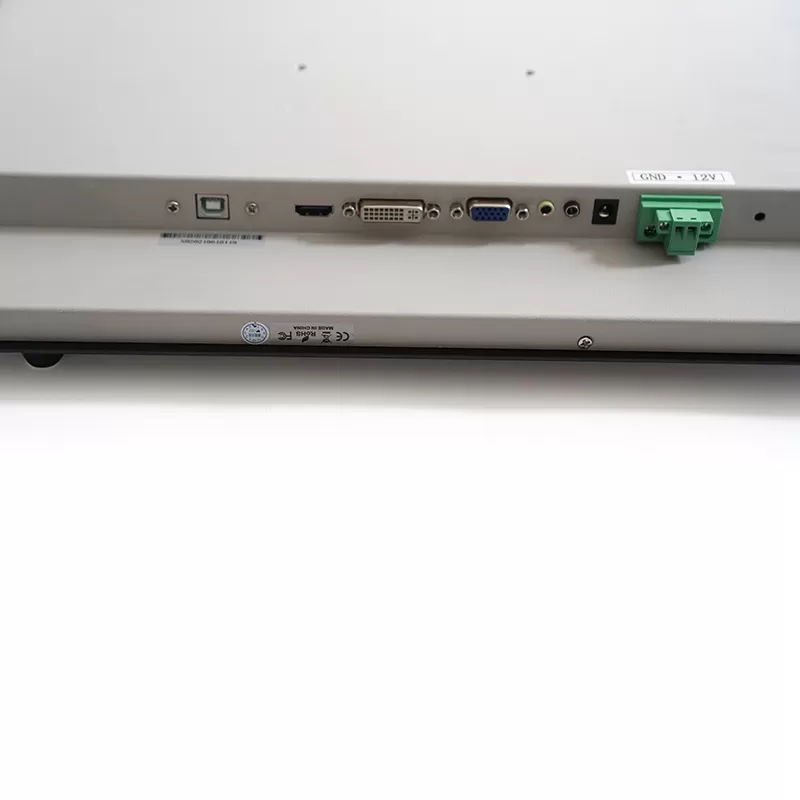

| Signal Ports | |
| VGA | 1x VGA |
| HDMI | 1x HDMI |
| DVI | 1x DVI |
| Phoenix terminal | 1x 12V Phoenix terminal |
| Audio in/out | Optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
| Support OS | Windows XP, Windows 7/8/10, Linux, Mac OS X, Android, etc. |
| Power Supply | |
| External Power Supply | AC 100-240V, 50-60Hz |
| Working voltage | DC 12V |
| Power consumption | ≤45W |
| Enclosure | |
| Material | Aluminum Alloy bezel+High strength cold rolled steel back case |
| Color | Black, Silver |

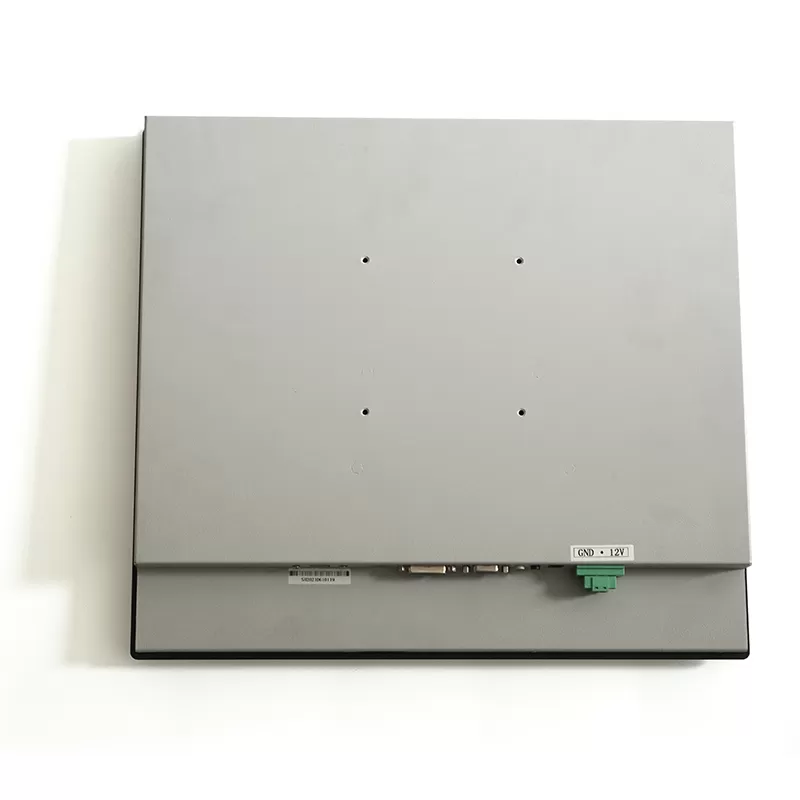

| VESA mounting | 100x100mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | Operating: -20 to 70°C, storage: -30 to 80°C |
| Relative humidity | Operating: 10% to 80%, storage: 5% to 90% |
| Packing Details | |
| Net weight | 6kgs |
| Gross weight | 7kgs |
| Product Dimension | 39.85*35.65*3.98cm |
| Packing size | 53*47*19cm |

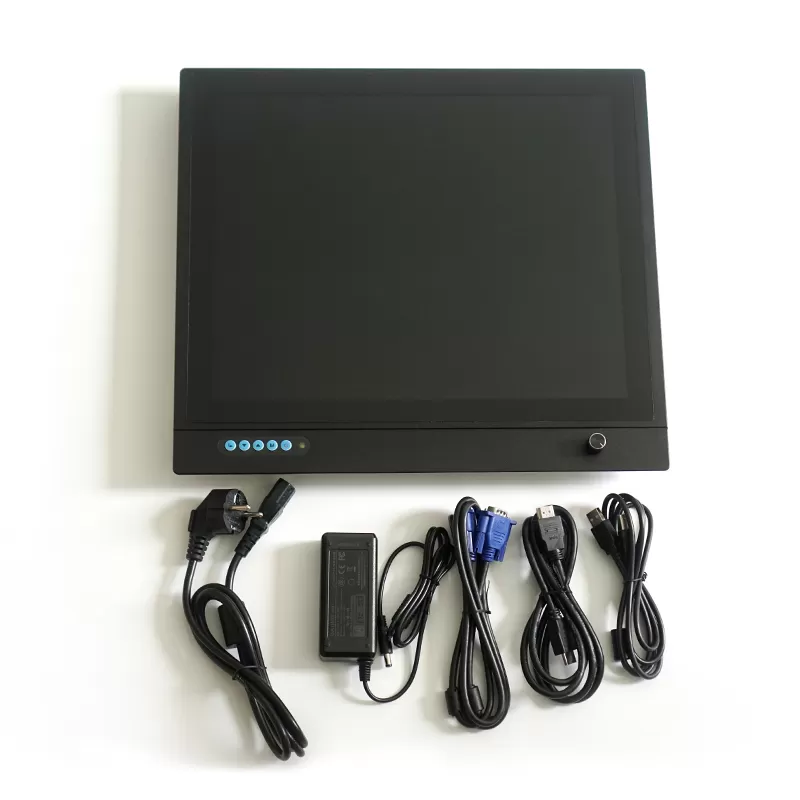

| Accessories | Power adapter, power cord, HDMI cable, USB touch cable, embedded screws |
| Other | |
| Mounting | Embedded mounting screws |
| Wall mounting brackets (Optional) | |
| Desk stand holder (Optional) | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
