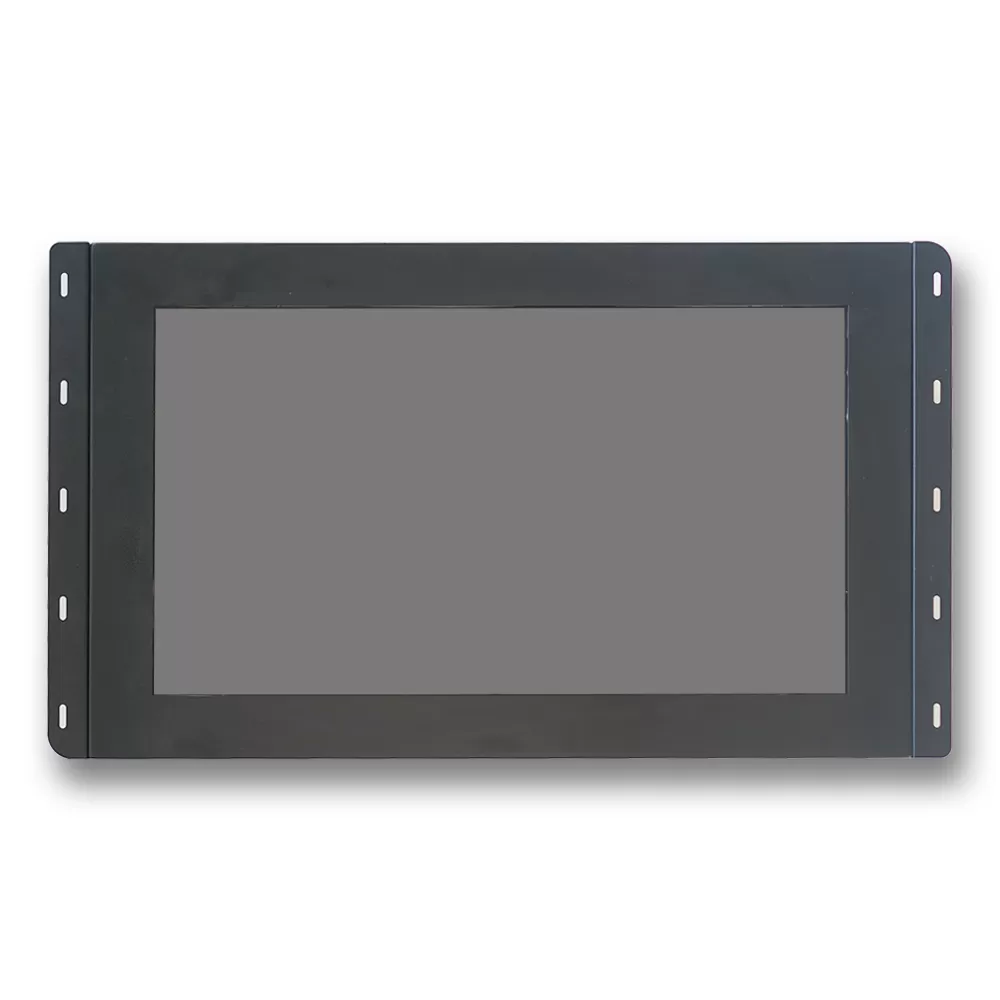

Model: SATA215M
Features:
1. Open frame design, front bezel aluminum alloy brushed metal craft, seamless design, front IP65 waterproof and dustproof.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. EETI waterproof solution, touch function can work well with waterdrop on the screen.
4. 1000 nits, sunlight readable, with light sensor for auto dimming.
5. Anti glare.
6. High performance mainboard, 7x24 continuous operation.
7. Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.
8. Support embedded mounting, wall mounting, desk stand and etc.
| LCD panel | |
| Panel size | 21.5" |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000nits, sunlight readable |
| Brightness control | Light sensor for auto dimming |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Treatment | Anti glare |
| Surface Hardness | 7H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 Optional) |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (5 wires Resistive touch, non touch Optional) |

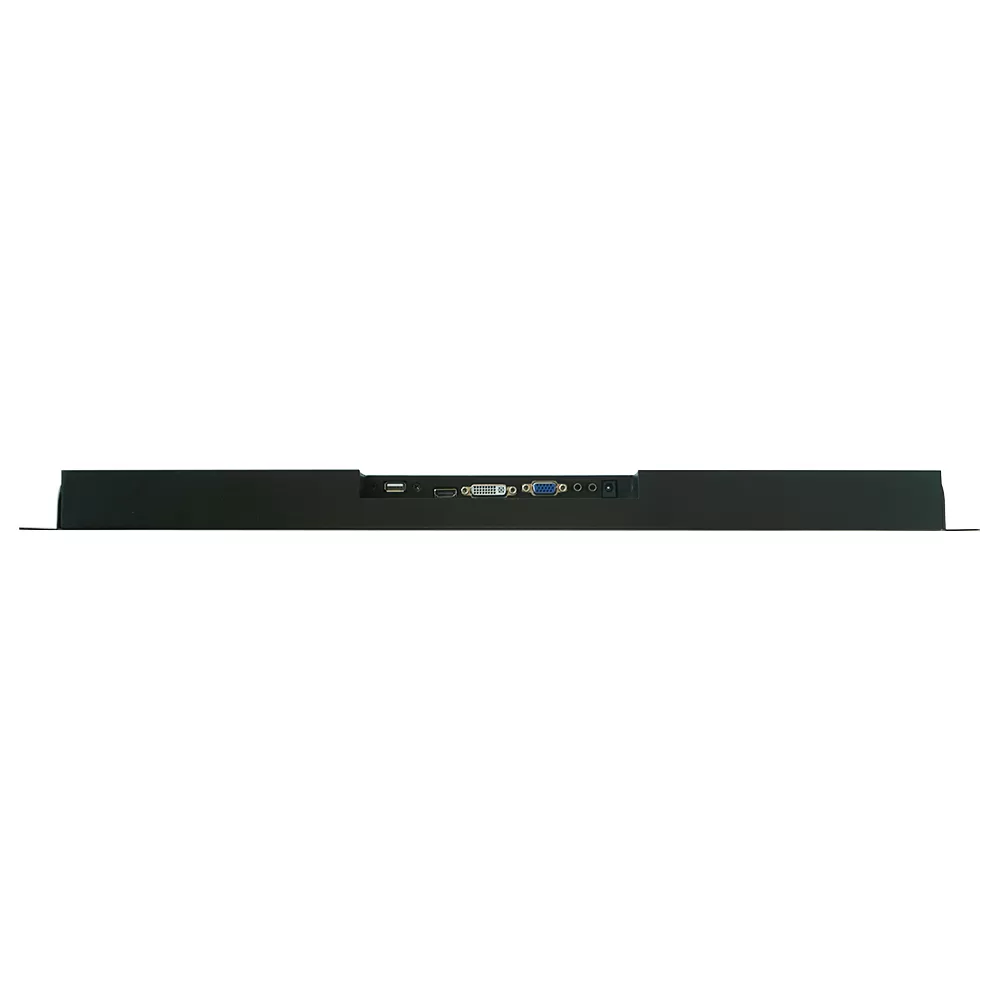

| Signal Ports | |
| VGA | 1×VGA |
| HDMI | 1×HDMI |
| DVI | 1×DVI |
| Audio in/out | Optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP, Windows 7/8/10, Linux, Mac OS X, Android and etc. |
| Power Supply | |
| External Power Supply | AC 100-240V, 50-60Hz |
| Working voltage | DC 12V |
| Power consumption | ≤35W |
| Enclosure | |
| Material | Aluminium alloy bezel+High strength cold rolled steel back case |
| Color | Black (Color can customize) |
| VESA mounting | 100×100mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | Operating: -20 to 70°C, storage: -30 to 80°C |
| Relative humidity | Operating: 10% to 80%, storage: 5% to 90% |
| Packing Details | |
| Net weight | 9kgs |
| Gross weight | 12.5kgs |

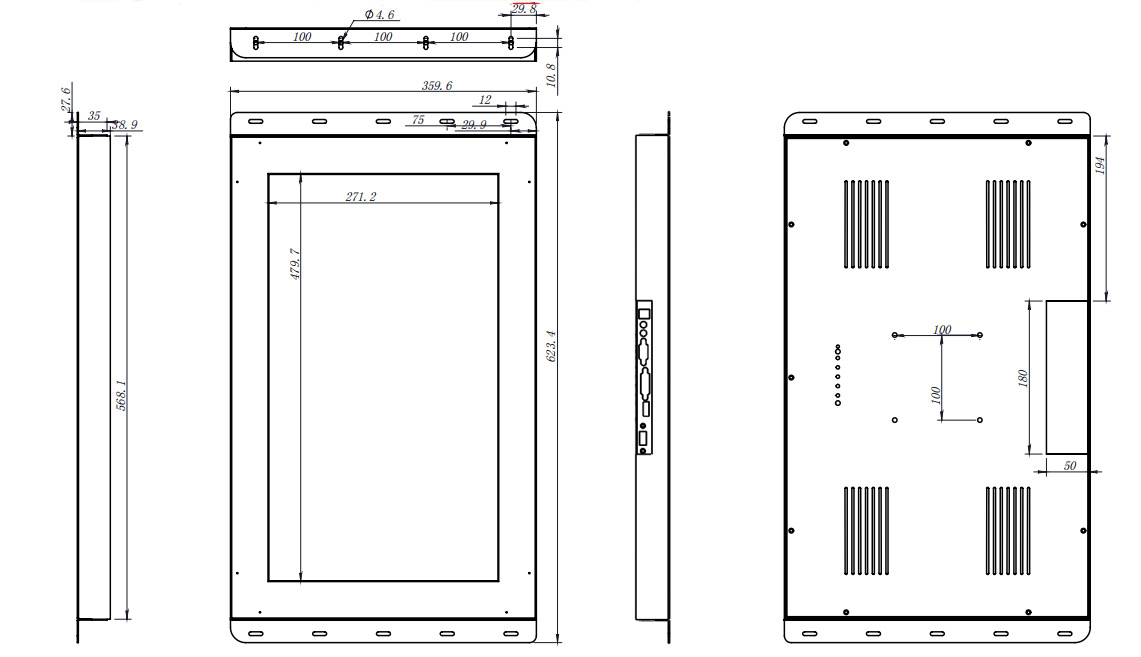

| Product Dimension | 56.81×35.96×3.89cm |
| Packing size | 65×47×20cm |

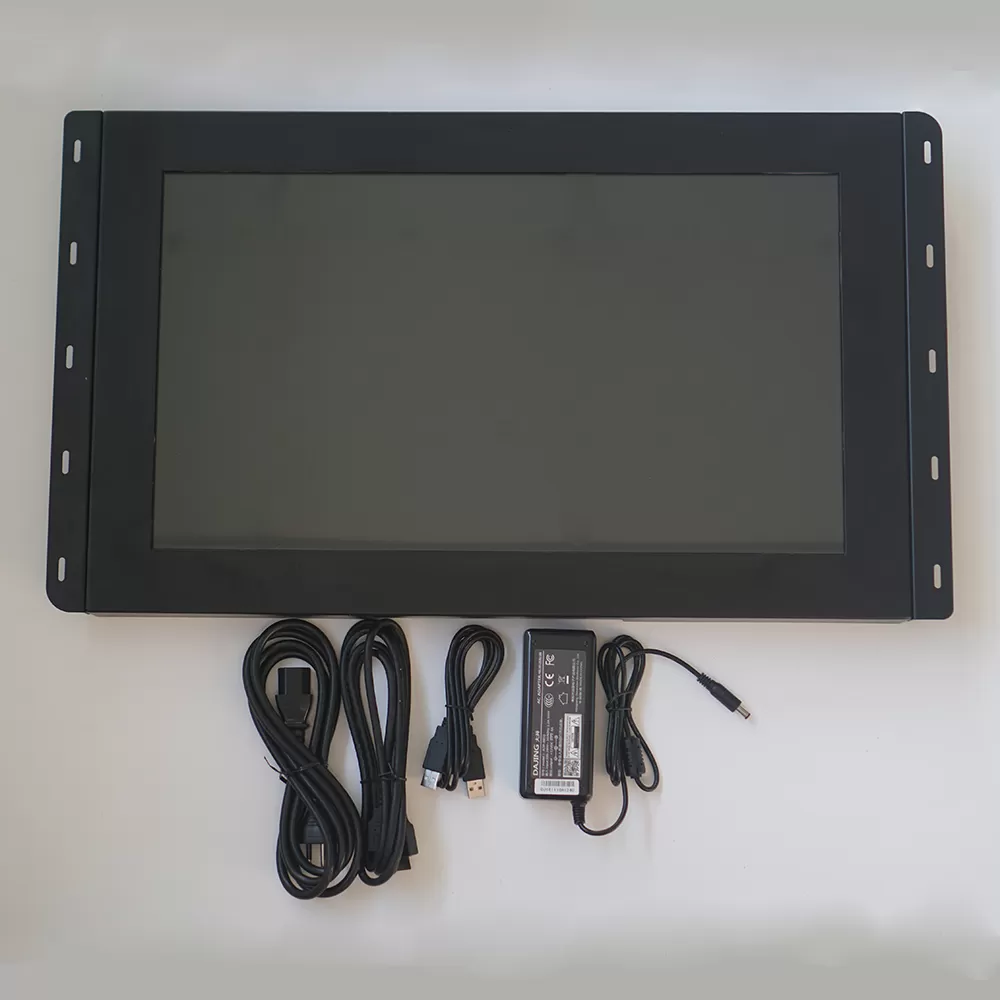

| Accessories | Power adapter, power cord, USB touch cable, HDMI cable, open frame mounting kits |
| Other | |
| Mounting | Open frame |
| Wall mounting brackets (Optional) | |
| Desk stand holder (Optional) | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
