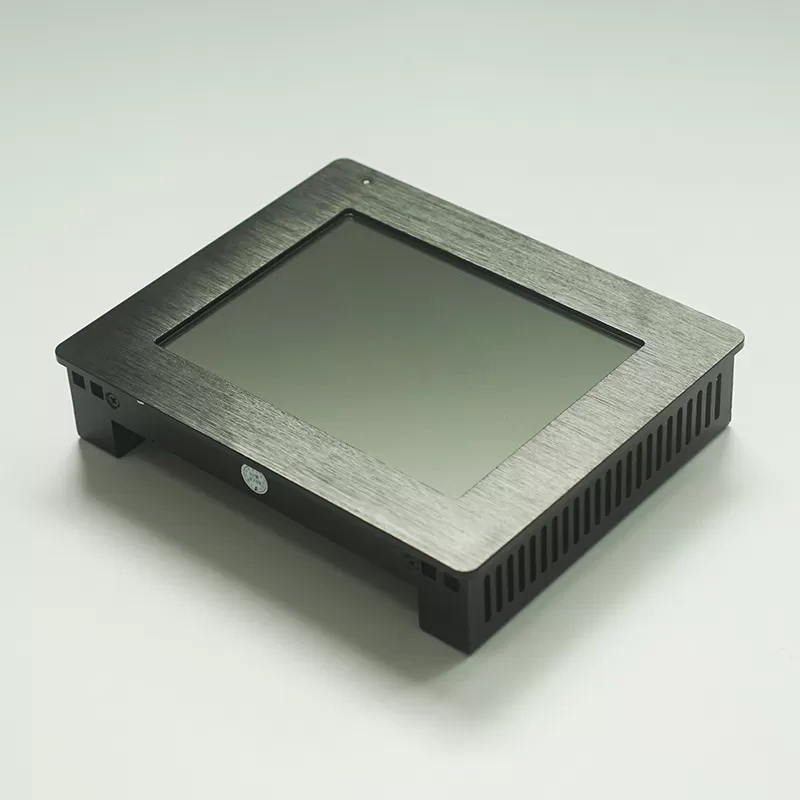

Model: SATA057M
Features:
1. Robust and durable all-metal enclosure.
2. Industrial LCD panel, wide viewing angle, high nits, 1000 nits, sunlight readable.
3. Front panel IP65 waterproof.
4. High performance mainboard, 7x24 continuous operation.

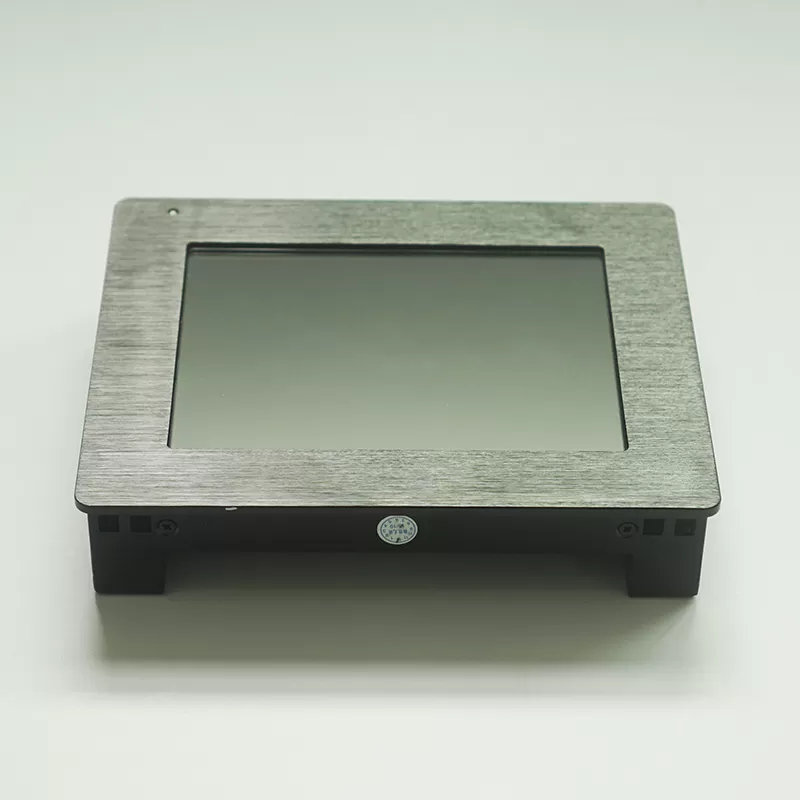

5. 3mm thin front bezel, ideal for panel mount.
| LCD panel | |
| Panel size | 5.7" |
| Resolution | 640*480 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness | 1000cd/m², sunlight readable |
| Contrast ratio | 900:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |

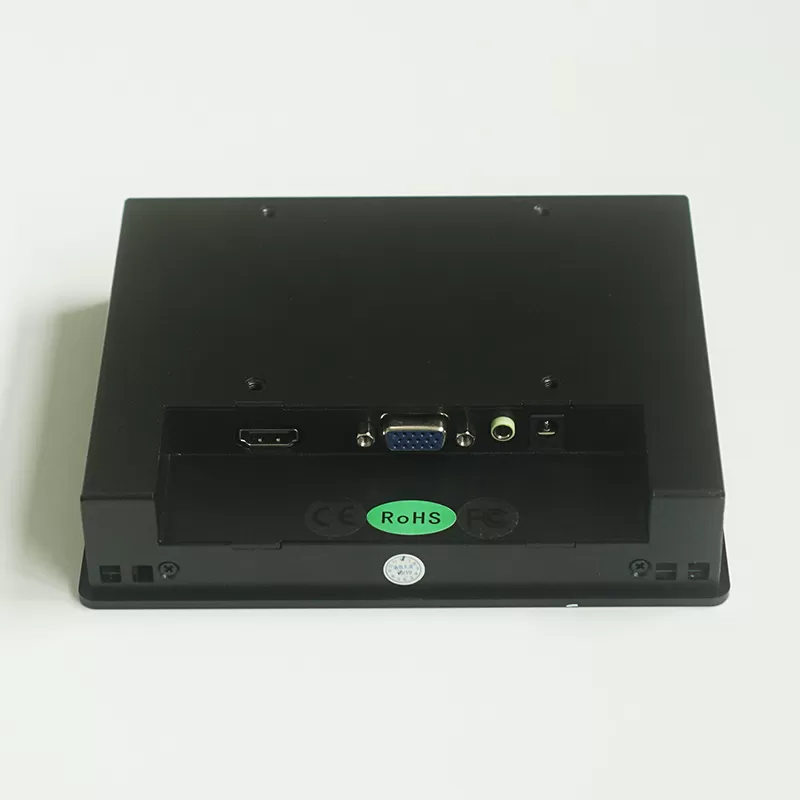

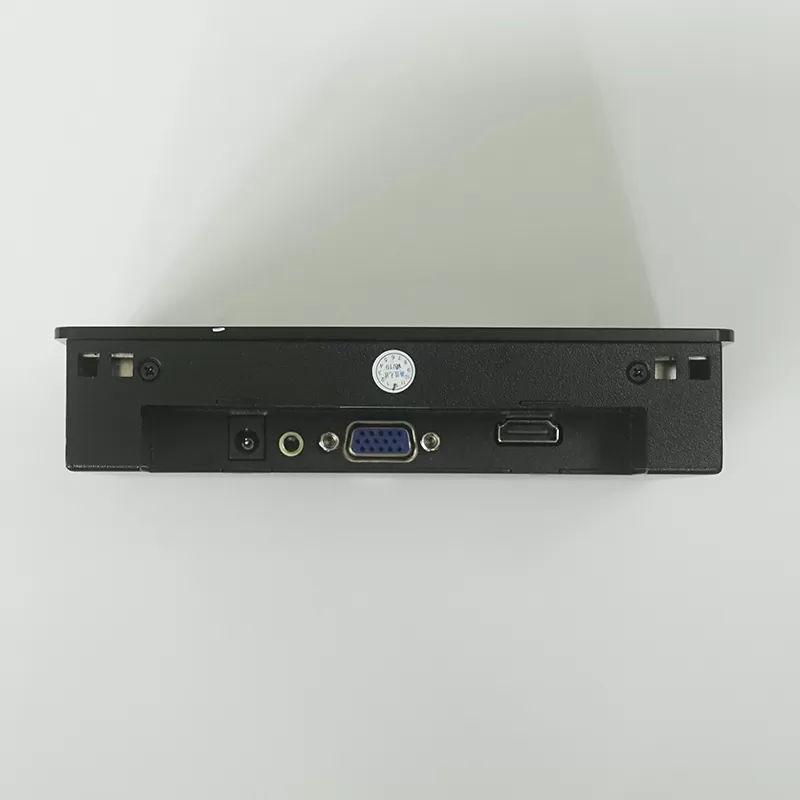

| Singal Ports | |
| VGA | 1x VGA |
| HDMI | 1x HDMI |
| DVI | Optional |
| Audio in/out | Optional |

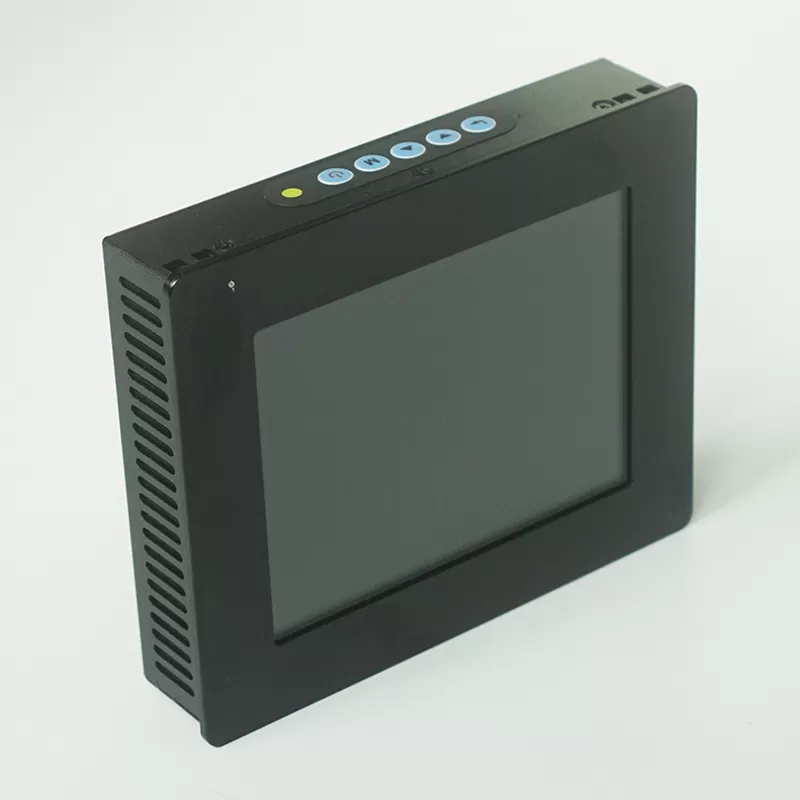

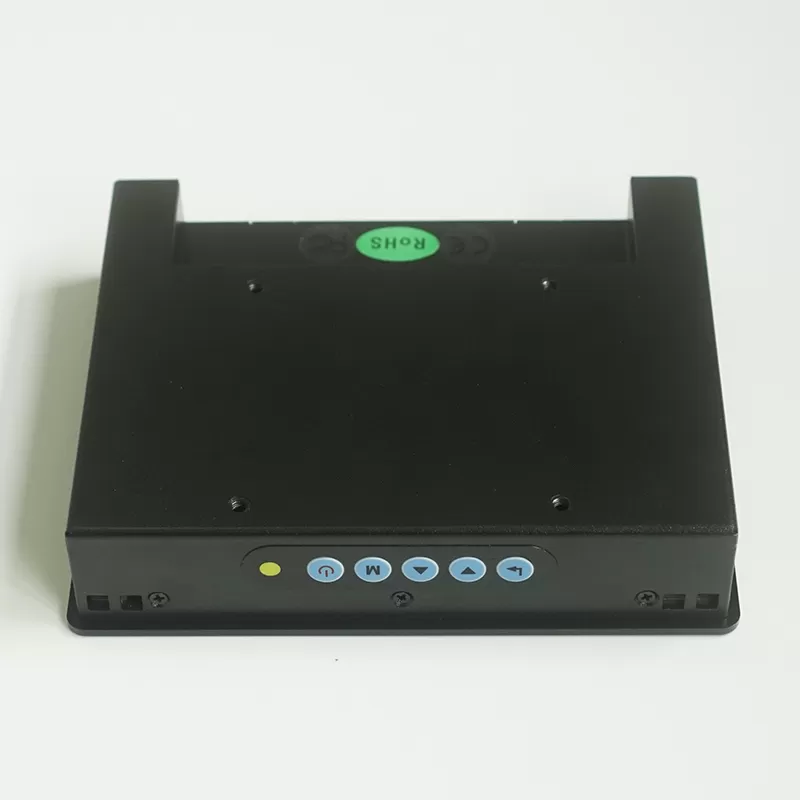

| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
| Support OS | Windows XP, Windows 7/8/10, Linux, Mac OS X, Android, etc. |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤10W |

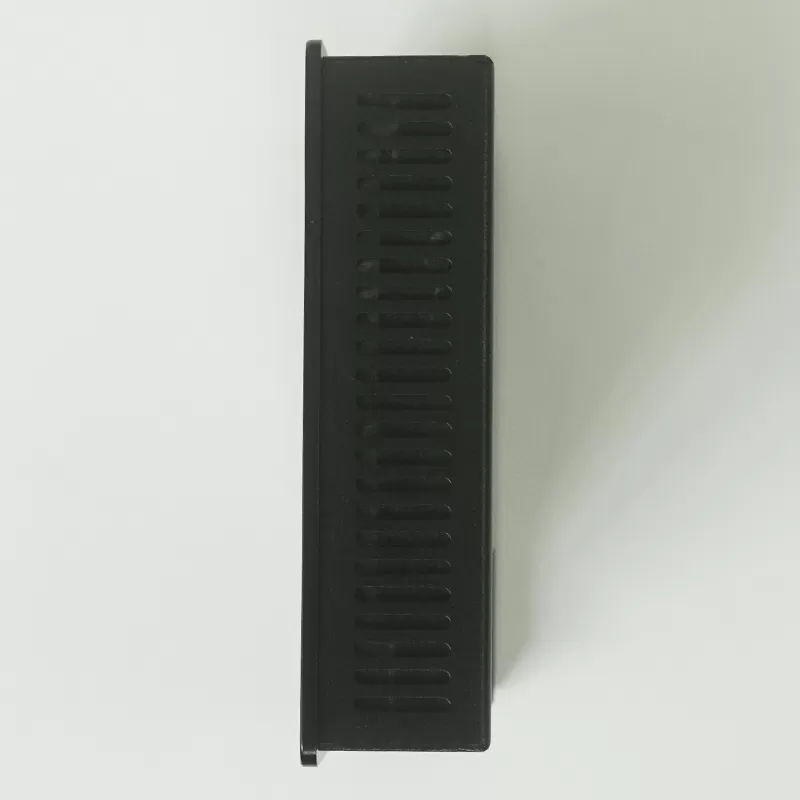

| Enclosure | |
| Material | Aluminum alloy front frame+ High strength cold rolled steel rear case |
| Color | Black, White, Silver, color can be customized |
| VESA mounting | 75x75mm |
| Operating Environment | |
| Temperature Range | Operating: -20 to 70°C, storage: -30 to 80°C |
| Relative humidity | Operating: 10% to 90%, storage: 5% to 90% |
| Packing Details | |
| Net weight | 1kg |
| Gross weight | 1.8kgs |

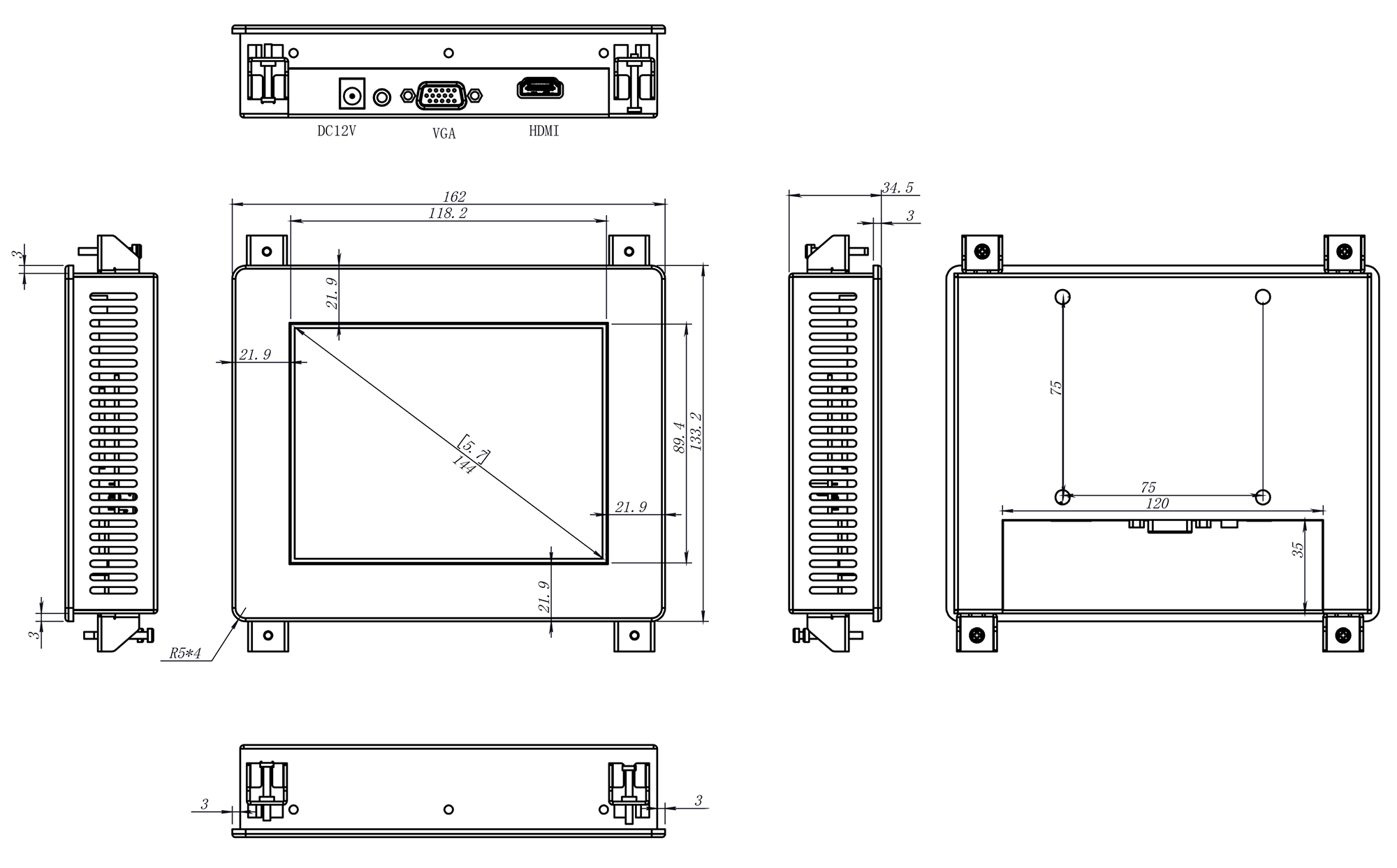

| Product Dimension | 16.2x13.32x3.45cm |
| Packing size | 24x20x11cm |

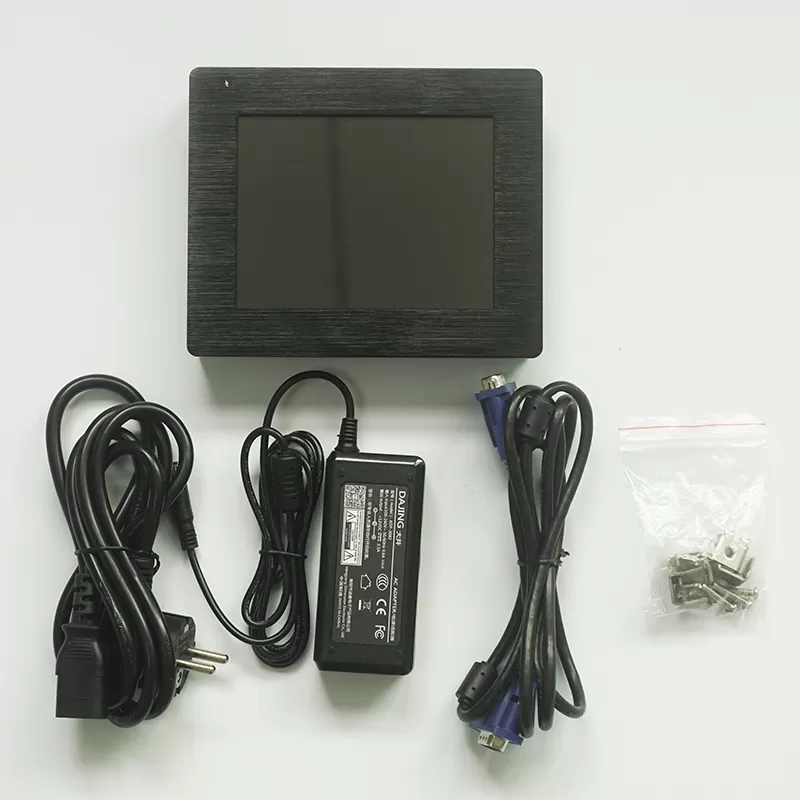

| Accessories | Power adapter, VGA cable, embedded screws. |
| Other | |
| mounting | Embedded mounting |
| Wall mounting brackets (Optional) | |
| Desk stand holder (Optional) | |
| Warranty | 1 year warranty |
