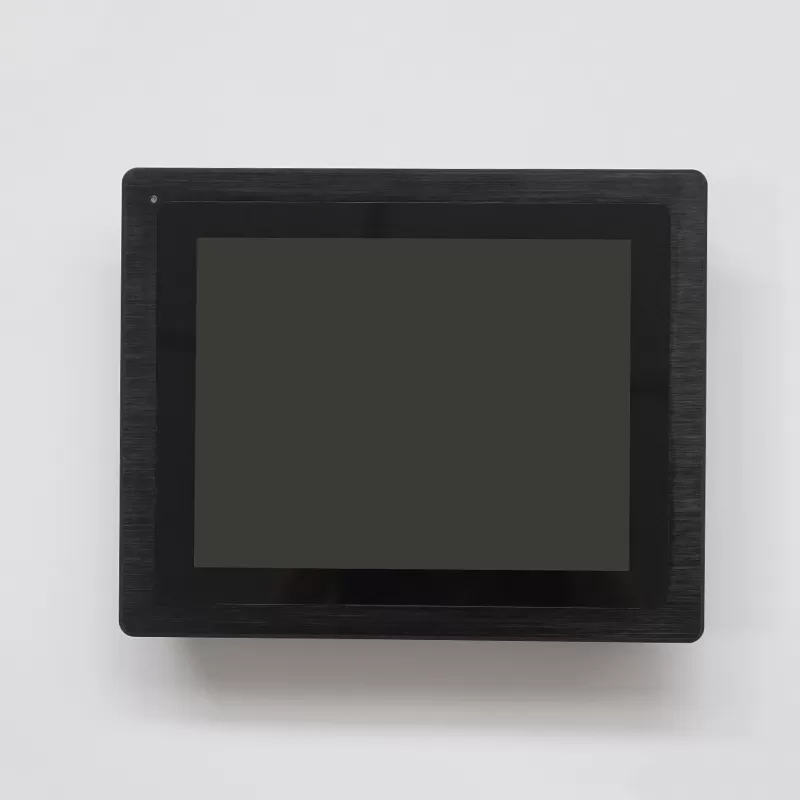

Model: SATA08M
Features:
1. Front bezel aluminum alloy brushed metal craft, seamless design, front IP67 waterproof and dustproof.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
4. EETI waterproof solution, touch function can work well with drop water on the screen.
5. 1000 nits, sunlight readable, with light sensor for auto dimming.
6. High performance mainboard, 7x24 continuous operation.
7. Wide Temperature Range: operating: -20 to 70°C, storage: -30 to 80°C.
8. Support wall mounting, embedded mounting, desk stand mouting etc.
| LCD panel | |
| Panel size | 8" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits, sunlight readable |

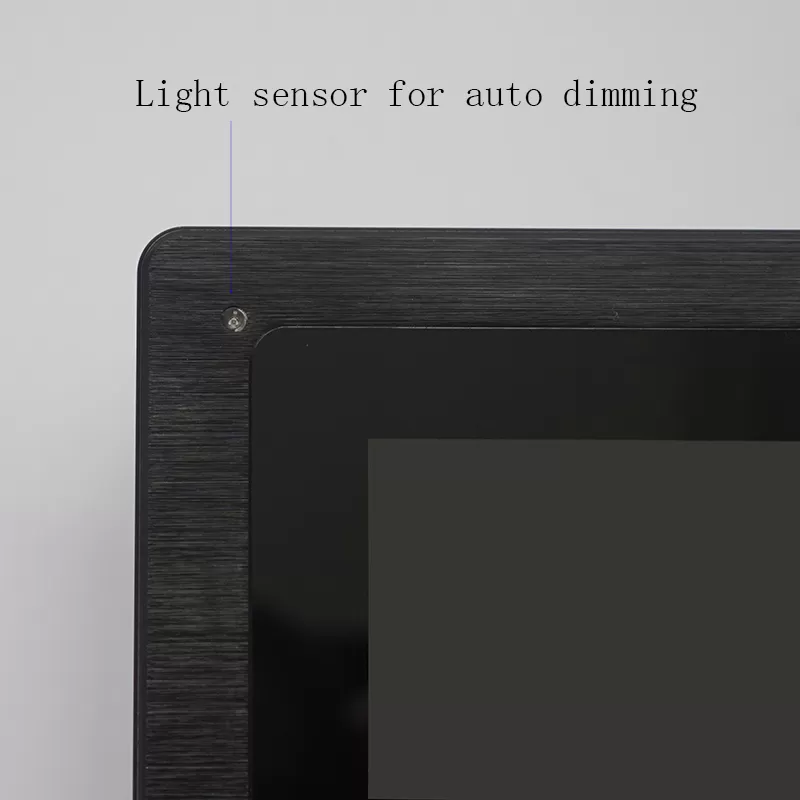

| Brightness control | Light sensor for auto dimming |
| Contrast ratio | 800:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Hardness | 3H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 Optional) |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (5 wires restive touch, non touch Optional) |

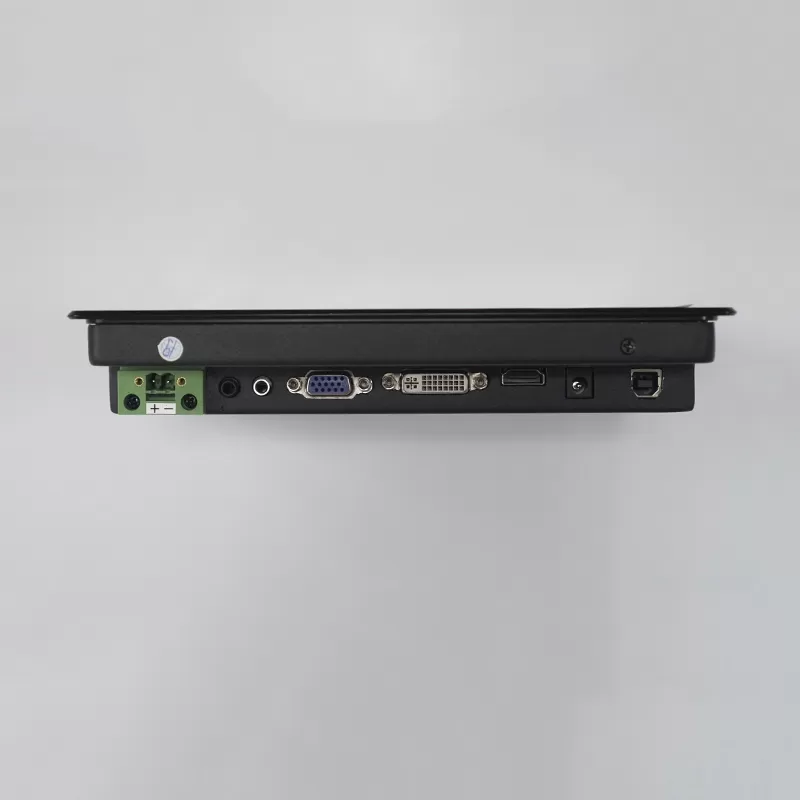

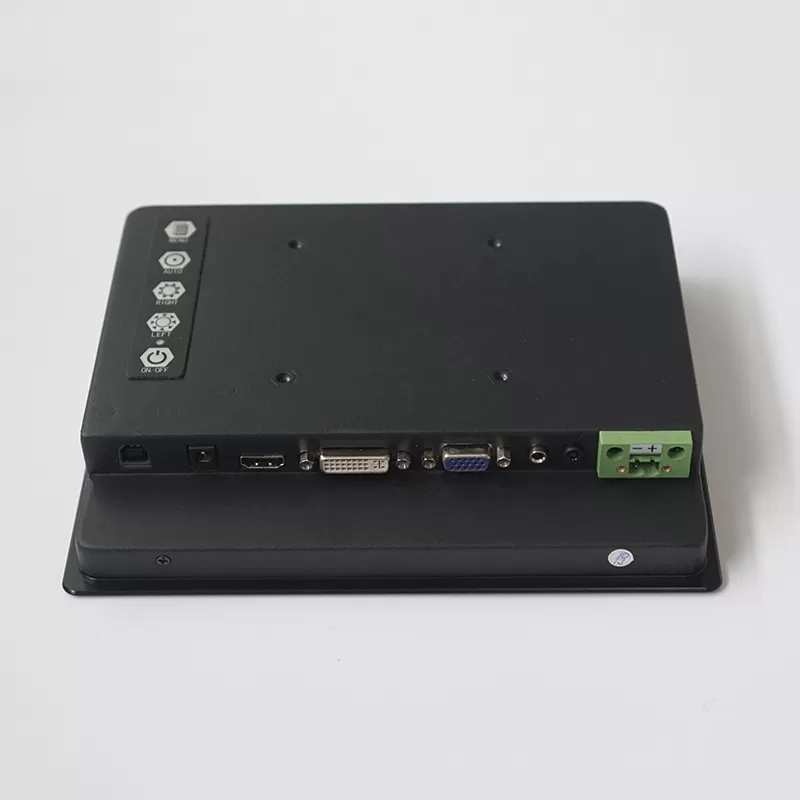

| Signal Ports | |
| VGA | 1x VGA |
| HDMI | 1x HDMI |
| DVI | 1x DVI |
| Audio in/out | Optional |

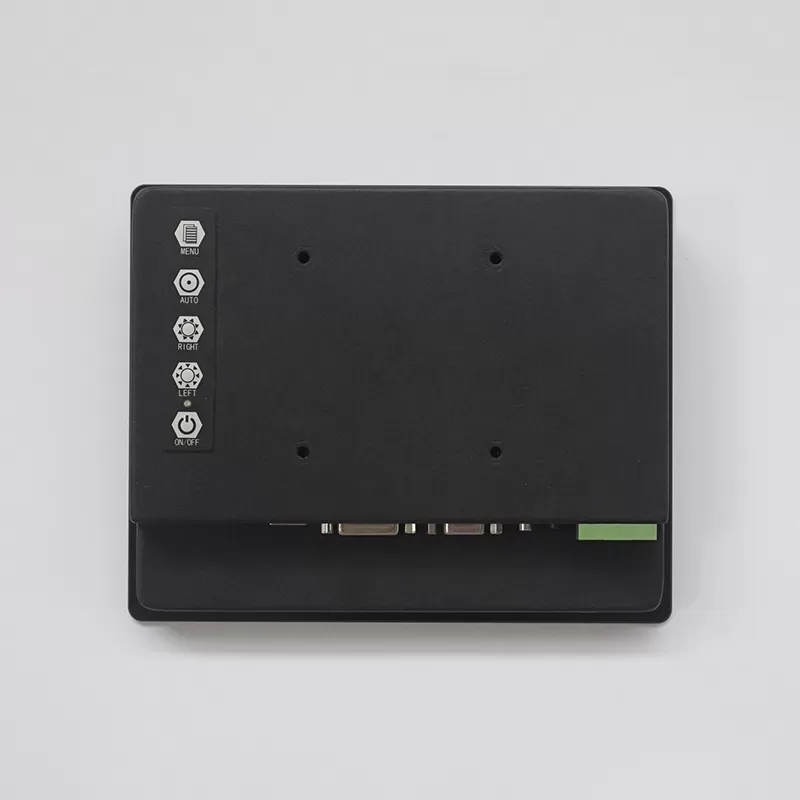

| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP, Windows 7/8/10, Linux, Mac OS X, Android and etc. |
| Power Supply | |
| External Power Supply | AC 100-240V, 50-60Hz |
| Working voltage | DC 12V |
| Power consumption | ≤35W |
| Enclosure | |
| Material | Aluminium alloy bezel+High strength cold rolled steel back case |
| Color | Black, white, Silver, color can be customized |
| VESA mounting | 75×75mm |
| IP grade | Front panel IP67 waterproof |
| Operating Environment | |
| Temperature Range | Operating: -20 to 70°C, storage: -30 to 80°C |
| Relative humidity | Operating: 10% to 80%, storage: 5% to 90% |
| Packing Details | |
| Net weight | 1.6kgs |
| Gross weight | 2.3kgs |

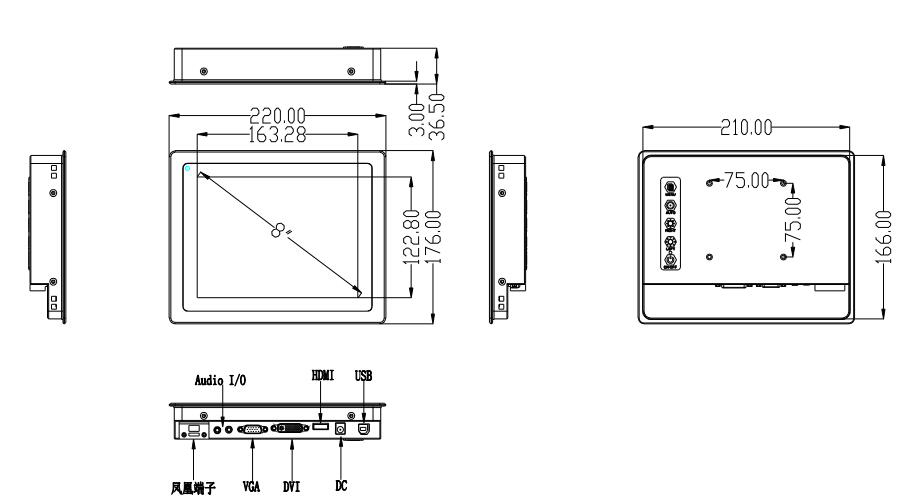

| Product Dimension | 22×17.6×3.65cm |
| Packing size | 29×26×16cm |

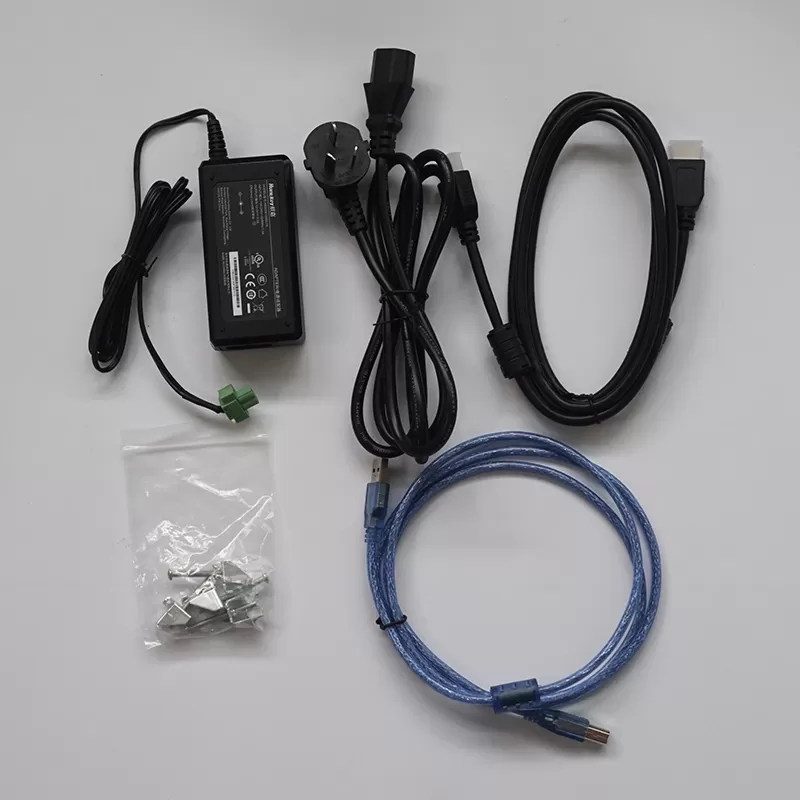

| Accessories | Power adapter, USB touch cable, HDMI cable, embedded screws |
| Other | |
| Mounting | Embedded mounting |
| Wall mounting brackets (Optional) | |
| Desk stand holder (Optional) | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
