Model: SATA410
Features:
1. Built-in 2*fan for heat dissipation;
2. High performance motherboard, 7x24 continuous operation;
3. Support processor Intel i3 3210, i5 3450 and i7 3770;
4. Wall mount Quad Slot industrial box, high-end flowers-free zinc plating;
5. Onboard Intel B75 Chipset;
6. Support 1*MSATA, 1*2.5 inches and 1*3.5 inches hard disk section;
7. Support 6*COM(COM2 support RS232/RS422/RS485);
8. Support 1*PCI-E 16X, 1*PCI-E X4, 2*PCI Slot;
9. Compatible Windows xp/7/8/10, Ubuntu, Debian, Fedora and etc.
| PC | |
| CPU | Intel® Core i3-3210, dual core, four threads, 3.2GHz |
| CPU Optional | Intel® Core i5-3450, Quad core, Quad threads, 3.1GHz, Max 3.5GHz |
| CPU Optional | Intel® Core i7-3770, Quad core, eight threads, 3.4GHz, Max 3.9GHz |
| Chipset Group | Intel B75 |
| Memory | Support 2*DDR3 1333/1600MHz, DIMM Slot max 16GB |
| BIOS | AMI UEFI BIOS |
| Display chip | Integrated Intel HD Graphics 2500/4000 |
| Storage | Support 1*MSATA, 1*2.5'' and 3.5" SSD/HDD, 2*2.5" SSD(Optional) |
| Display | 1xVGA, 1xDVI-D (Support synchronous and asynchronous display, dual display) |
| Network | 2*Intel RTL8111E 10/100M/1000M Lan |
| Front I/O | 2*USB2.0, 1*Power Switch |
| Rear I/O | 4*USB3.0, 2*RJ45(1000M), 2*PS/2, 1*VGA/DVI-D, 2*Audio, 6*COM(COM2 Support RS232/442/485 Optional) |
| Expansion | 1*PCIE X16, 1*PCI-E X4, 2*PCI(Depth 320mm) Built-in 1*USB2.0 port |
| Interface(Optional) | GPIO, LPT, 4*USB2.0 |
| Operation System | Support Windows xp/7/8/10, Ubuntu, Debian, Fedora and etc. |
| Power Supply | |
| External Power Supply | AC 100-230V(50-60Hz), 250W rated power |
| Working voltage | DC 18-36V |
| Power consumption | ≤40W |
| Enclosure | |
| Material | High-end flowers-free zinc plating |
| Color | Grey white(color can customize for bulk orders) |
| Operating Environment | |
| Temperature Range | Operating: 0 to 40°C(HDD), -10 to 50°C(SSD), surface air flow |
| Relative humidity | 5%~95%, non-condensing |
| Packing Details | |
| Net weight | 6.4kgs |
| Gross weight | 8kgs |

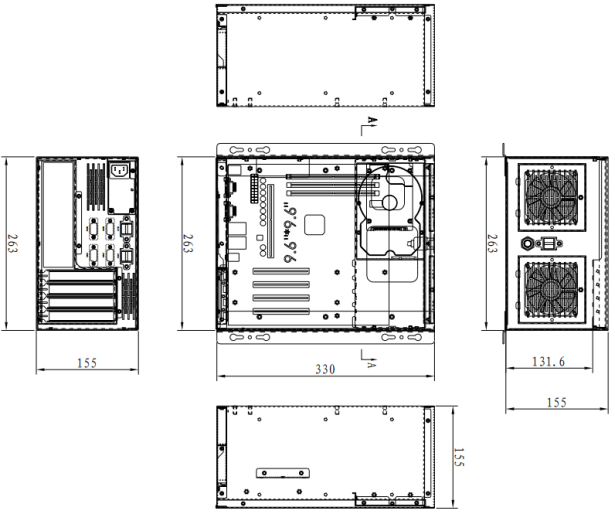

| Product Dimension | 26.3*15.5*33cm |
| Packing size | TBD |
| Accessories | Power adapter, wall mount bracket, CD card, user manual, warranty card |
| Other | |
| Mounting way | Wall mount |
| Warranty | 3 years warranty |
