Model: SATA07
Features:
1. Intel 8/9/10 H series Core i5/i7 CPU Optional.
2. DDR4 SODIMM x2, up to 32GB.
3. 6*DB9 COM serial ports(two support RS485/RS422 Optional).
4. 2*Intel i225V 2.5G network cards.
5. Watchdog, no disk start-up.
6. Low power consumption without fan.
7. Windows® 10, WES 10, Ubuntu, Debian, Fedora and etc.
| PC | |
| CPU | Intel® Core i7-10875H, eight core, sixteen thread, 2.3GHz, Turbo 5.1GHz |
| Memory | 2x SODIMM DDR4 (Can up to 32GB) |
| Storage | 1x MSATA, 1x M.2 NVME 2280, 1x HDD/SSD |
| Display | 3xHDMI |
| Display Chip | Integrated Intel HD Graphics card |
| Network | 2x2.5GbE RJ45 Intel i225V |
| I/O Interface | 4x USB 3.0, 2x USB 2.0, 6x DB9 COM(two support RS232/RS285/RS422 Optional), 2x 2.5G LAN, 3x HDMI, 1x PS/2, 14xGPIO(7 in, 7 out), 1x Audio/MIC, 2*WIFI Antenna(WIFI/3G/4G), 1x Power switch/reset/clear CMOS/DIP Switch(Support ATX/AT Start-up mode Optional), 1x3pin phoenix power socket 9-36V |
| Expansion | 1x Mini-PCIE Half size (support WIFI/Bluetooth); 1x Mini-PCIE Full size(with SIM Card Socket) support 3G/4G, WIFI, Bluetooth |
| Operation System | Support Windows® 10, WES 10, Ubuntu, Debian, Fedora and etc. |
| Other function | Watch dog, no disk start-up |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 9-36V |
| Power consumption | ≤40W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Black |
| Operating Environment | |
| Temperature Range | Operating: -20 to 60°C, storage: -30 to 70°C |
| Relative humidity | 10%~90% @30°C, non-condensing |
| Packing Details | |
| Net weight | 1kg |
| Gross weight | 2kgs |

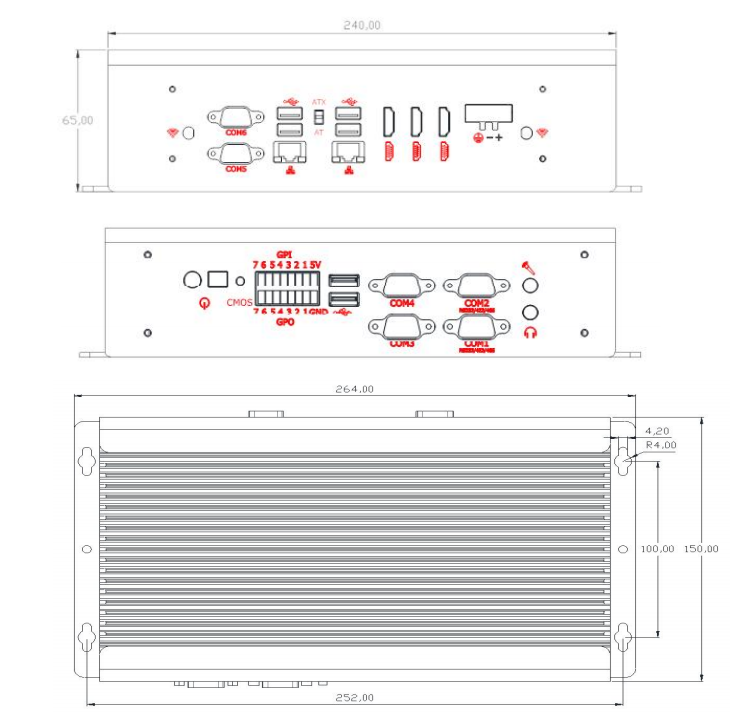

| Product Dimension | 24*15*6.5cm |
| Packing size | 31.5*29*13.3cm 2.7kgs 1pc; Carton size: 68.5*32.5*30.5cm 15kgs 5pcs/ctn |
| Accessories | Power adapter, VESA brackets, screws, user manual, warranty card |
| Other | |
| Mounting (Options) | VESA brackets (free) |
| Desktop | |
| Warranty | 2 years warranty |
