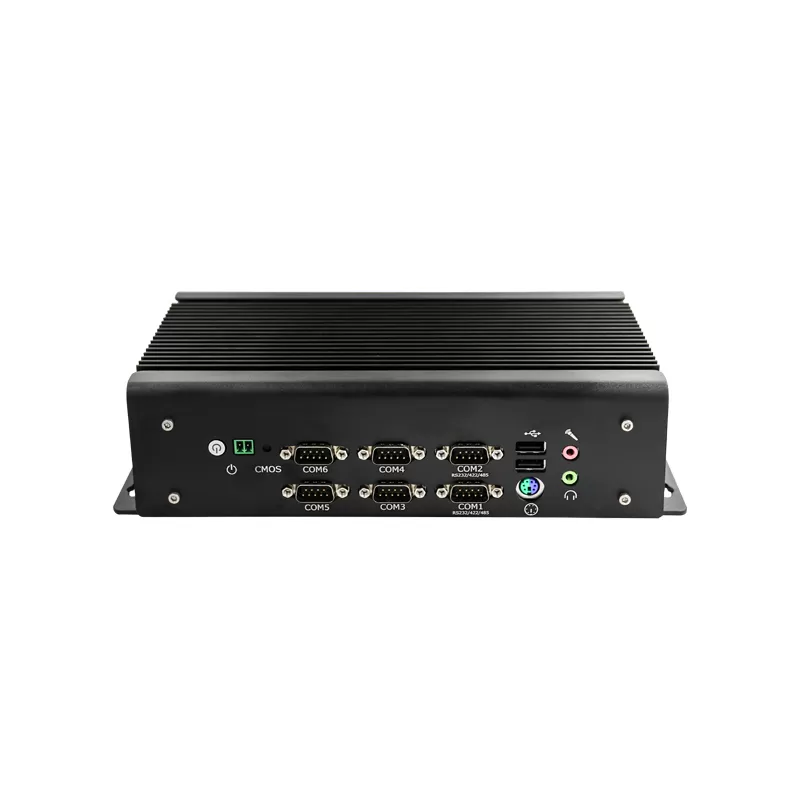

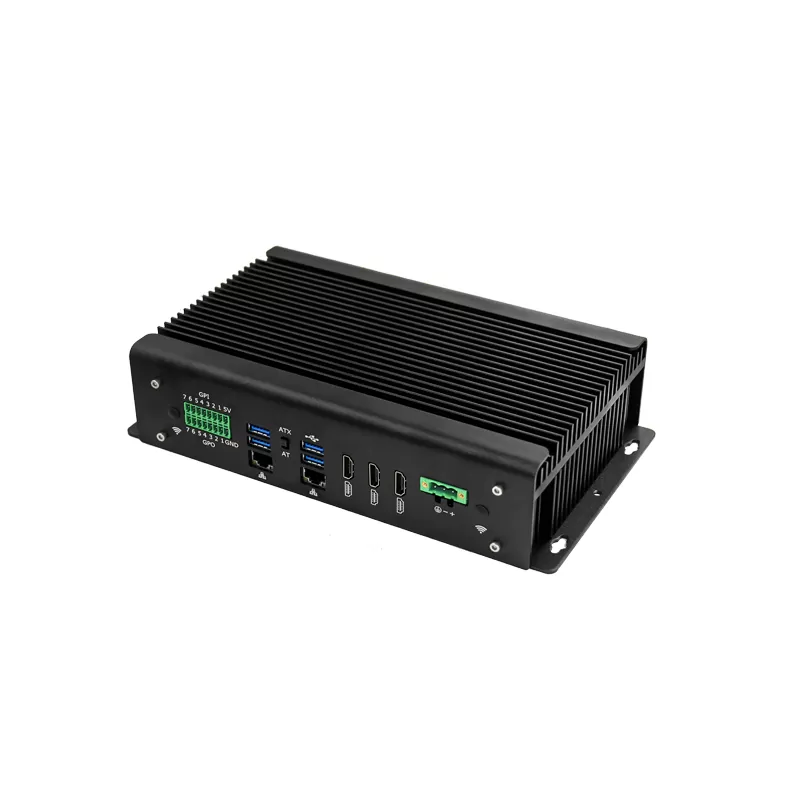

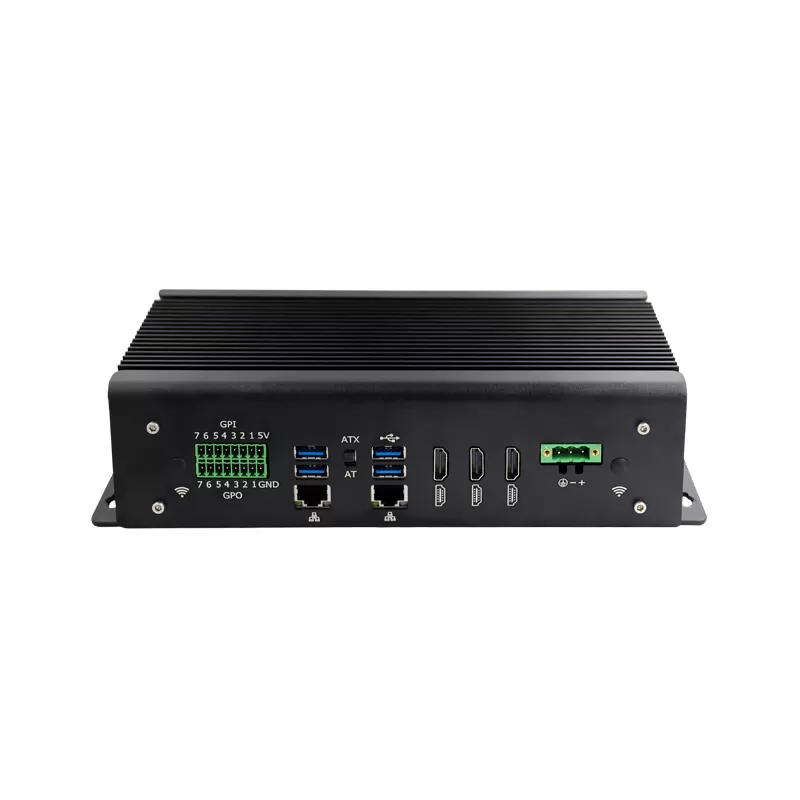

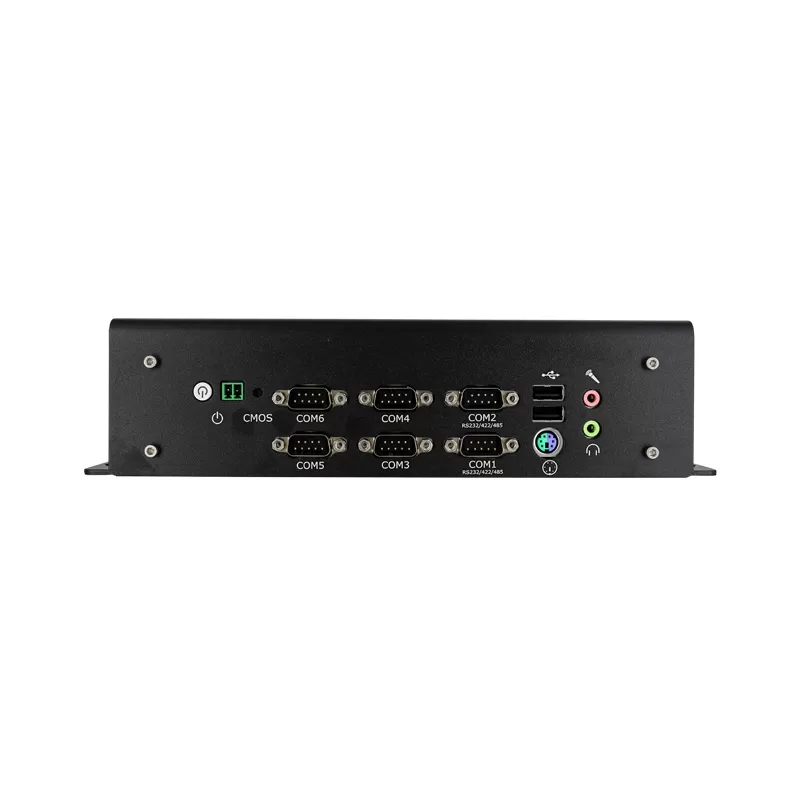

3x HDMI i7 processor Memory up to 32GB Industrial Embedded fanless box computer

Model: SATA07

Features:

1. Intel 8/9/10 H series Core i5/i7 CPU Optional.

2. DDR4 SODIMM x2, up to 32GB.

3. 6*DB9 COM serial ports(two support RS485/RS422 Optional).

4. 2*Intel i225V 2.5G network cards.

5. Watchdog, no disk start-up.

6. Low power consumption without fan.

7. Windows® 10, WES 10, Ubuntu, Debian, Fedora and etc.


PC
CPUIntel® Core i7-10875H, eight core, sixteen thread, 2.3GHz, Turbo 5.1GHz
Memory2x SODIMM DDR4 (Can up to 32GB)
Storage1x MSATA, 1x M.2 NVME 2280, 1x HDD/SSD
Display3xHDMI
Display ChipIntegrated Intel HD Graphics card
Network2x2.5GbE RJ45 Intel i225V
I/O Interface4x USB 3.0, 2x USB 2.0, 6x DB9 COM(two support RS232/RS285/RS422 Optional), 2x 2.5G LAN, 3x HDMI, 1x PS/2, 14xGPIO(7 in, 7 out), 1x Audio/MIC, 2*WIFI Antenna(WIFI/3G/4G), 1x Power switch/reset/clear CMOS/DIP Switch(Support ATX/AT Start-up mode Optional), 1x3pin phoenix power socket 9-36V
Expansion1x Mini-PCIE Half size (support WIFI/Bluetooth);
1x Mini-PCIE Full size(with SIM Card Socket) support 3G/4G, WIFI, Bluetooth
Operation SystemSupport Windows® 10, WES 10, Ubuntu, Debian, Fedora and etc.
Other functionWatch dog, no disk start-up
Power Supply
External Power SupplyAC 100-240V
Working voltageDC 9-36V
Power consumption≤40W
Enclosure
MaterialAluminum Alloy
ColorBlack
Operating Environment
Temperature RangeOperating: -20 to 60°C, storage: -30 to 70°C
Relative humidity10%~90% @30°C, non-condensing
Packing Details
Net weight1kg
Gross weight2kgs
Product Dimension24*15*6.5cm
Packing size31.5*29*13.3cm 2.7kgs 1pc; Carton size: 68.5*32.5*30.5cm 15kgs 5pcs/ctn
AccessoriesPower adapter, VESA brackets, screws, user manual, warranty card
Other
Mounting (Options)VESA brackets (free)
Desktop
Warranty2 years warranty

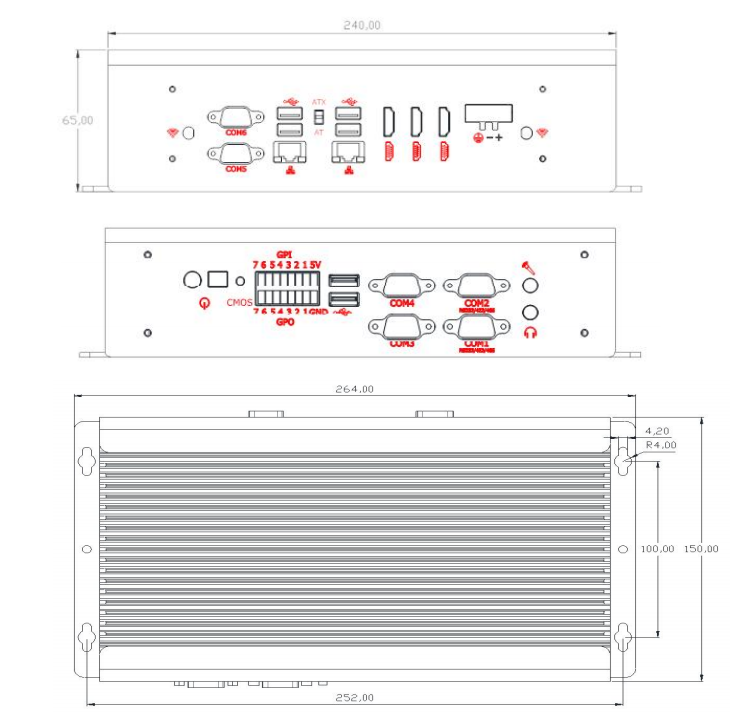

Drawing of SATA07.png
