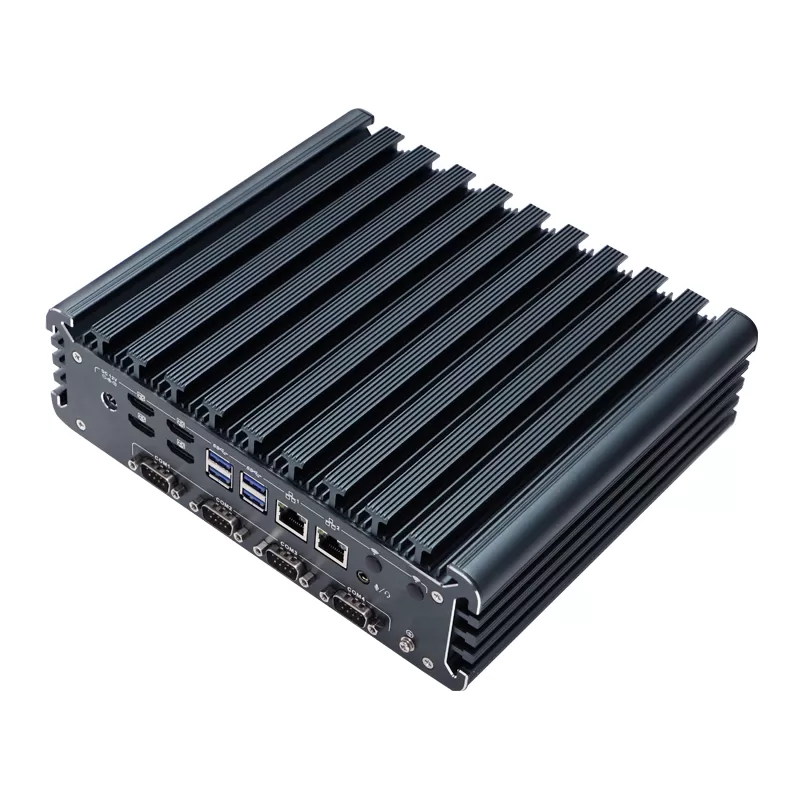

Model: SATA3226
Features:

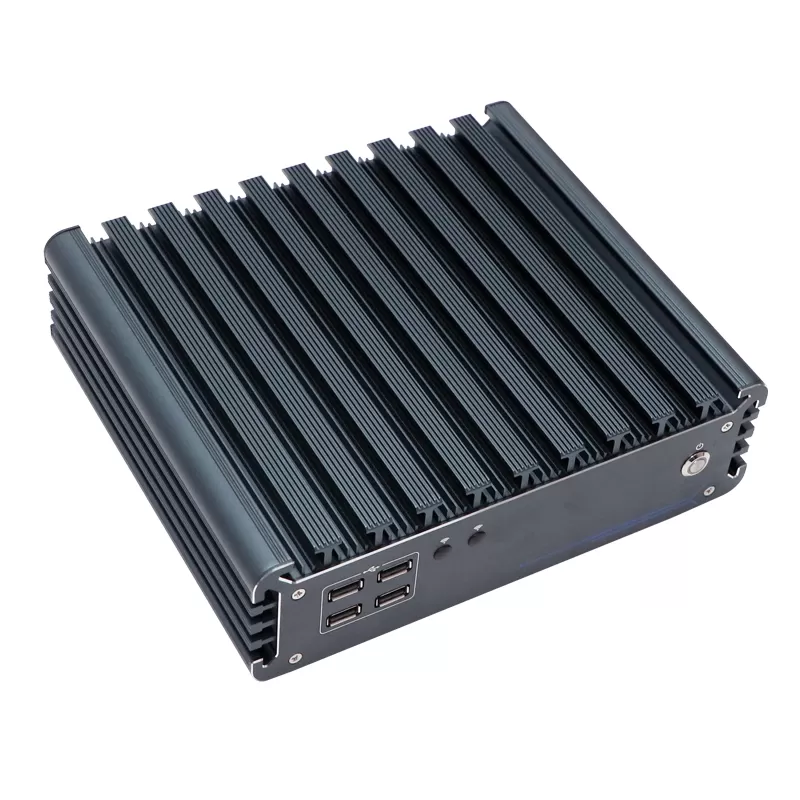

1. All aluminum alloy structure, no fan design.
2. Onboard Alder Lake processor.
3. Support 2xDDR4 3200 SODIMM memory slots, up to 64GB.
4. Support 3xM.2 slots, 2 2.5-inch hard drives.
5. Support 4xCOM ports (COM1, COM2 optional RS232/RS485).
6. Support 4xHDMI HD display interfaces.
7. High performance motherboard, 7x24 continuous operation.
8. Compatible with Windows 10/11, Ubuntu, Debian, Fedora and etc.
| PC | |
| CPU | Intel® Core i3 1215U (six core 8 threads, 1.2G, Max. Turbo 4.4G, 10MB Cache) |
| CPU Optional | Intel® Core i5 1235U (ten core 12 threads, 1.3G, Max. Turbo 4.4G, 12MB Cache) |
| CPU Optional | Intel® Core i7 1255U (ten core 12 threads, 1.7G, Max. Turbo 4.7G, 12MB Cache) |
| Memory | 2xDDR4 3200 SODIMM memory slots, up to 64GB |
| BIOS | AMI EFI BIOS |
| Display Chip | Integrated Intel Torch ® Xe graphics card |
| Display | 4xHDMI HD display interfaces (support synchronous/asynchronous multi-display) |
| Display Chip | Integrated Intel Iris(R)Xe Graphics core chip |
| Network | 2*RTL8111H 10M/100M/1000M Ethernet port |
| Storage | Supports 1*M.2 2280 slot (supports NVME protocol) and 2*2.5-inch hard disks |

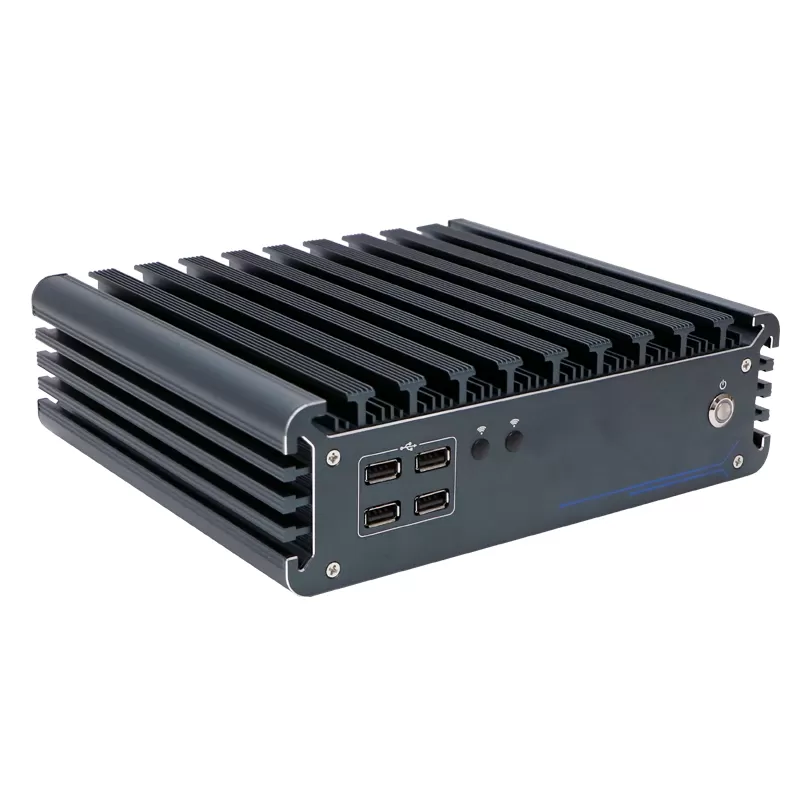

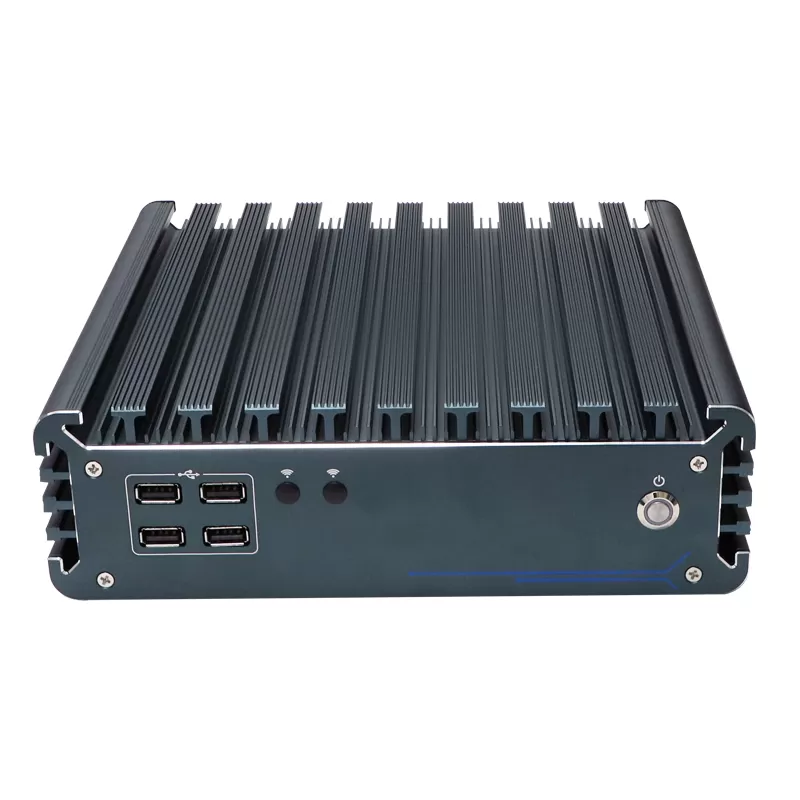

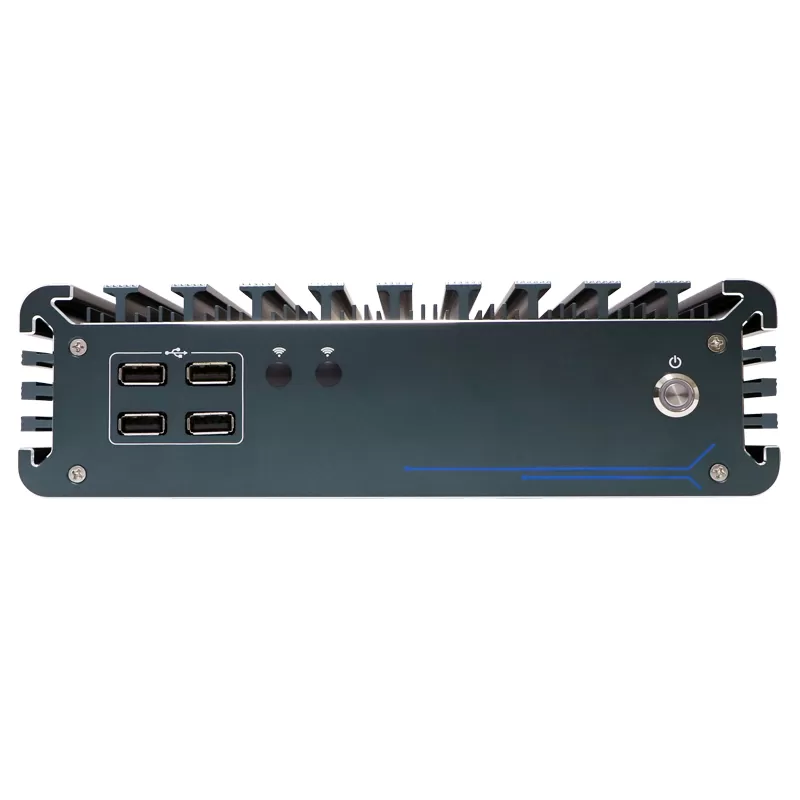

| Front I/O | 4*USB2.0, 1*Power Switch |

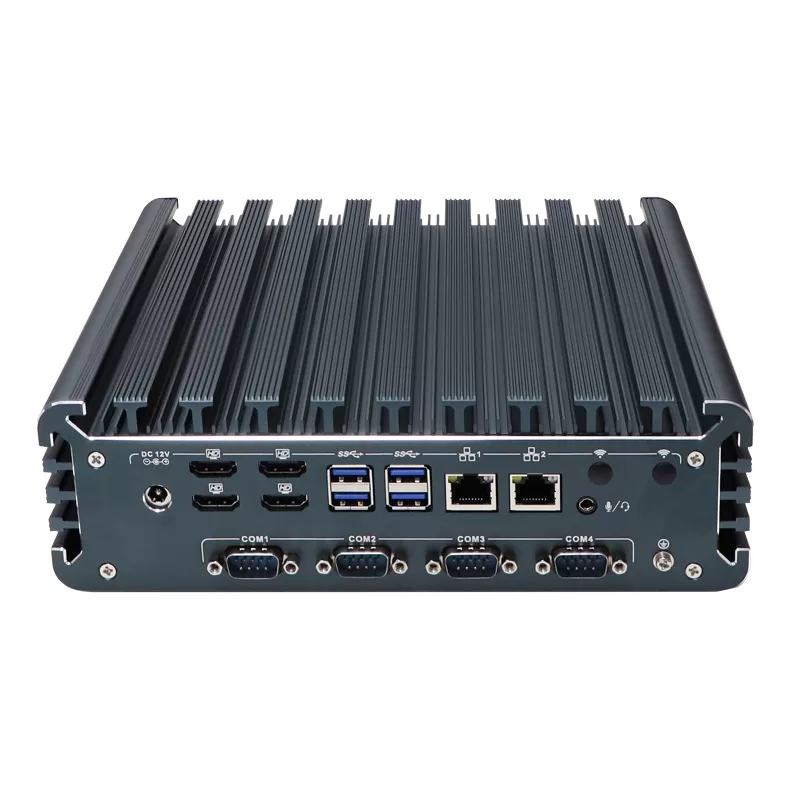

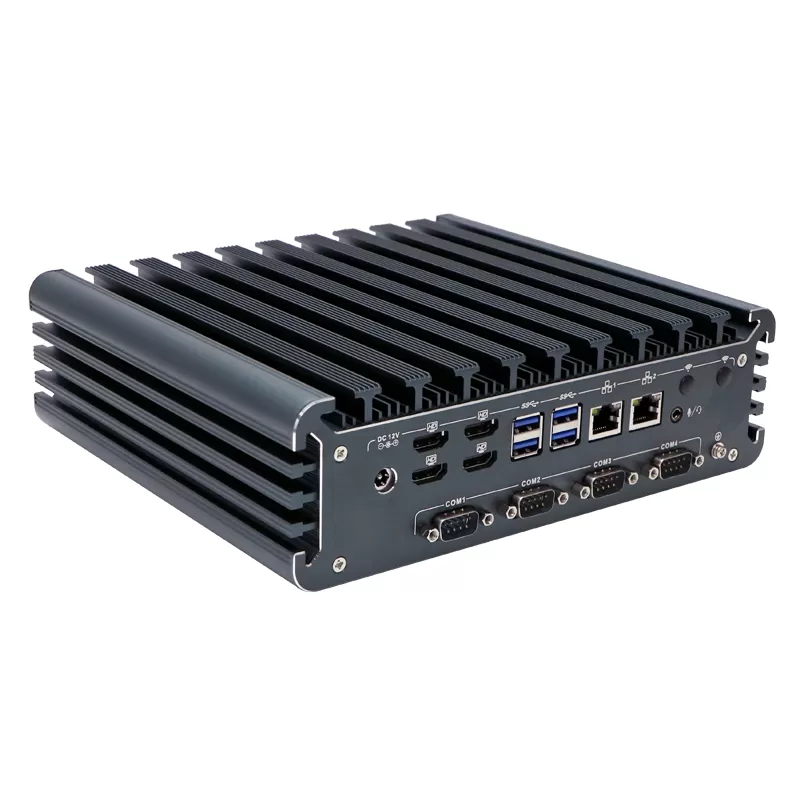

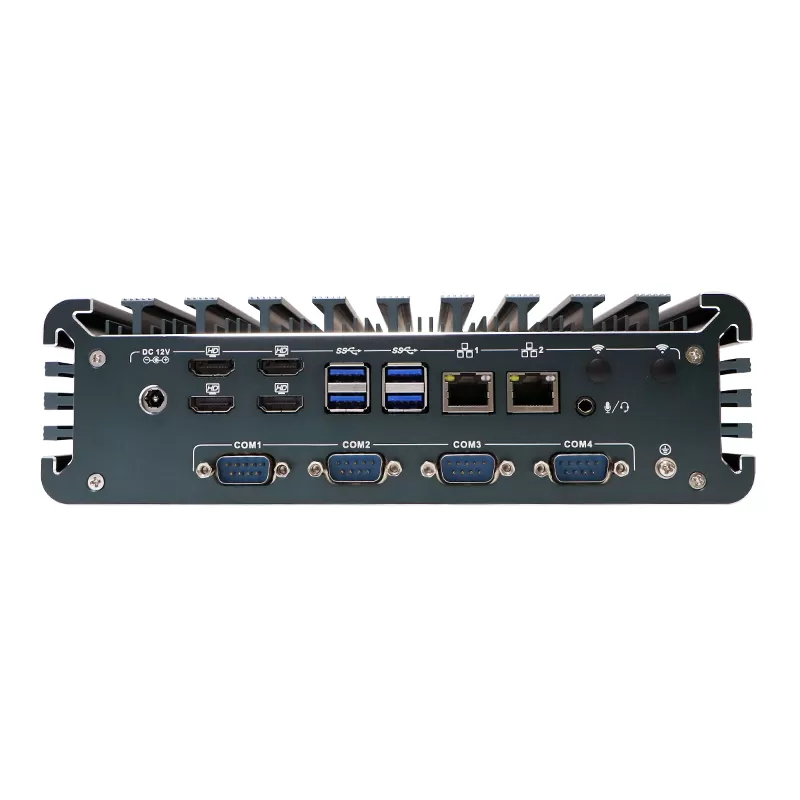

| Rear I/O | 3*USB3.0, 1xUSB2.0, 4*COM(COM 1, 2 support RS232/485 Optional), 2*Intel 1000M LAN, 4xHDMI, 1*Audio 2 in one output, 1*DC-IN |
| Expansion Slot | Support 1*M.2 M-Key 2280 (Support NVME protocol) |
| Support 1*M.2 E-Key 2230 Card Slot(support WIFI/Bluetooth) | |
| Support 1*M.2 B-Key 3042/3052 Card Slot(support 4G/5G), with SIM Socket | |
| Optional: 2*COM, 1*RJ45 | |
| Other function | Power-on, timed boot, network wake up, PXE boot, watchdog (level 0 ~ 255) |
| Operation System | Support Windows 10/11, Ubuntu, Debian, Fedora 25 and etc. |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤50W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Black, color can be customized for bulk orders |
| Operating Environment | |
| Temperature Range | Operating: -0 to 50°C(Commerical HDD), storage: -20 to 60°C(industrial SSD), surface air flow |
| Relative humidity | 5%~95%, non-condensing |
| Packing Details | |
| Net weight | 2.64kgs |
| Gross weight | TBD |

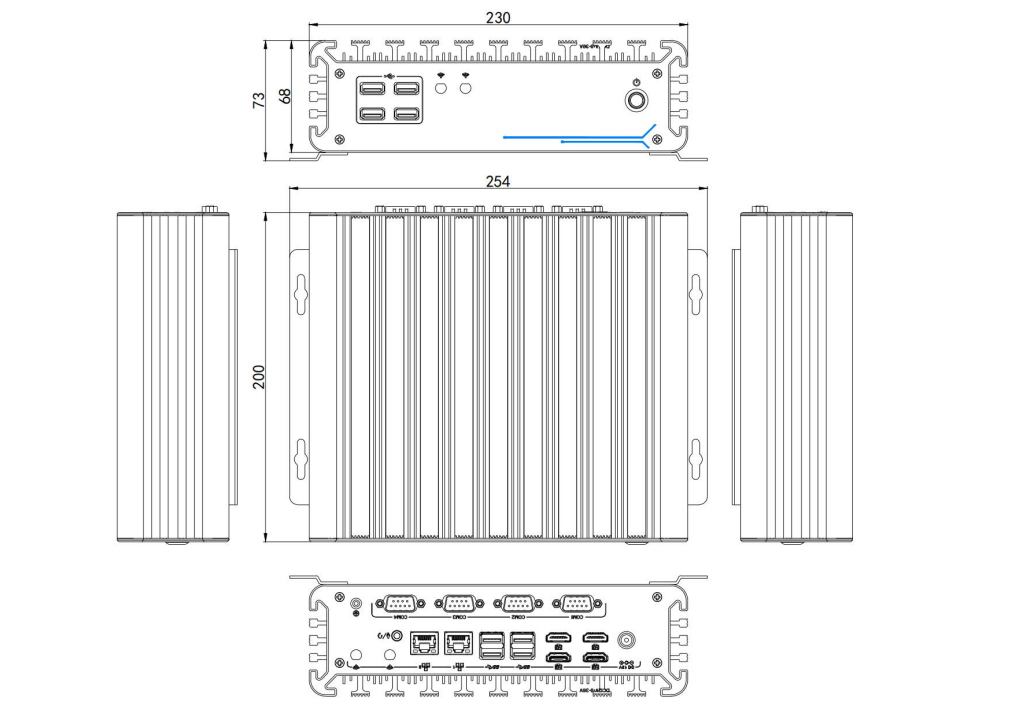

| Product Dimension | 23*20*6.8cm |
| Packing size | TBD |
| Accessories | Power adapter, wall mount bracket, user manual, warranty card |
| Other | |
| Mounting | Wall mounting brackets |
| Desktop(Optional) | |
| Application area | Industrial automation, medical, logistics, transportation, warehousing, machine vision and other fields |
| Warranty | 3 years warranty |
