Model: SATA610
Features:
1. Standard 4U rack-type industrial computer box, high-grade galvanized plate structure;
2. Onboard Intel B75 chipset;
3. Support for LGA1155 Intel 3th gen Core i3/i5/i7;
4. Supports 4*DDR3 DIMM slots, Max 32 GB.
5. Supports a maximum of 6*2.5 inch/3.5 inch hard disks.
6. Support 6 COM ports, 1 support RS232/422/485 Optional.
7. Supports 1 PCI-E X16 slot, 1 PCI-E X4 slot.
8. 1xPCI-E X1 slot, 4xPCI slots.
9. Compatible with Win xp/7/8/10, Ubuntu, Debian, Fedora and etc.
| PC | |
| CPU | Intel® Core i3-3220, dual core, four threads, 3.3GHz |
| CPU Optional | Intel® Core i5-3450, Quad core, Quad threads, 3.1GHz, Max. Turbo 3.5GHz |
| CPU Optional | Intel® Core i7-3770, Quad core, eight threads, 3.4GHz, Max. Turbo 3.9GHz |
| Chipset Group | Intel B75 |
| Memory | Support 4*DDR3 1333/1600MHz, DIMM Slot Max. 32GB |
| BIOS | AMI UEFI BIOS |
| Display chip | Integrated Intel HD Graphics 2500/4000 |
| Storage | Support 6*2.5'' or 3* 3.5" SSD/HDD Slot |
| Display | 1xVGA, 1xDVI-D (Support synchronous and asynchronous display, dual display) |
| Network | 1*Intel 82583V+1*Intel 82579V Ethernet port |
| Front I/O | 2*USB2.0, 2*indicator light, 1*Power Switch, 1*reset button |
| Rear I/O | 2*USB3.0, 2*USB2.0, 2*RJ45(1000M), 1*VGA/DVI-D, 2*PS/2, 2*Audio, 6*COM(COM2 Support RS232/442/485 Optional) |
| Expansion | 1*PCIE X16+1*PCI-E X1+1*PCIE X4+4*PCI |
| Interface(Optional) | GPIO, LPT, 6*USB2.0 |
| Operation System | Support Windows XP/7/8/10, Ubuntu, Debian, Fedora and etc. |
| Power Supply | |
| External Power Supply | AC 100-230V(50-60Hz), 300W rated power |
| Power consumption | ≤40W |
| Enclosure | |
| Material | High-end flowers-free zinc plating |
| Color | Grey white(color can customize for bulk orders) |
| Operating Environment | |
| Temperature Range | Operating: 0 to 40°C(HDD), -10 to 50°C(SSD), surface air flow |
| Relative humidity | 5%~95%, non-condensing |
| Packing Details | |
| Net weight | 11.5kgs |
| Gross weight | TBD |

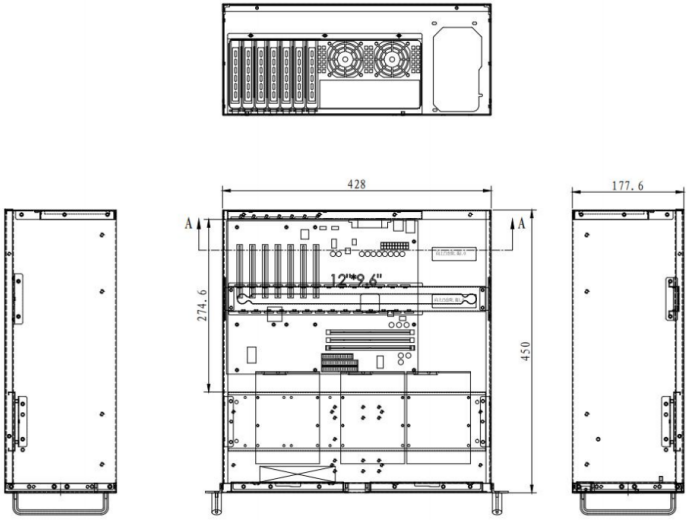

| Product Dimension | 42.8*45*17.76cm |
| Packing size | TBD |
| Accessories | Power adapter, wall mount bracket, CD card, user manual, warranty card |
| Other | |
| Mounting way | Wall mount |
| Warranty | 3 years warranty |
