Model: SATA601
Features:
1. All aluminum alloy structure, no fan design;
2. Onboard Intel Skylake-U 6 generation Core i3/i5/i7;
3. Support DDR4 1866/2133 up to 16G memory;
4. Support 2 Intel network ports;
5. Support 6xCOM ports, 6xUSB ports;
7. Compatible Windows 7/8/10, Ubuntu, Debian, Fedora and etc.
| PC | |
| CPU | Intel® Core i3-6100U, dual core, quad thread, 2.3GHz, power consumption 15W |
| CPU Optional | Intel® Core i5-6200U, dual core, quad thread, Base 2.5GHz. Turbo 2.8GHz |
| CPU Optional | Intel® Core i7-6500U, dual core, quad thread, Base 2.5GHz. Turbo 3.1GHz. |
| CPU Architecture | Skylake-U |
| Memory | Support 1xDDR4 1866/2133 SODIMM Memory slot, up to 16GB |
| BIOS | AMI EFI BIOS |
| Display Chip | Integrated Intel HD Graphics 510/520 core card |
| Display | 1xVGA, 1xHDMI |
| Audio | Integrated Realtek ALC662 6 sound channel |

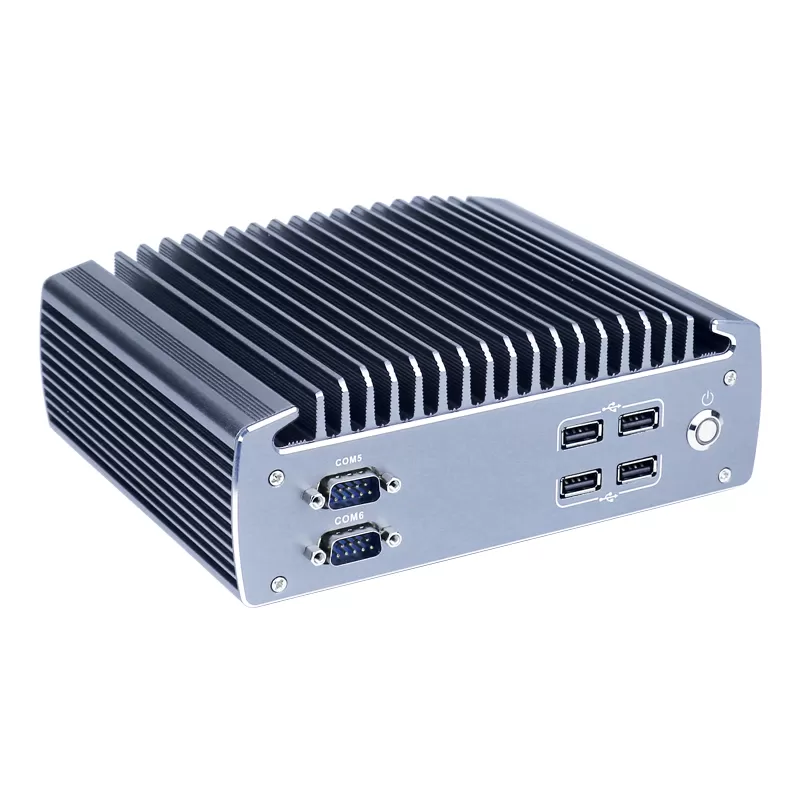

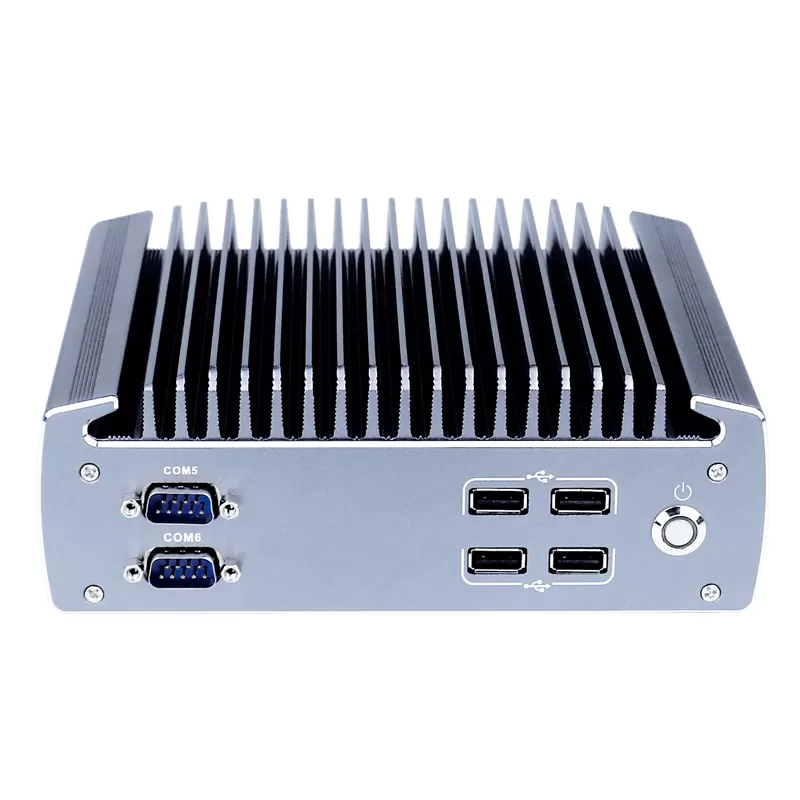

| Front I/O | 2xCOM(COM 2 support RS485), 4xUSB2.0, 1xPower switch |

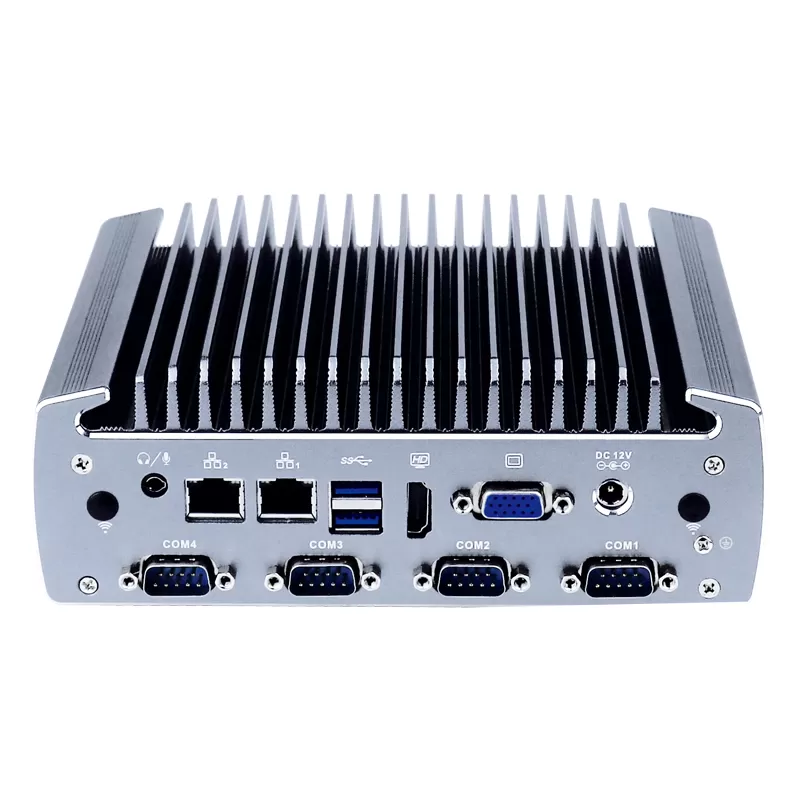

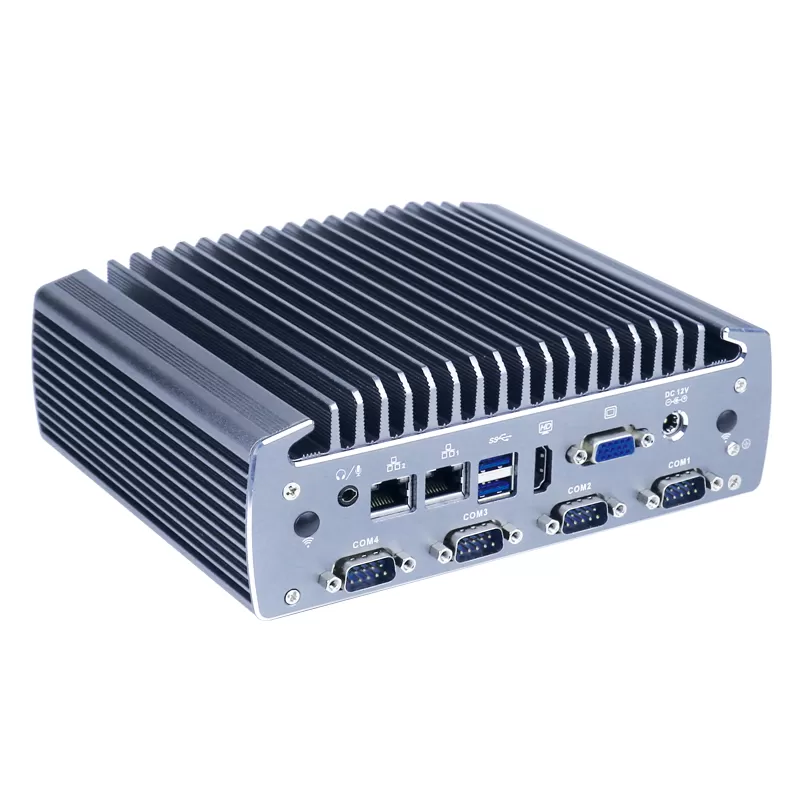

| Rear I/O | 2xUSB 3.0, 2x1000M RJ45, 1xVGA, 1xHDMI, 4xCOM, 1xAudio 2 in 1, 1XDC |
| Expansion | Support 1x MINI PCIE Channel (WIFI/3G/4G Optional), with SIM Socket |
| Support 1xMINI PCIE (Support MSATA) | |
| Network | 2xIntel i211-AT 10/100/1000M Ethernet port |
| Storage | 1xMSATA, 1x 2.5 inch hard disk slot |
| Other function | Power-on, timed boot, network wake up, PXE boot, watchdog (level 0~255) |
| Operation System | Support Windows 7/8/10, Ubuntu, Debian, Fedora and etc. |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC12V |
| Power consumption | ≤40W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Black, color can customize for bulk orders |
| Operating Environment | |
| Temperature Range | Operating: 0 to 50°C(Commercial HDD), -20 to 50°C(industrial SSD), surface air flow |
| Relative humidity | 5%~95%, non-condensing |
| Packing Details | |
| Net weight | 1.6kgs |
| Gross weight | 2kgs |

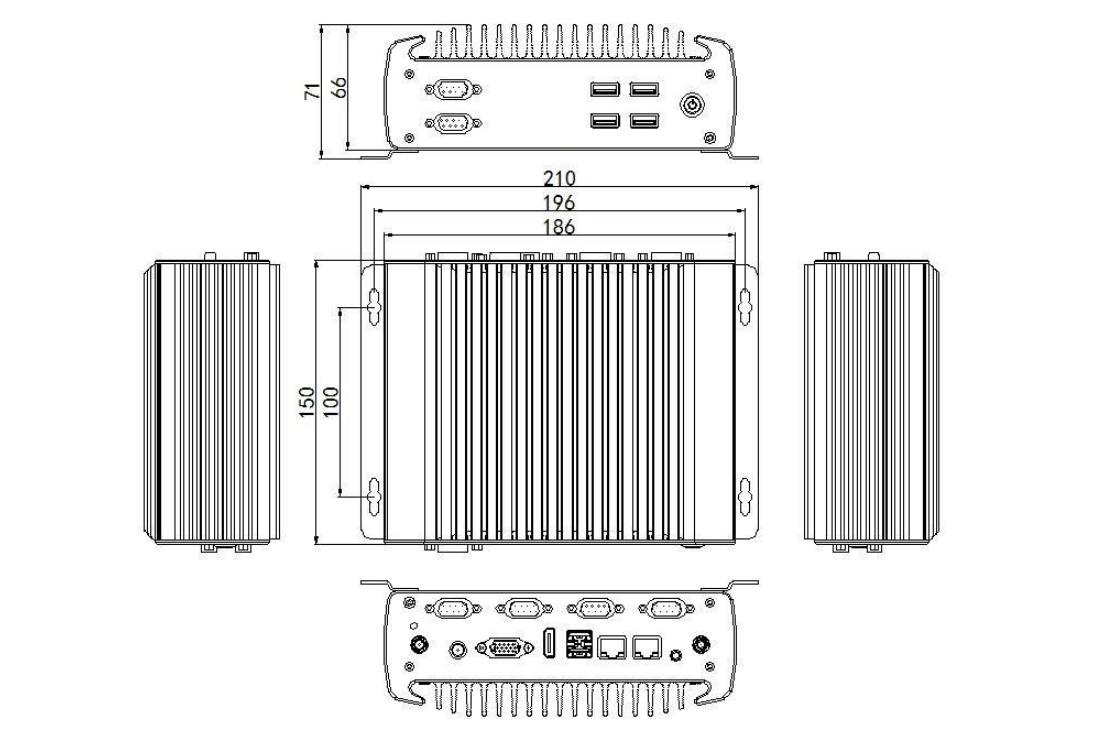

| Product Dimension | 18.6*15*6.6cm |
| Packing size | 28*25*15cm |
| Accessories | Power adapter, vesa mount kits, user manual, warranty card |
| Other | |
| Mounting (Options) | Open frame |
| Wall mounting brackets (Optional) | |
| Warranty | 3 years warranty |
