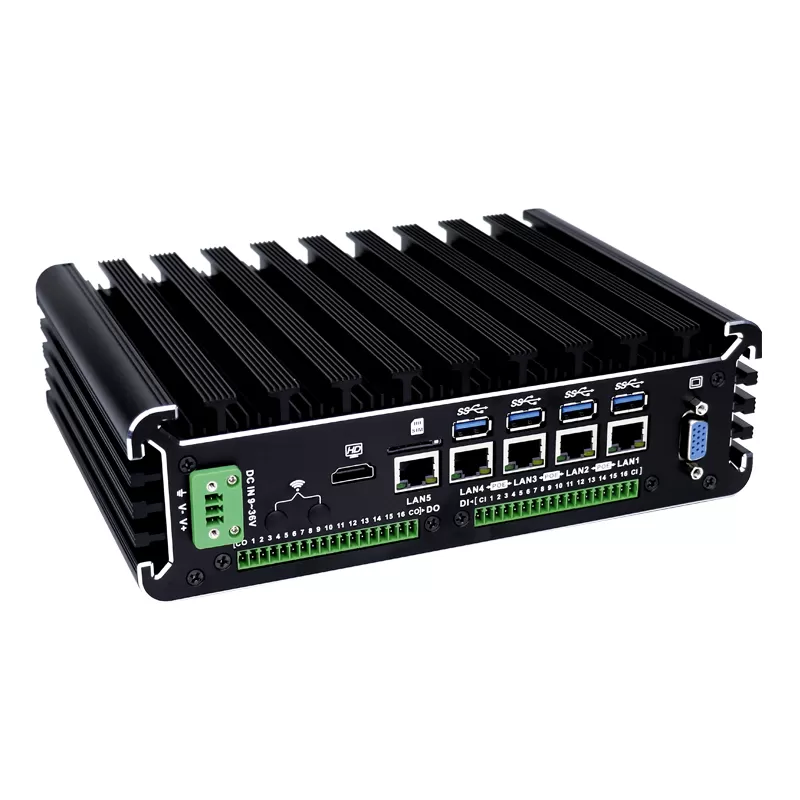

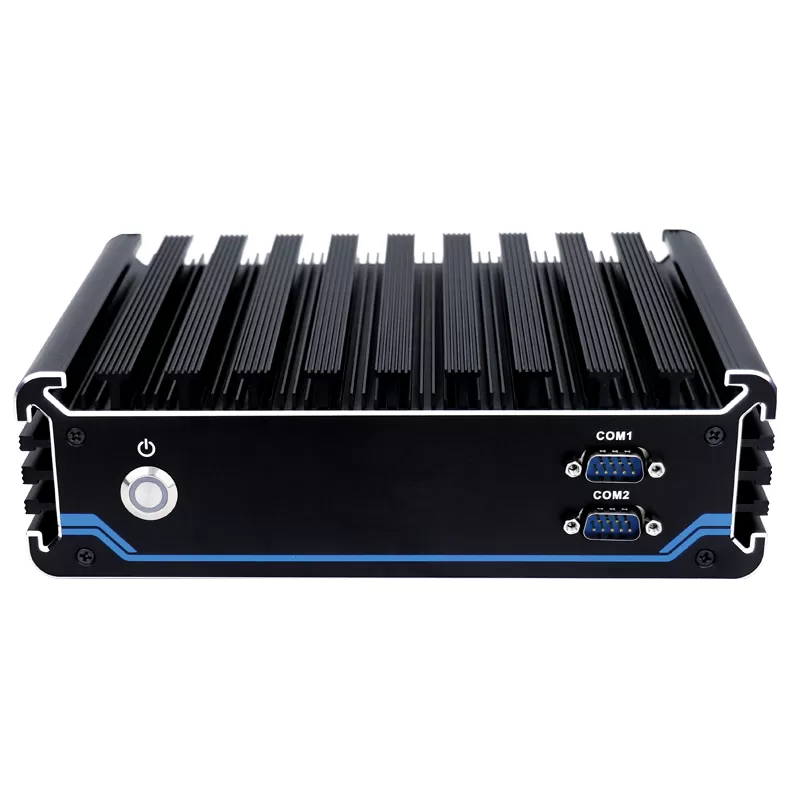

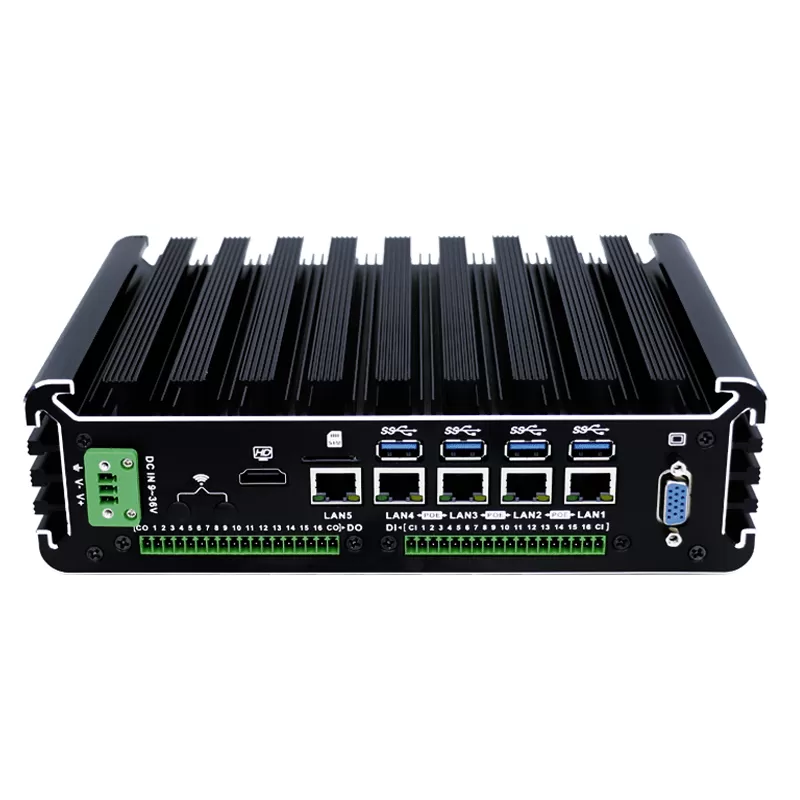

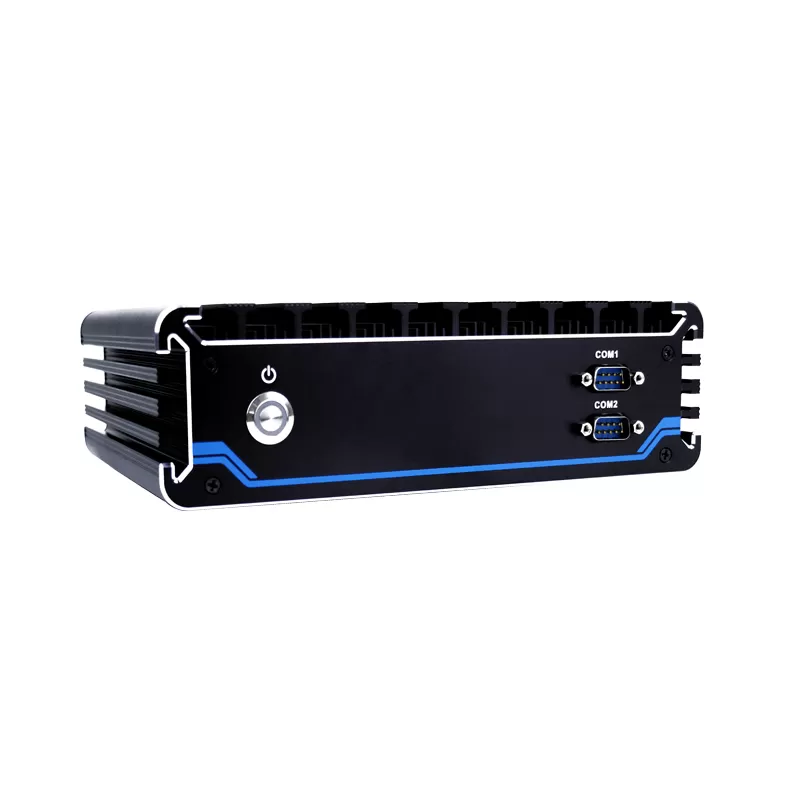

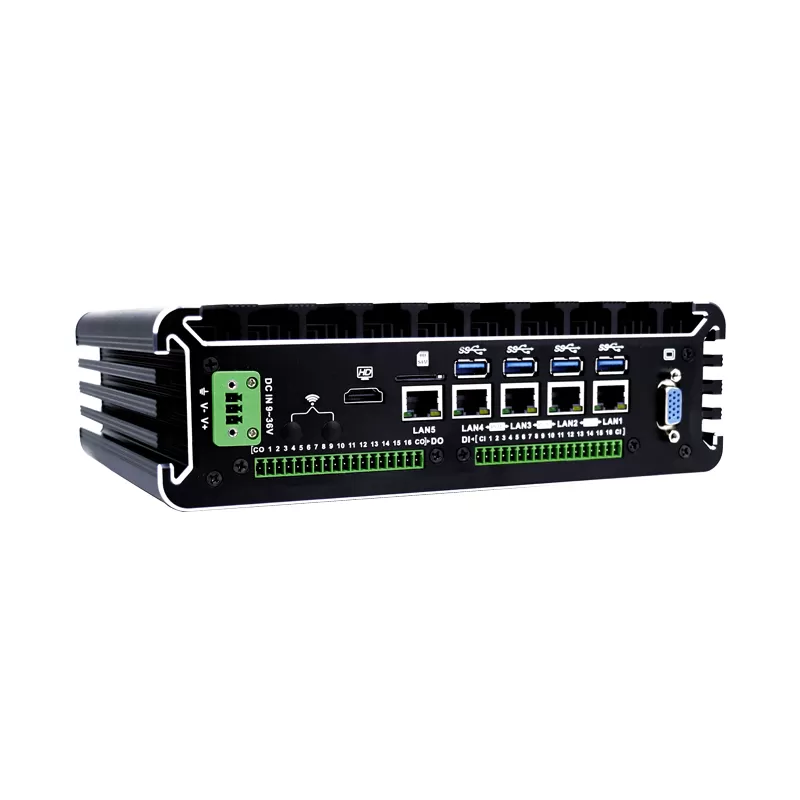

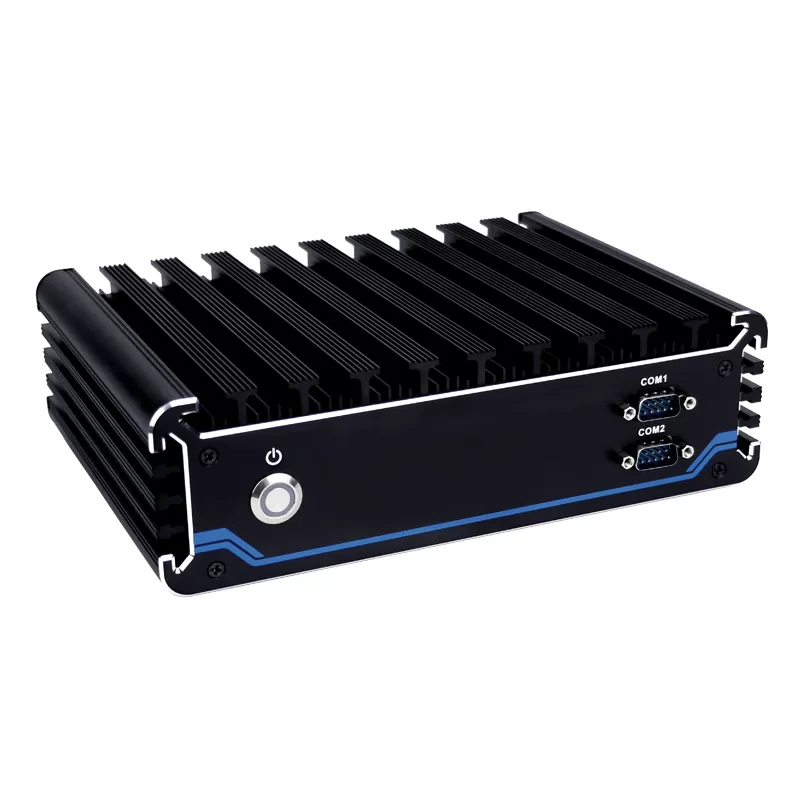

6th generation i5 visual classic industrial box PC with 5 LAN(4*POE)+32 GPIO(16 in 16 out)

Model: SATA603

Features:

1. All aluminum alloy structure, no fan design.

2. Onboard Intel Skylake-U 6 generation Core i3/i5.

3. Support DDR4 1866/2133 16G memory.

4. Support 32 optocoupler isolated GPIO signal, support 9~36V wide voltage.

5. Support 5 network ports (support 4 802.3af standard POE network ports)

6. Support DC 9 ~ 36V wide voltage input.

7. Compatible Windows 7/8/10, Ubuntu, Debian, Fedora and etc.


PC
CPUIntel® Core i3-6100U, dual core, 2.3GHz.
CPU OptionalIntel® Core i5-6200U, dual core, 2.5GHz.
CPU ArchitectureSkylake-U
MemorySupport 1xDDR4 1866/2133 SODIMM Memory slot, up to 16GB
BIOSAMI EFI BIOS
Display ChipIntegrated Intel HD Graphics 510/520 card
Display1xVGA, 1xHDMI
AudioIntegrated Realtek ALC662 6 sound channel
I/O Interface4x USB 3.0, 1xVGA, 1x HDMI, 1x Power switch, 1x 2 in 1 Audio, 1x DC 9-36Vport (phonix terminal 2pins), 2xCOM, 1x Audio, 5x Intel 1000M RJ45, 2x18-pin Phoenix terminal GPIO interfaces (with optocoupler isolation, 9~36V wide voltage support)
ExpansionSupport 1x MINI PCIE Channel (WIFI/3G/4G Optional), with SIM Socket
Support 1xMINI PCIE (Support MSATA)
Network5xIntel i211-AT 10/100/1000M Ethernet port ( 4x 802.3af standard POE Ethernet)
Storage1xMSATA, 1x 2.5 inch hard disk slot
Other functionPower-on, timed boot, network wake up, PXE boot, watchdog (level 0~255)
Operation SystemSupport Windows 7/8/10, Ubuntu, Debian, Fedora and etc.
Power Supply
External Power SupplyAC 100-240V
Working voltageDC 9-36V
Power consumption≤40W
Enclosure
MaterialAluminum Alloy
ColorBlack, color can customize for bulk orders
Operating Environment
Temperature RangeOperating: 0 to 50°C(Commercial HDD), -20 to 60°C(industrial SSD), surface air flow
Relative humidity5%~95% , non-condensing
Packing Details
Net weight2.3kgs
Gross weight3kgs

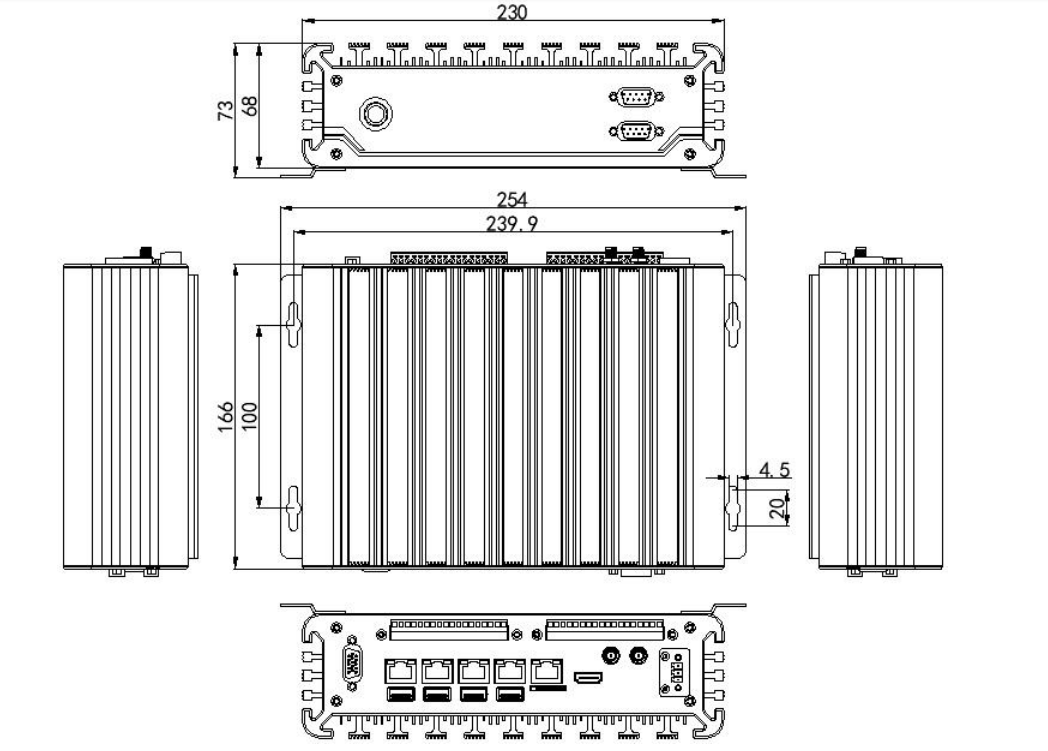

Product Dimension23*16.6*6.8cm
Packing size28*25*15cm
AccessoriesPower adapter, open frame kits, user manual, warranty card
Other
Mounting (options)Open frame
Wall mounting brackets (Optional)
Warranty3 years warranty


6th generation i5 visual classic industrial box PC with 5 LAN(4*POE) 32 GPIO(16 in 16 out)
