8*USB Independent CPU H310 Chipset Group Fanless industrial small mini computer with 6COM GPIO

Model: SATA605

Features:

1. Full Aluminum alloy enclosure, fanless design.

2. Onboard intel H310 Chipset group.

3. Support 2*DDR4 memory slot, Max. Support 32G.

4. Support 1*M.2 slot, 2*2.5”HDD optional

5. Support 6*COM (1*RS232/RS422/RS485 optional.)

6. Support 2*HDMI.

7. Support 12-19V wide voltage. (9V-36V wide voltage Optional)

8. Compatible Windows 10, Ubuntu, Debian, Fedora and etc.


PC
CPUIntel® Core i3 8100T, quad Core, quad thread, 3.1GHz.
CPU OptionalIntel® Core i5 8500T, six Core, six thread, 2.1GHz. Turbo 3.5GHz
CPU OptionalIntel® Core i7-8700T, six core, twelve thread, 2.4GHz. Turbo 4.0GHz
Chipset GroupIntel H310
Memory2*DDR4 2133/2400 SODIMM memory slot, Max. up to 32G
BIOSAMI EFI BIOS
Display ChipIntegrated Intel ® hypercore graphics 630
Display1x VGA, 2x HDMI, (Support synchronous display or asynchronous display)
Front I/O6*USB2.0, 2* COM, 1*Metal switch
Rear I/O2*USB3.0, 2*Intel 1000M LAN, 1*VGA, 2*HDMI, 1*MIC/Line-out,  4*COM(COM2 support RS232/RS422/RS485), 1*DC-IN
Expansion SlotSupport 1*M.2 2280 slot (Compatible with PCIE&SATA signal)
Support 1*MINI PCIE slot(WIFI/Bluetooth)
Optional(GPIO 4 in 4 out)
Network2*Intel RTL8111H 10/100/1000M Ethernet LAN
StorageSupports 1*M.2 2280 slot, 1*2.5-inch hard disk slot (2* 2.5-inch hard disks Optional)
Other functionPower-on, timed boot, network wake up, PXE boot, watchdog (level 0 ~ 255)
Operation SystemSupport Windows 10, Ubuntu, Debian, Fedora and etc.
Power Supply
External Power SupplyAC 100-240V
Working voltageDC 12V-19V(9-36V Optional)
Power consumption≤20W
Enclosure
MaterialAluminum Alloy
ColorTitanium grey
Operating Environment
Temperature RangeOperating: 0-50°C(Commercial HDD), -20 to 60°C(industrial SSD), surface air flow
Relative humidity5%~95%, non-condensing
Packing Details
Net weight4kgs
Gross weight5kgs

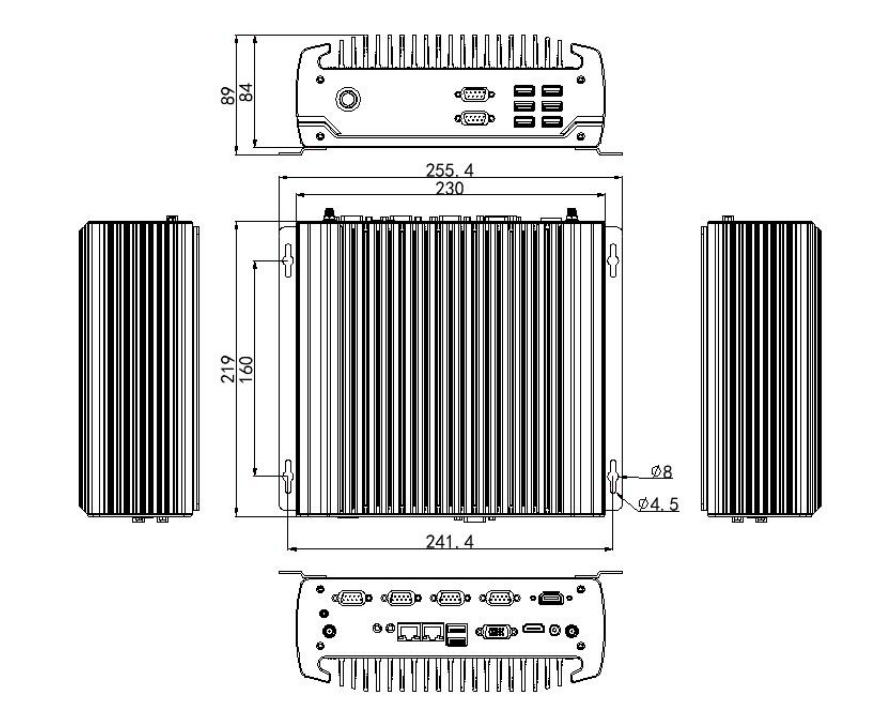

Product Dimension23*21.9*8.4cm
Packing sizeTBD
AccessoriesPower adapter, Wall mount braket, user manual, warranty card
Other
Mounting (options)Desktop mounting
Wall mounting brackets
Warranty3 years warranty
