Model: SATA3026
Features:
1. Full Aluminum alloy enclosure, fanless design.
2. Onboard Intel Tiger Lake series processor.
3. Support 9-36V DC.
4. Support 6*COM port, two support RS485 Optional.
5. Support 2*10/100/1000M LAN.
6. Support Desktop, wall-mounted, embedded.
7. High performance motherboard, 7x24 continuous operation.
8. Compatible with Windows 10, Linux.
| PC | |
| CPU | Intel® Celeron 6305E (Dual core dual threads, 1.8GHz, Max. 4MB Cache) |
| CPU Optional | Intel® Core i5-1135G7 (Quad core eight threads, 2.4GHz, Max. Turbo 4.2GHz, 8MB Cache) |
| CPU Optional | Intel® Core i7-1165G7 (Quad core eight threads, 2.8GHz, Max. Turbo 4.7GHz, 12MB Cache) |
| Memory | 1*DDR4 2666/3200 SODIMM memory slot, Max. Support 32G |
| BIOS | AMI EFI BIOS |
| Storage | 1*M.2 2280 slot, 1*2.5”HDD |
| Display | 1xVGA, 1*HDMI(Support Synchronous and asynchronous dual display) |
| Display Chip | Integrated Intel Iris(R)Xe Graphics core chip |
| Network | 1*Intel i211-AT, 1*i219-LM 10/100/1000M Ethernet port |

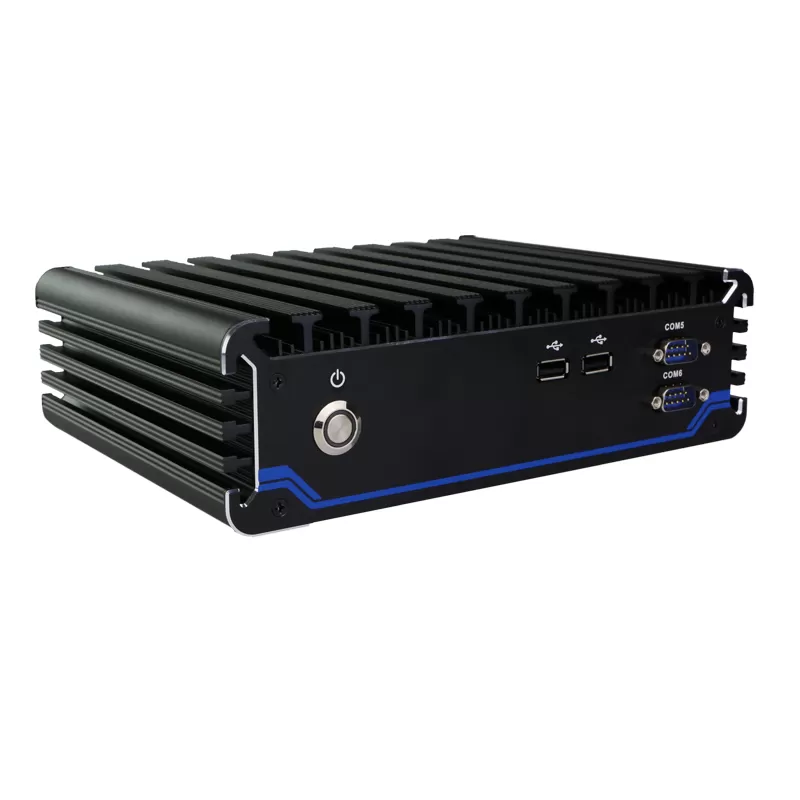

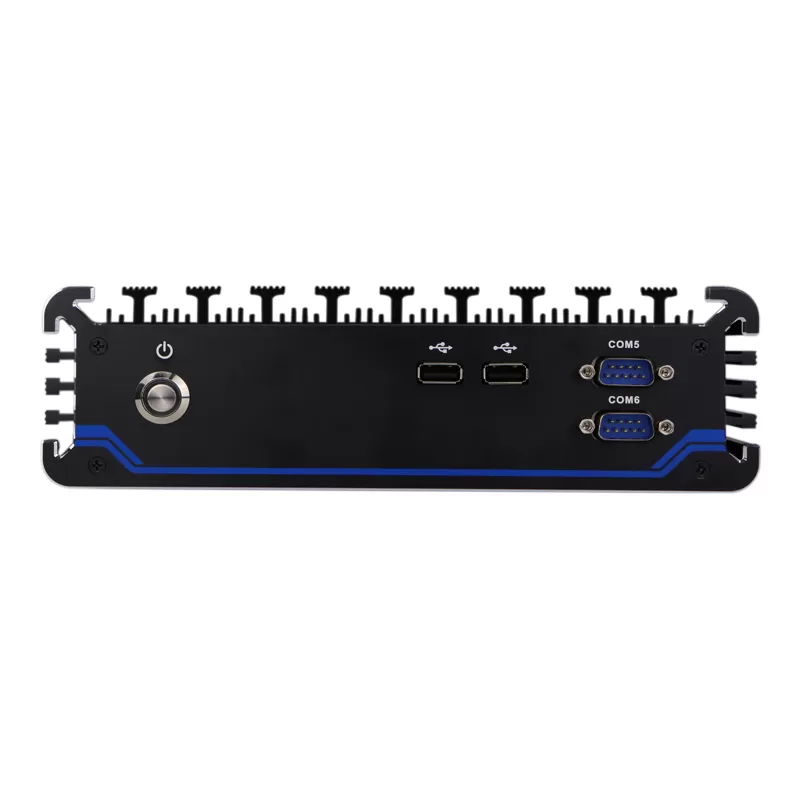

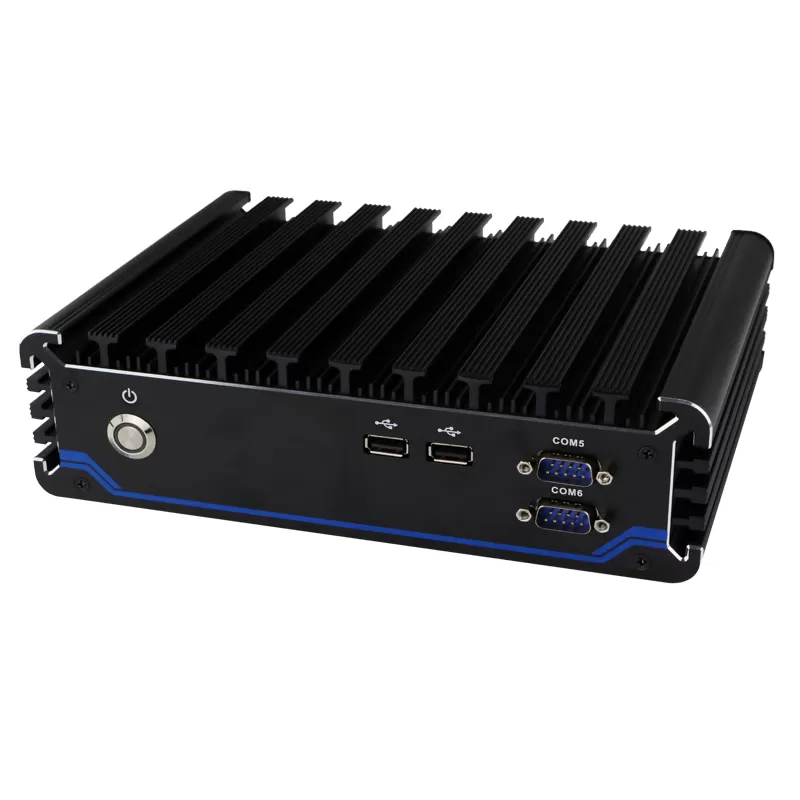

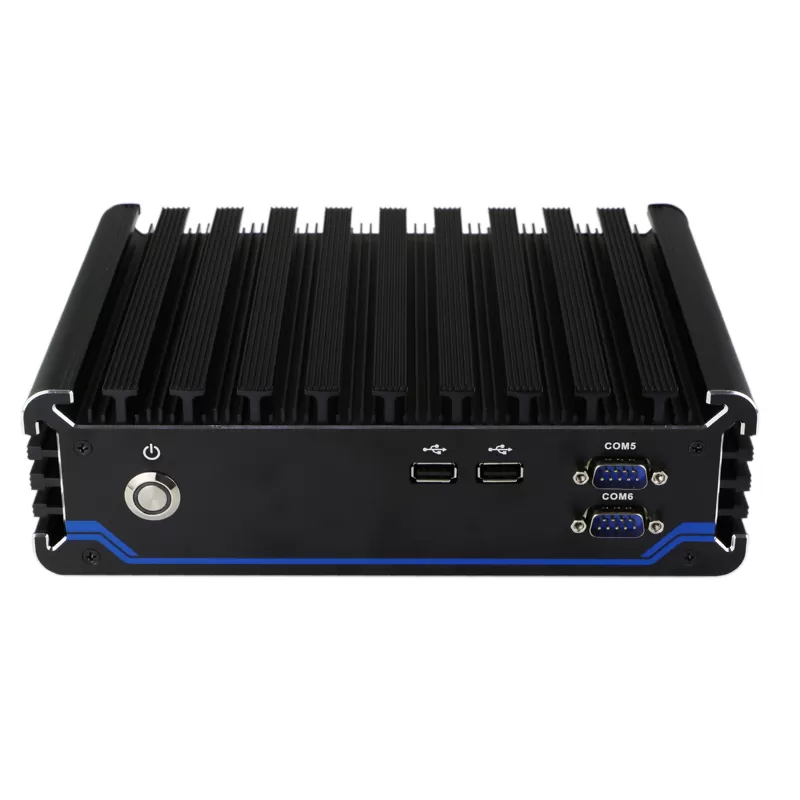

| Front I/O | 2*USB2.0, 2*COM(COM5 RS232, COM 6 RS485 ), 1*Power Switch |

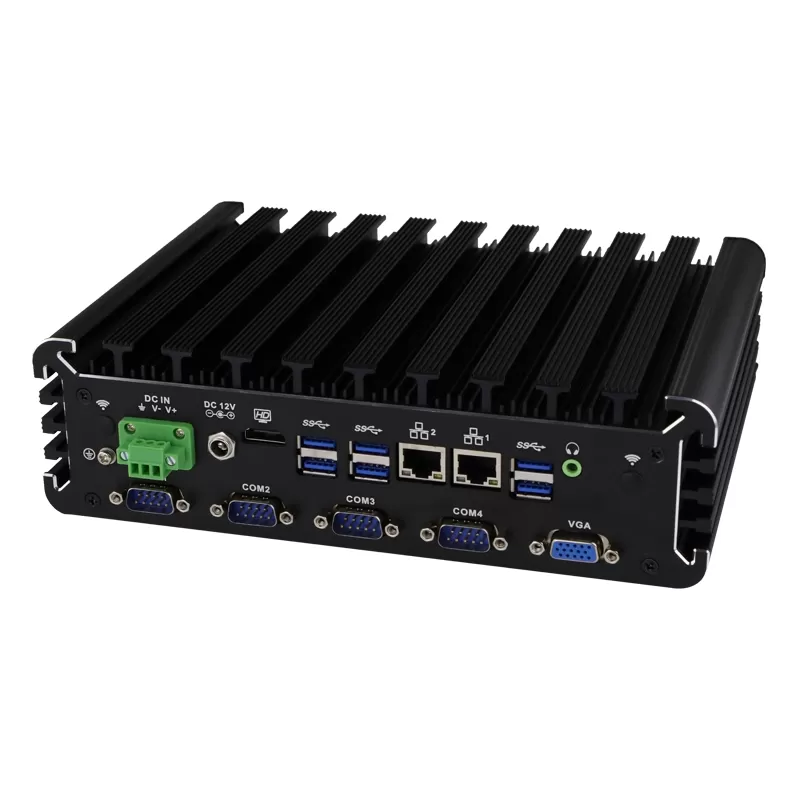

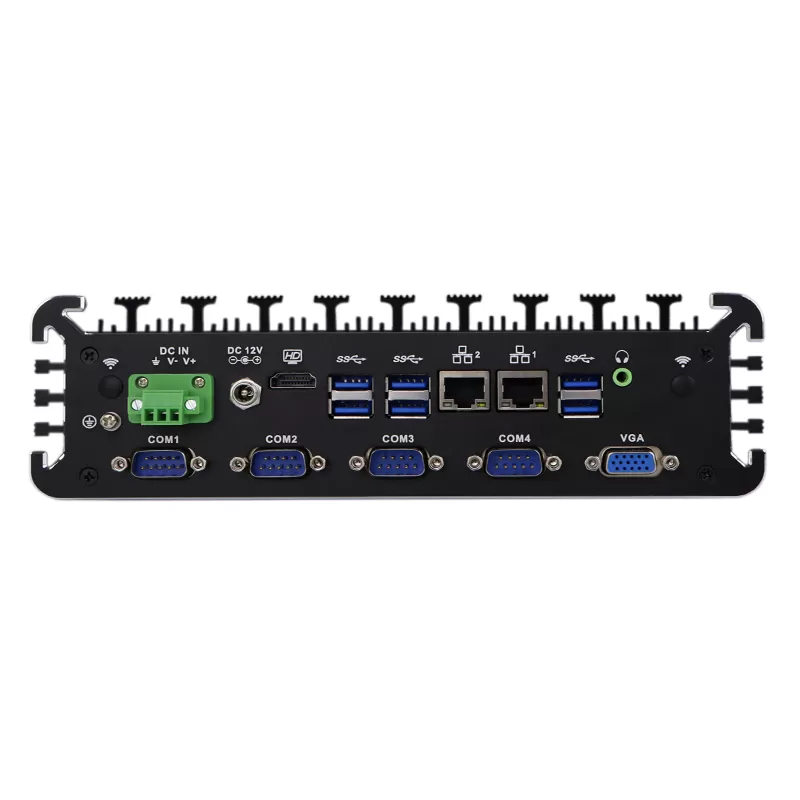

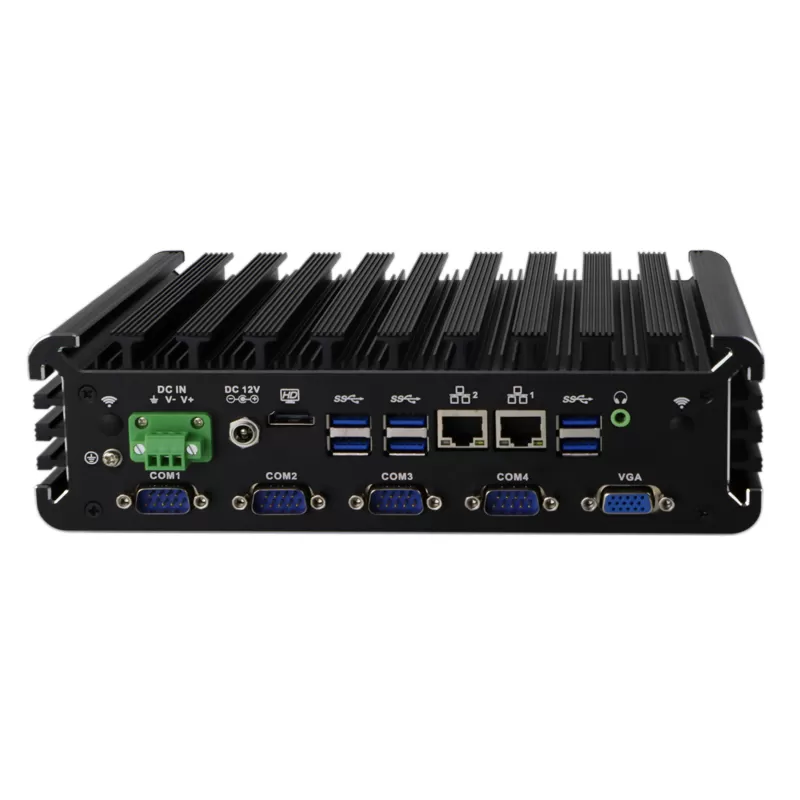

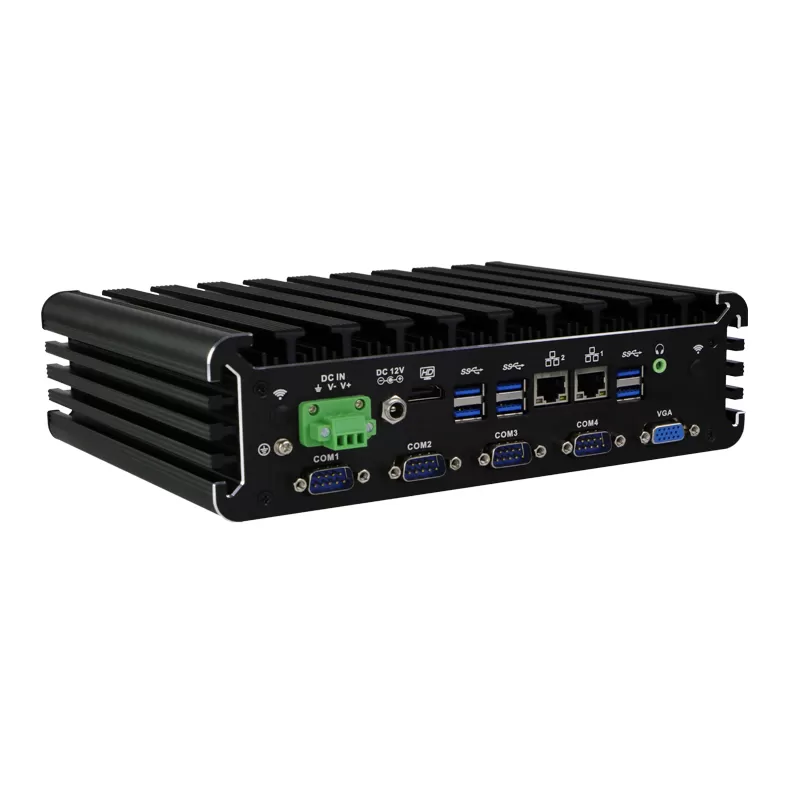

| Rear I/O | 6*USB3.0, 4*COM(COM 1 support RS232/422/485 Optional), 1*HDMI, 1*VGA, 2*Intel 1000M LAN, 1*Audio output, 1*DC-IN, 1*3 pin Phoneix terminal |
| Expansion Slot | Support 1*M.2 M-Key 2280 (Support SATA protocol) |
| Support 1*Mini PCIE Card Slot(WIFI/3G/4G Optional), with SIM Card slot | |
| Support 1*M.2 E-Key 2230 Card Slot(support WIFI/Bluetooth) | |
| Expandable interface (standard shipment does not have this interface): 8*GPIOs, 1*USB2.0 | |
| Other function | Power-on, timed power-on, LAN wake-up, PXE boot, watchdog (level 0 to 255) |
| Operation System | Support Windows 7/8/10, Ubuntu, Debian, Fedora 25 and etc. |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 9-36V |
| Power consumption | ≤50W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Black, color can be customized for bulk orders |
| Operating Environment | |
| Temperature Range | Operating: -0 to 50°C(Commerical HDD), storage: -20 to 60°C(industrial SSD), surface air flow |
| Relative humidity | 5%~95%, non-condensing |
| Packing Details | |
| Net weight | 2.2kgs |
| Gross weight | 2.8kgs |

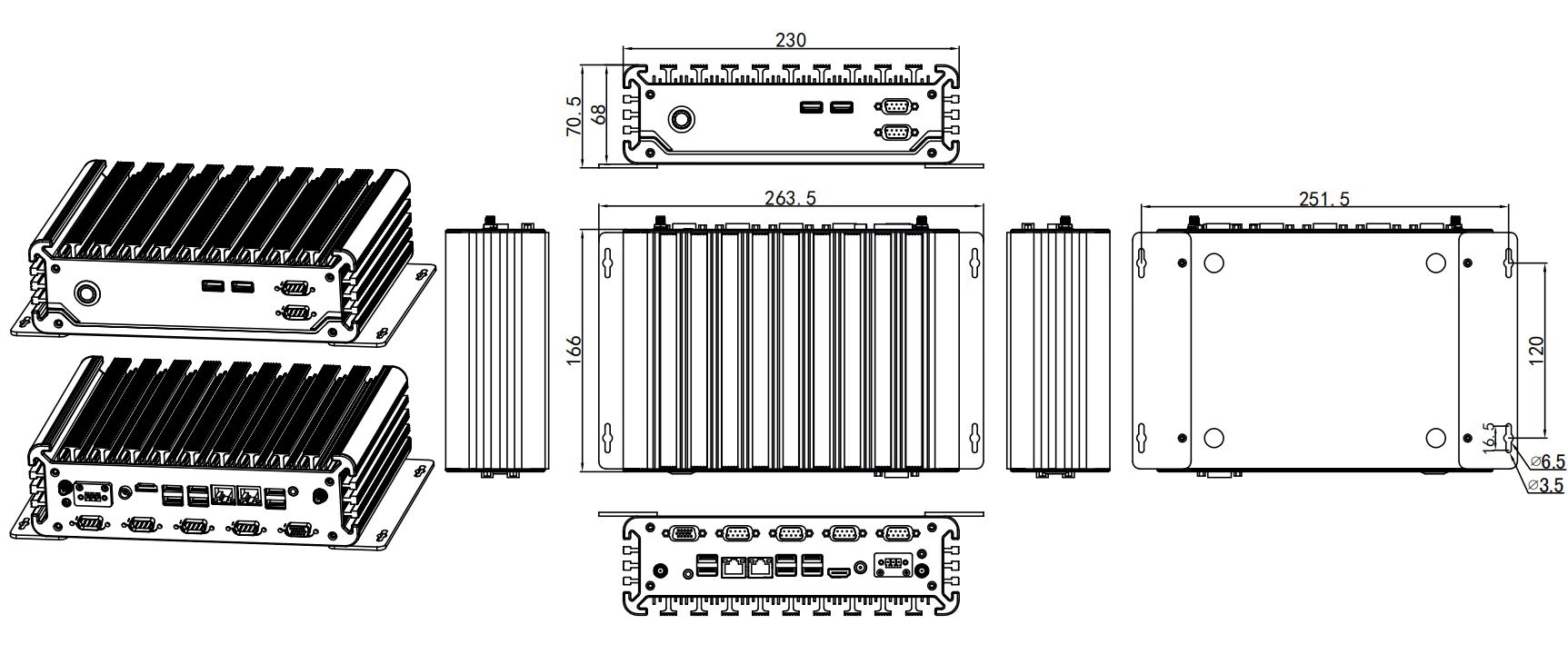

| Product Dimension | 23*16.6*6.8cm |
| Packing size | TBD |
| Accessories | Power adapter, wall mount bracket, user manual, warranty card |
| Other | |
| Mounting | Wall mounting brackets |
| Desktop(Optional) | |
| Warranty | 3 years warranty |
