Model: SATA706
Features:
1. All aluminum alloy structure, no fan design.
2. Intel 6th/7th gen. Core i3/i5/i7 on board.
3. Support 1*DDR4 memory slot, Max 16G.
4. Support 1*M.2 2280 slot, 2*2.5-inch hard disk slots Optional.
5. Optional 6*COM (6 COM support RS485 mode Optional).
6. Support 1*M.2+1*Mini PCIE slot [Support dual 4G].
7. 9~36V DC wide voltage input, support reverse polarity protection;
8. Compatible Windows 7/8/10, Ubuntu, Debian, Fedora and etc.
| PC | |
| CPU Optional | Intel® Core i5-6200U, dual core, quad threads, Base 2.3GHz, Max. Turbo 2.8GHz. |
| CPU architecture | Skylake-U/KabyLake-U |
| Memory | Support 1*DDR4 1866/2133 SODIMM Memory Slot, Max. 16GB |
| BIOS | AMI EFI BIOS |
| Storage | 1*M.2 2280 slot, board 1*2.5" hard disk (Optional 2*2.5" hard disk slots, support RAID0/1) |
| Display Chip | Integrated Intel HD Graphics 510/520 |
| Display interface | 1*VGA+1*HDMI |
| Network | 2*Intel i211-AT 10/100M/1000M Lan |

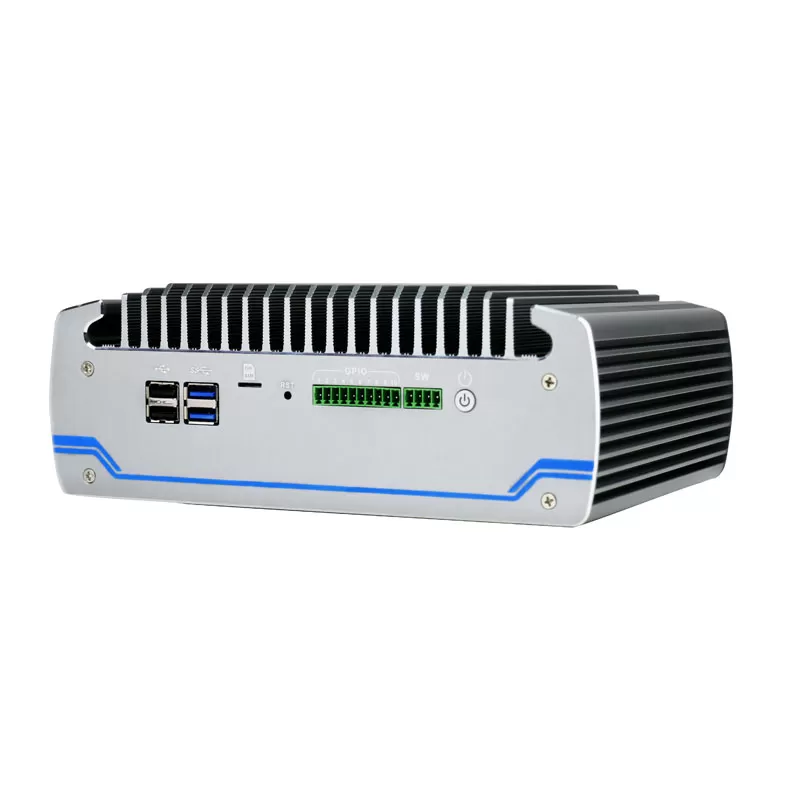

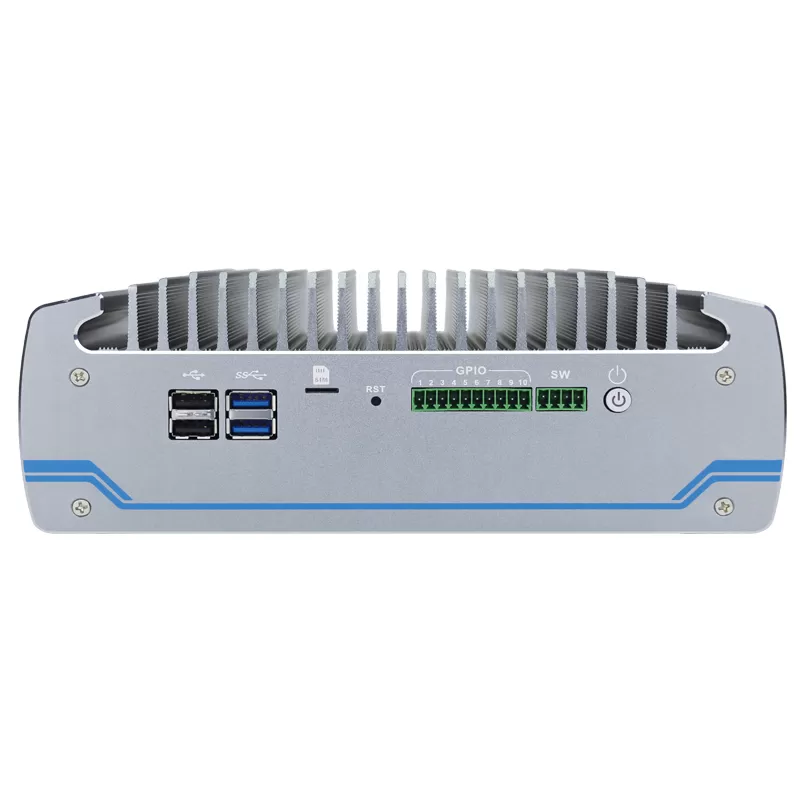

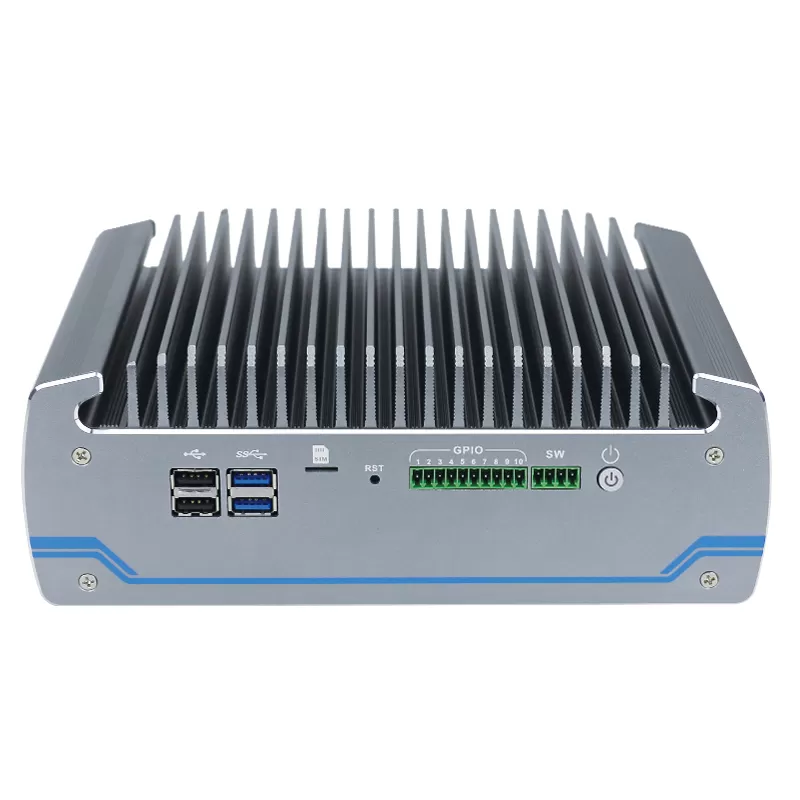

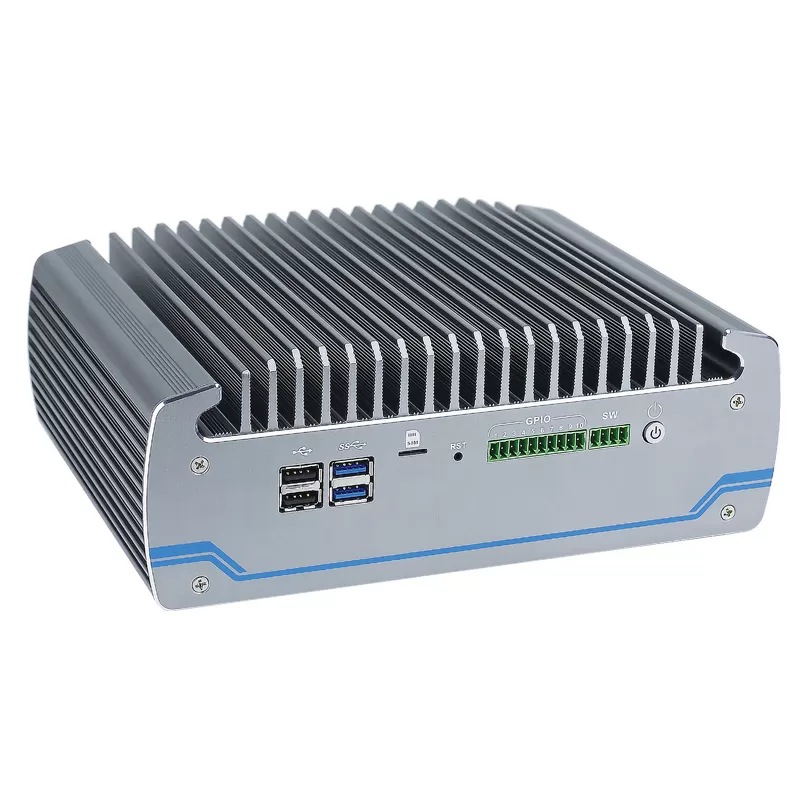

| Front I/O | 2*USB3.0, 2*USB2.0, 1*10 pin GPIO Phoenix terminal (3.3V or 5V Optional), 1*Reset button, 1*external SIM Card slot, 1*Power Switch, 1*4 pin power signal phoenix terminal |

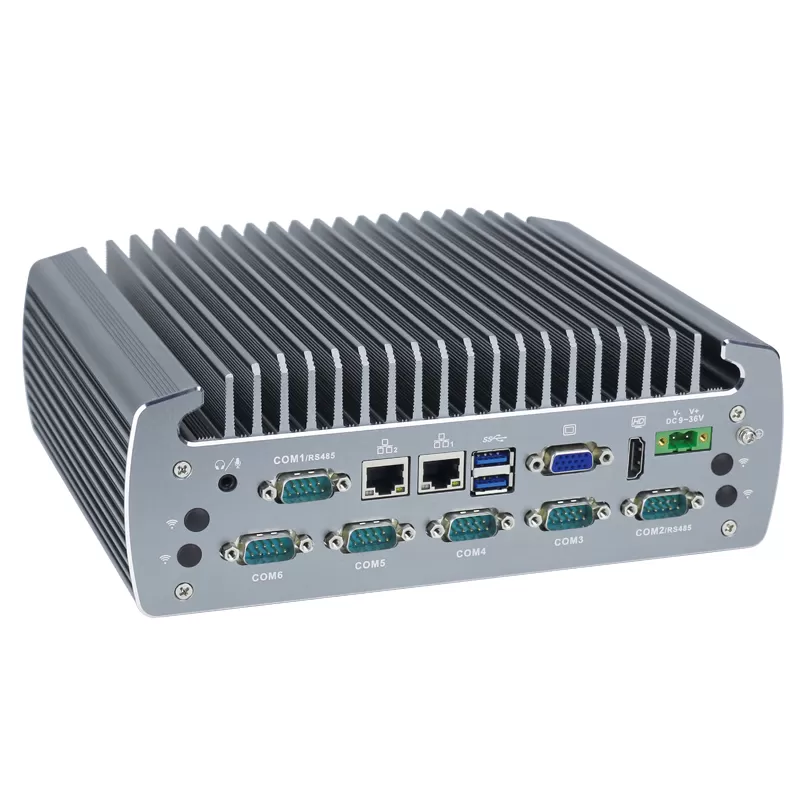

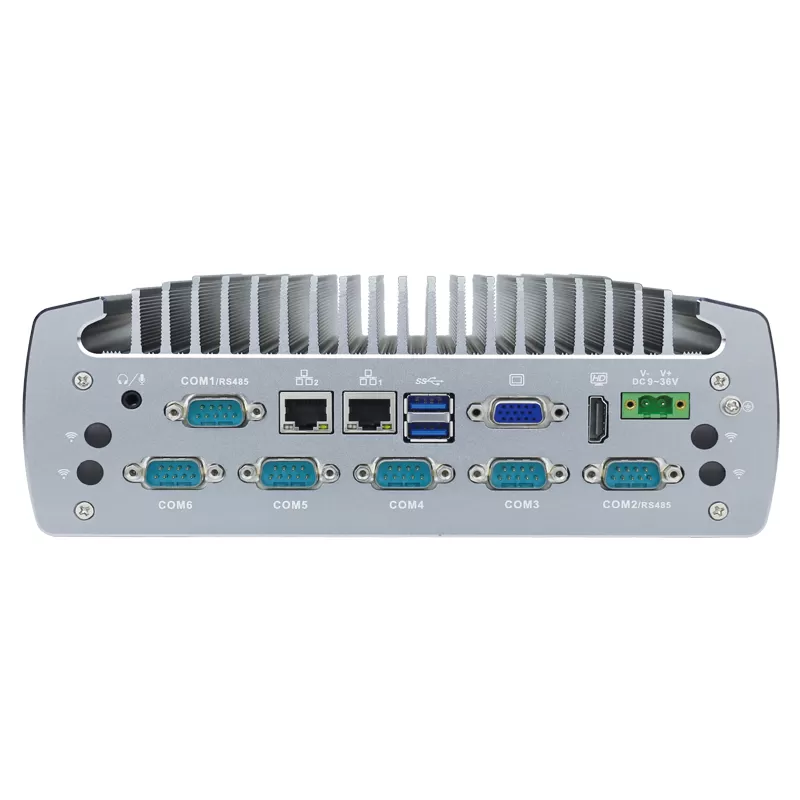

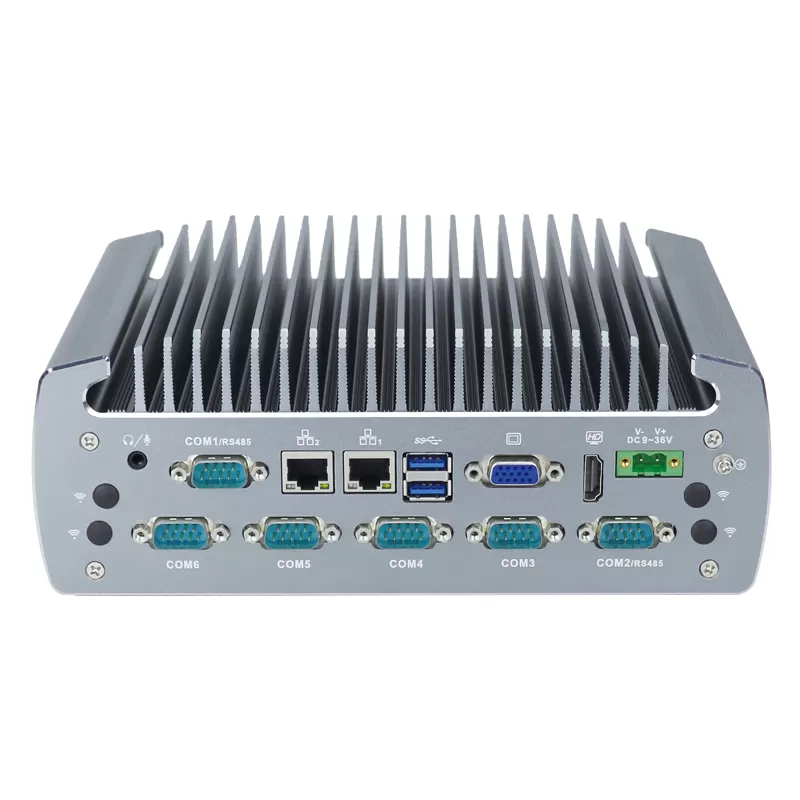

| Rear I/O | 2*USB3.0, 2*Intel 1000M Lan, 1*VGA, 1*HDMI, 1*Audio/MIC, 6*COM(COM1, 2 support RS232/442/485 mode optional), 1*2 pin power phoenix terminal |
| Expansion interface | 1*M.2 2280 M-Key slot (Supports SATA bus and NVME protocol) |
| 1*M.2 B-Key slot (3G/4G with external SIM card slot) | |
| 1*MINI PCIE slot (Optional WIFI/ Bluetooth /3G/4G with SIM card slot) | |
| Optional interface: LPT, 2*USB2.0 | |
| Other function | Power-on, timed boot, network wake up, PXE boot, watchdog (level 0~255) |
| Operation System | Support Windows 7/8/10, Ubuntu, Debian, Fodera 25 and etc. |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 9-36V, Support reverse polarity protection |
| Power consumption | ≤40W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Titanium Grey, color can customize for bulk orders |
| Operating Environment | |
| Temperature Range | Operating: 0°C to 50°C(Commercial HDD), -20°C~60°C(industrial SSD), surface air flow |
| Relative humidity | 5%~95%, non-condensing |
| Packing Details | |
| Net weight | 2.8kgs |
| Gross weight | 4kgs |

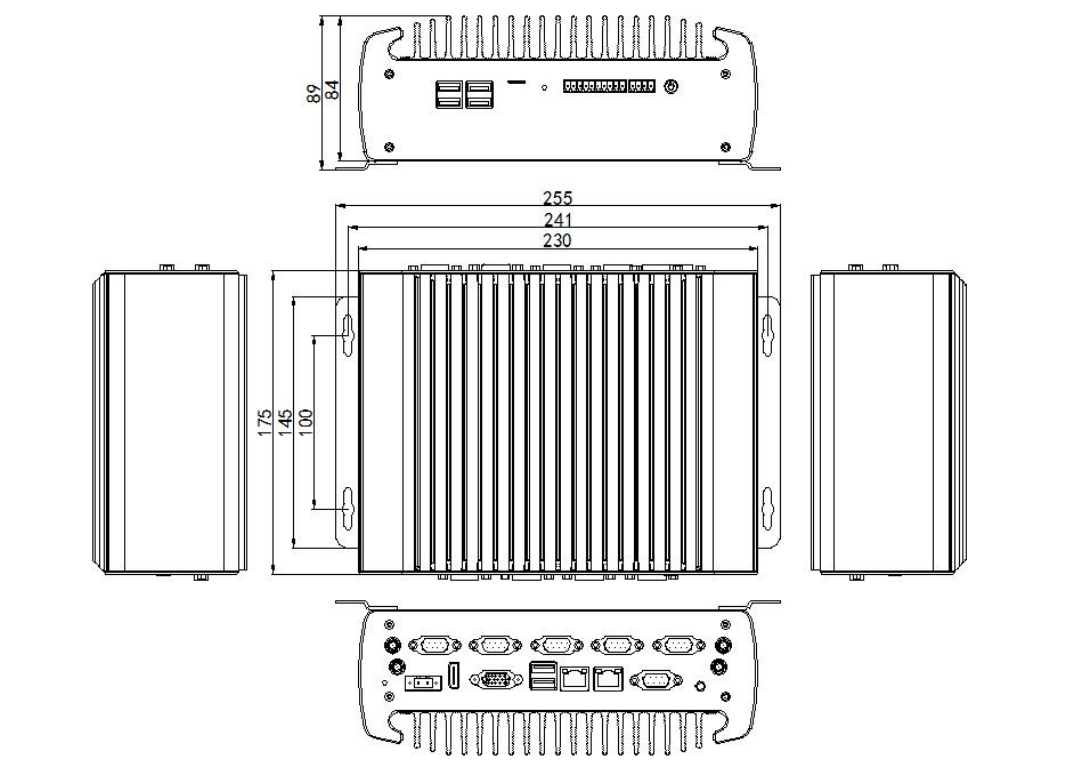

| Product Dimension | 23*17.5*8.4cm |
| Packing size | 27.3*14.6*22cm |
| Accessories | Power adapter, power plug, vesa bracket, user manual, warranty card, CD Card |
| Other | |
| Mounting way | Wall mounting brackets (Optional) |
| Warranty | 3 years warranty |
