Model: SATA100
Features:
Intel 11th Gen. Core i3/i5/i7 CPU Optional
The Embedded Touch Screen Computer is powered by a choice of Intel's 11th Generation Core i3, i5, or i7 processors. These CPUs provide exceptional performance and power efficiency, enabling the device to handle complex computing tasks with ease. Whether you require basic operations or advanced multitasking capabilities, this computer can be configured to meet your specific needs, delivering high-speed processing and enhanced graphics performance.
11th Gen. DDR4 SODIMMx2, up to 32GB memory
Equipped with two DDR4 SODIMM slots, this embedded system supports up to 32GB of RAM, ensuring ample memory for running multiple applications simultaneously without compromising speed. The latest DDR4 technology offers faster data transfer rates and lower power consumption compared to previous generations, contributing to overall system efficiency and reliability in demanding environments.
6*RS-232 Serial Ports (4 Support RS485/RS422)
Featuring six RS-232 serial ports, four of which also support RS485/RS422 standards, this touch screen computer provides extensive connectivity options for interfacing with a wide range of peripheral devices. This flexibility is crucial for industrial applications that require communication with legacy systems or specialized equipment, ensuring seamless integration into existing setups.
2*Intel i225V 2.5G Network Cards
The inclusion of two Intel i225V 2.5G network cards enables rapid and reliable data transmission, supporting dual network interfaces for redundancy and load balancing. With twice the bandwidth of traditional gigabit Ethernet, these network adapters ensure fast file transfers and smooth remote access, critical for real-time monitoring and control applications.
Watchdog Timer and No Disk Start Capability
A built-in watchdog timer monitors the system's health and automatically recovers from software crashes, enhancing system stability and uptime. Additionally, the no disk start feature allows the computer to boot directly from an operating system image stored on a network server or other external storage, reducing maintenance requirements and improving security.
Low Power Consumption Without Fan
Designed for energy efficiency, this embedded computer operates at low power consumption levels while maintaining optimal performance. Its fanless design not only reduces noise but also eliminates one potential point of failure, making it suitable for continuous operation in dusty or confined spaces where air filtration would be problematic.
Operating Systems: Windows® 10, WES 10, Ubuntu, Debian, Fedora, and more
Supporting a variety of operating systems including Windows® 10, Windows Embedded Standard 10 (WES 10), and popular Linux distributions like Ubuntu, Debian, and Fedora, this touch screen computer offers flexibility in software selection. Users can choose the OS that best fits their application requirements, taking advantage of robust security features and extensive developer communities for support and customization.
SATA IPC provides a variety of application scenario solutions, such as:
Kiosk Installation
Stainless Steel All-in-one Machine Application
Forklift Terminal
Sunlight Readable Monitor/Panel PC
Parking System Application
Box-loaded Applications
Turnstiles Application
We are professional Embedded Computer Manufacturers. If you want to know more product information, please contact us!
| PC | |
| CPU | Intel® Core i5-4278U, dual core, quad thread, 2.6GHz, Turbo 3.1GHz |
| CPU Optional | Intel® Core i7-4578U, dual core, quad thread, 3.0GHz, Turbo 3.5GHz |
| CPU Optional | Intel® Core i3-6157U, dual core, quad thread, 2.4GHz |
| CPU Optional | Intel® Core i5-7360U, dual core, quad thread, 2.3GHz, Turbo 3.6GHz |
| CPU Optional | Intel® Core i7-7560U, dual core, quad thread, 2.4GHz, Turbo 3.8GHz |
| CPU Optional | Intel® Core i5-8260U, quad core, eight thread, 1.6GHz, Turbo 3.9GHz |
| CPU Optional | Intel® Core i7-8569U, quad core, eight thread, 2.8GHz, Turbo 4.7GHz |
| CPU Optional | Intel® Core i5-10310U, quad core, eight thread, 1.7GHz, Turbo 4.4GHz |
| CPU Optional | Intel® Core i7-10610U, quad core, eight thread, 1.8GHz, Turbo 4.9GHz |
| CPU Optional | Intel® Core i5-1135G7, quad core, eight thread, 2.4GHz, Turbo 4.2GHz |
| CPU Optional | Intel® Core i7-1195G7, quad core, eight thread, 2.9GHz, Turbo 5.0GHz |
| CPU Optional | Intel® Core i5-1245U, ten core, twelve thread, 1.6GHz, Turbo 4.4GHz |
| CPU Optional | Intel® Core i7-1265U, ten core, twelve thread, 1.8GHz, Turbo 4.8GHz |
| Memory | 2x SODIMM DDR4 (Can up to 32GB) |
| Storage | 1x MSATA, 1x M.2 NVME 2280, 1x HDD/SSD |
| Display | 1xVGA, 1xHDMI |
| Display Chip | Integrated Intel HD Graphics card |
| Network | 2x2.5GbE RJ45 Intel i225V |

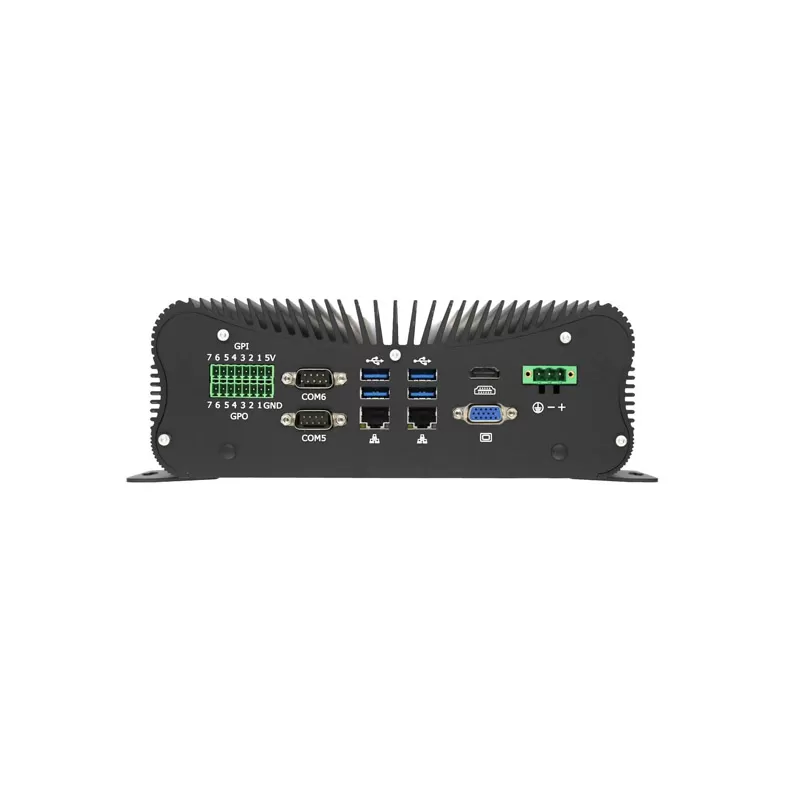

| I/O Interface | 4x USB 3.0, 2x USB 2.0, 6x DB9 COM(4 support RS232/RS485/RS422 Optional), 2x 2.5G LAN, 1x VGA, 1xHDMI, 1x PS/2(Keyboard and mouse two-in-one), 14xGPIO(7 in, 7 out), 1x Audio/MIC, 2*WIFI Antenna(WIFI/3G/4G), 1x Power switch/reset/clear CMOS/DIP Switch(Support ATX/AT Start-up mode Optional), 1x3pin phoenix power socket 9-36V |
| Expansion | 1x Mini-PCIE Half size (support WIFI/Bluetooth). |
| 1x Mini-PCIE Full size(with SIM Card Socket) support 3G/4G, WIFI, Bluetooth | |
| Expansion IO x1, support LPC, USB, PCIE | |
| Operation System | Support Windows® 10, WES 10, Ubuntu, Debian, Fedora and etc. |
| Other function | Watch dog, no disk start-up |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 9-36V |
| Power consumption | ≤40W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Black |
| Operating Environment | |
| Temperature Range | Operating: -20 to 60°C, storage: -30 to 70°C |
| Relative humidity | 10%~90% @30°C, non-condensing |
| Packing Details | |
| Net weight | 1kg |
| Gross weight | 2.2kgs |

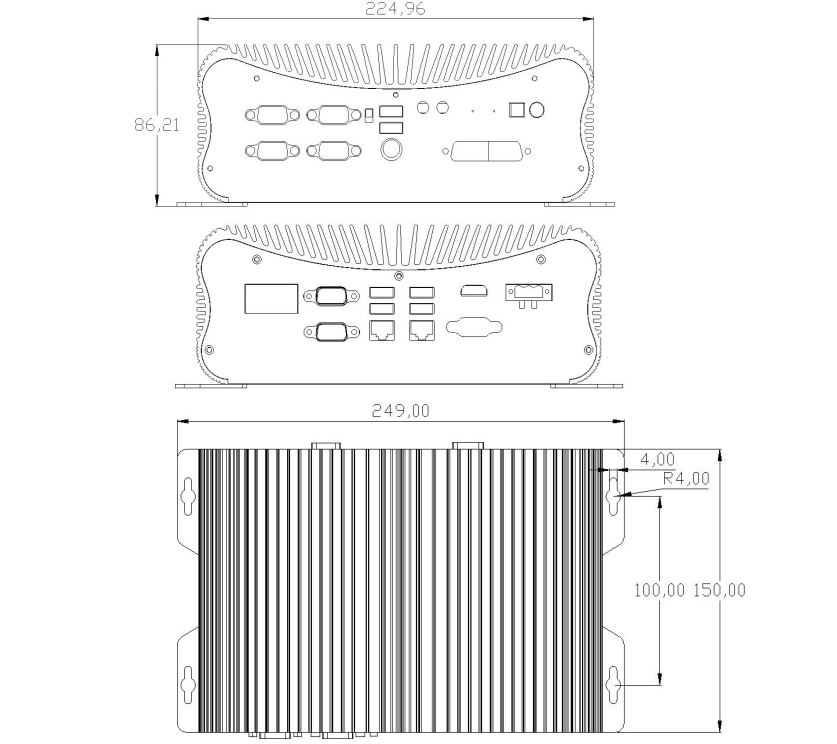

| Product Dimension | 24.9*15*8.6cm |
| Packing size | 31.5*29*13.3cm 2.7kgs 1pc; Carton size: 68.5*32.5*30.5cm 15kgs 5pcs/ctn |
| Accessories | Power adapter, VESA brackets, screws, user manual, warranty card |
| Other | |
| Mounting (Options) | VESA brackets (free) |
| Desktop | |
| Warranty | 2 years warranty |
