Model: SATA205
Features:
1. All aluminum alloy structure, no fan design.
2. Support Intel Core i5 4300U dual-core processor.
3. Support DDR3L 8G memory.
4. Support 1x MSATA slot, 2x 2.5-inch hard disks.
5. Support WIFI/3G/4G (choose one of three).
6. Support 6xCOM ports (COM2 optional RS232/485 mode).
7. Support Win7/8/10, Ubuntu, Debian, Fedora and etc.
| PC | |
| CPU | Adopt Intel Core i5-4300U(Dual Core, quad thread 1.9GHz, Turbo 2.9GHz) |
| Mainboard | 17*17CM mini itx motherboard |
| RAM | Support 1*DDR3L 1333/1600MHz SODIMM Slot, support Max 8G |
| Storage | Support 1*MSATA, 2*2.5" hard drive slot |
| Display chip | Integrated Intel HD Graphics card 4400 core display card |
| Display port | 1x VGA+1*HDMI (support synchronous/asynchronous dual display) |
| BIOS | AMI UEFI BIOS |
| Network | 2x Intel RTL8111H 10/100/1000M LAN |

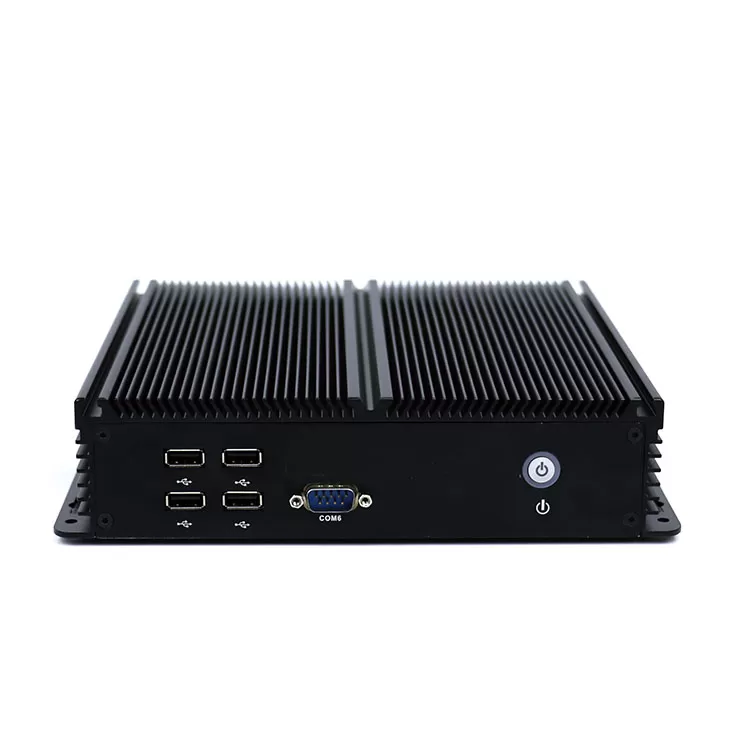

| Front I/O | 4xUSB2.0, 1xCOM, 1xPower switch |

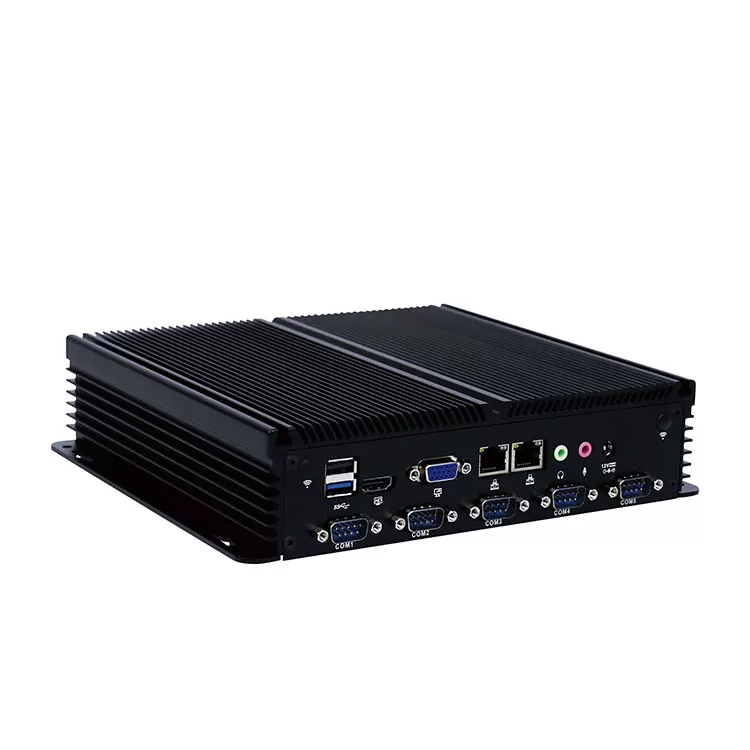

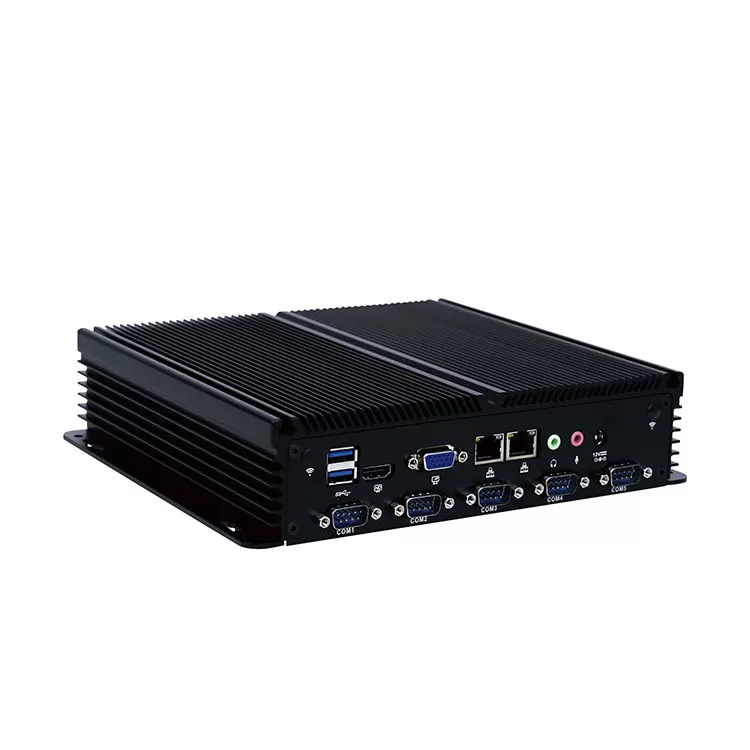

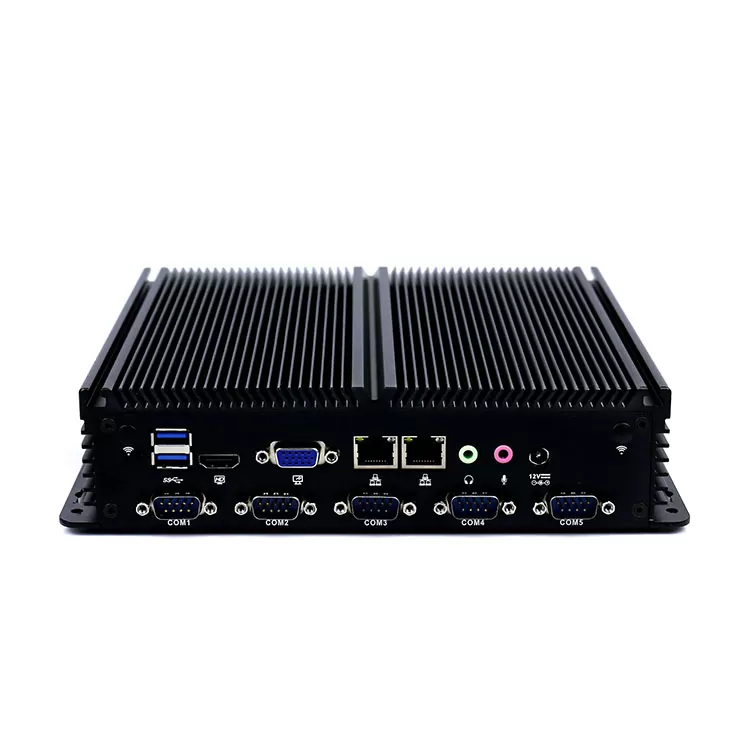

| Rear I/O | 2xUSB 3.0, 5xCOM(COM2 support RS232/RS485 mode), 2*1000M RJ45 LAN, 1*VGA/HDMI/Line out/MIC/DC input |
| Expansion interface | Support 1*MINI PCIE Slot (support MSATA) |
| Support 1*MINI PCIE Slot (WIFI/3G/4G Optional, default PCIE signal), with SIM Card socket | |
| Optional(4 in/out GPIO, LPT interface, PS/2 interface) | |
| Other function | Power-on, timed boot, network wake up, PXE boot, watchdog (level 0~255) |
| OS | Win 7/8/10, Ubuntu, Debian, Fedora and etc |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC12V |
| Power consumption | ≤40W |
| Enclosure | |
| Material | Aluminium Alloy |
| Color | Black or customise |
| Operating Environment | |
| Temperature Range | 0-50°C(Commercial HDD, -20°C to 60°C(Industrial SSD), surface air flow |
| Relative humidity | 0%~95%, non-condensing |
| Packing Details | |
| Net weight | 2.0kgs |
| Gross weight | 2.5kgs |

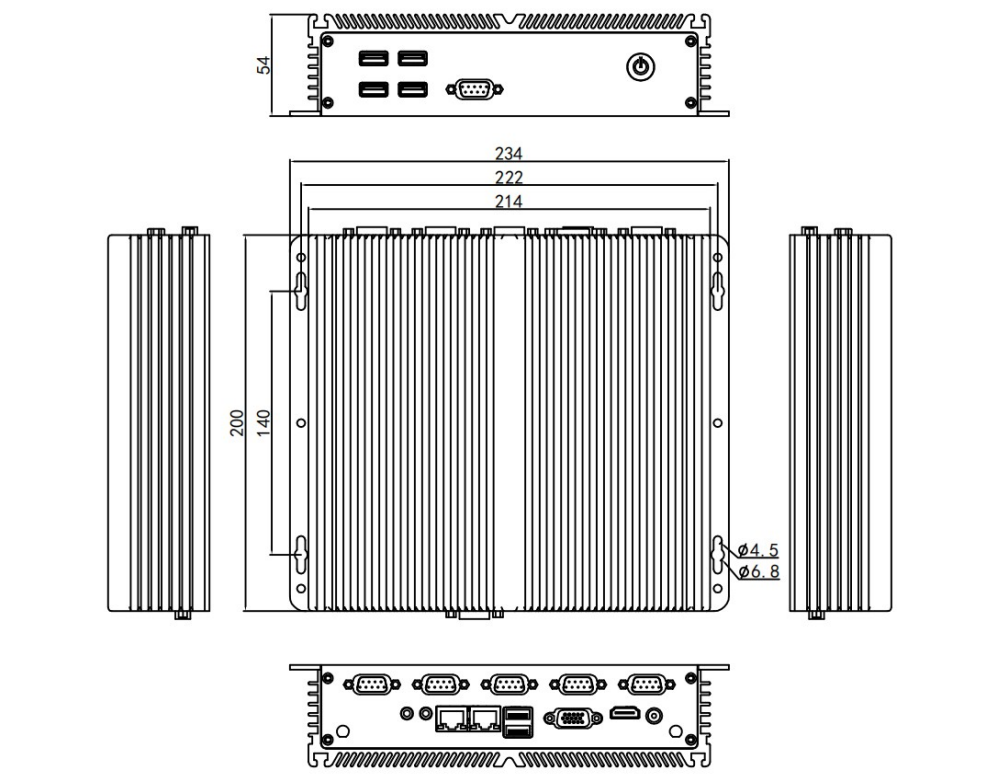

| Product Dimension | 23.4×20×5.4cm |
| Packing | 1pc(26.5*21*14cm), 8pcs per carton(71*35*31cm) |
| Other | |
| Warranty | 3 years warranty |
| Certificates | CE, FCC, RoHS |
