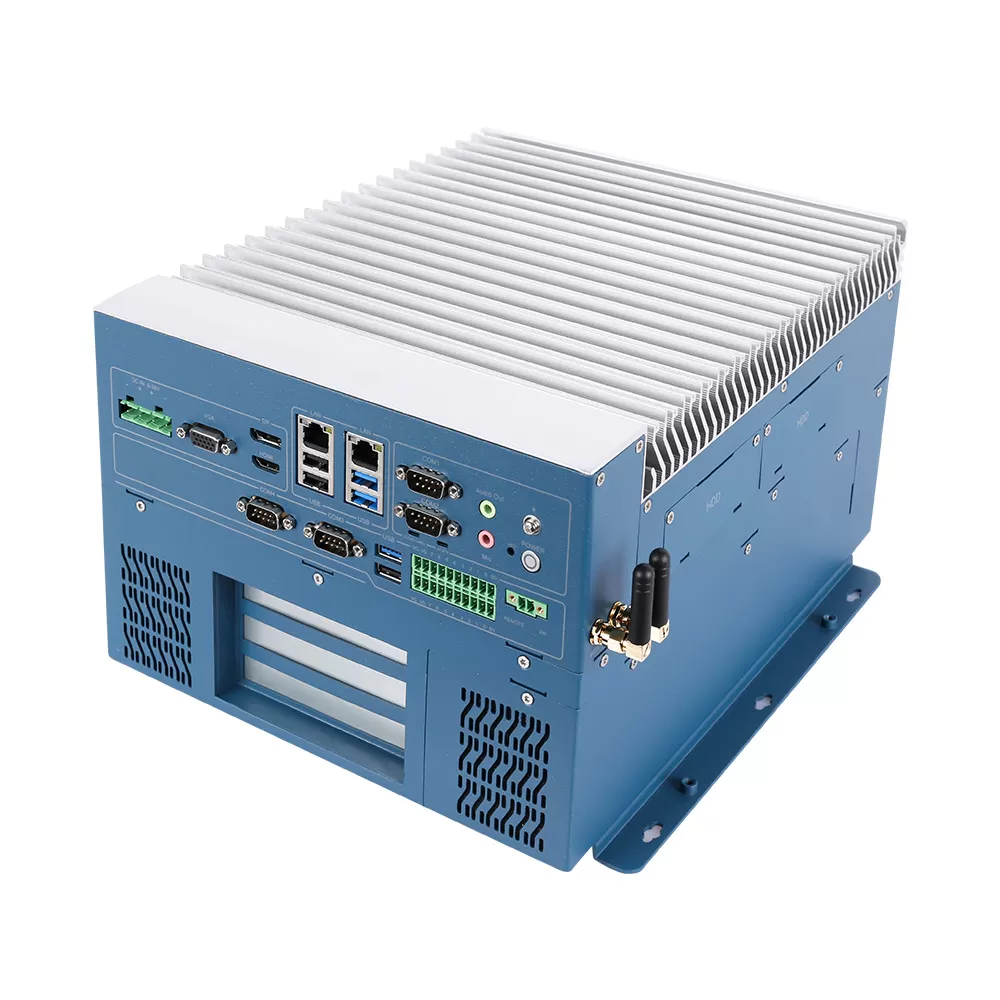

Model: SATA709
Features:
1. Independent CPU supporting Intel® 12/13/14th-generation Core™ i3/i5/i7/i9 processors。
2. Powerful expansion capability, 1*PCIEX16, 1*32BIT PCI dual slots, compatible with graphics card/data acquisition
Cards/motion control cards and other expansion cards.
3. Rich I/O interface, USB*6, COM*4 and 16bit isolated GPIO.

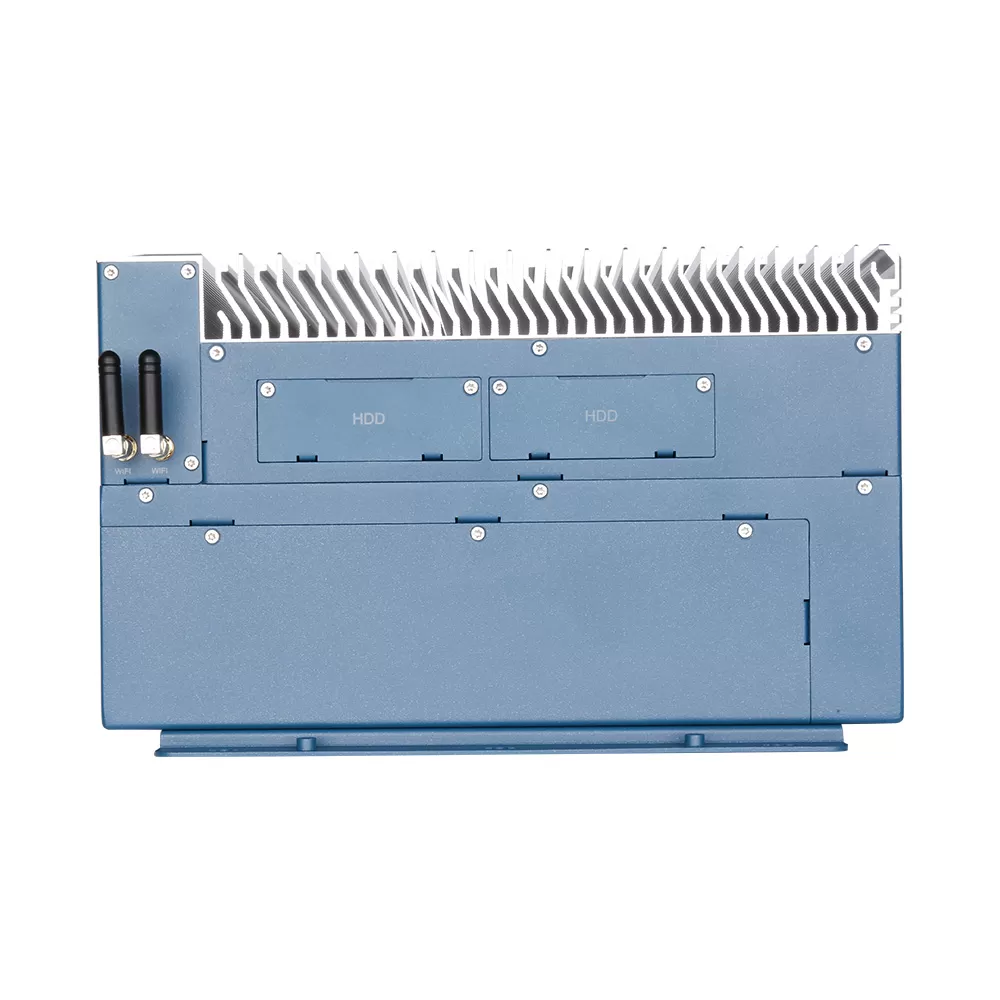

4. Push-out hard disk design for easy storage expansion, maintenance and upgrade.
5. Support wide temperature (-20-70 °C)/wide pressure (DC 9-36V) operation.
6. Modular industrial design, efficient heat dissipation structure, stable and reliable performance.
| PC | |
| CPU | Intel® Core i3 12100, quad Core, eight thread, 3.3GHz, Turbo 4.3GHz |
| CPU Optional | Intel® Core i5 12400, six Core, twelve thread, 2.5GHz, Turbo 4.4GHz |
| CPU Optional | Intel® Core i7 12700, twelve Core, twenty thread, 2.1GHz, Turbo 4.9GHz |
| CPU Optional | Intel® Core i9 12900, sixteen Core, twenty-four thread, 2.4GHz, Turbo 5.1GHz |
| Memory | 16GB; Support 2*262-Pin SODIMMs, dual channel DDR5 4800MHz, up to 64GB |
| Storage | 500GB SSD (2*2.5 SATA3 Easy to insert and remove hard disk rack, large capacity 15mm thick HDD, support up to 6Gbps transfer speed, 1xfull-length mSATA, with SATA3.0, supports up to 6Gbps transfer speeds) |
| Audio | Realtek ALC897 audio, 1xLine out+1xMIC HI-FI audio with 5.1 channel support |
| Button/Indicate Light | 1xPower button w/LED, 2-pin Phoenix terminal remote switch, AT-ATX DIP switch, Clear Cmos DIP switch |
| Display interface | 1xVGA, 1xHDMI, 1xDP |

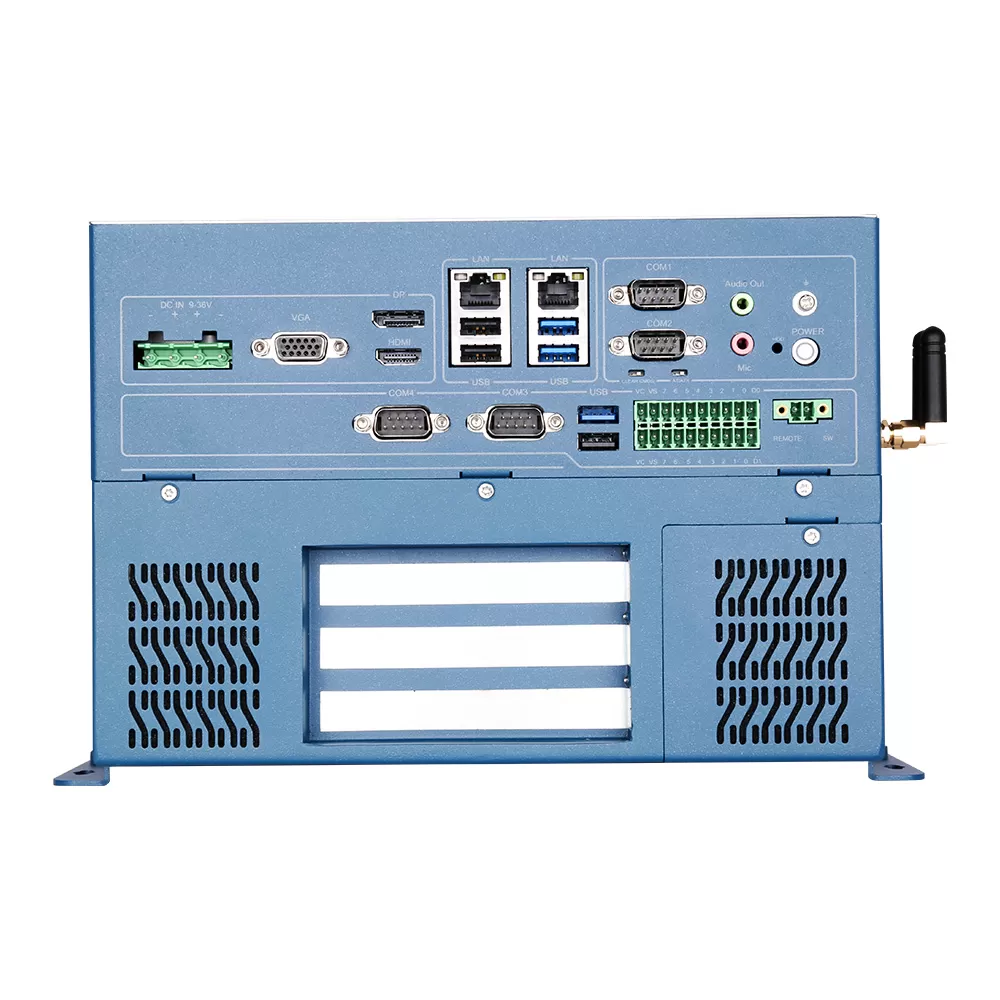

| I/O | 3xUSB3.0, 3xUSB2.0, 4*USB2.0 plug pin(Built-in), 2xRJ45 Ethernet (1000 Mbps+2500 MBPS), 4xCOM, 6xCOM(2x232/422/485 COM1,COM2 switch via BIOS Settings 4x232/485 switch via jumper) Optional, 1xVGA/HDMI/DP, 16 channel optical isolation (16 channel non-isolated GPIO Optional) |
| Expansion interface | 1xPCIE X16, 1x32BIT PCI(2xPCI Optional) |
| 1xM.2 supports the Key-E interface WiFi/ Bluetooth module | |
| 1xM.2 supports the Key-B interface M.2 5G (3052/3042) module or M.2 4G (3042) module | |
| Network interface | 2xIntel1000M+2500M Ethernet port |

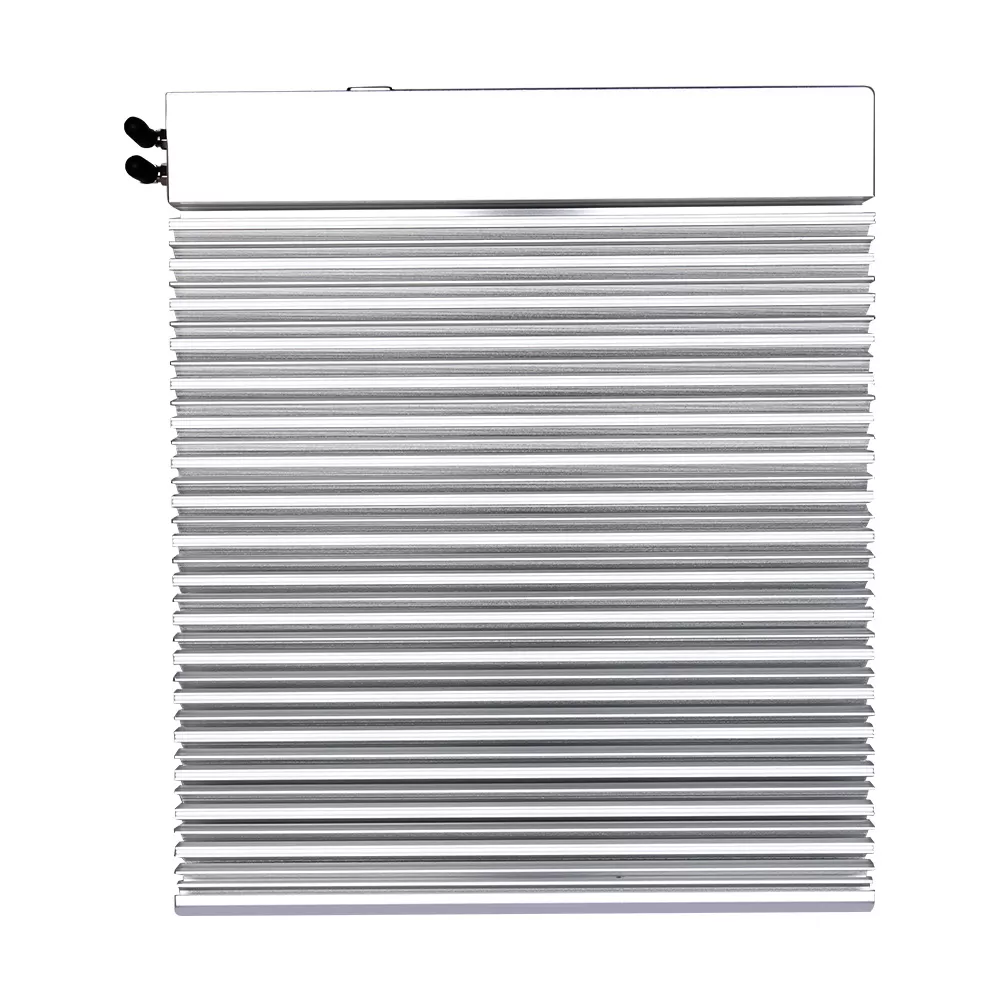

| Cooling system | Fanless Copper pipe heat dissipation |
| Operation System | Support Windows 10/11, Linux, Ubuntu, Redhat, Debian etc. |
| Power Supply | |
| External Power Supply | DC 24V adapter ( AC 220V built-in switching power supply Optional) |
| Working voltage | DC IN 9-36V, 4-pin 7.62-pitch Phoenix terminal block, with short circuit, anti-reverse, overvoltage and overcurrent protection, power consumption 300W. (20~60V Optional) |
| Power consumption | ≤150W |
| Enclosure | |
| Material | SGCC galvanized sheet, aluminum alloy |
| Color | Silver+Dark Blue |
| Operating Environment | |
| Temperature Range | Operating: -20 to 70°C, Storage: -30 to 80°C |
| Relative humidity | 5%~95%, non-condensing |
| Reliability test | Anti-static design, anti-surge design |
| Packing Details | |
| Net weight | TBD |
| Gross weight | TBD |

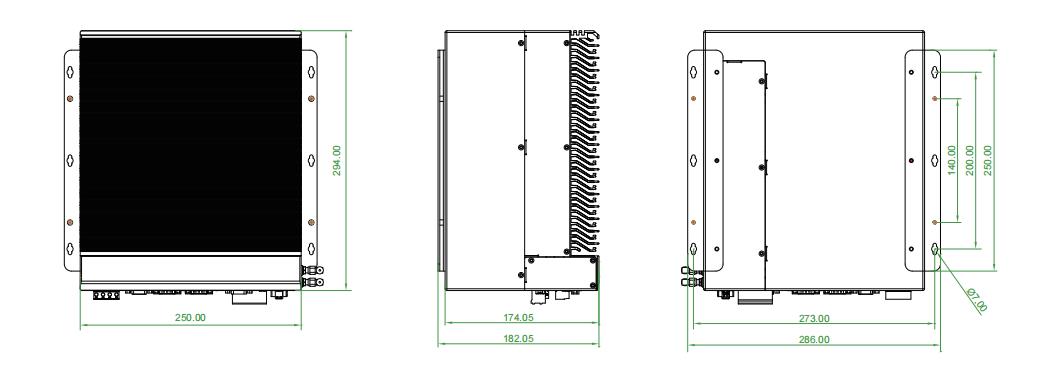

| Product Dimension | 250×294×102mm |
| Packing size | TBD |
| Accessories | Power adapter, power plug, vesa bracket, user manual, warranty card, CD Card |
| Other | |

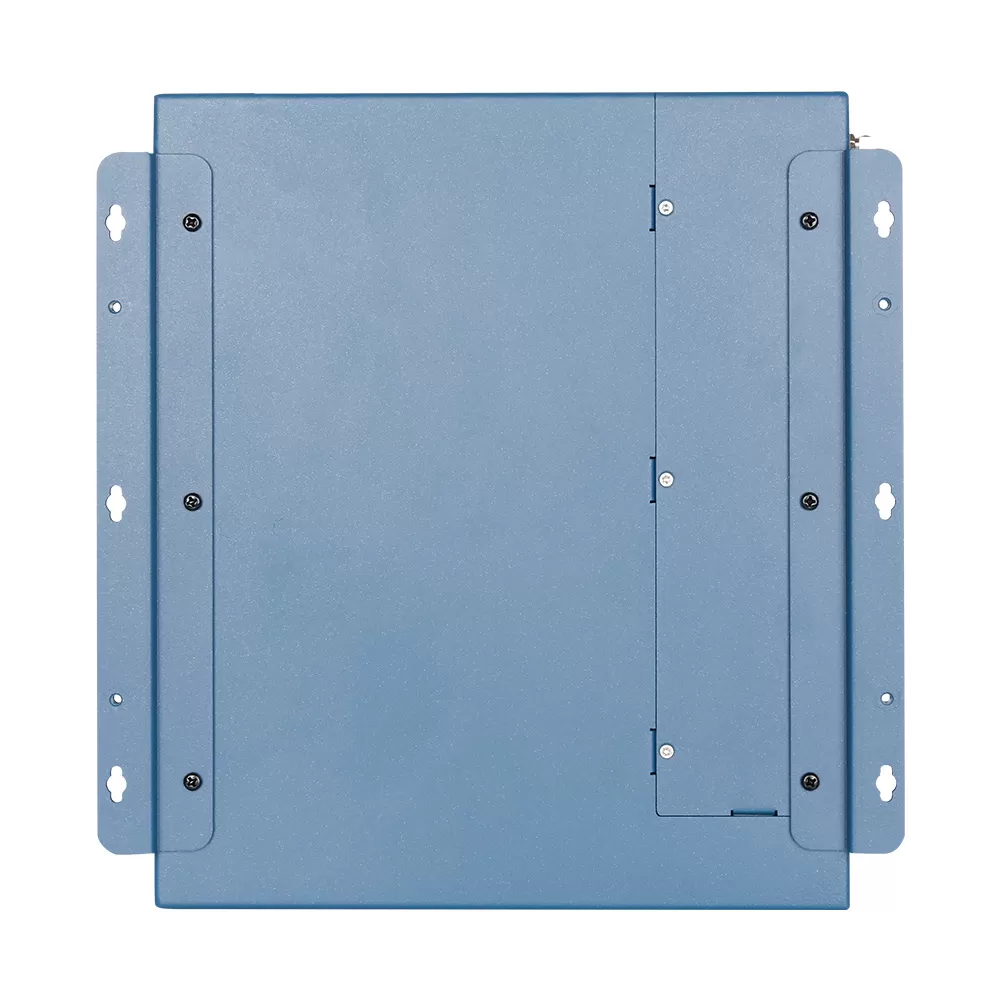

| Mounting way | Wall mounting/Desktop/Rack mount (Optional) |
| Warranty | 1 year warranty |
