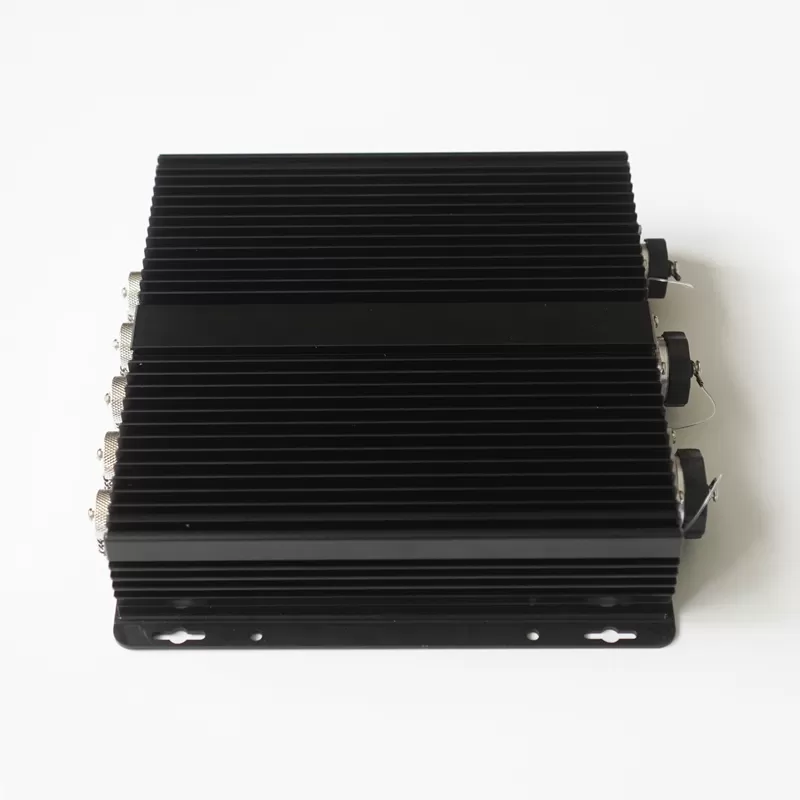

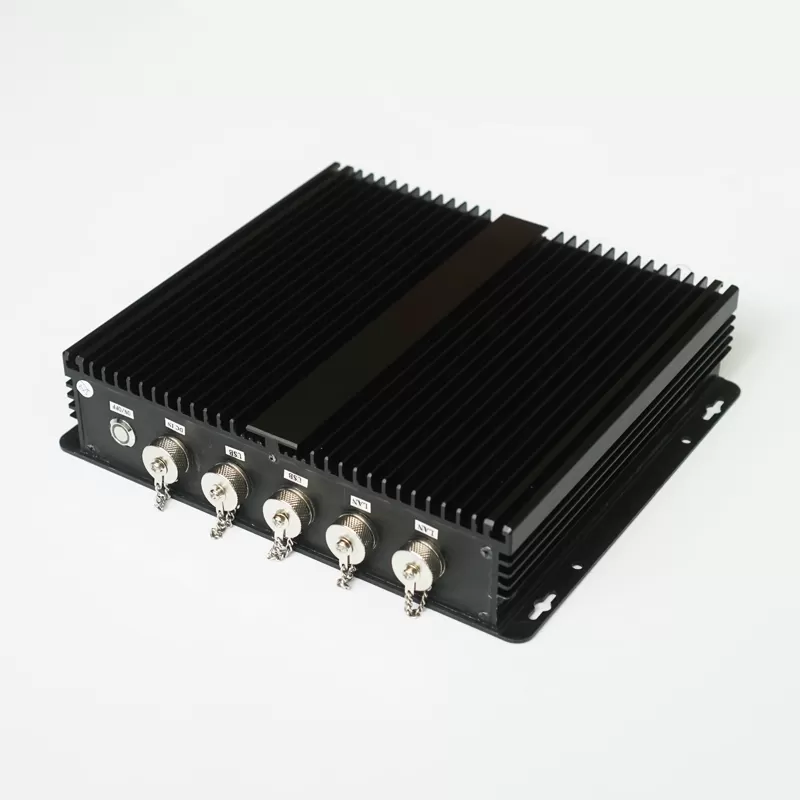

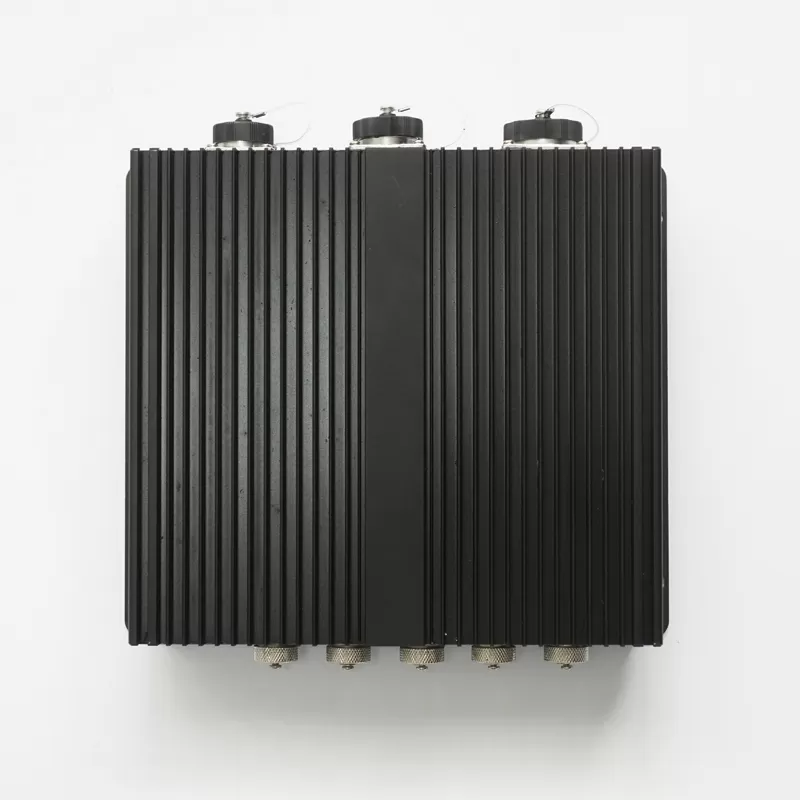

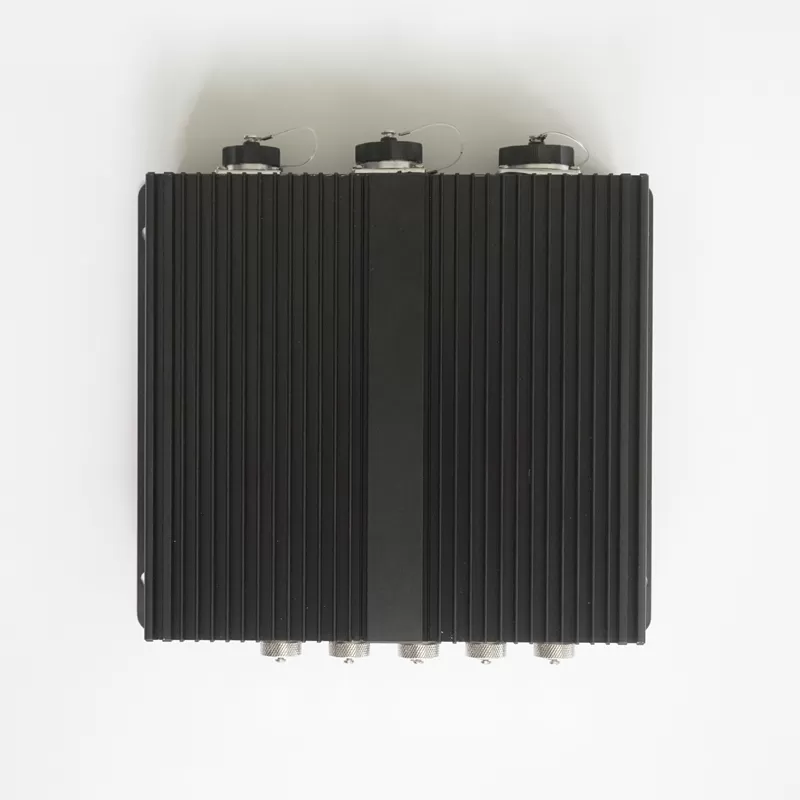

Model: SATA-623W
Features:
1. Full Aluminum alloy enclosure, compact, low weight design, excellent heat dissipation.
2. Sealed construction full IP65 waterproof, fanless design, noiseless, low-power consumption design.
3. Suitable for harsh operating environment, dustproof, anti-corrosion, shockproof, anti-vibration.
4. High performance motherboard, 7x24 continuous operation
5. Wide operating temperature support (-10°C~60°C)
6. With high electromagnetic compatibility and anti-interference capacity.
7. Expanded displays for Multi-task, Auto boot, remote wakening support.
| PC | |
| CPU | Intel® Core i7-6500U, dual core, 2.5GHz, Fanless |
| Chipset | Intel® Skylake-U series SOC |
| Memory | 8G DDR4 (4G/16G/32G Optional) |
| Hard Drive Capacity | 256G SSD (64G/128GB/512G SSD Optional) |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Network | 2×Realtek RTL 8111E Gigabit Ethernet controller |

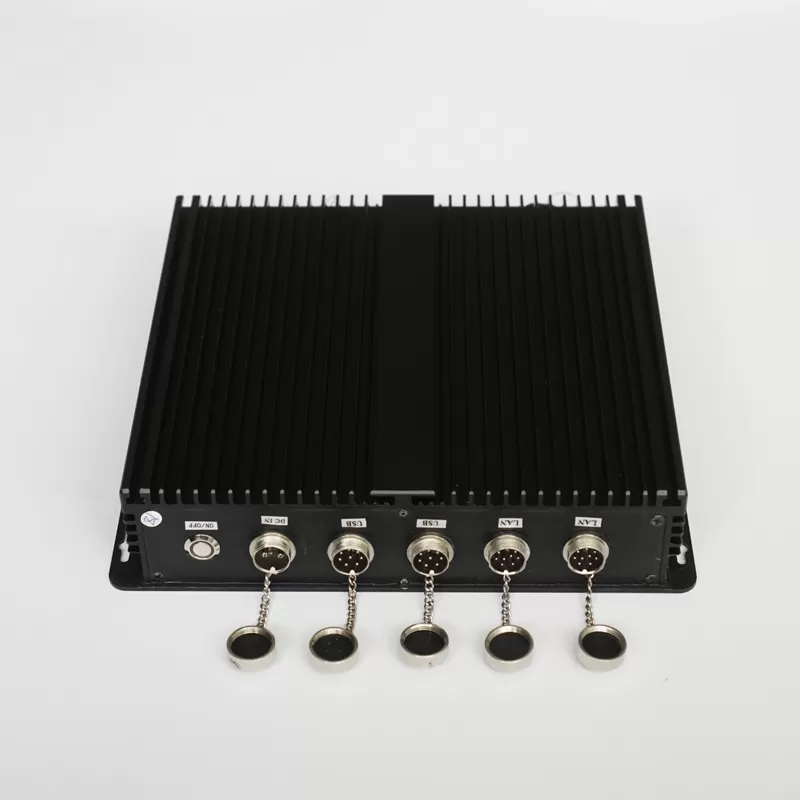

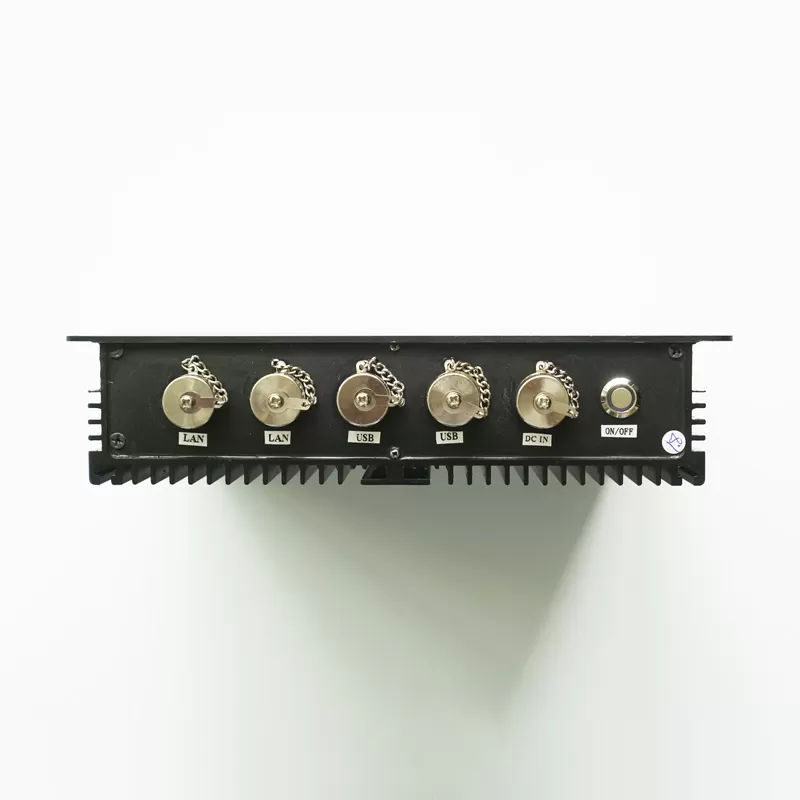

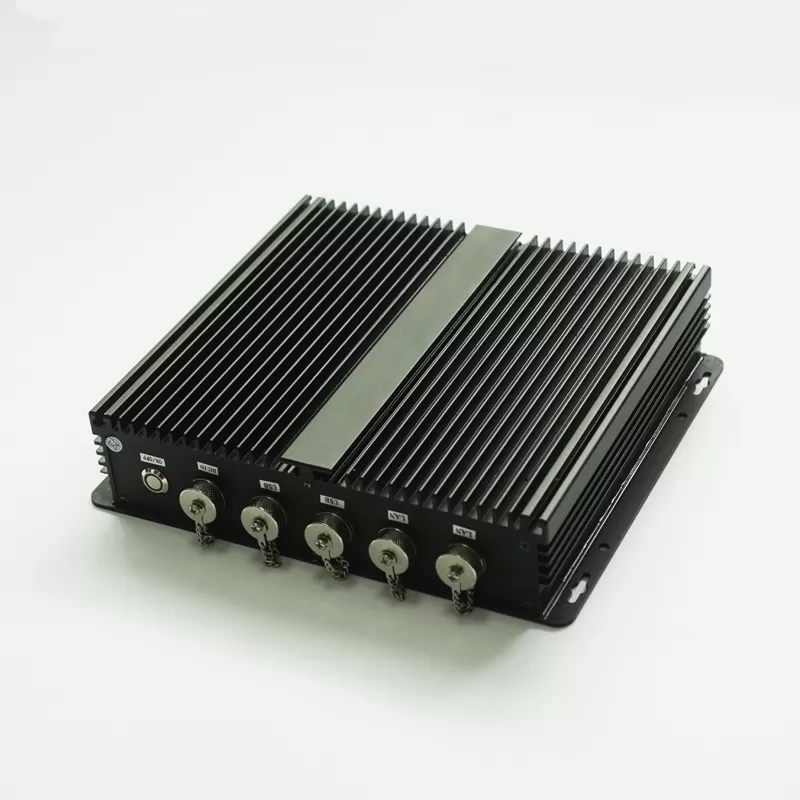

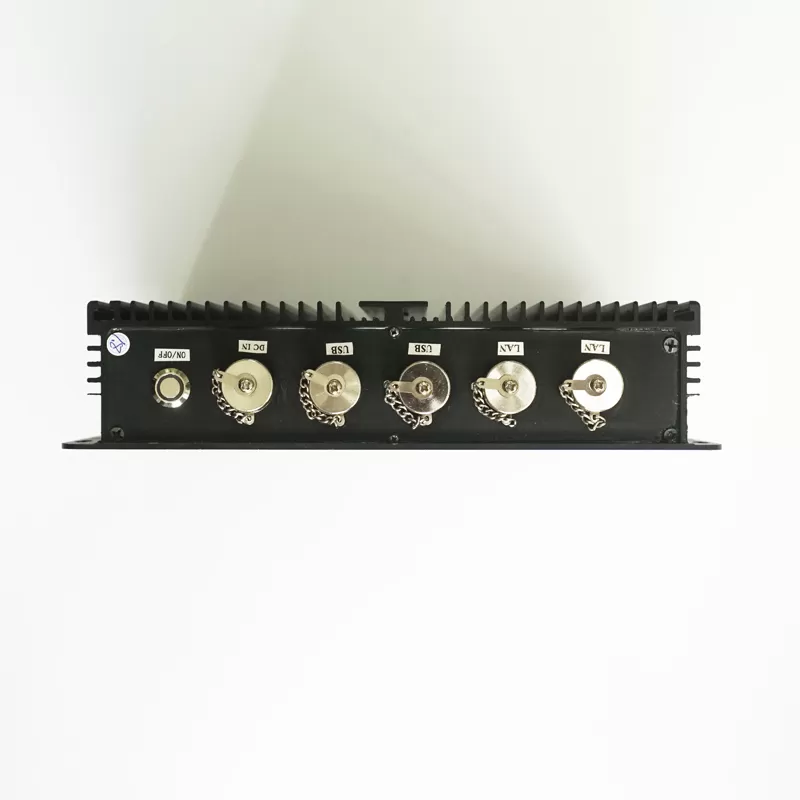

| Front I/O Ports | 4xUSB, 2xRJ45, 1xDC in, 1xPower Button |

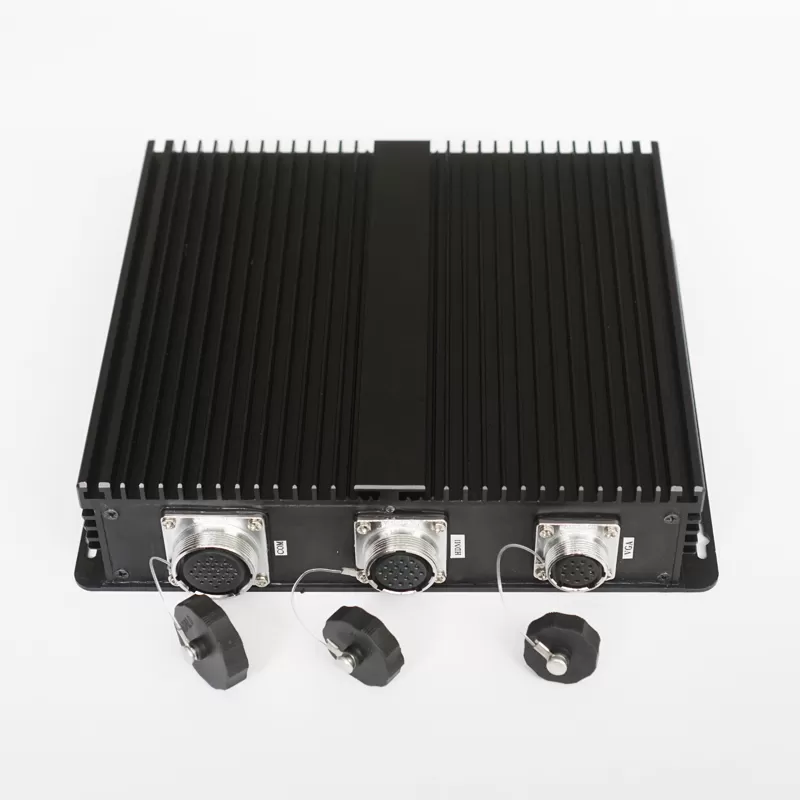

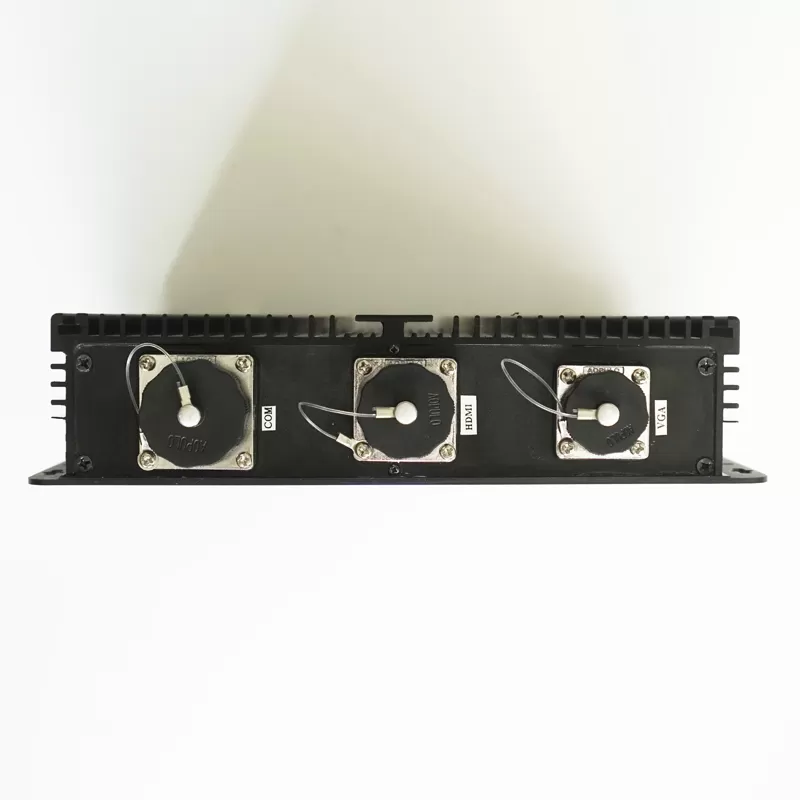

| Rear I/O Ports | 3xCOM, 1xHDMI, 1xVGA |
| Resolution support | Above 800*600 |
| HD support | 1080P |
| Operation System | Support Windows 7/8/10, Ubuntu, Debian, Fedora and etc. |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 24V |
| Power consumption | ≤30W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Black, Silver, White, color can be customized |
| Operating Environment | |
| Temperature Range | Operating: -10 to 60°C, storage : -20 to 70°C |
| Relative humidity | 20%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 2.5kgs |
| Gross weight | 5kgs |

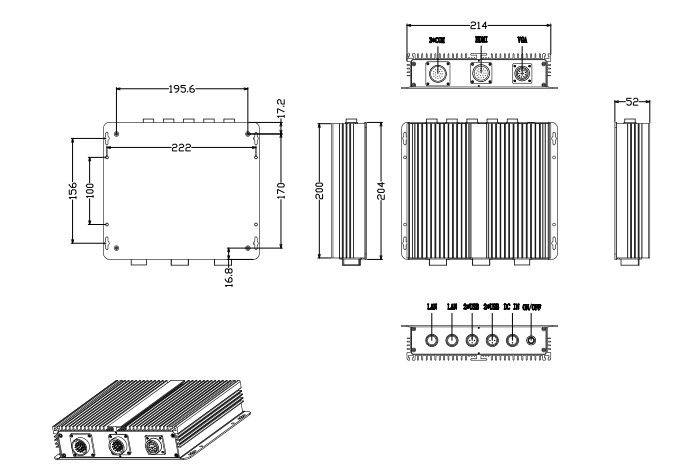

| Product Dimension | 21.4*20.4*5.2cm |
| Packing size | 43*38*19mm |

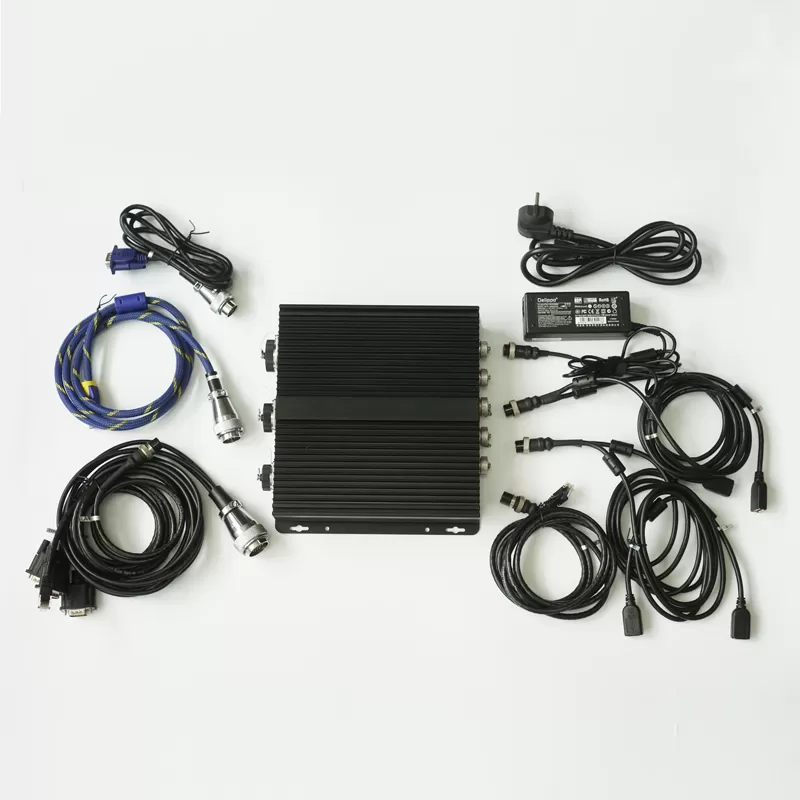

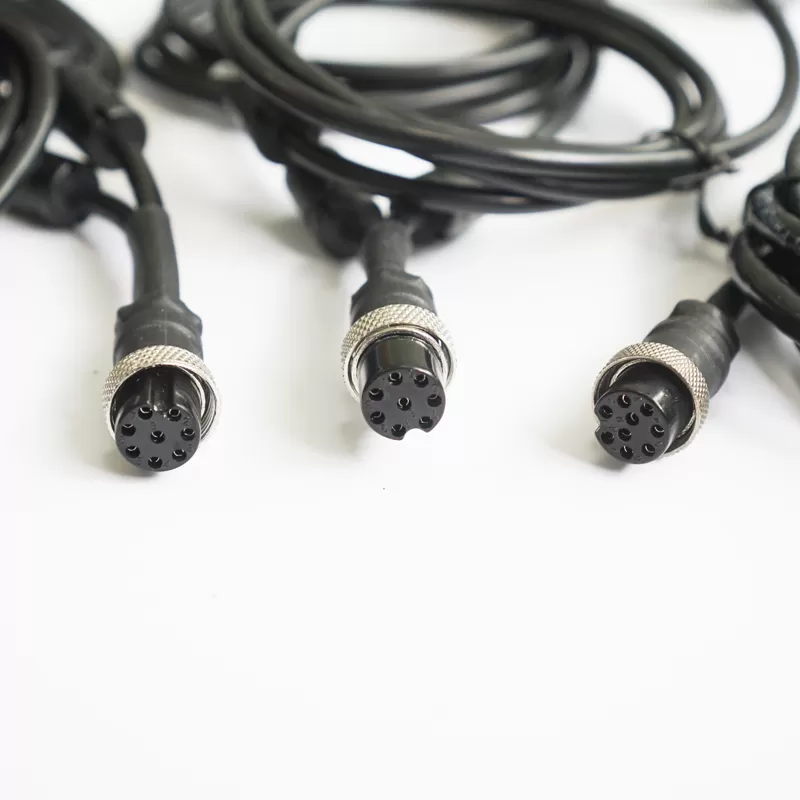

| Accessories | Power adapter, full IP65 waterproof cable sets |
| Other | |

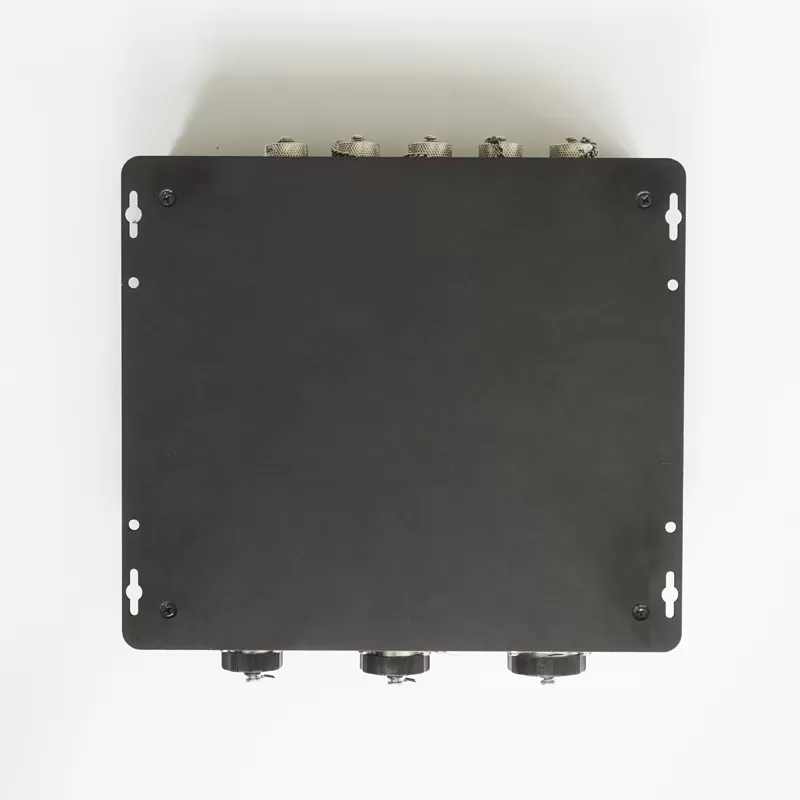

| Mounting (options) | Built-in mounting bracket |
| Wall/desking mounting brackets (Optional) | |
| Warranty | 1 year warranty |
