Model: SATA104MW
LCD panel | |
Panel size | 10.4" |
Resolution | 800*600 |
Aspect ratio | 4:3 |
Support Color | 16.7M colors |
Brightness (cd/m²) | 1000 nits, sunlight readable |
Contrast ratio | 1000:1 |
View angle | 80°/80°/80°/80° (R/L/U/D) |
Touch panel | |
Touchscreen Type | 10 points Capacitive touch |
Touch Interface | USB (RS232 Optional) |
Touch response time | <5ms |
Luminousness | 85% |
Surface Hardness | 3H |
Working Life | >35 million times |
Touch options | (4-wire resistive touch, non-touch Optional) |
Singal Ports | |
VGA | 1×VGA |
HDMI | Optional |
DVI | Optional |
AV | Optional |
Audio in/out | Optional |
OSD | |
OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
Support OS | Windows XP, Windows 7/8/10, Linux, Mac OS X, Android and etc. |
Power Supply | |
External Power Supply | AC 100-240V |
Working voltage | DC 12V |
Power consumption | 25W |
Enclosure | |
Material | Aluminium alloy front bezel +High strength cold rolled steel back case |
Color | Black, White, Silver, other color can customise |

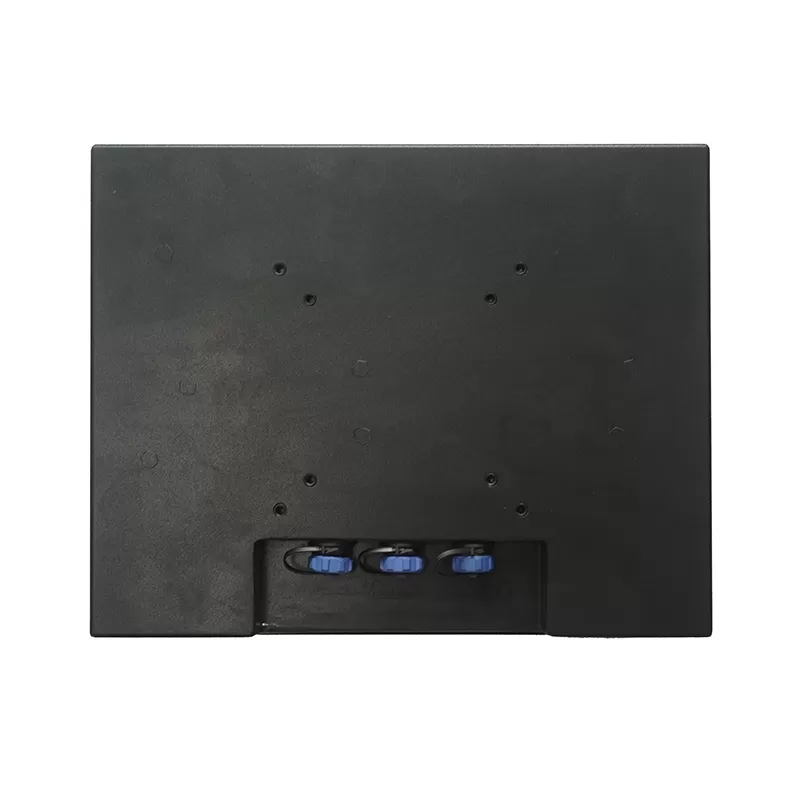

VESA mounting | 75×75/100×100 mm |
IP-grade | IP67 |
Operating Environment | |
Temperature Range | Operating: -10°C to 60°C, storage: -20°C to 70°C |
Relative humidity | Operating: 10% to 90%, storage: 5% to 90% |
Packing Details | |
Net weight | 2.5kgs |
Gross weight | 3kgs |

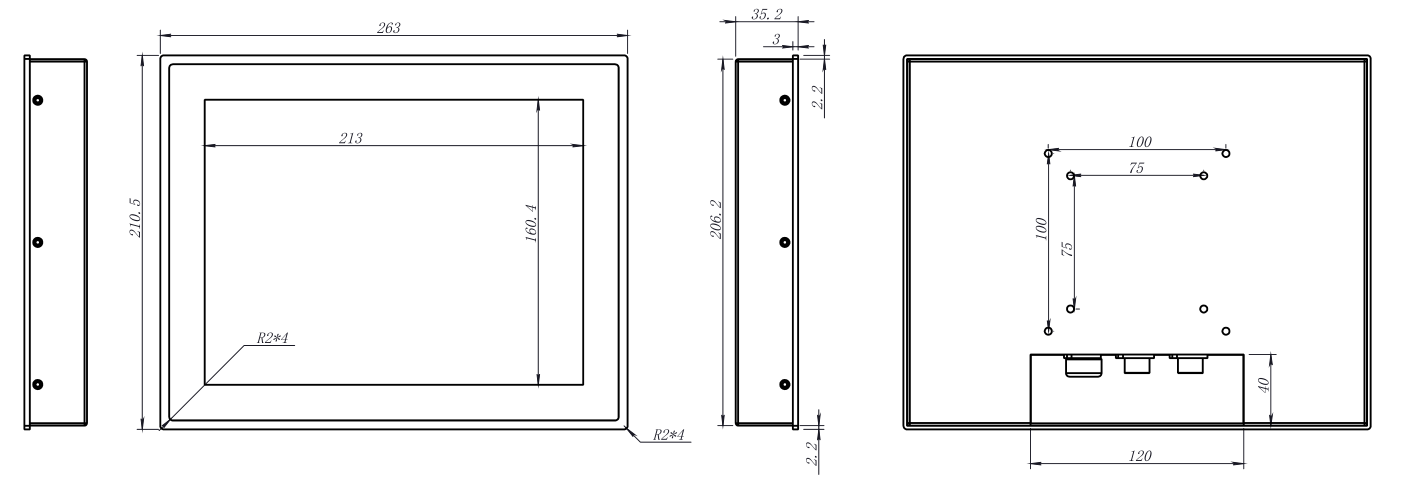

Product Dimension | 26.3×21.05×3.52cm |
Packing size | 36×30×15cm |

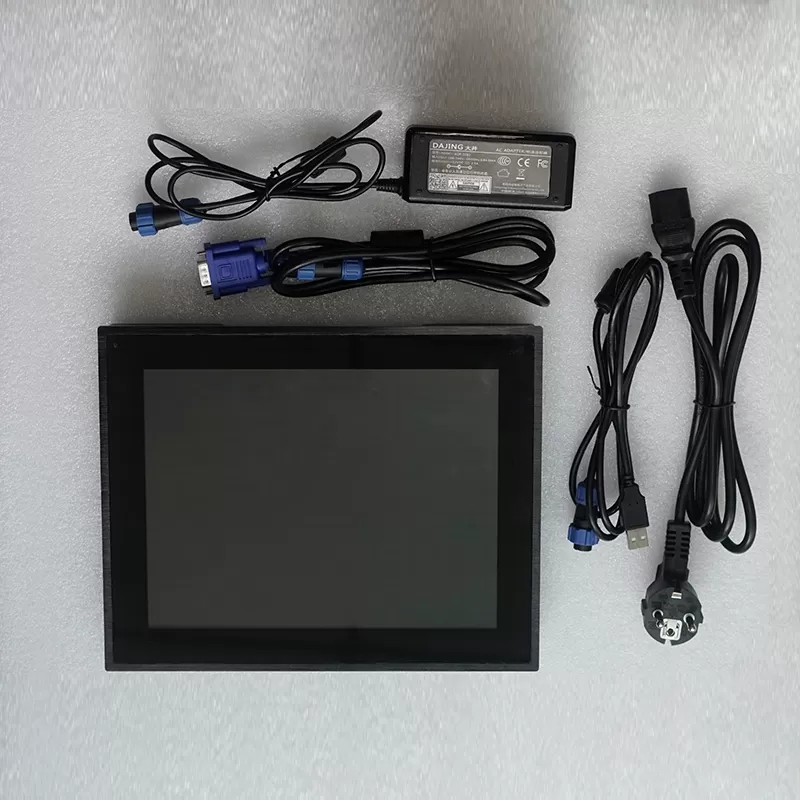

Accessories | Power adapter, power cord, VGA/USB cable, user manual, warranty card |
Other | |
Mounting (options) | 1) Provide wall brackets for wall-mounting, VESA 75×75 mm |
2) Provide stable metal holder to support the monitor | |
Warranty | 1 year warranty |
