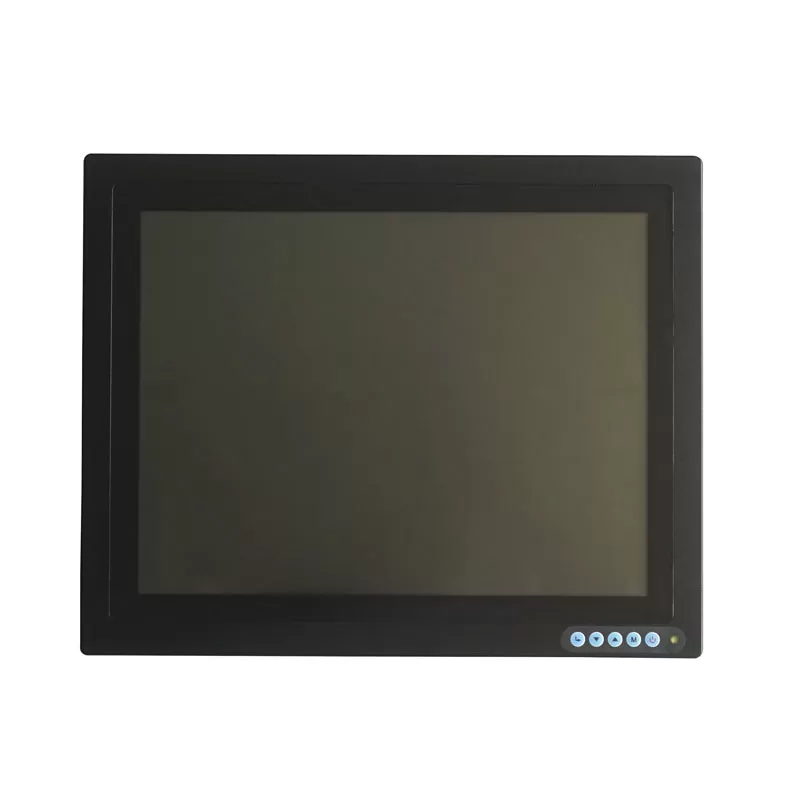

Model: SATA15MW
Features:
1. Robust and durable, all-metal enclosure, sealing design, full IP67 waterproof, Sealed I/O with cable set included.
2. 15'' Industrial LCD panel, high brightness 1500 nits, sunlight readable.
3. Wide Temperature Range: operating: -20 to 70°C, storage: -30 to 80°C.

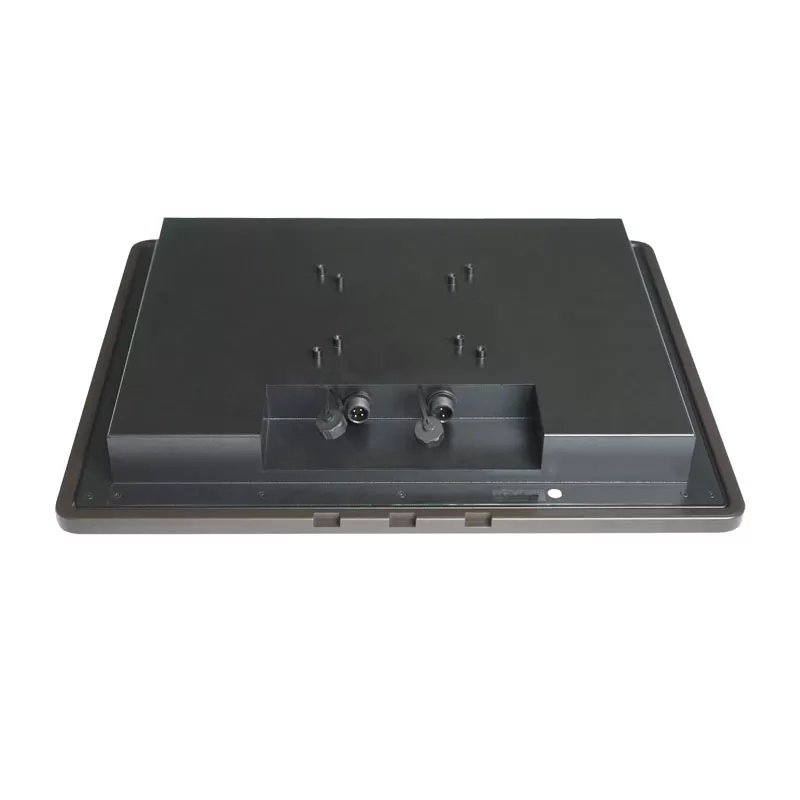

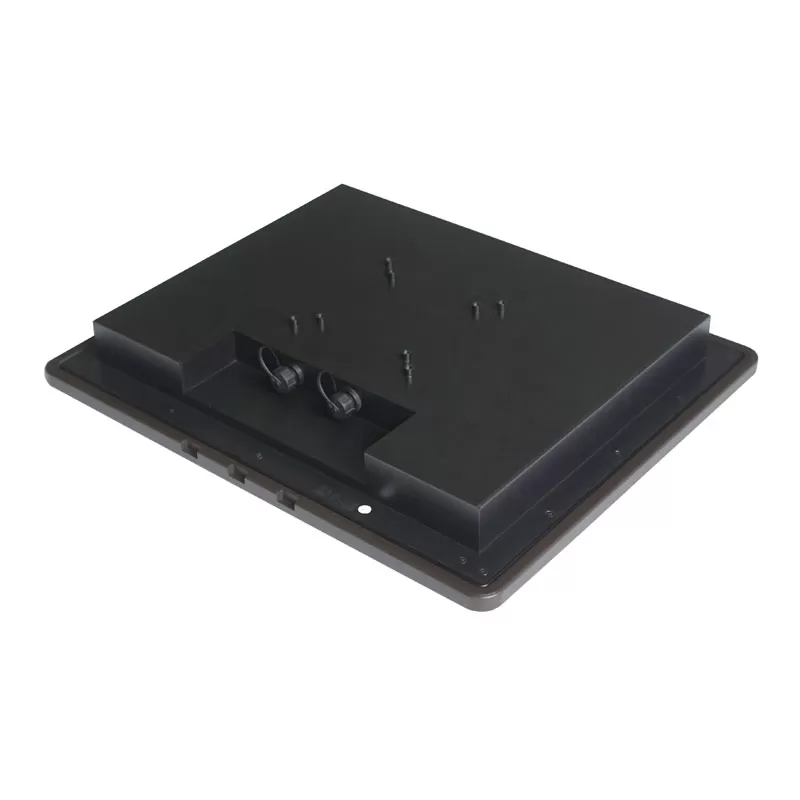

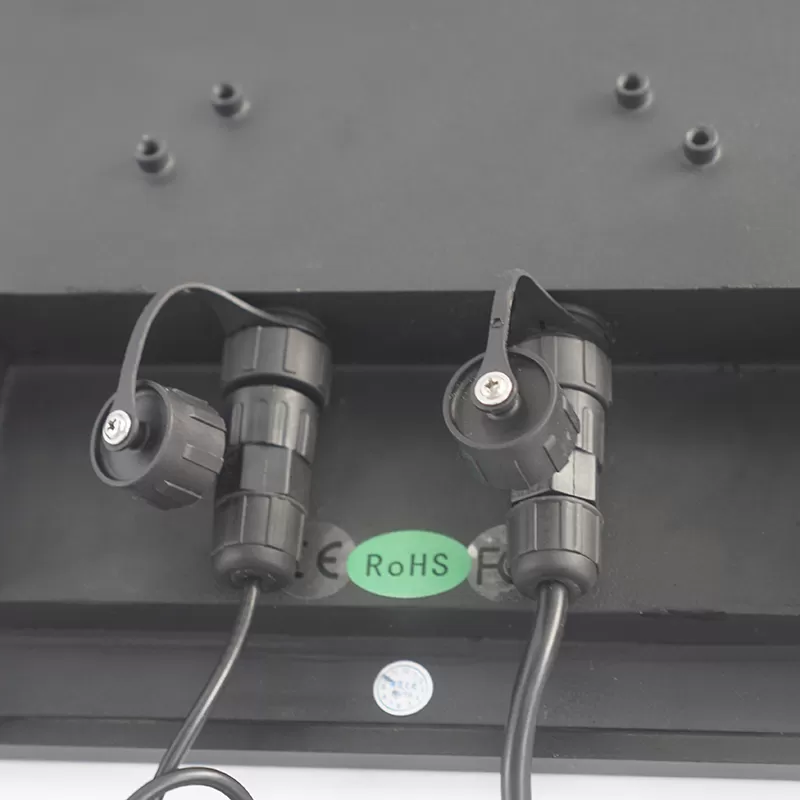

4. Interfaces: 1*IP67 waterproof DC in +1*IP67 waterproof Video in.
5. High performance mainboard, 7x24 continuous operation.
| LCD panel | |
| Panel size | 15" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1500 nits, sunlight readable |
| Contrast ratio | 700:1 |
| View angle | 80°/80°/70°/70° (R/L/U/D) |
| Singal Ports | |
| BNC | 1xBNC |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP, Windows 7/8/10, Linux, Mac OS X, Android, etc. |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | 25 W |
| Enclosure | |
| Material | Aluminium alloy front bezel+High strength cold rolled steel back case |
| Color | Black, White, Silver, color can customize |

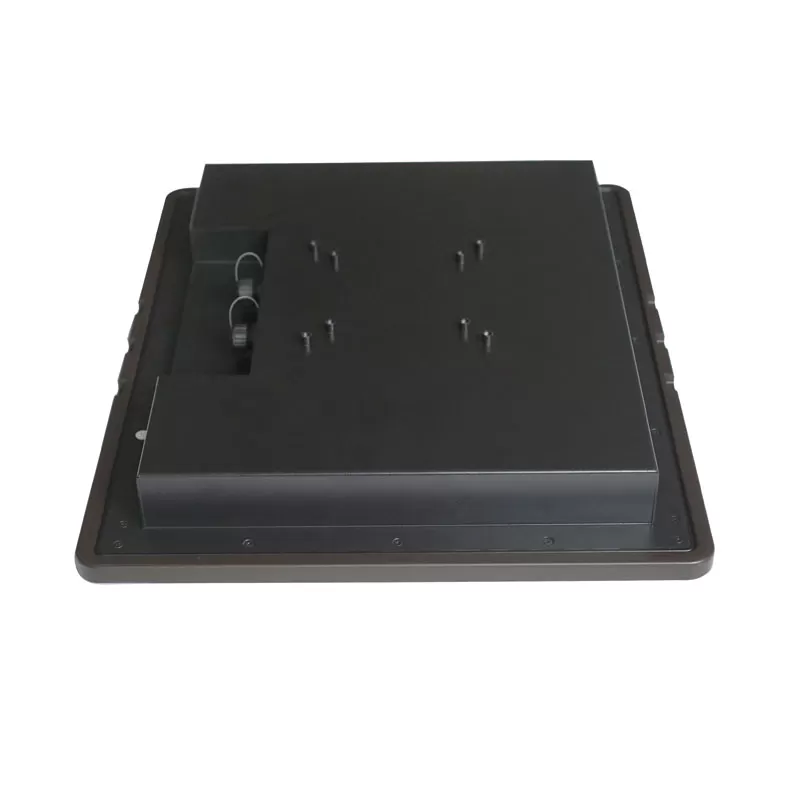

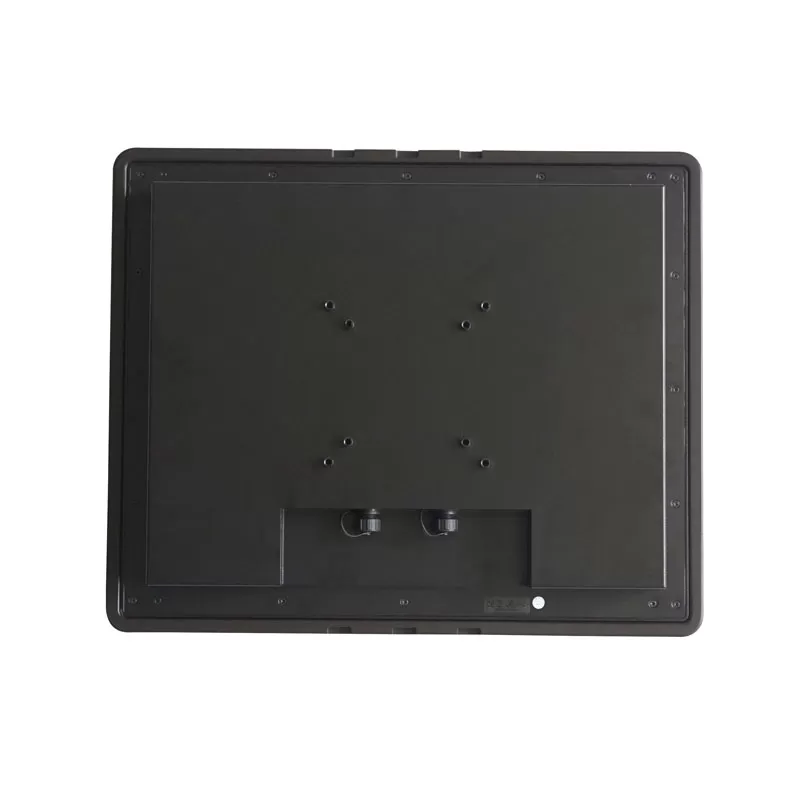

| VESA mounting | 75x75mm/100x100 mm |
| IP-grade | Full IP67 waterproof |
| Operating Environment | |
| Temperature Range | Operating: -20 to 70°C, storage: -30 to 80°C |
| Relative humidity | Operating: 10% to 90%, storage: 5% to 90% |
| Packing Details | |
| Net weight | 3.5kgs |
| Gross weight | 4.5kgs |

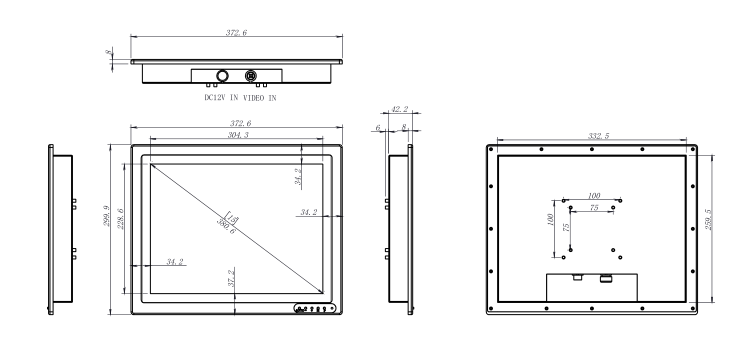

| Product Dimension | 37.26×29.99×4.22cm |
| Packing size | 47x43x18 cm |

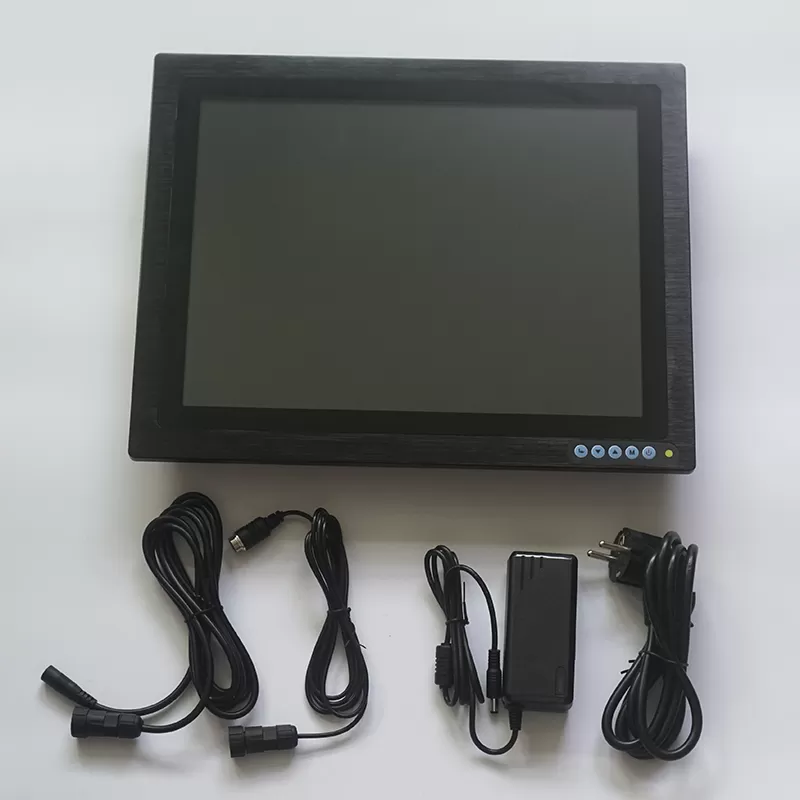

| Accessories | Power adapter, IP67 waterproof power cord, IP67 waterproof BNC cable |
| Other | |
| Mounting (options) | 1) Wall brackets for wall-mounting, VESA 100×100 mm |
| 2) Stable metal holder to support the monitor | |
| Warranty | 1 year warranty |
