Model: SATA185MW
Features:
1. Aluminum alloy front bezel+High strength cold rolled steel back enclosure, Full IP67 waterproof.
2. Industrial LCD panel, wide view angle, 1000 nits high brightness, sunlight readable.
3. Screen turns on automatically with power applied.
4. High performance mainboard, 7x24 continuous operation.
5. Wide voltage: 8-36V. ideal for truck, bus, lorry, sprinkler and etc.
6. 3 channel AV, work with 3 cameras, ahd cameras and normal cameras.
7. With Mirror image function, remember function.
| LCD panel | |
| Panel size | 18.5" |
| Resolution | 1366*768 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 |
| Contrast ratio | 1000:1 |
| View angle | 85°/85°/80°/80° (R/L/U/D) |
| Singal Ports | |
| AV1 | 1×AV1 |
| AV2 | 1×AV2 |
| AV3 | 1×AV3 |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | Wide voltage: 8-36V |
| Power consumption | 35W |
| Enclosure | |
| Material | Aluminum alloy bezel+High strength cold rolled steel back |
| Color | Black, White, Silver (Color can customize) |
| VESA mounting | 100×100 mm |
| IP grade | IP67 |
| Operating Environment | |
| Temperature Range | Operating: -20 to 70°C, storage: -20 to 80°C |
| Relative humidity | Operating: 10% to 90%, storage: 5% to 90% |
| Packing Details | |
| Net weight | 6.2kgs |
| Gross weight | 7.5kgs |

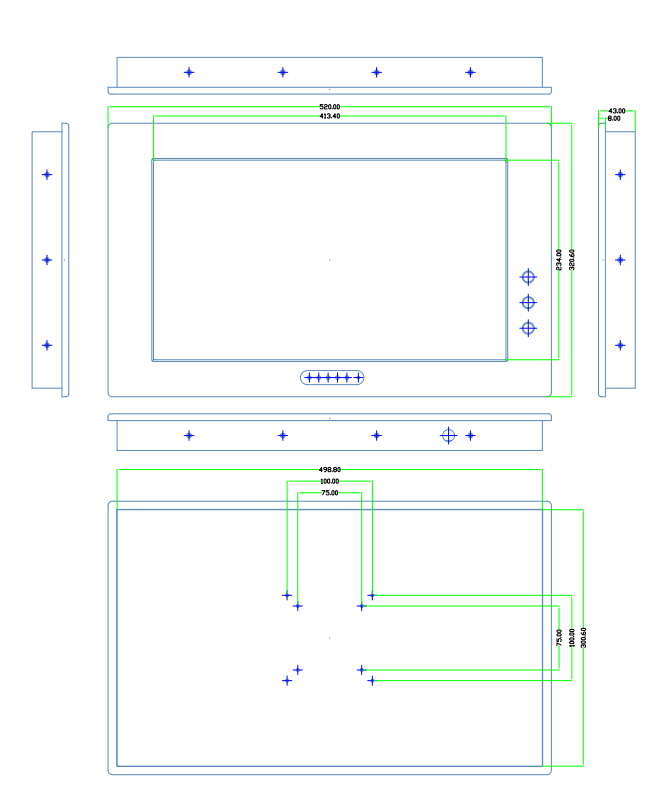

| Product Dimension | 52×32.06×5.1cm |
| Packing size | 63×46×17 cm |

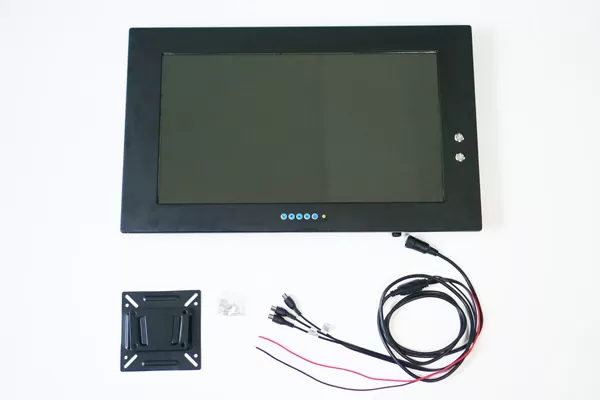

| Accessories | Integrated AV1, AV2, AV3, DC cable (150cm+45cm) |
| Other | |
| Mounting (options) | 1) Provide wall brackets for wall-mounting, VESA 100×100mm |
| 2) Provide stable metal holder to support the monitor | |
| Warranty | 1 year warranty |
