Model: SATA19MW
Features:
1. Robust and durable all-metal enclosure, full IP65 waterproof.
2. Industrial LCD panel, high brightness, sunlight readable.
3. Adopt high precision industrial 4 wires resistive touch screen.
4. High performance mainboard, 7x24 continuous operation.
5. Adopt HDMI 1.4 Digital decoding scheme, strong compatibility.
| LCD panel | |
| Panel size | 19" |
| Resolution | 1440*900 |
| Aspect ratio | 16:10 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits, sunlight readable |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 4-wire Resistive touch |
| Touch Interface | USB (RS232 Optional) |
| Touch response time | <8ms |
| Luminousness | 75-85% |
| Surface Hardness | 3H |
| Working Life | >35 million times |
| Touch options | (PCAP touch Optional) |
| Singal Ports | |
| VGA | Optional |
| HDMI | 1xHDMI |
| DVI | Optional |
| AV | Optional |
| Audio in/out | Optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP, Windows 7/8/10, Linux, Mac OS X, Android etc. |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | 35 W |
| Enclosure | |
| Material | High strength cold rolled steel |
| Color | Black, White, Silver (Color can customize) |

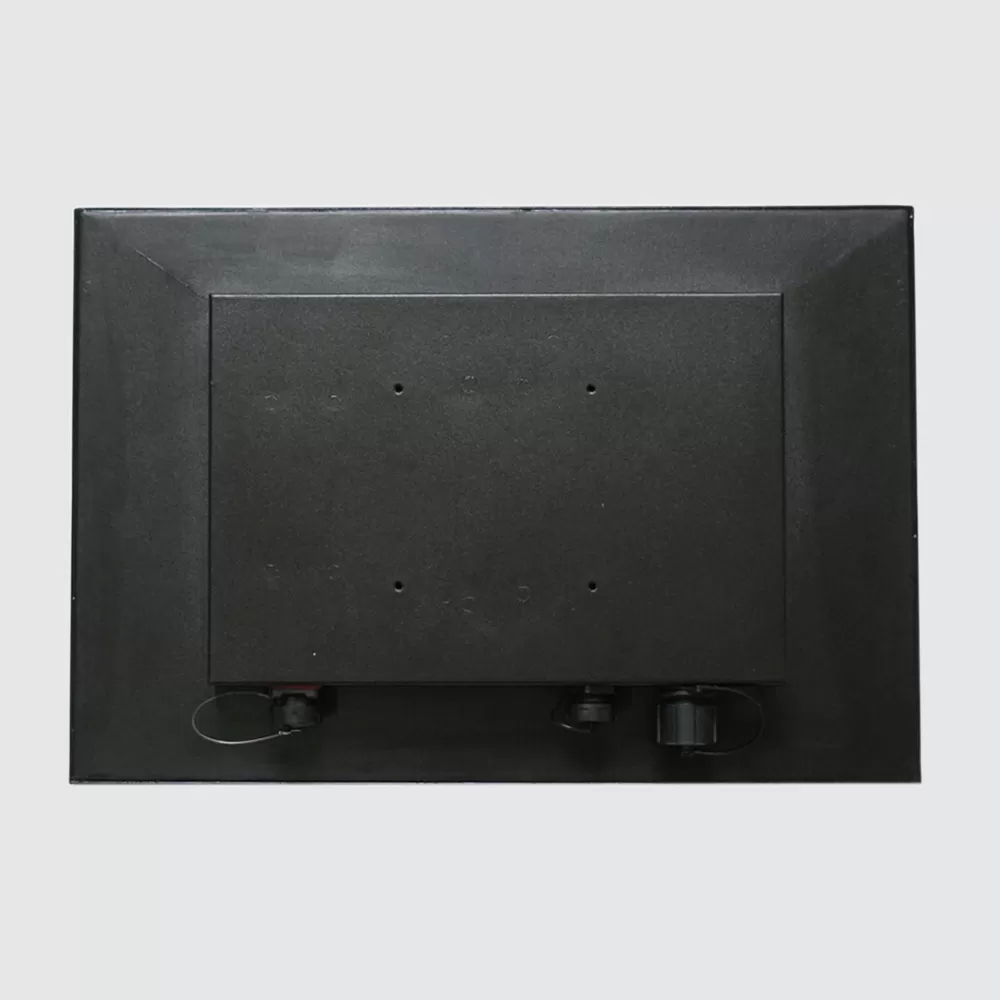

| VESA mounting | 100×100 mm |
| IP Grade | IP65 |
| Operating Environment | |
| Temperature Range | Operating: -20 to 70°C, storage: -20 to 80°C |
| Relative humidity | Operating: 10% to 90%, storage: 5% to 90% |
| Packing Details | |
| Net weight | 4.9kgs |
| Gross weight | 6.95kgs |
| Product Dimension | 47×30×5 cm |
| Packing size | 56×18×39 cm |

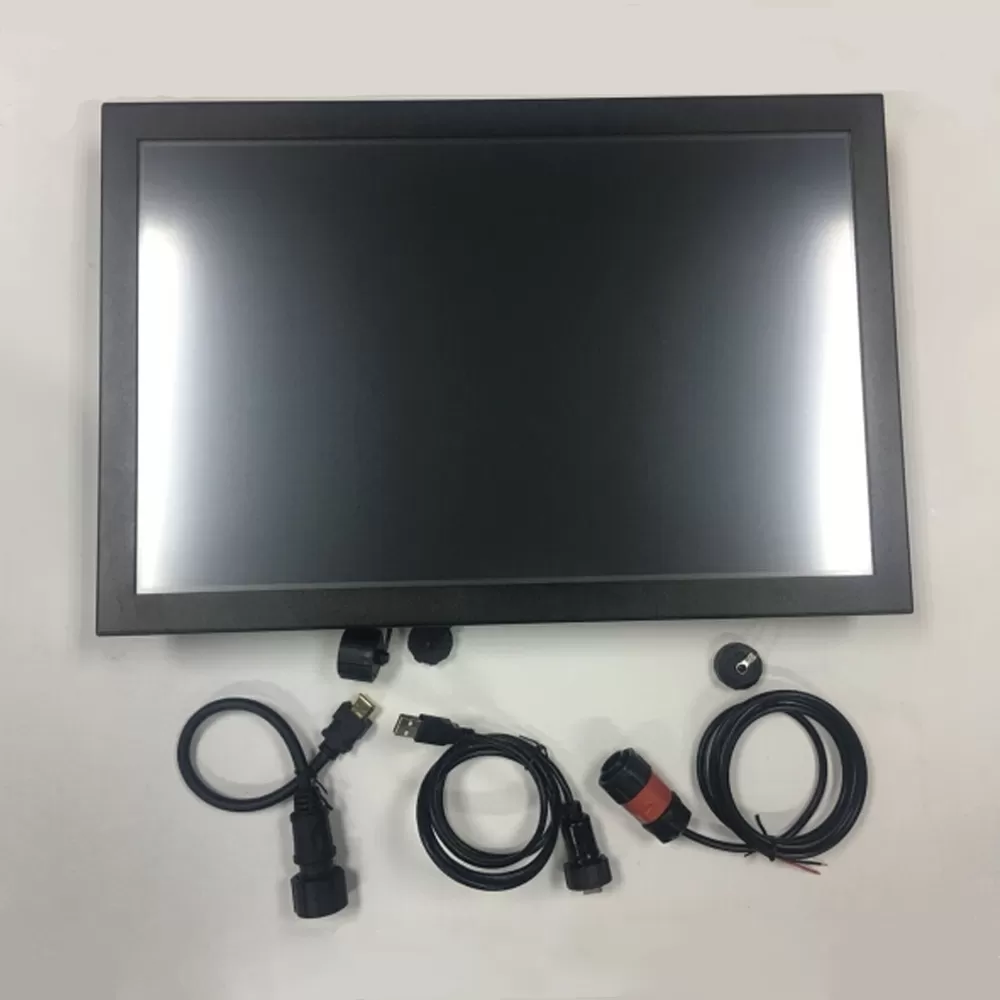

| Accessories | Power adapter, power cord, HDMI /USB cable |
| Other | |
| Mounting (options) | 1) Provide wall brackets for wall-mounting, VESA 100×100mm |
| 2) Provide stable metal holder to support the monitor | |
| Warranty | 1 year warranty |
