21.5 inch robust waterproof IP67 sun direct monitor for sailing boat

Model: SATA215MW

Features:

Advantages of 21.5 Inch IP67 Monitor

Rugged, full metal housing and sealed design, full IP67 waterproof rating

This 21.5-inch waterproof display stands out with its rugged design, featuring a full metal housing and sophisticated sealing technology to ensure it has a full IP67 waterproof rating. This means that it is not only effectively protected from dust intrusion, but can also work for a long time at a certain depth without damage. In addition, the included sealed I/O interface and cable set further enhance its protection capabilities, making the display ideal for use in harsh environments.


21.5-inch LCD panel with a resolution of 1920*1080 and a brightness of up to 1000 nits, readable in sunlight

Equipped with a 21.5-inch high-definition LCD panel, this 21.5 touch display has a resolution of 1920*1080 and an impressive brightness of 1000 nits, ensuring clear images even in strong direct sunlight. This feature makes it an ideal choice for outdoor applications, whether on construction sites or outdoor advertising displays, to maintain excellent visibility.

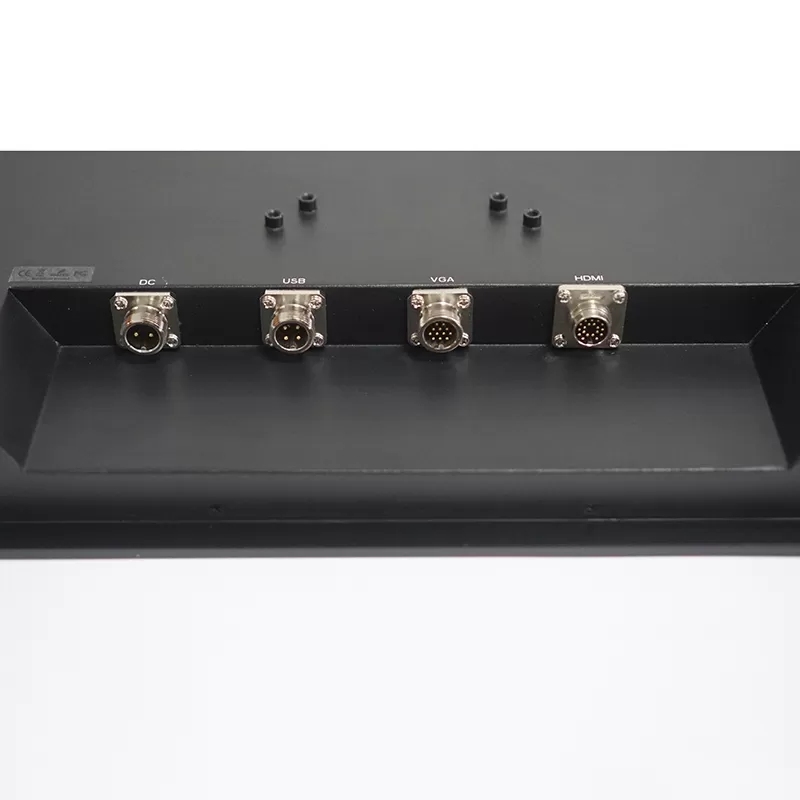

With EETI waterproof touch solution, the touch function can still work well when there are water droplets on the screen

This monitor uses the advanced EETI waterproof touch solution to ensure that the touch function can still work properly even if there are water droplets on the screen. This technology greatly improves the availability and reliability of the device in humid environments, allowing it to maintain an efficient operating experience in rainy days or high humidity conditions.


High-performance motherboard supports 7x24 hours of continuous operation

With a built-in high-performance motherboard, this monitor is designed to withstand all-weather uninterrupted workloads and supports 7x24 hours of continuous operation. This provides a strong backing for application scenarios that require continuous monitoring or information display, whether it is real-time data monitoring on industrial production lines or information release systems in public areas, it can rely on its stable performance to meet the needs.


For more 21.5 Inch Open Frame Monitor information, please contact us!


LCD panel
Panel size21.5"
Resolution1920*1080
Aspect ratio16:9
Support Color16.7M colors
Brightness (cd/m²)1000 nits, sunlight readable
Contrast ratio1000:1
View angle89°/89°/89°/89° (R/L/U/D)
Touch panel
Touchscreen TypeProject Capacitive Touch (10 points )
Surface Hardness7H
Luminousness90%
Touch InterfaceUSB (RS232 Optional)
Touch response time2ms
Working Life >50 million times
Touch options(5 wires resistive touch Optional)
Singal Ports
VGA1xVGA
HDMI1xHDMI
DVIOptional
Audio in/outOptional
OSD
OSD controlBrightness, contrast ratio, auto adjustment, H/V position, language select etc.
Support languagesEnglish, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
Support OSWindows XP, Windows 7/8/10, Linux, Mac OS X, Android and etc.
Power Supply
External Power SupplyAC 100-240V
Working voltageDC 12V
Power consumption≤45W
Enclosure
MaterialAluminium alloy front bezel+High strength cold rolled steel back case
ColorBlack, White, Silver, color can customize
VESA mounting75x75mm/100x100 mm
IP-gradeFull IP67 waterproof
Operating Environment
Temperature RangeOperating: -20 to 70°C, storage: -20 to 80°C
Relative humidityOperating: 10% to 90%, storage: 5% to 90%
Packing Details
Net weight6.5kgs
Gross weight7.5kgs

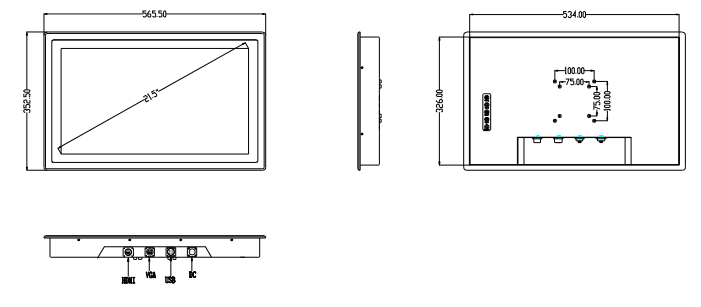

Product Dimension56.55×35.25×5 cm
Packing size76x47x21 cm
AccessoriesPower adapter, Waterproof Power cord, Waterproof VGA/HDMI/USB cable, Wall mount
Other
Mounting (options)1) Wall brackets for wall-mounting, VESA 100×100 mm
2) Stable metal holder to support the monitor
Warranty1 year warranty
