Model: SATA32M
Features:
1. Aluminum enclosure, excellent heat dissipation, front IP65 waterproof.
2. Industrial IPS LCD panel, full viewing angle, high nits.
3. Multi-points PCAP touch panel, high sensitive and fast-response, with Anti glare, UV and IR resistant glass.
4. Optical bonding, 1500 nits,sunlight readable.
5. High performance mainboard, 7x24 continuous operation.
| LCD panel | |
| Panel size | 32" |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1500 nits, sunlight readable |
| Contrast ratio | 1200:1 |
| View angle | 89°/89°/89°/89° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points) |
| Touch Interface | USB |
| Touch response time | 2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working Life | >50 million times |
| Touch options | ( infrared touch Optional) |

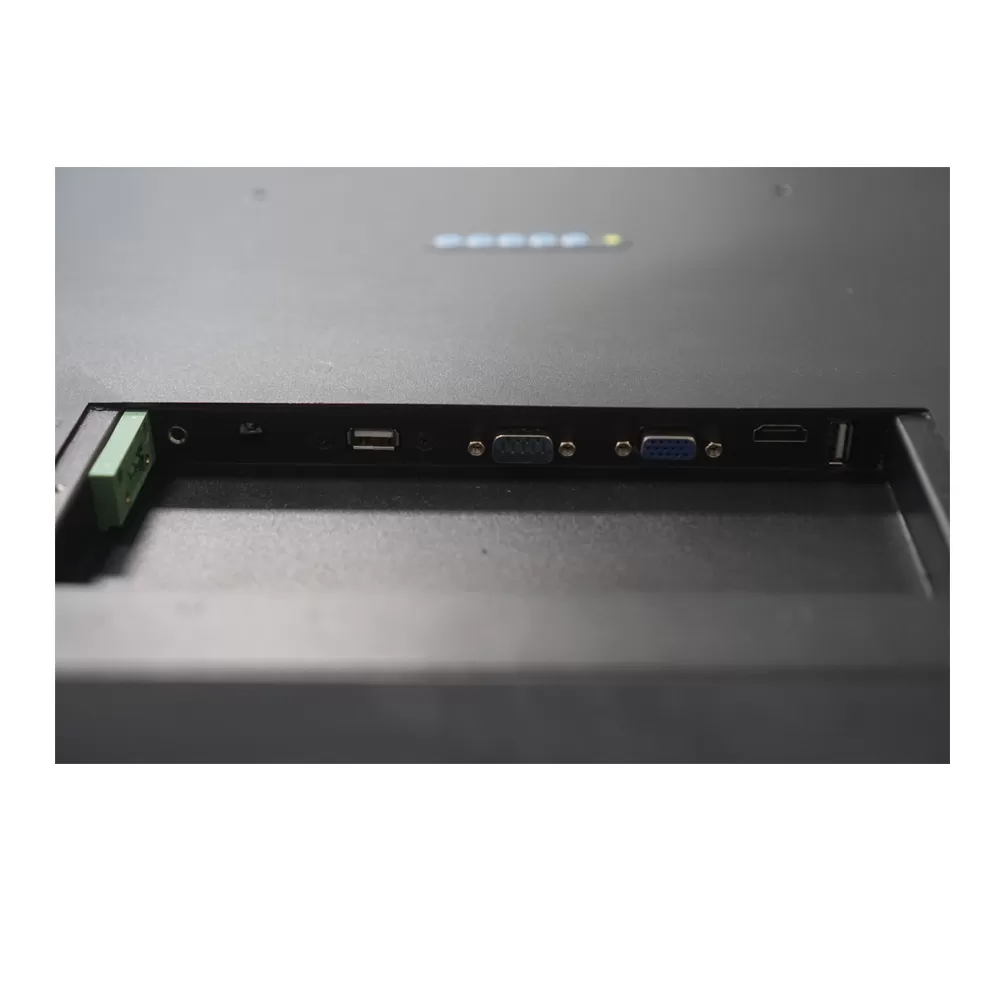

| Singal Ports | |
| VGA | 1×VGA |
| HDMI | 1×HDMI |
| RS232 | 1×RS232 |
| AV | Optional |
| Audio in/out | Optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP, Windows 7/8/10, Linux, Mac OS X, Android etc. |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 24V |
| Power consumption | ≤130W |
| Enclosure | |
| Material | Aluminum alloy |
| Color | Black, White, Silver(Color can customize) |
| VESA mounting | 200×200 mm |
| IP Grade | Front IP65 |
| Operating Environment | |
| Temperature Range | Operating: -20 to 60°C, storage: -20 to 80°C |
| Relative humidity | Operating: 10% to 90%, storage: 5% to 90% |
| Packing Details | |
| Net weight | 18kgs |
| Gross weight | 20kgs |

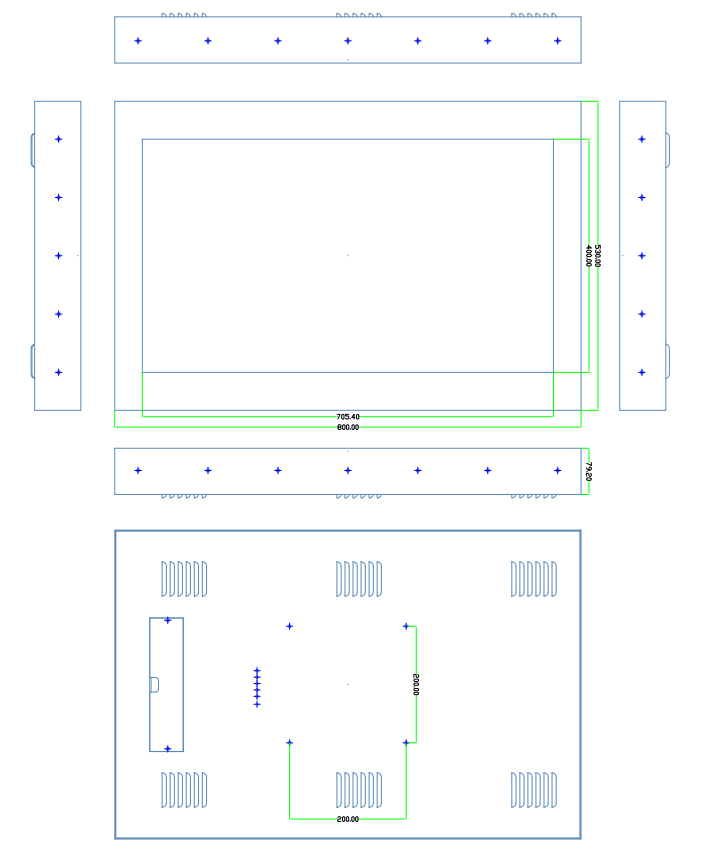

| Product Dimension | 80×53×7.92cm |
| Packing size | 100×64×17 cm |
| Accessories | Power adapter, Power cord, HDMI/USB/RS232 cable |
| Other | |
| Mounting (options) | 1) Provide wall brackets for wall-mounting, VESA 200×200mm |
| 2) Provide stable metal holder to support the monitor | |
| Warranty | 1 year warranty |
