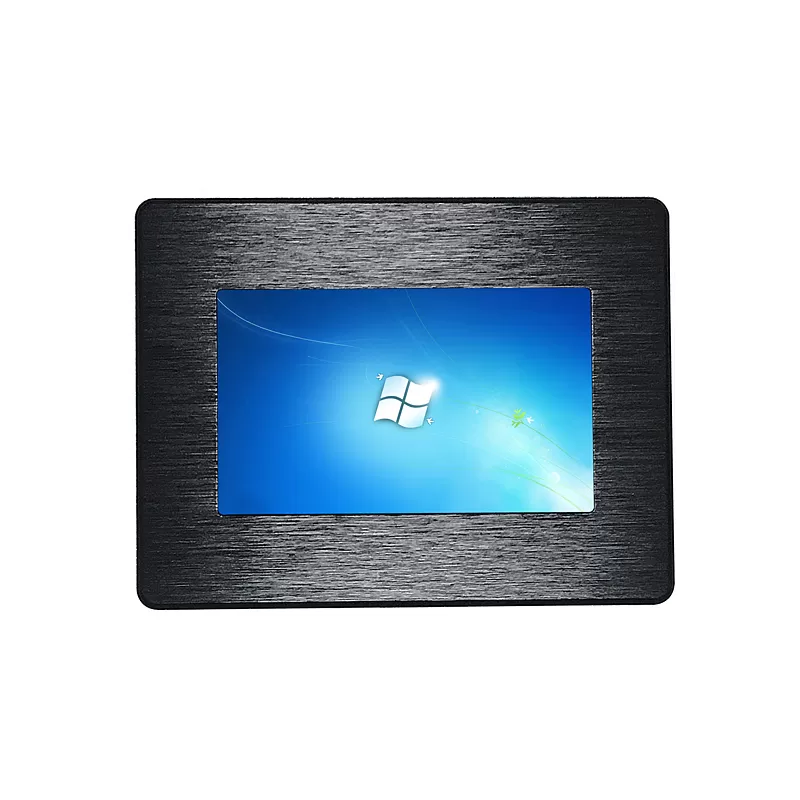

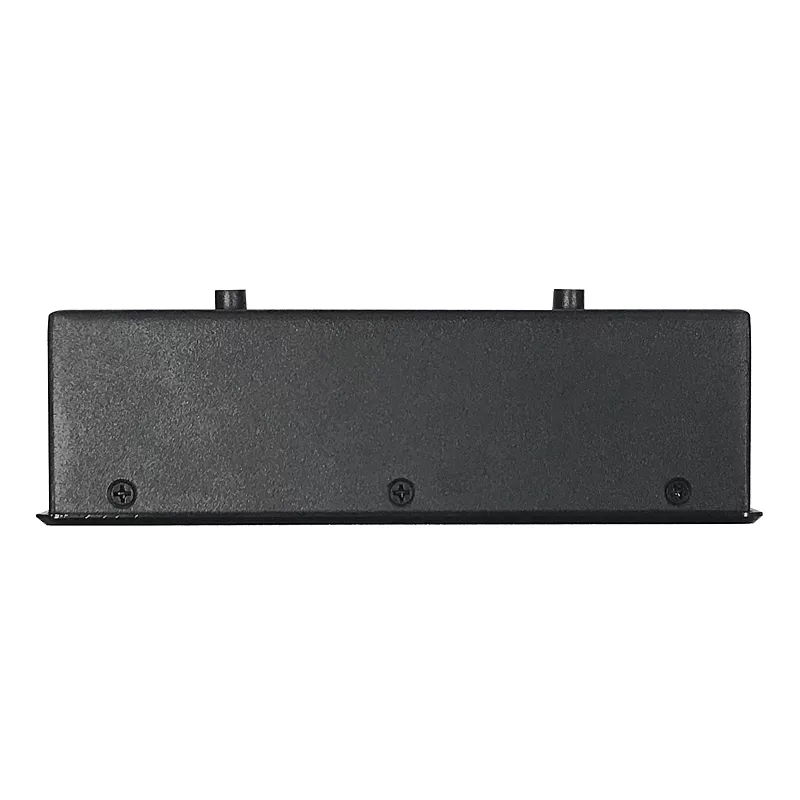

5 inch Full IP65 waterproof 1000nits sunlight readable 4 wire resistive touchscreen monitor 12-24V

Model: SATA05MW

Features:

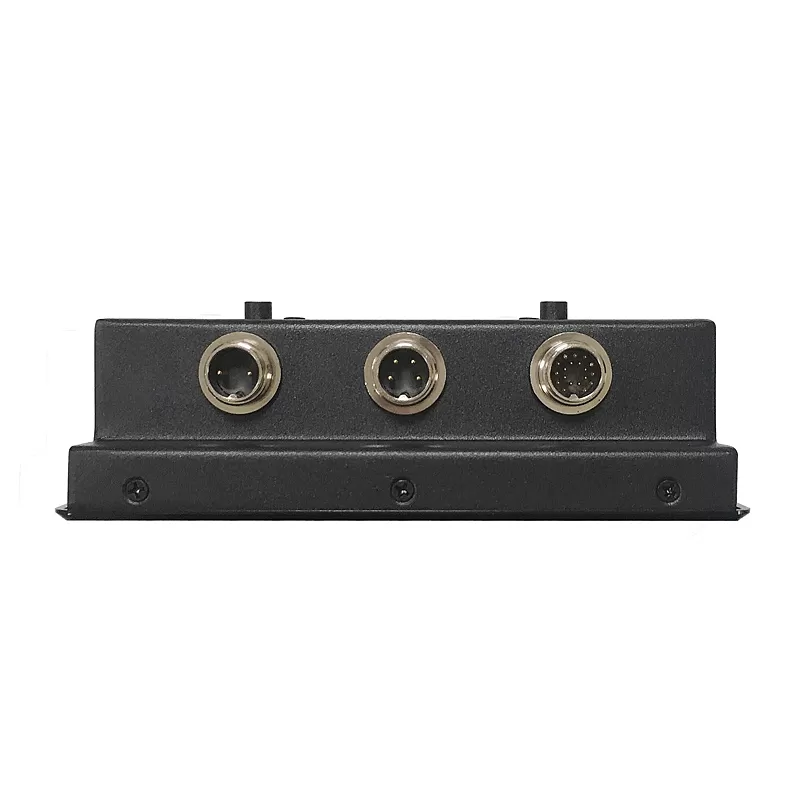

1. Robust and durable, all-metal enclosure, sealing design, full IP65 waterproof, Sealed I/O with cable set included.

2. 5'' Industrial LCD panel, 1000 nits. sunlight readable.

3. Adopt EETI waterproof touch solution. touch can work well with drop water on the screen.

4. Wide Temperature Range: operating: -20 to 70°C, storage: -30 to 80°C.

5. High performance mainboard, 7x24 continuous operation.

6. Support wide voltage: 12-24V DC input .


LCD panel
Panel size5"
Resolution800*480
Aspect ratio15:9
Support Color16.7M colors
Brightness (cd/m²)1000 nits, sunlight readable
Contrast ratio600:1
View angle75°/75°/60°/70° (R/L/U/D)
Touch panel
Touchscreen Type4-wire resistive touch
Touch InterfaceUSB (RS232 Optional)
Touch response time<8ms
Luminousness75-85%
Surface Hardness3H
Working Life >35 million times
Touch options(PCAP touch Optional)
Singal Ports
VGAOptional
HDMI1×HDMI
DVIOptional
AVOptional
Audio in/outOptional
OSD
OSD controlBrightness, contrast ratio, auto adjustment, H/V position, language select etc.
Support languagesEnglish, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
Support OSWindows XP, Windows 7/8/10, Linux, Mac OS X, Android and etc.
Power Supply
External Power SupplyAC 100-240V
Working voltageDC 12V-24V wide voltage
Power consumption10W
Enclosure
MaterialAluminum alloy bezel+High strength cold rolled steel back case
ColorBlack, white, Silver, color can be customized
VESA mounting75×75mm
IP-gradeFull IP65 waterproof
Operating Environment
Temperature RangeOperating: -20 to 70°C, storage: -30 to 80°C
Relative humidityOperating: 10% to 90%, storage: 5% to 90%
Packing Details
Net weight1.1kgs
Gross weight1.8kgs

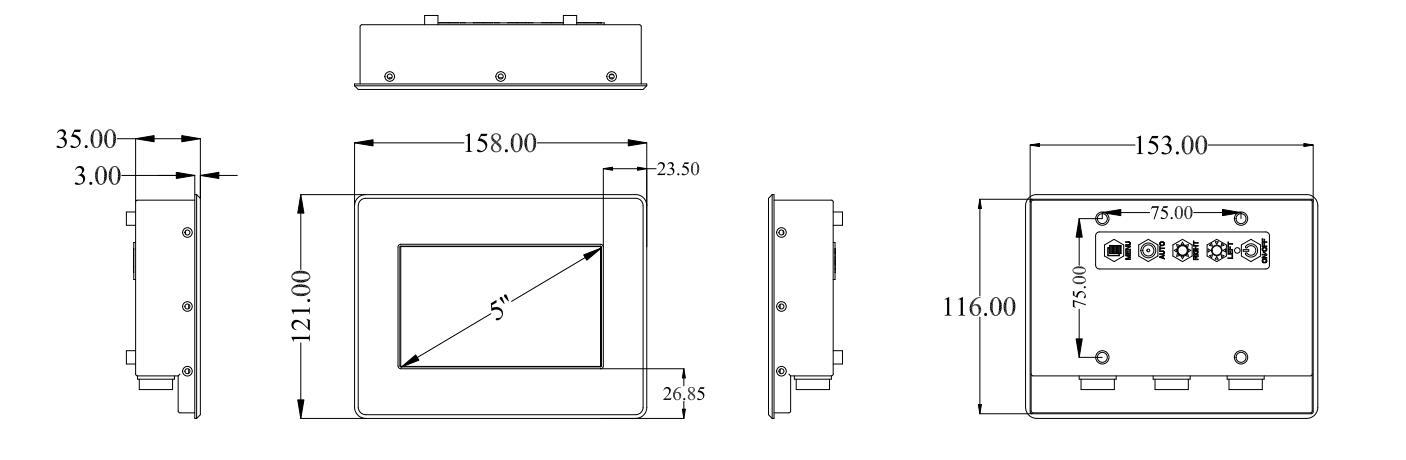

Product Dimension15.8x12.1x3.5 cm
Packing size33.0x21.6x8.7 cm

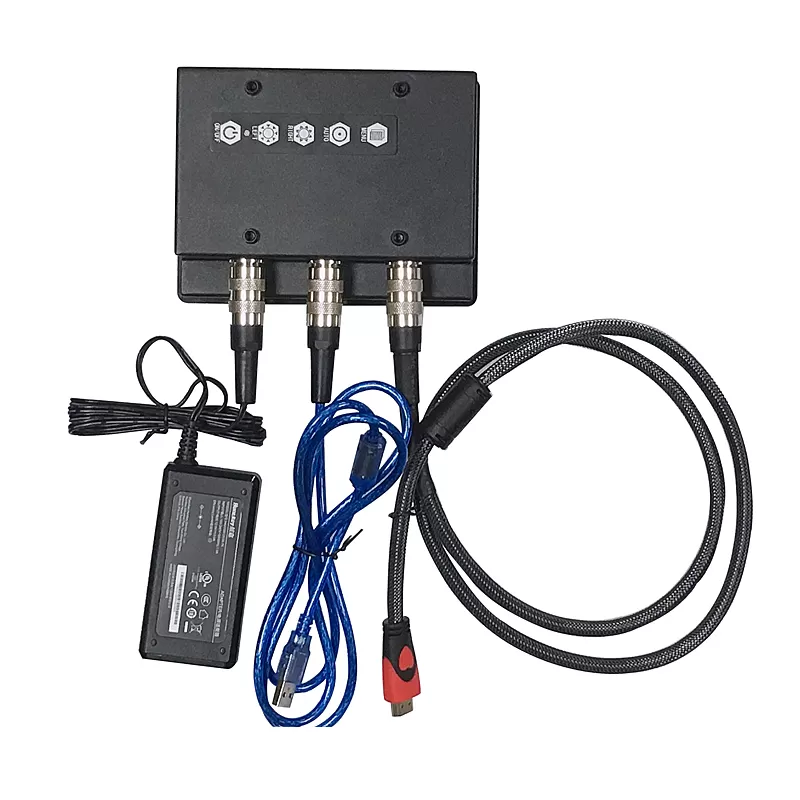

AccessoriesPower adapter, Waterproof Power cord, Waterproof HDMI/USB cable, Wall mount
Other
Mounting (options)1) Provide wall brackets for wall-mounting, VESA 75×75mm
2) Provide stable metal holder to support the monitor
Warranty1 year
