Model: SATA50MW
Features:
1. Robust and durable all-metal enclosure, IP65 waterproof, suitable for outdoor applications.
2. Industrial LCD panel, high brightness,1500 nits, sunlight readable.
3. High performance mainboard, 7x24 continuous operation.
4. Adopt HDMI 1.4 Digital decoding scheme, strong compatibility.

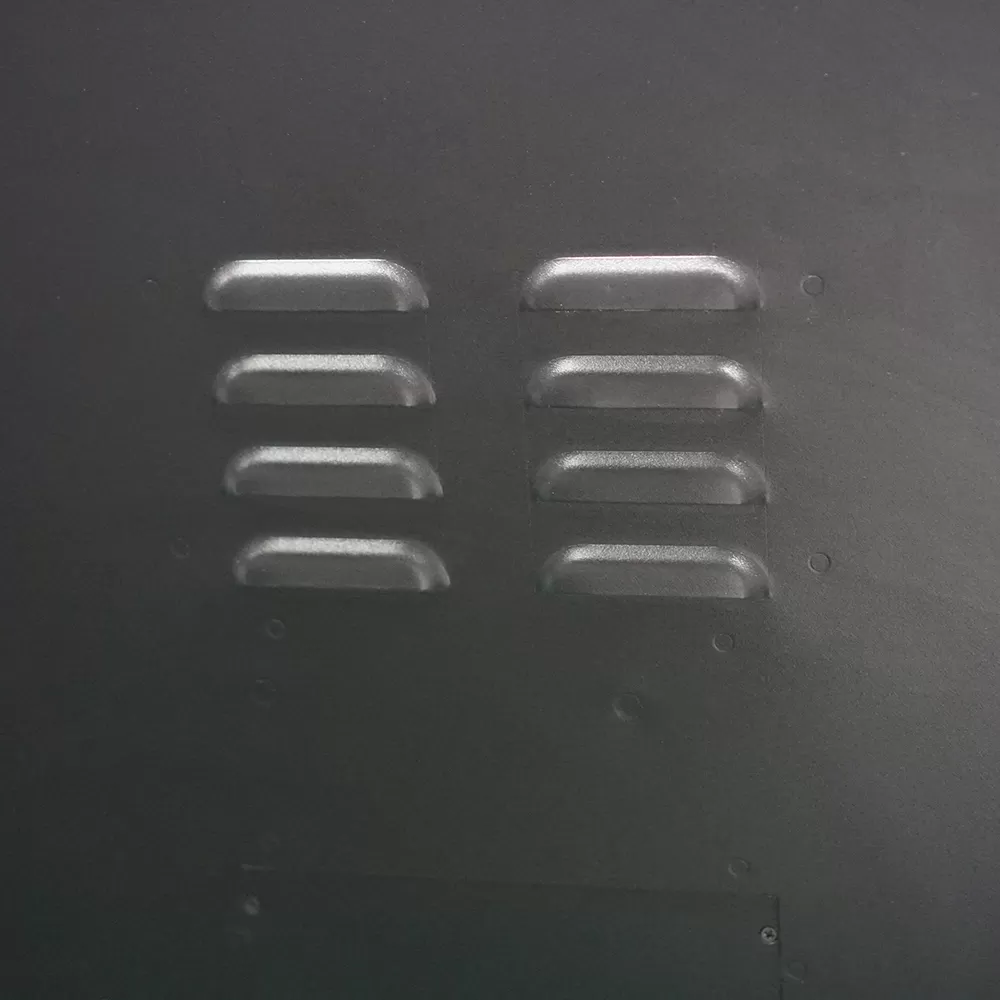

5. With cooling fans inside the monitor,excellent heat dissipation.
| LCD panel | |
| Panel size | 50" |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness | 1500cd/m² |
| Contrast ratio | 1400:1 |
| View angle | 89°/89°/89°/89° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Hardness | 7H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 Optional) |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (IR touch, non touch Optional) |
| Signal Ports | |
| HDMI | 1×HDMI |
| VGA | Optional |
| DVI | Optional |
| Audio in/out | Optional |
| AV | Optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Win XP, Windows 7/8/10, Linux, Mac OS X, Android etc. |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤250W |
| Enclosure | |
| Material | High strength cold rolled steel case |
| Color | Black, White, Silver, color can be customized |
| IP Grade | Full IP65 |
| VESA mounting | 400×400 mm |
| Operating Environment | |
| Temperature Range | Operating: -20 to 70°C, Storage :-20 to 80°C |
| Relative humidity | Operating: 10% to 90%, Storage :5% to 90% |
| Packing Details | |
| Net weight | 35kgs |
| Gross weight | 59kgs |
| Product Dimension | 117.3×69.32×9cm |
| Packing size | 132.5×85×20cm |
| Accessories | Power cable, waterproof HDMI cables, waterproof touch cable |
| Other | |
| Mounting (options) | 1) Provide wall brackets for wall-mounting, VESA 400×400mm |
| 2) Provide stable metal holder to support the monitor | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
