7 inch Full IP67 waterproof 1000nits sunlight readable capacitive touch screen monitor

Model: SATA07MW

Features:

Advantages of 7 Inch 1000nits Monitor

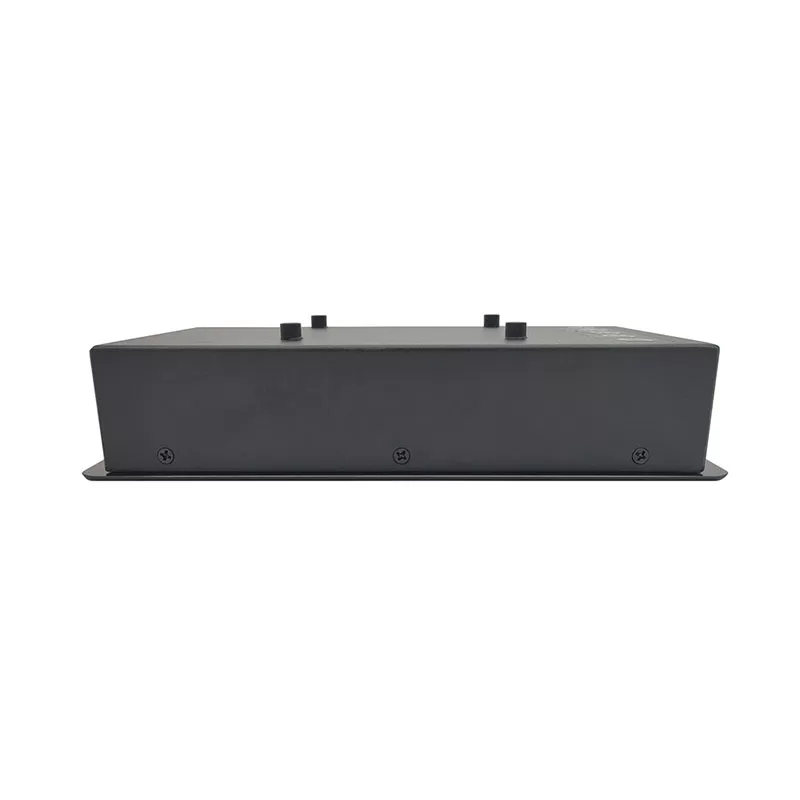

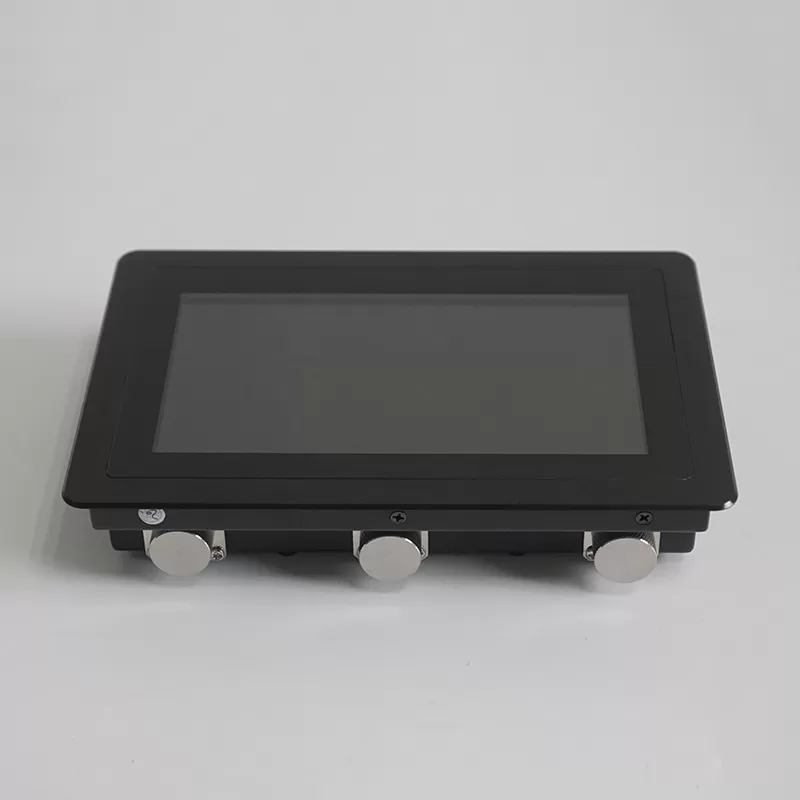

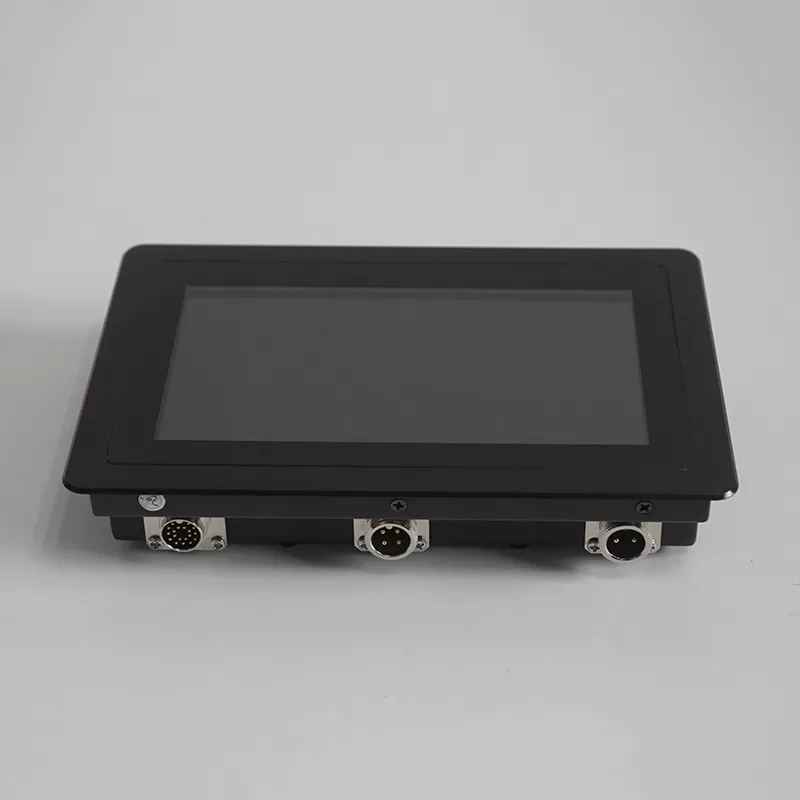

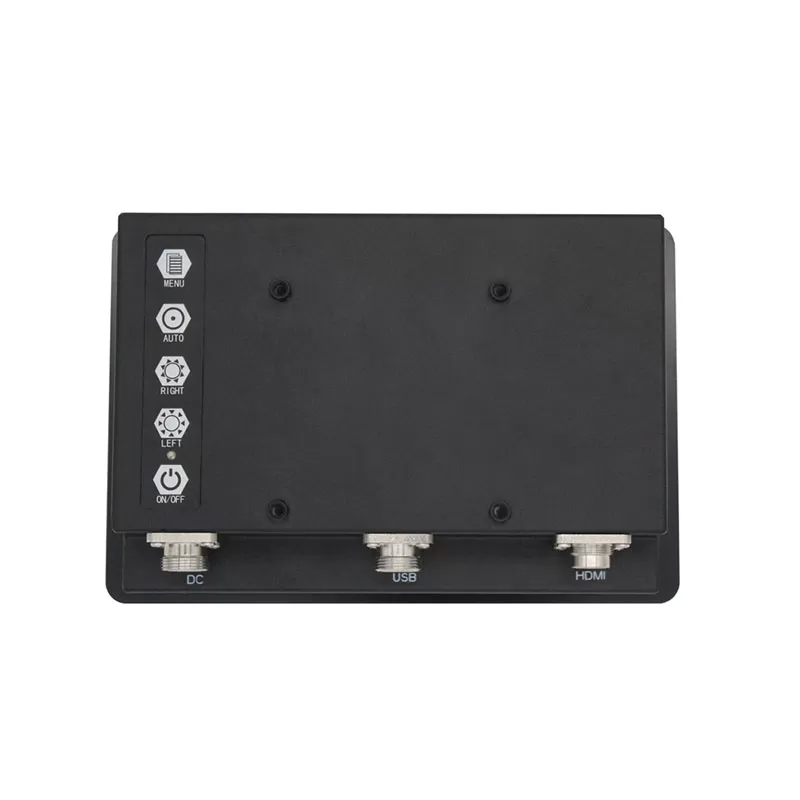

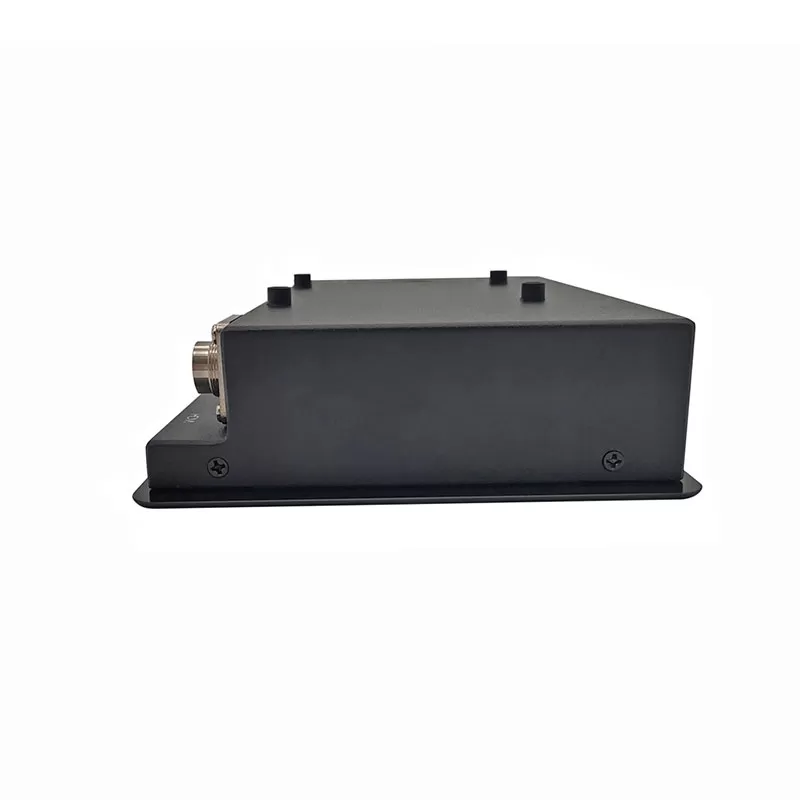

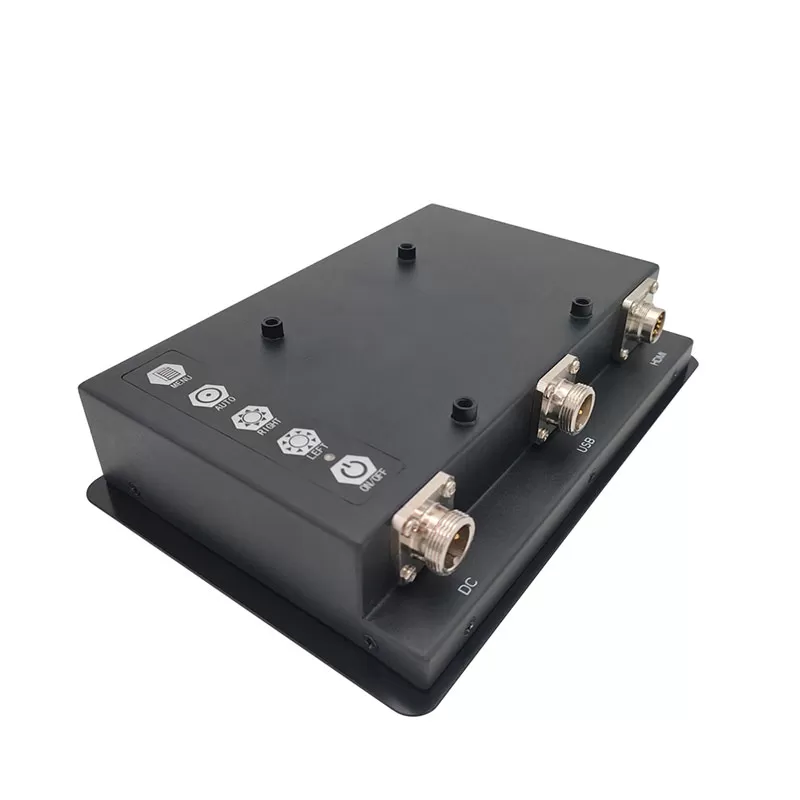

Rugged, full metal housing and sealed design, full IP67 waterproof rating

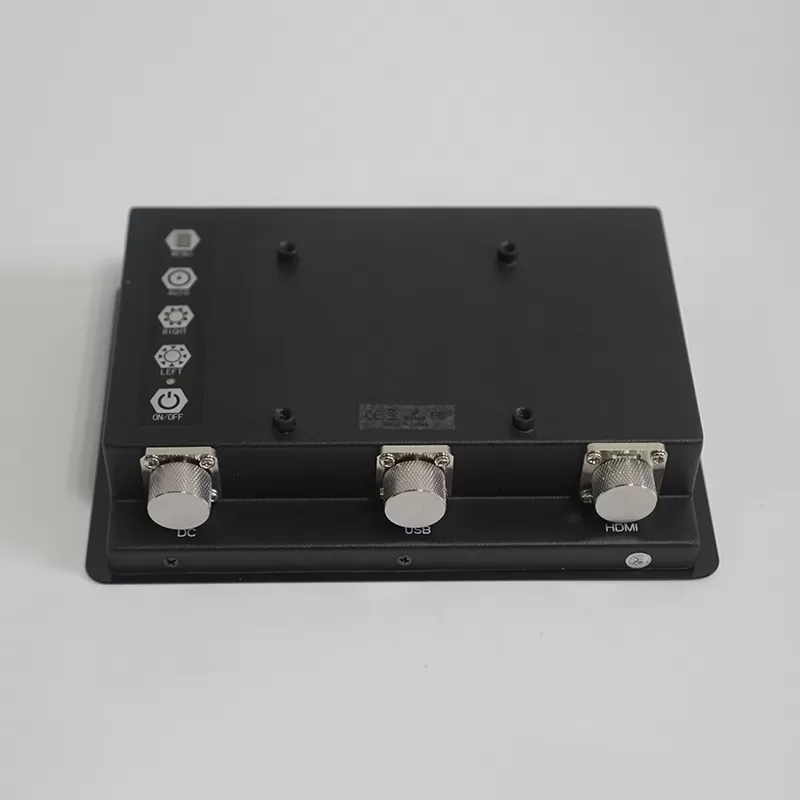

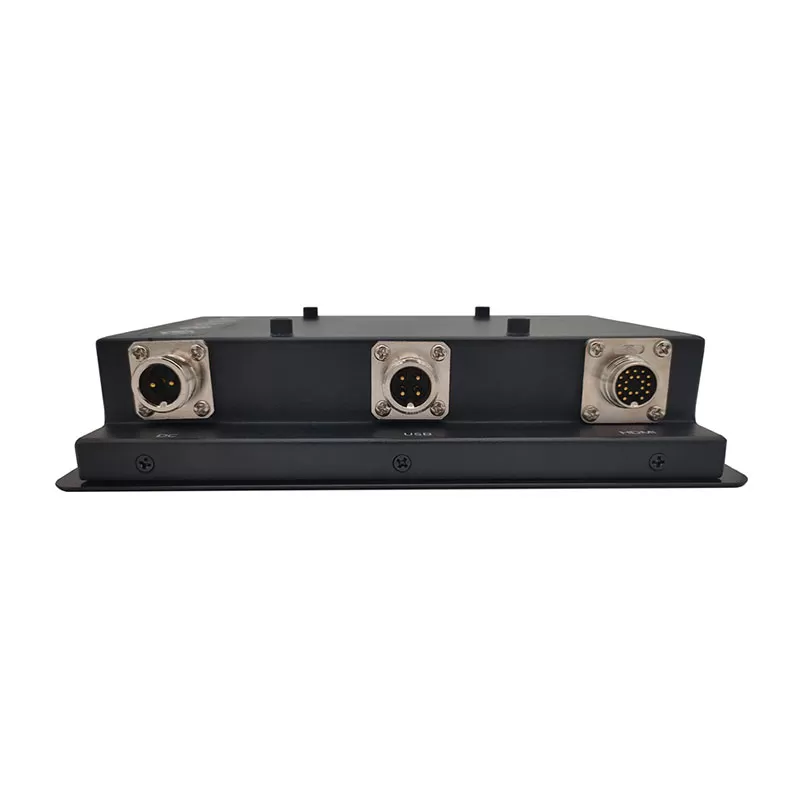

This 7-inch sunlight readable TFT LCD display is not only rugged, but also uses a full metal housing and sophisticated sealing technology to ensure that it has a full IP67 waterproof rating. This means that it can effectively prevent dust intrusion and can still operate normally at a certain depth underwater. In addition, the included sealed I/O interface and cable set further enhance its protection capabilities, making this monitor ideal for use in harsh environments.

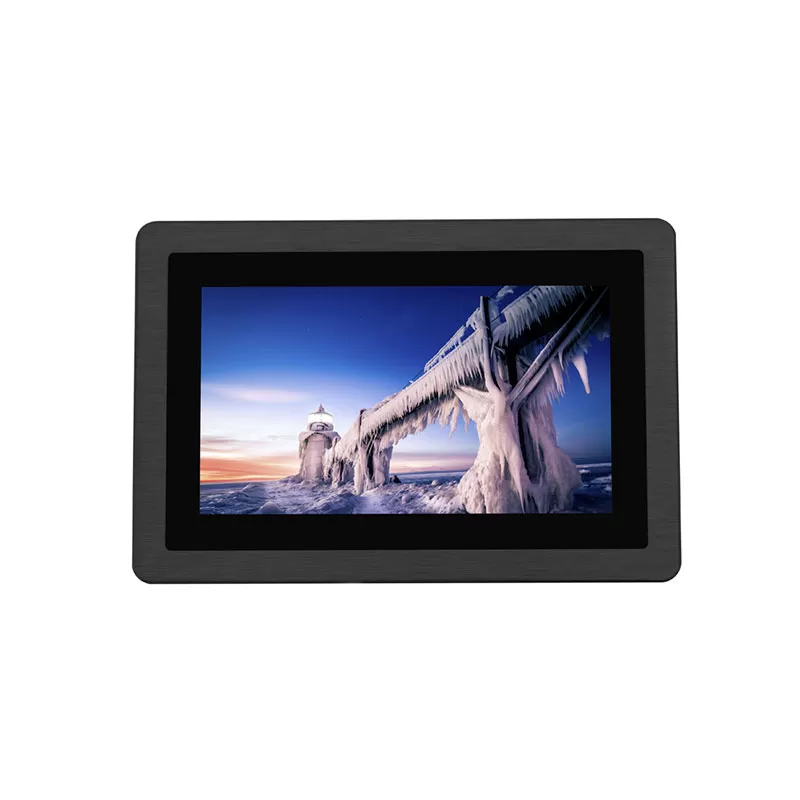

7 inch 1000nits sunlight readable monitor, industrial-grade LCD panel, up to 1000 nits brightness, clear visibility in sunlight

Equipped with a 7-inch sunlight readable TFT LCD display, this monitor provides a high brightness of 1000 nits, ensuring clear viewing even in strong direct sunlight. As a 1000nits sunlight readable monitor, its compact size and high visibility make it an ideal choice for outdoor applications, whether it is on a construction site or outdoor advertising display, it can maintain excellent visibility.


EETI waterproof touch solution is used, and the touch function can still work well when there are water drops on the screen

This monitor uses the advanced EETI waterproof touch solution to ensure that the touch function can still work properly even if there are water drops on the screen. This technology greatly improves the usability and reliability of the device in humid environments, enabling it to maintain an efficient operating experience in rainy days or high humidity conditions. It is particularly suitable for 7-inch 1000nits sunlight readable monitors in application scenarios that require frequent outdoor operations.


Wide temperature range: operating temperature -20 to 70°C, storage temperature -30 to 80°C

This monitor has a wide temperature adaptability, with an operating temperature range of -20 to 70°C and a storage temperature range of -30 to 80°C. Such a wide temperature design allows this 7-inch sunlight readable TFT LCD display to work stably under extreme climate conditions, whether it is the cold north or the hot desert area, it will not affect its performance.


High-performance motherboard supports 7x24 hours continuous operation

With a built-in high-performance motherboard, this 1000nits sunlight readable monitor is designed to withstand all-weather uninterrupted workloads and supports 7x24 hours continuous operation. This provides a strong backing for application scenarios that require continuous monitoring or information display, whether it is real-time data monitoring on industrial production lines or information release systems in public areas, it can rely on its stable performance to meet the needs.


For more information about 7 Inch Touch Display and 7 Inch Touch Panel, please contact us!




LCD panel
Panel size7"
Resolution1024*600
Aspect ratio16:9
Support Color16.7M colors
Brightness (cd/m²)1000 nits, sunlight readable
Contrast ratio800:1
View angle75°/75°/70°/75° (R/L/U/D)
Touch panel
Touchscreen TypeProject Capacitive Touch (10 points )
Surface Hardness7H
Luminousness90%
Touch InterfaceUSB (RS232 Optional)
Touch response time2ms
Working Life >50 million times
Touch options(5 wires resistive touch Optional)
Singal Ports
HDMI1xHDMI
DVIOptional
VGAOptional
Audio in/outOptional
OSD
OSD controlBrightness, contrast ratio, auto adjustment, H/V position, language select etc.
Support languagesEnglish, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
Support OSWindows XP, Windows 7/8/10, Linux, Mac OS X, Android and etc.
Power Supply
External Power SupplyAC 100-240V
Working voltageDC 12V
Power consumption≤25W
Enclosure
MaterialAluminium alloy front bezel+High strength cold rolled steel back case
ColorBlack, White, Silver, Color can customize
VESA mounting100x100 mm
IP-gradeFull IP67 waterproof
Operating Environment
Temperature RangeOperating: -20 to 70°C, storage: -30 to 80°C
Relative humidityOperating: 10% to 90%, storage: 5% to 90%
Packing Details
Net weight2.5kgs
Gross weight3kgs

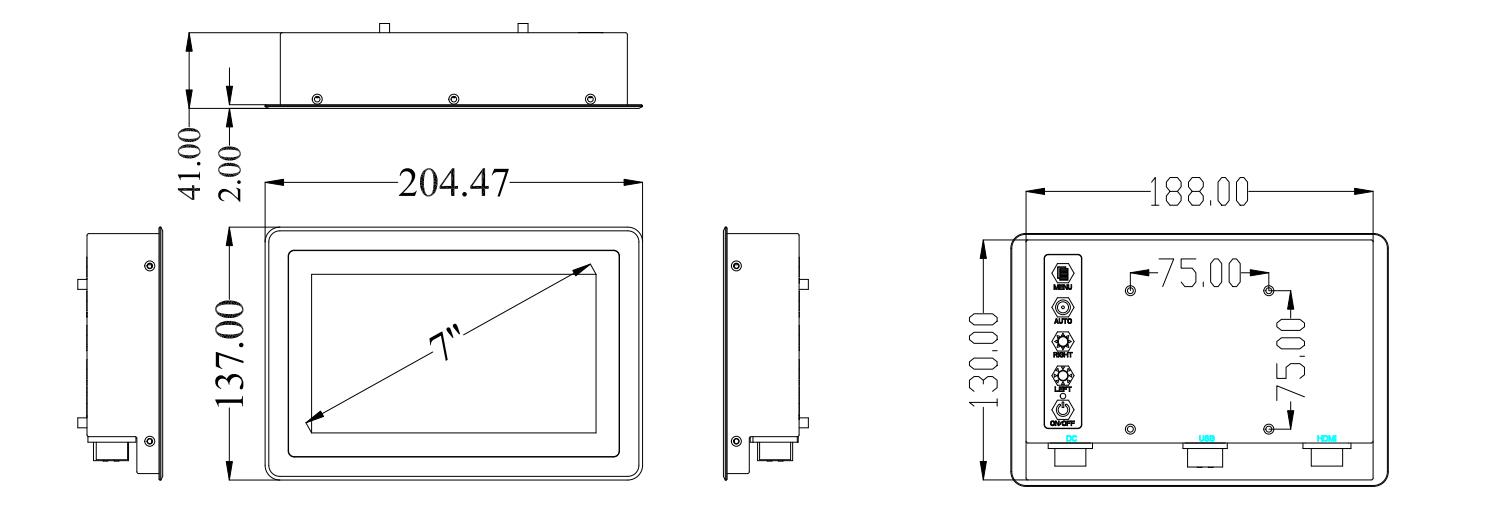

Product Dimension20.447×13.7×4.1 cm
Packing size29×26×16 cm

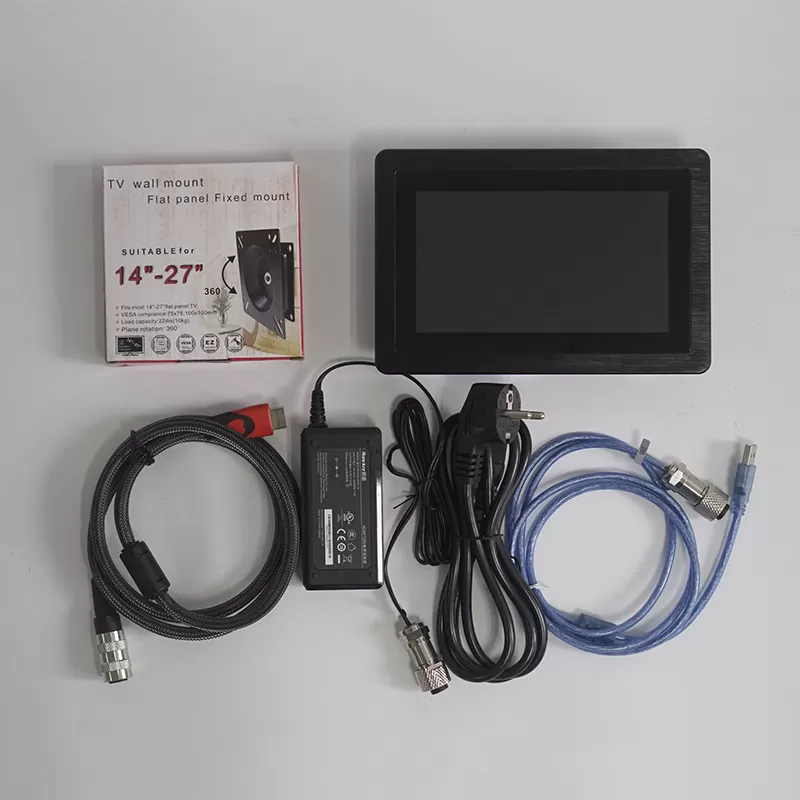

AccessoriesPower adapter, waterproof Power cord, waterproof HDMI/USB cable, Wall mount
Other
Mounting (options)1) Wall brackets for wall-mounting, VESA 75×75 mm
2) Stable metal holder to support the monitor
Warranty1 year warranty
