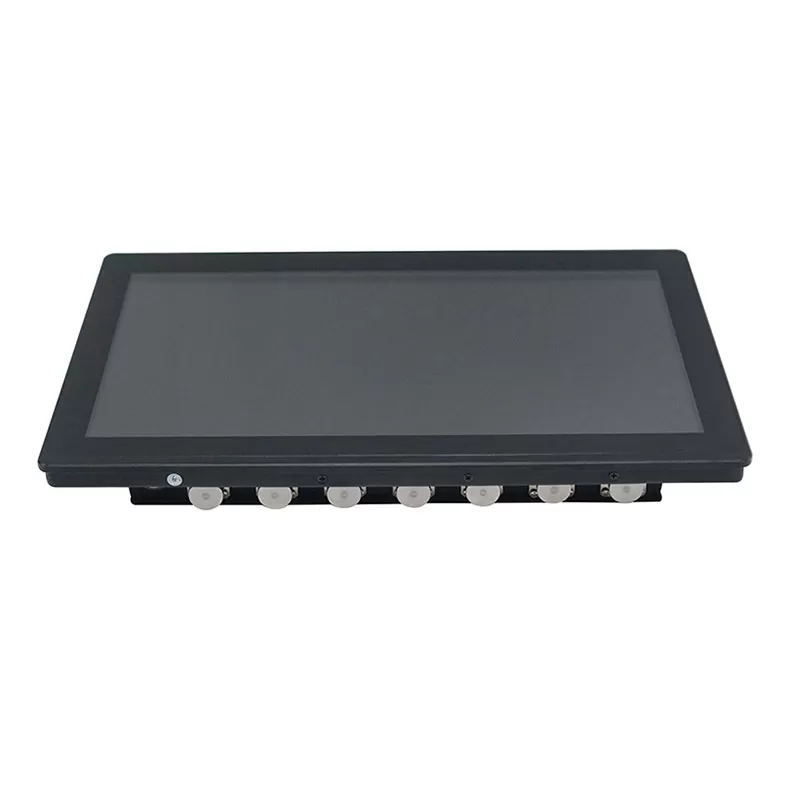

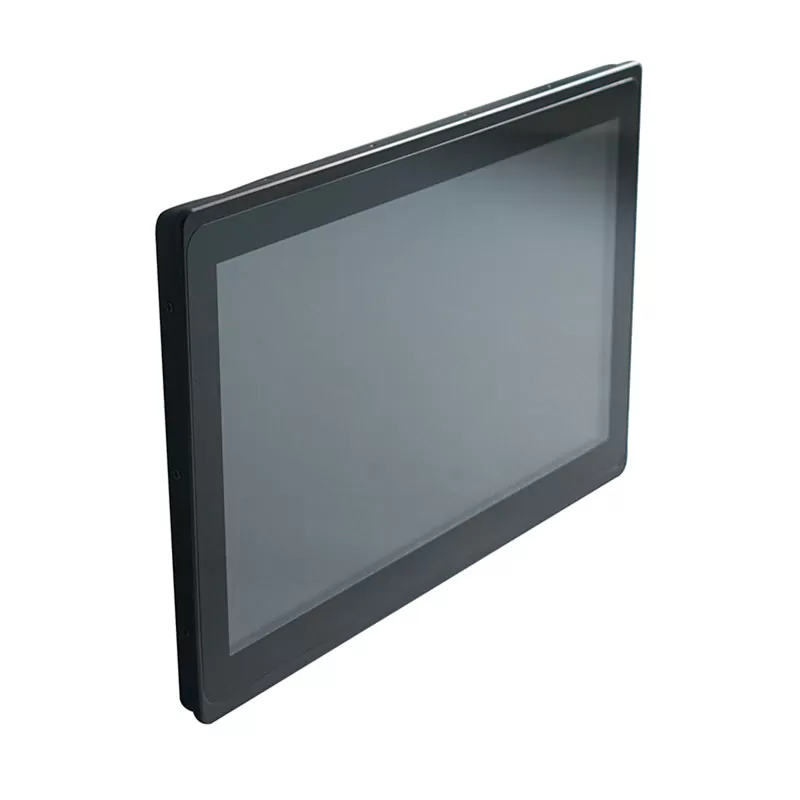

Model: SATA156XW
Features:

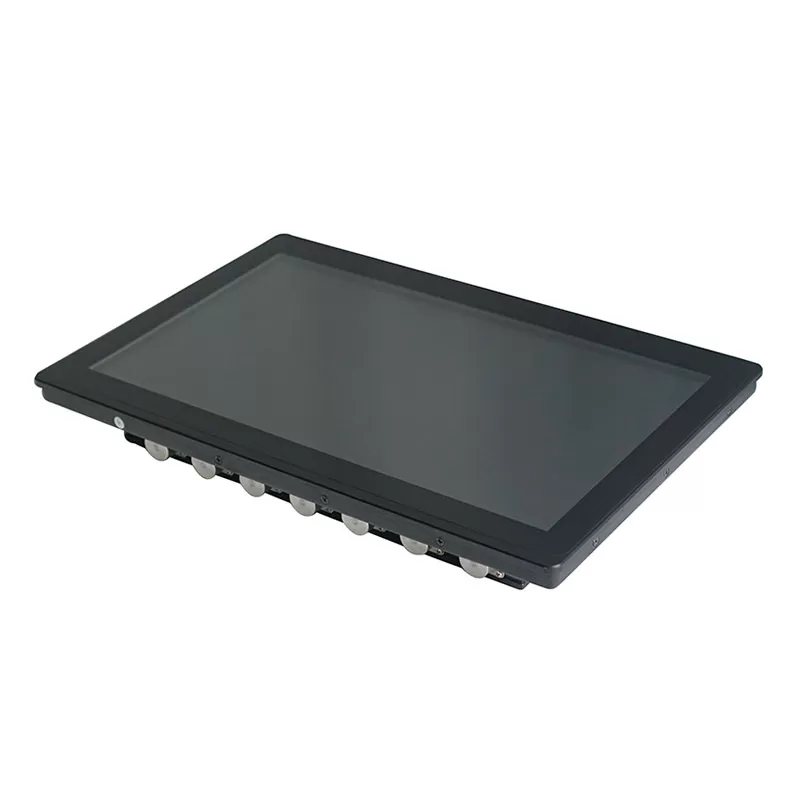

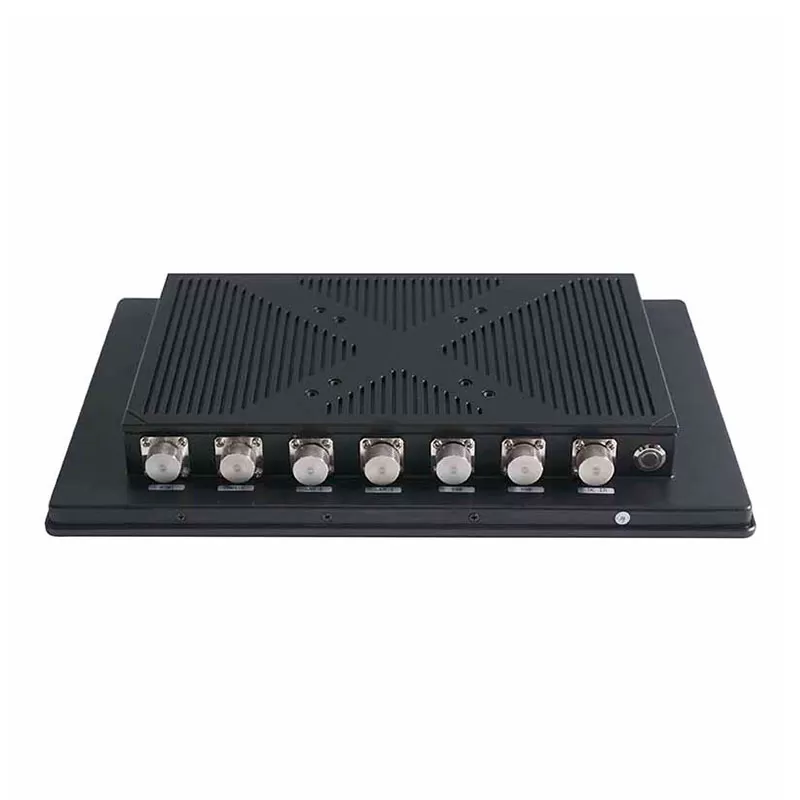

Rugged aluminum front panel and high-strength cold-rolled steel back shell
This 15.6 all-in-one panel PC uses a rugged aluminum front panel and a high-strength cold-rolled steel back shell to ensure the durability and stability of the device in various harsh environments. This material selection not only improves the overall strength of the device, but also increases its impact resistance, making it an ideal choice for industrial applications, especially for those application scenarios that have high requirements for device robustness.
Industrial-grade LCD panel, wide viewing angle, high brightness, and true color performance
Equipped with an industrial-grade LCD panel, this windows all-in-one panel PC provides a wide viewing angle, high brightness, and true color performance. No matter what angle you watch from, users can enjoy a clear and color-accurate picture, which makes it very suitable for application scenarios that require high-quality display effects, such as monitoring systems or information display terminals. As an IP65 waterproof panel PC, its display effect can remain excellent even outdoors or in strong light environments.

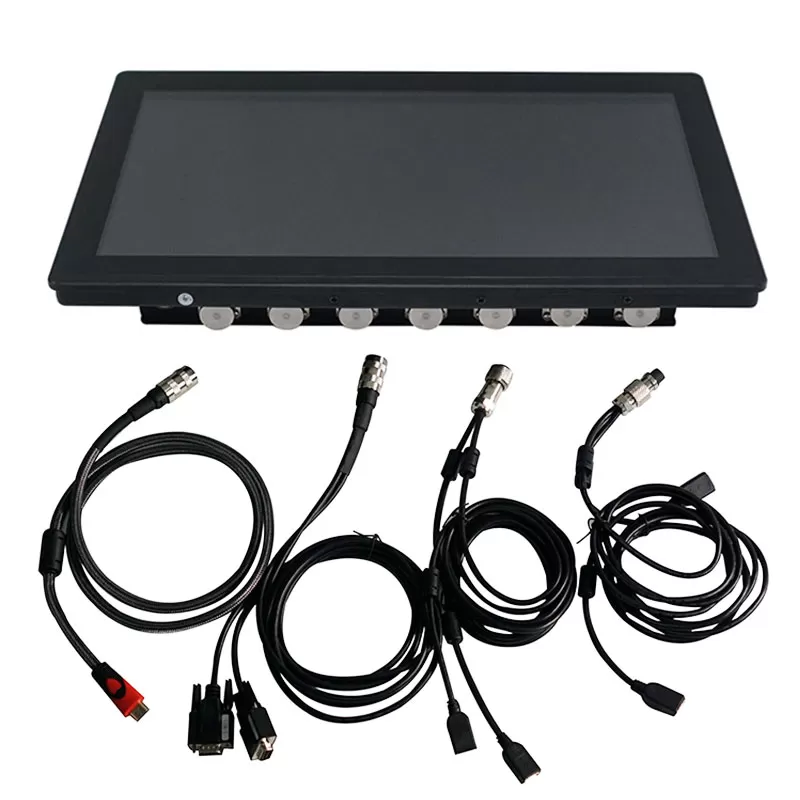

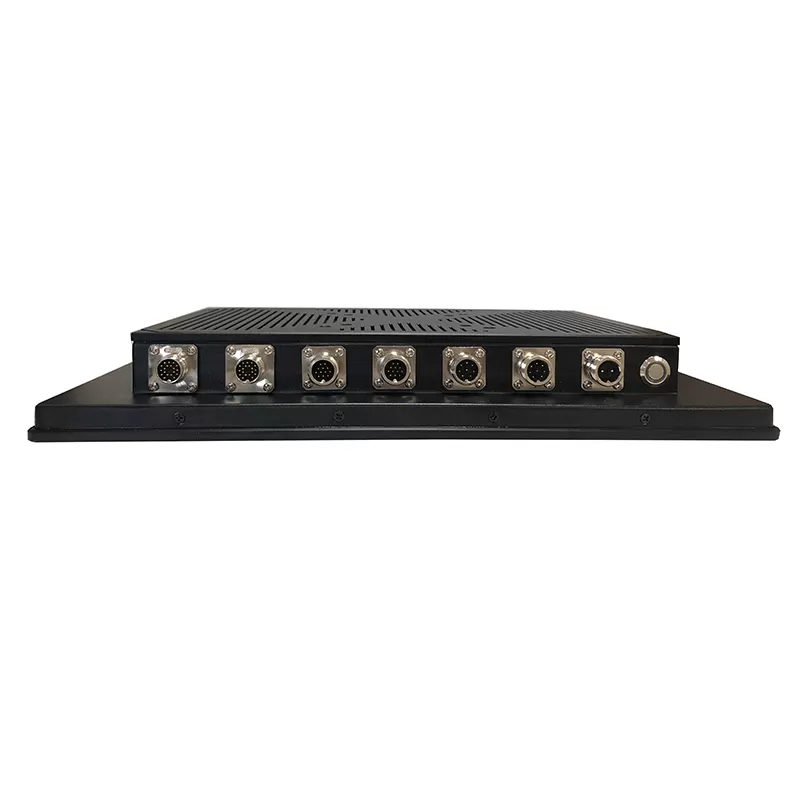

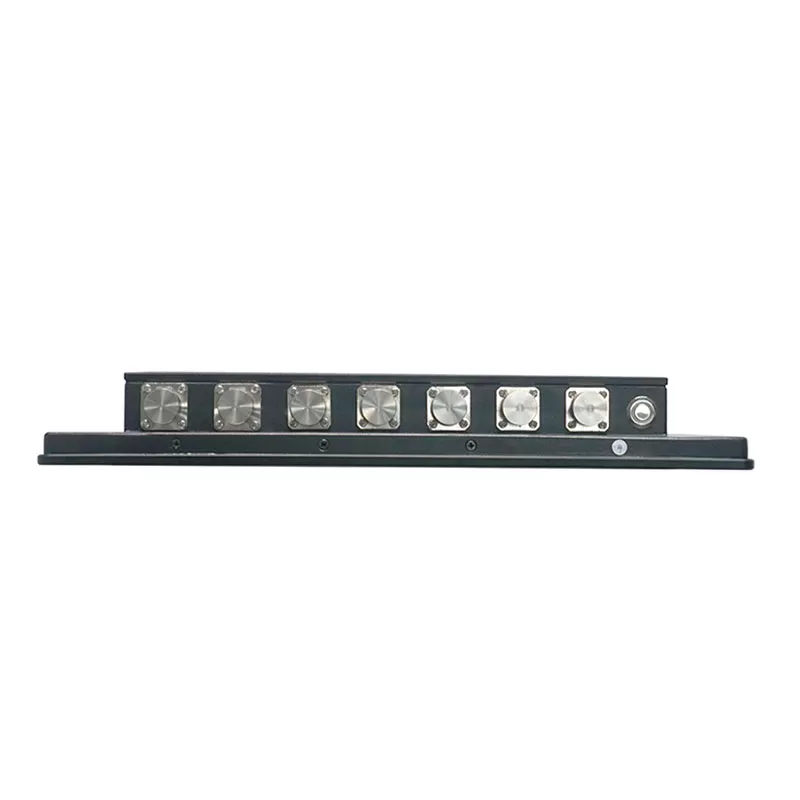

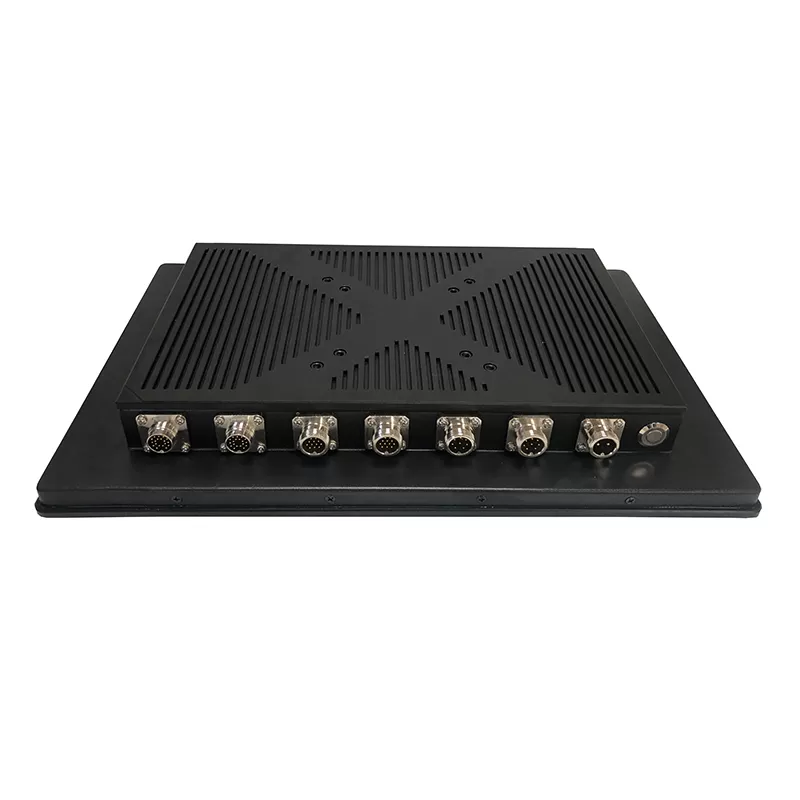

Fully sealed fanless design, full IP65 waterproof rating, with sealed I/O interface and cable set
This 15.6 all in one panel PC has a fully sealed fanless design and achieves a full IP65 waterproof rating. In addition, it is equipped with sealed I/O interfaces and cable sets to further enhance its protection capabilities. This design is particularly suitable for use in humid or dusty environments, ensuring the long-term stable operation of the device, and is a true IP65 waterproof panel PC.
Adopting multi-point PCAP touch panel, high sensitivity and fast response, covered with 2mm AF glass (anti-cooling lubricant (spray) and oil mist), anti-vandalism
This device uses advanced multi-point PCAP touch panel technology to provide users with a highly sensitive and fast-responsive touch experience. As a windows all in one panel PC, its touch function is very precise and covered with 2mm thick AF glass, which can not only effectively prevent the influence of cooling lubricant (spray) and oil mist, but also has anti-vandalism performance, which improves the safety of the device in public places.
High-performance motherboard, fanless design supports 7x24 hours continuous operation
Built-in high-performance motherboard, this 15.6 all-in-one panel PC adopts fanless design and supports 7x24 hours of uninterrupted operation. This design not only reduces noise, but also improves the reliability and maintenance simplicity of the equipment, which is very suitable for application scenarios that require continuous operation. Whether it is used for industrial automation or commercial information terminals, this IP65 waterproof panel PC can provide excellent performance.
Application of IP65 Waterproof Panel PC
Retail/ Restaurant
Hospitality
Medical Industry
Industrial System
Automation System
For more IP65 Waterproof Panel PC information, please contact us!
PC | |
CPU | Intel® Celeron J1900, quad core, 2.0GHz, fanless |
Chipset | Intel ValleyView SSA-CUnit |
Memory | 4G DDR3 (8G Optional) |
Hard Drive Capacity | 64G SSD |
Hard Drive Optional | SSD: 128GB, 256GB, 512GB |
HDD: 500GB, 1TB | |
Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
Network | 1xRealtek RTL 8111E Gigabit Ethernet controller |
Wireless Network | WIFI(Optional) |
I/O Interface | 2xUSB 2.0, 2xUSB 3.0, 2xCOM RS232, 2xRJ45 |
1xVGA/HDMI/POWER DC | |
Operation System | Support Windows 7/8/10, Ubuntu, Debian, Fedora 25 and etc. |
LCD panel | |
Panel size | 15.6" |
Resolution | 1920*1080 |
Aspect ratio | 16:9 |
Support Color | 16.7M colors |
Brightness (cd/m²) | 300 (1000 nits, sunlight readable Optional) |
Response time | 5ms |
Contrast ratio | 800:1 |
View angle | 85°/85°/85°/85° (R/L/U/D) |
Touch panel | |
Touchscreen Type | Project Capacitive Touch (10 points) |
Touch Interface | USB (RS232 Optional) |
Touch response time | 2ms |
Luminousness | 90% |
Surface Hardness | 7H |
Working life | >50 million times |
Touch options | (5 wire resistive touch, IR touch Optional) |
Power Supply | |
External Power Supply | AC 100-240V |
Working voltage | DC 12V |
Power consumption | ≤45W |
Enclosure | |
Material | Aluminum Alloy front bezel+High strength cold rolled steel back case |
Color | Silver, Black, white, color can be customized |

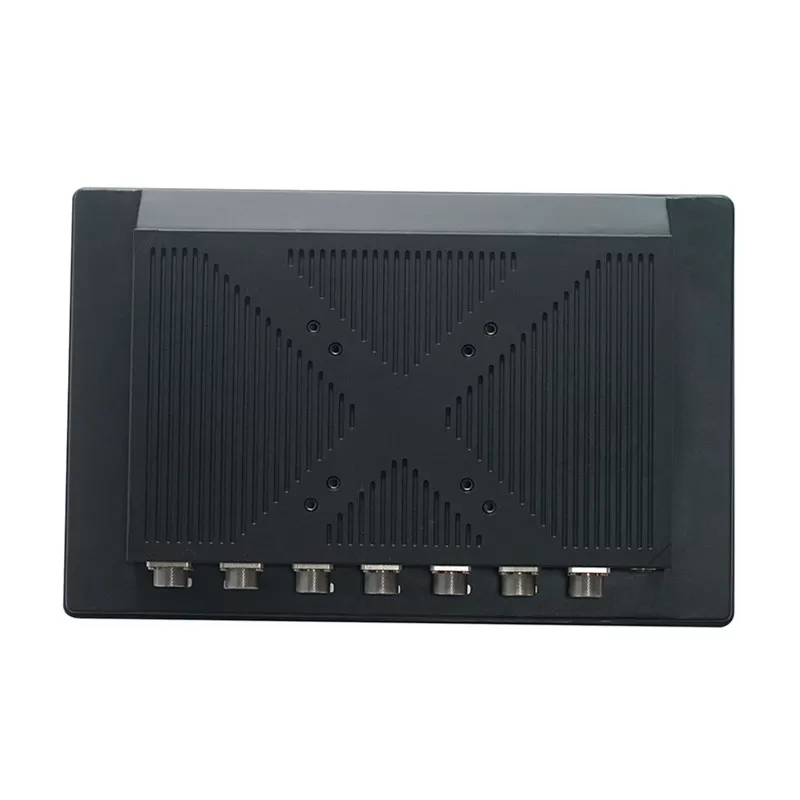

VESA mounting | 75x75mm/100x100mm |
IP grade | Full IP65 waterproof |
Operating Environment | |
Temperature Range | Operating: -20 to 70°C, storage: -20 to 80°C |
Relative humidity | 5%~95% @ 40° C, non-condensing |
Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
Packing Details | |
Net weight | 5kgs |
Gross weight | 6kgs |

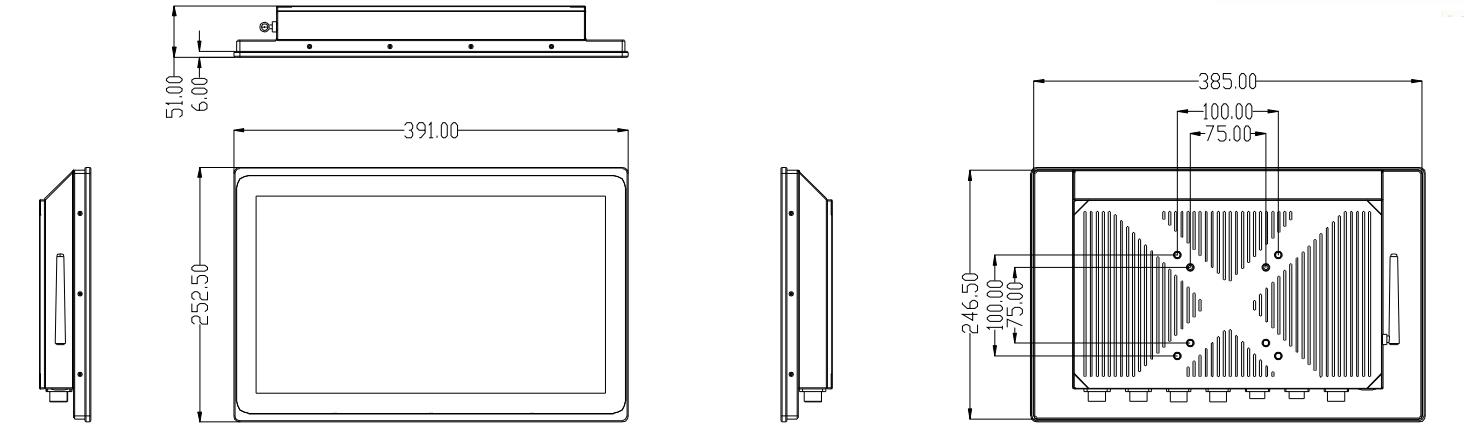

Product Dimension | 39.1x25.25x5.1cm |
Packing size | 53x47x18cm |
Accessories | Power adapter, waterproof VGA/HDMI/RS232/LAN/USB cable/Power cord, Wall mount |
Other | |
Mounting (options) | Embedded mounting screws |
Wall mounting brackets (Optional) | |
Desk stand holder (Optional) | |
Warranty | 1 year warranty |
Certificate | CE, FCC, RoHS |
