19 inch IP65 waterproof resistive/capacitive panel PC with 9-24V Wide Voltage

Model: SATA19XW

Features:

1. Made of sturdy and durable aluminum Alloy front bezel+High strength cold rolled steel back case.

2. Industrial  LCD panel, wide viewing angle, high nits, true color.

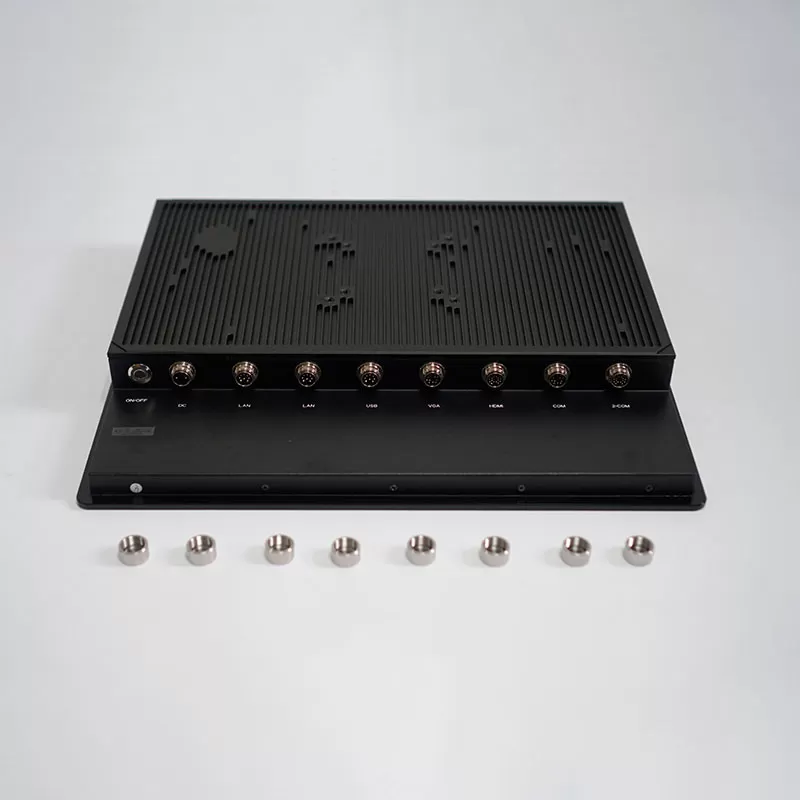

3. Fully sealed and fanless design, full IP65 waterproof, Sealed I/O with cable set included.

4. Adopt 5 wire resistive touch screen, high precision, durable, anti-interference.

5. High performance motherboard, fanless design, 7x24 continuous operation.


PC
CPUIntel® Celeron J1900, quad core, 2.0GHz, fanless
ChipsetIntel ValleyView SSA-CUnit
Memory4G DDR3 (8G Optional)
Hard Drive Capacity64G SSD
Hard Drive OptionalSSD: 128GB, 256GB, 512GB, 1TB
HDD: 500GB, 1TB
GraphicsCPU Integrated graphics HD Graphics and support 1080p HD photo quality
AudioRealtek ALC662, High Definition Audio (HD), Line in, Line out
Network1xRealtek RTL 8111E Gigabit Ethernet controller
Wireless NetworkWIFI(Optional)

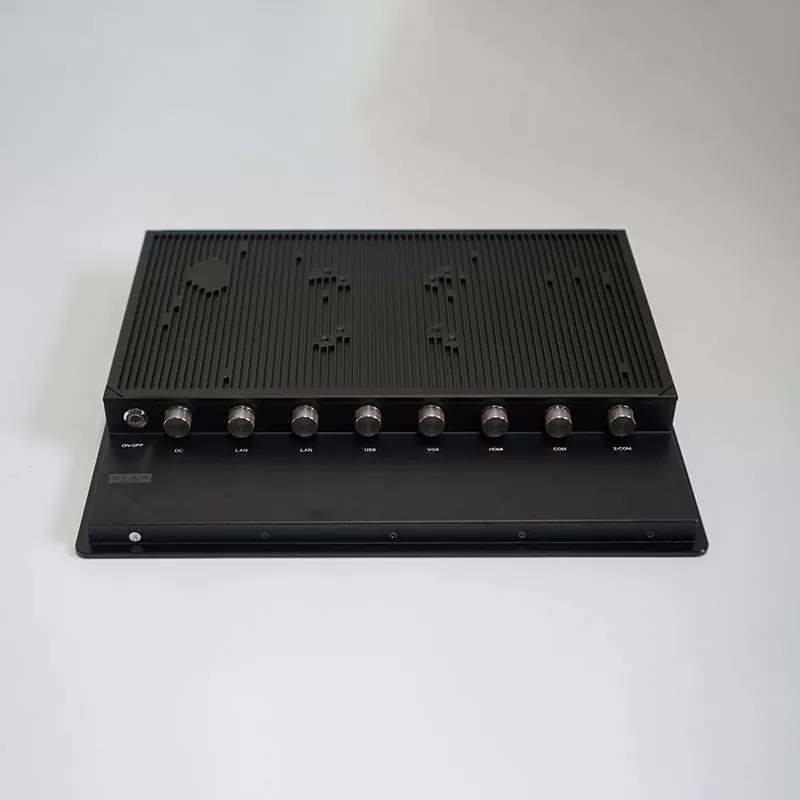

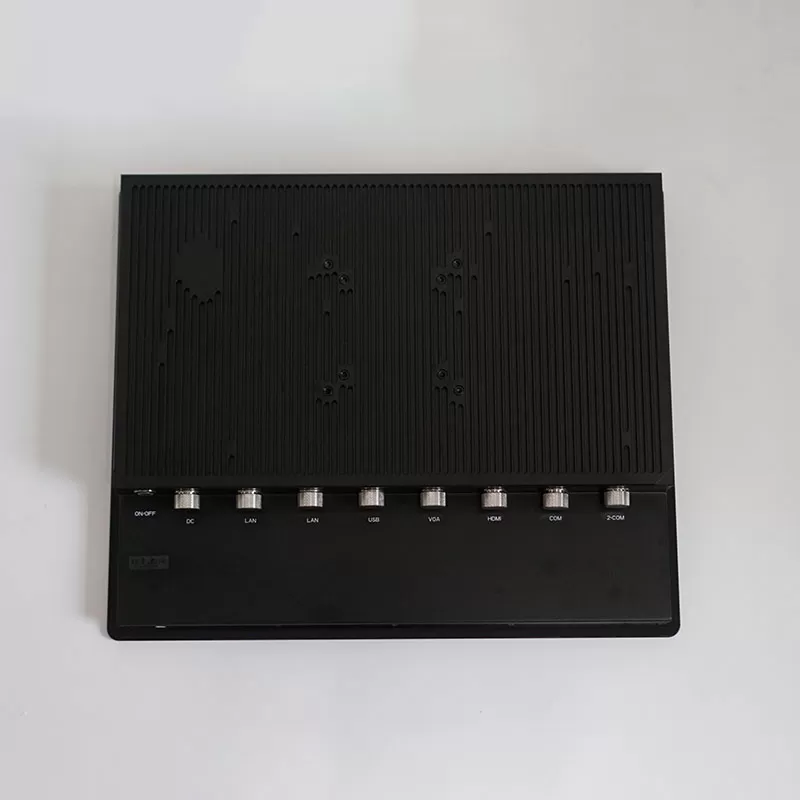

I/O Interface2xUSB 2.0, 3xCOM RS232, 2xRJ45
1xVGA/HDMI/POWER DC
Operation SystemSupport Windows 7/8/10, Linux, Ubuntu, Debian, etc.
LCD panel
Panel size19"
Resolution1280*1024
Aspect ratio5:4
Support Color16.7M colors
Brightness (cd/m²)300 (1000 nits sunlight readable Optional)
Response time5ms
Contrast ratio1000:1
View angle80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type5 wires resistive touch
Touch InterfaceUSB (RS232 Optional)
Touch response time<8ms
Luminousness90%
Surface Hardness3H
Working Life >35 million times
Touch options(Capacitive touch Optional)
Power Supply
External Power SupplyAC 100-240V
Working voltageDC 9V-24V wide voltage
Power consumption≤45W
Enclosure
MaterialAluminum Alloy front bezel+High strength cold rolled steel back case
ColorSilver, Black, white, color can be customized
VESA mounting75x75mm/100x100mm
IP gradeFull IP65 waterproof
Operating Environment
Temperature RangeOperating: -20 to 70°C, storage: -30 to 80°C
Relative humidity5%~95% @ 40° C, non-condensing
Vibration5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight10kgs
Gross weight11.5kgs

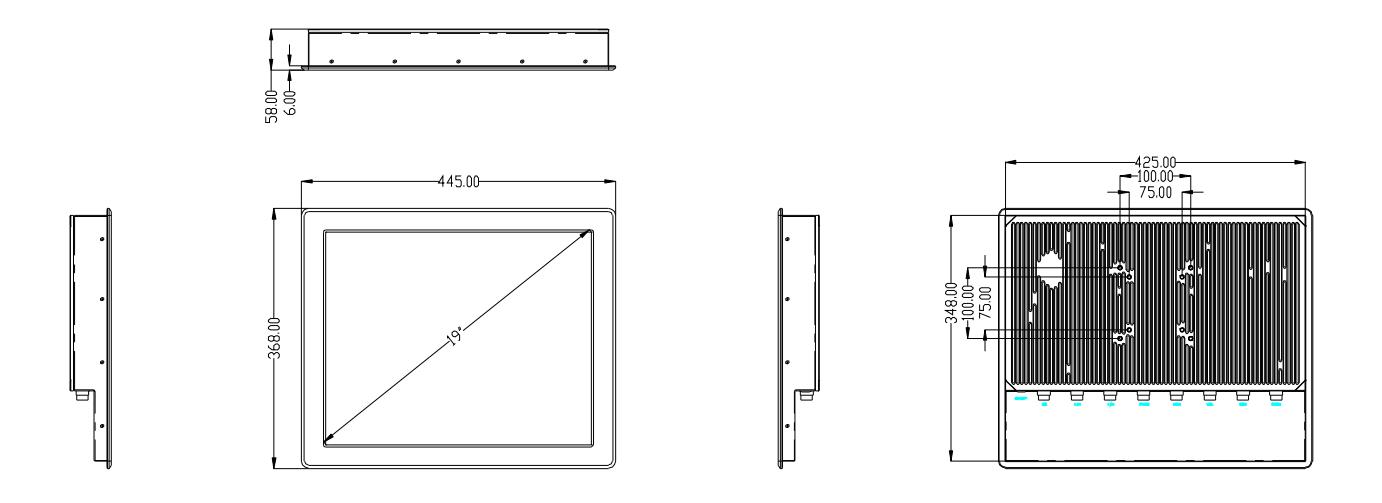

Product Dimension44.5x36.8x5.8cm
Packing size49x58x19cm

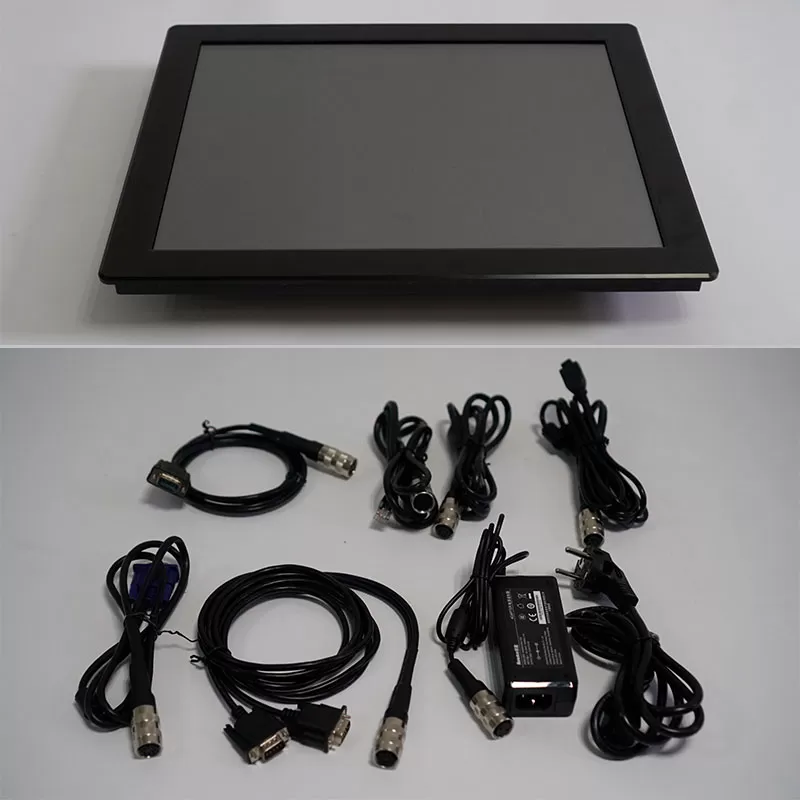

AccessoriesPower adapter, waterproof VGA/HDMI/RS232/LAN/USB cable/Power cord, Wall mount
Other
MountingWall mounting brackets
Desk stand holder (Optional)
Warranty1 year warranty
CertificateCE, FCC, RoHS
