Model: SATA1041
Features:

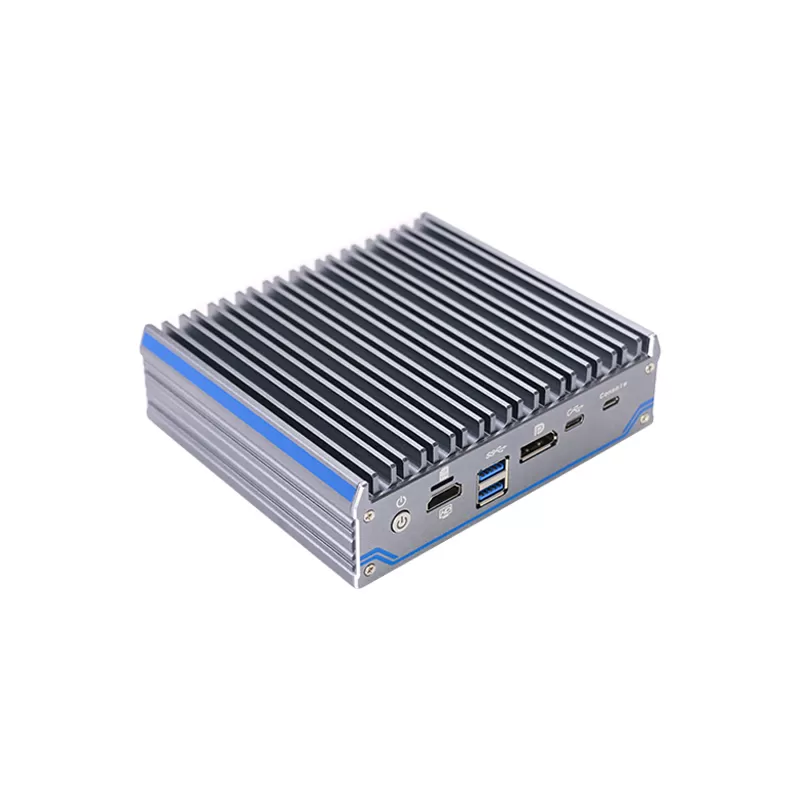

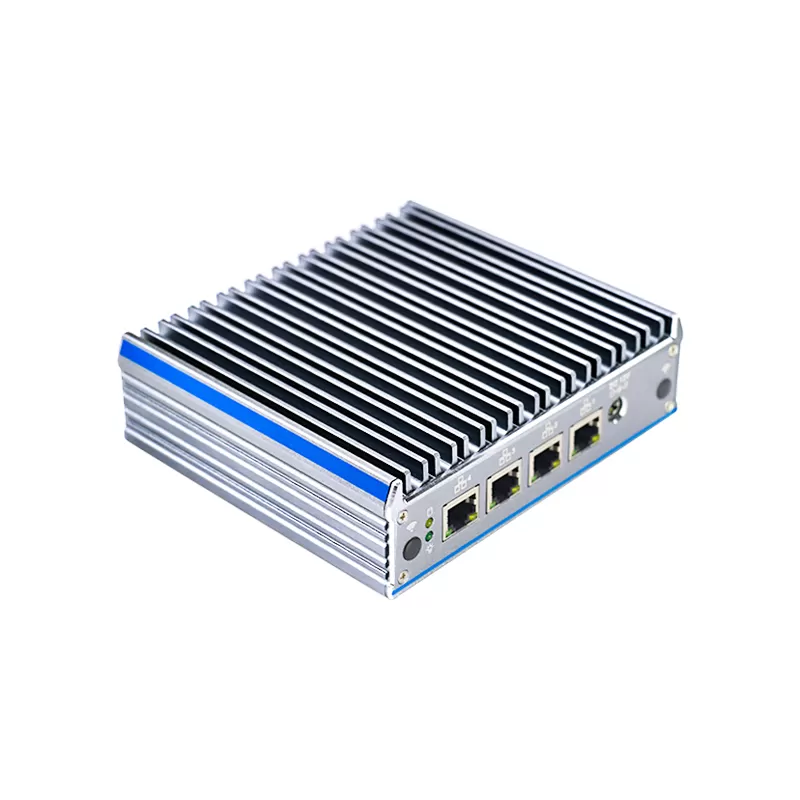

1. Full Aluminum alloy enclosure, fanless design.
2. Onboard Intel Celeron J4125 quad core processor, 2.0GHz.
3. Support 4x i211-AT 1000M LAN card.
4. Support 2*M2 Card Slot and 1*PCIE Expansion card slot.
5. 1*HDMI, 1*DP HD Display port.

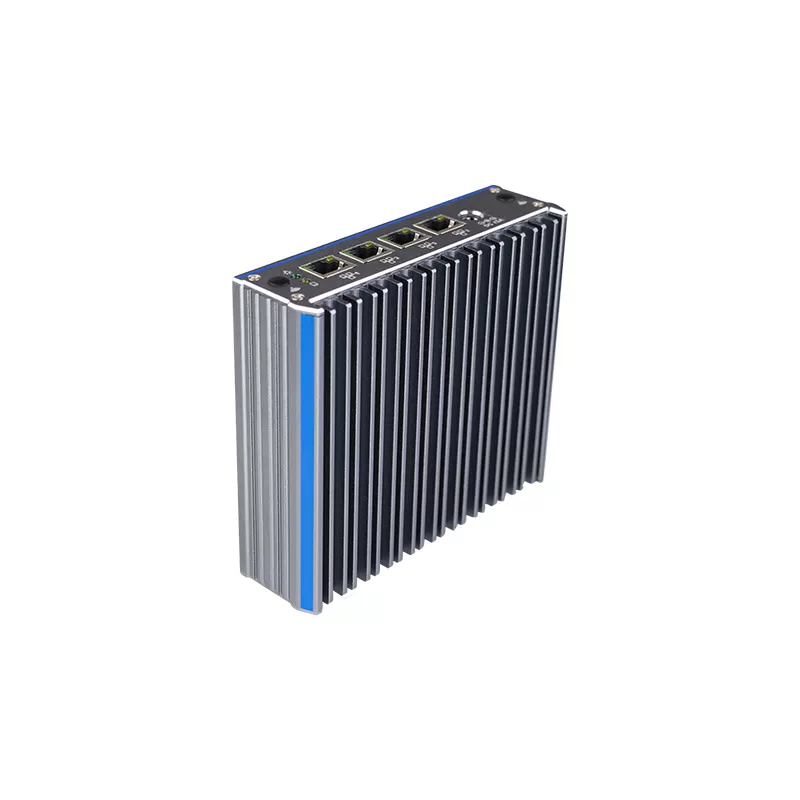

6. Support desktop, DIN Railing, Vesa mount and etc
7. Compatible with Windows 7/8/10, Linux.
| Model: SATA1041 | |
| PC | |
| CPU | Intel®Celeron J4125, quad core, quad thread, 4MB Cache, 2.0GHz Max 2.7GHz |
| Memory | 1x DDR4 2400 MHz SODIMM Memory 8GB |
| Storage | Support 1x MSATA, 1x SATA |
| BIOS | AMI UEFI BIOS |
| Display Chip | Integrated Intel UHD Graphics card 600 |

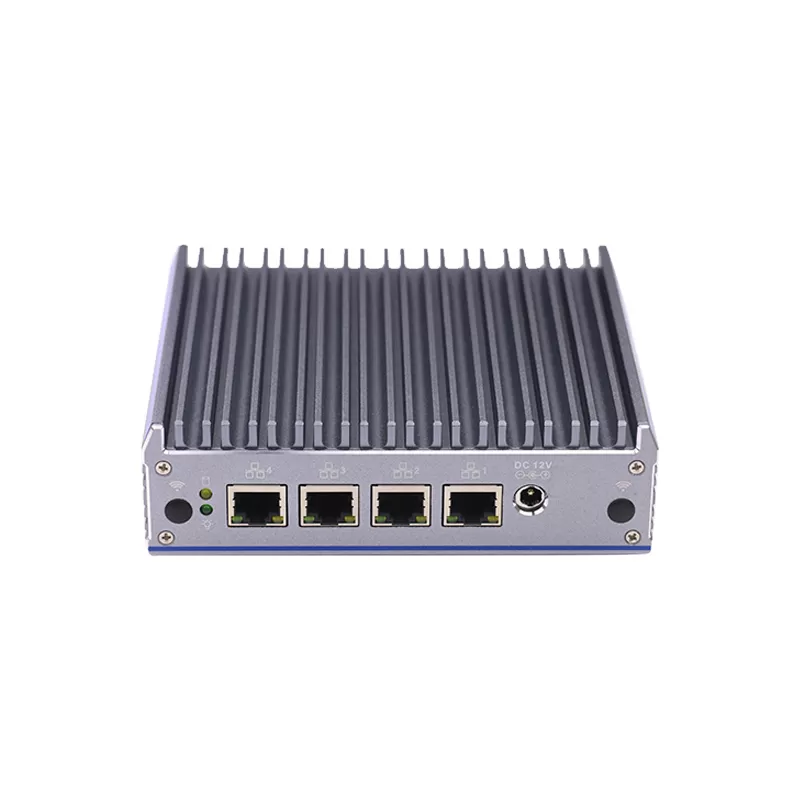

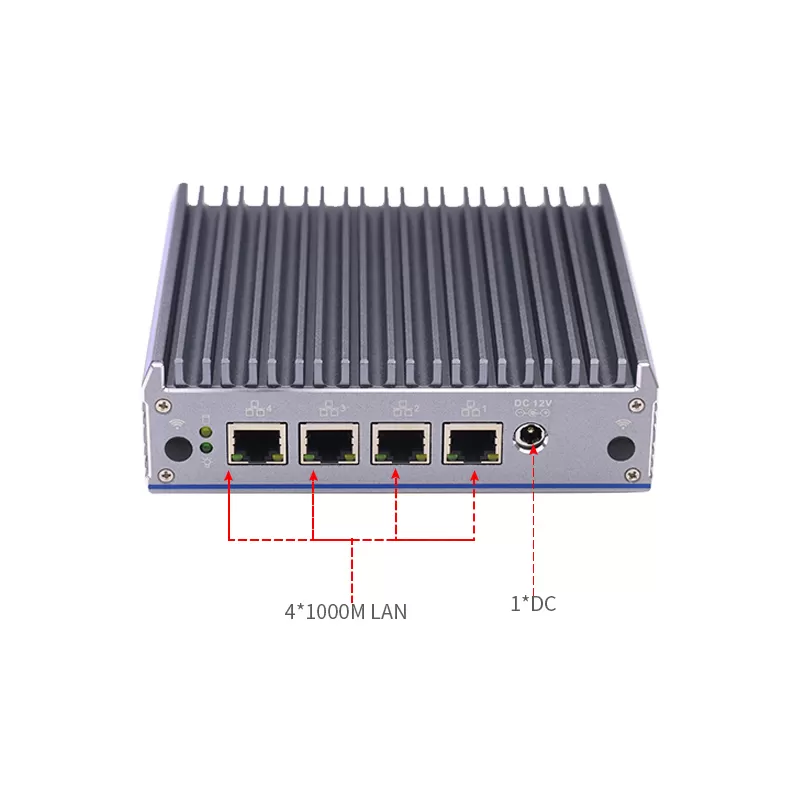

| Network | 4*Intel i211-AT 10/100/1000M LAN Ethernet port |
| Display port | 1xHDMI, 1xDP HD Display port(support syn and asy dual display, support 4096x2160) |
| Audio | Integrated Realtek ALC662 6 sound channel |

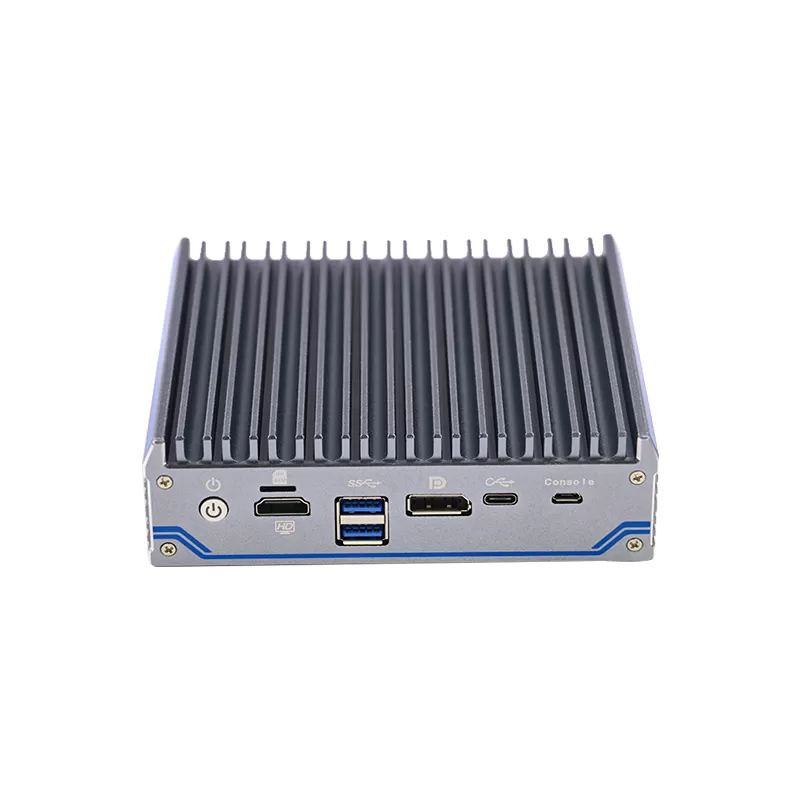

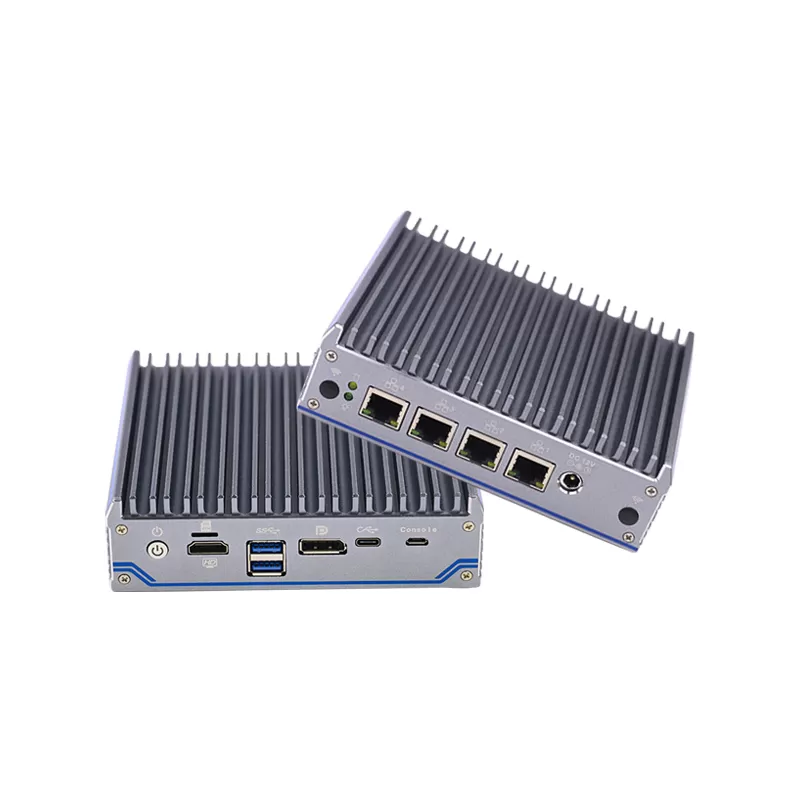

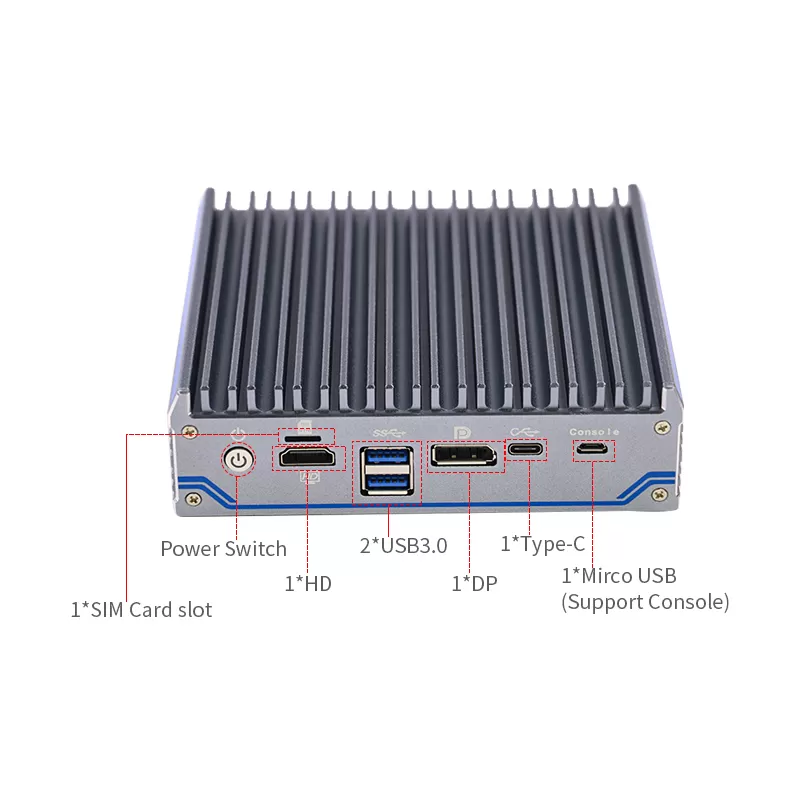

| I/O Interface | 4x USB 3.0, 2x RS232 COM, 4x1000M LAN, 1x RJ45 COM(Support Console function), 1x HDMI, 1x DP 1x Audio/SIM Card slot/DC 12V/Reset/Power switch |
| Expansion | Support 1*M.2 2280 M-key Card slot(support SATA protocol) |
| Support 1*M.2 2230 M-key Card slot(support bluetooth via USB port only) | |
| Support 1*Mini PCIE Card slot(support 4G, external SIM card slot, support USB signal WIFI/bluetooth and etc) | |
| Storage port | 1*M.2 2280 Card slot, 1*2.5 inch hard disk |
| Other function | Power on electricity, Power on by alarm, wake by internet, PXE boot |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤40W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Titanium gray |
| Operating Environment | |
| Temperature Range | Operating: 0°C to 50°C(Commercial HDD), -20°C-60°C(industrial SSD), surface air flow |
| Relative humidity | 0%~95%, non-condensing |
| Packing Details | |
| Net weight | 0.7kg |
| Gross weight | 1.15kgs |

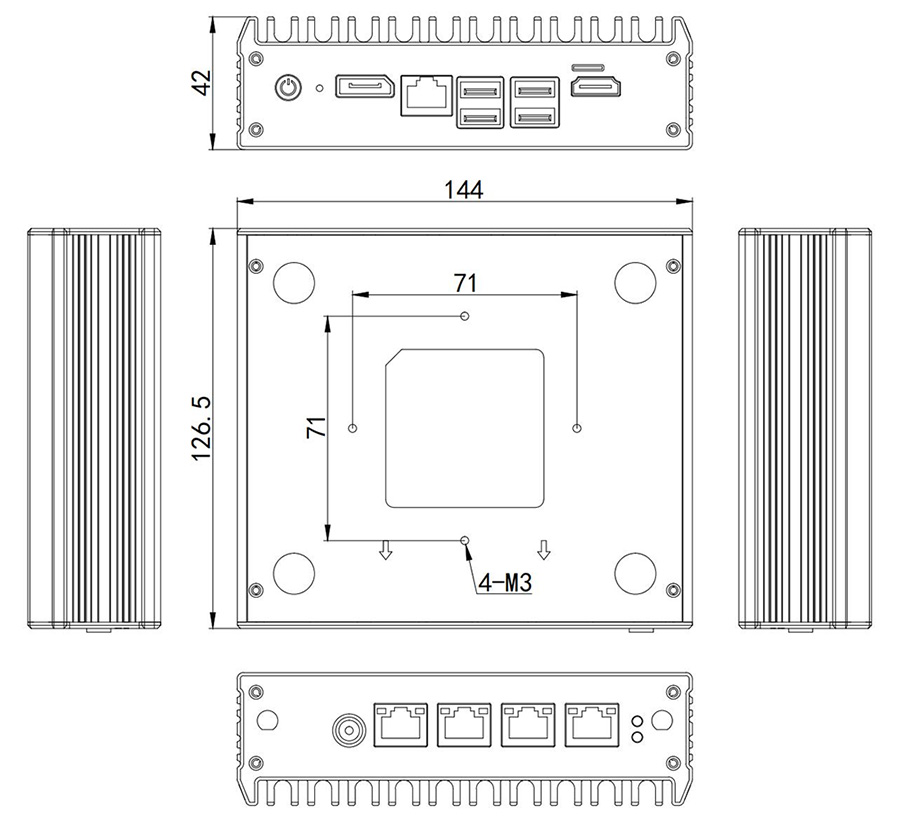

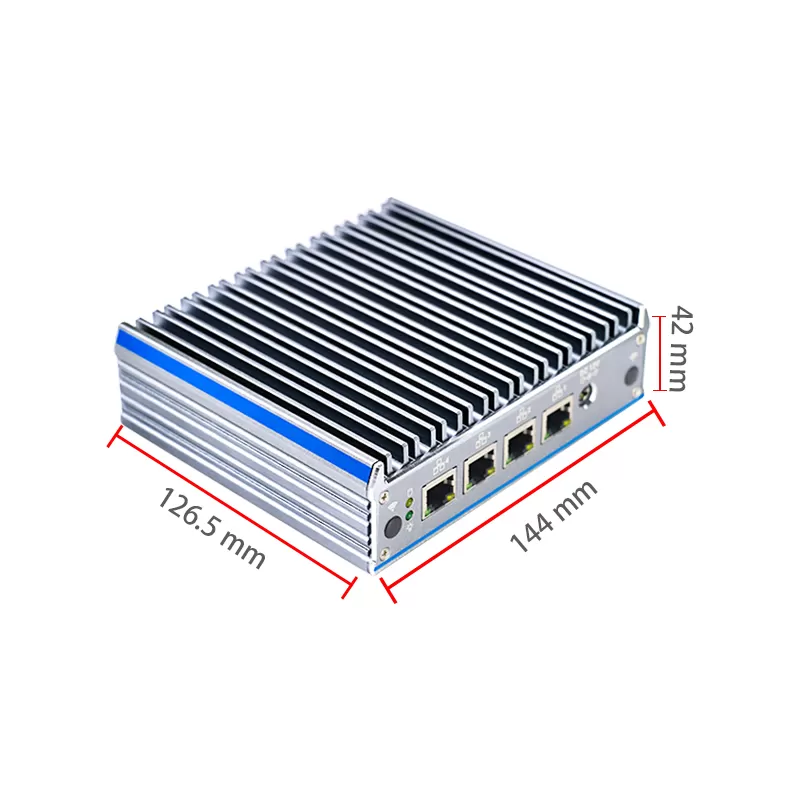

| Product Dimension | 144*126.5*42mm |
| Packing size | 21*16*13.5cm |

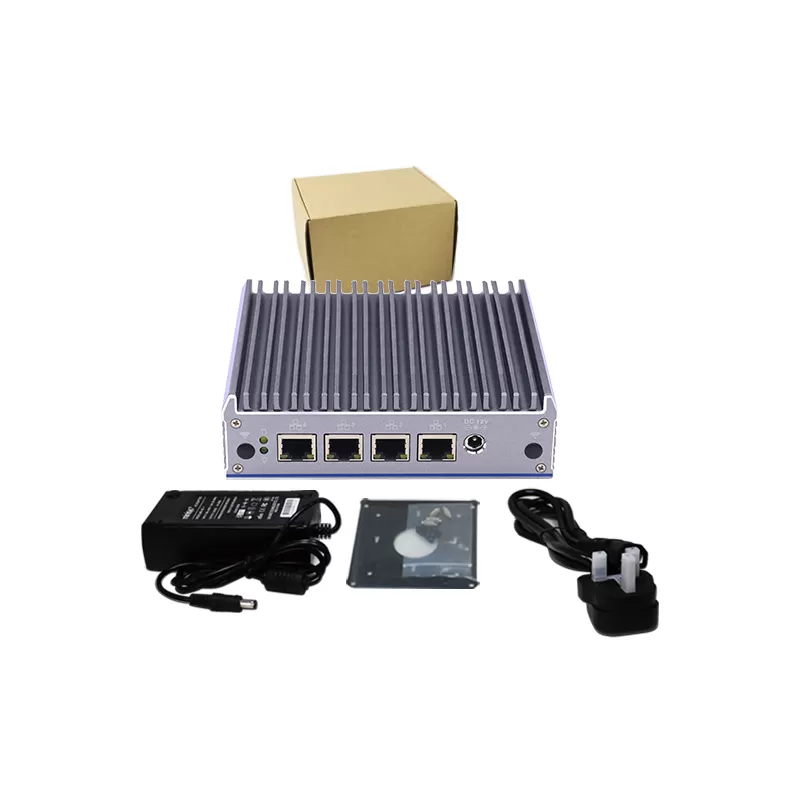

| Accessories | Power adapter, VESA brackets, screws, user manual, warranty card |
| Other | |
| Mounting | VESA brackets (free) |
| Desktop (Optional) | |
| Warranty | 3 years warranty |
