Model: SATA3222
Features:
1. All aluminum alloy structure.
2. Onboard 12th generation intelligent Intel ® Core ™ processor.
3. Support 2*HDMI HD display interface, support synchronous/asynchronous dual display.
4. Support SSD+WIFI+4G/5G at the same time.
5. Support 2*COM ports (support 2 RS232 modes).
6. Support DC 12V input.
7. Compatible with Windows 10/11, Ubuntu, Debian, Fedora and etc.
| PC | |
| CPU | Onboard Intel® Core i5 1235U (ten core 12 threads, 1.3G, Max. Turbo 4.4G, 12MB Cache) |
| CPU Optional | Onboard Intel® Core i7 1255U (ten core 12 threads, 1.7G, Max. Turbo 4.7G, 12MB Cache) |
| RAM | Support 1*DDR4 3200 SODIMM memory slot, Max. Support 32GB |
| BIOS | AMI EFI BIOS |
| Display Chip | Intel(R) UHD Graphics |
| Display Port | 2xHDMI HD display interfaces, support syn/asy dual display, resolution up to 4096x2160 |

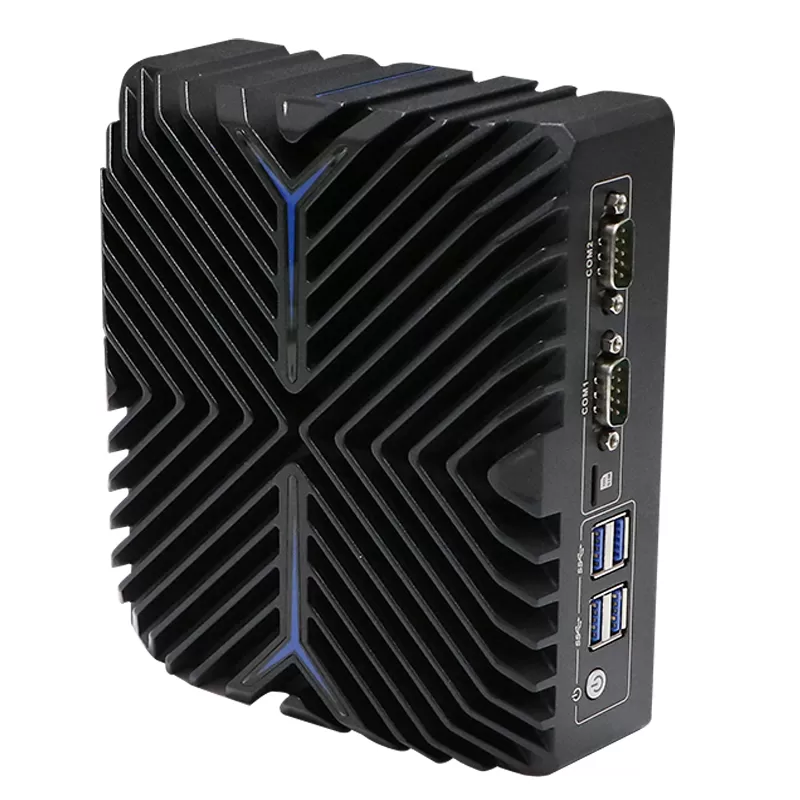

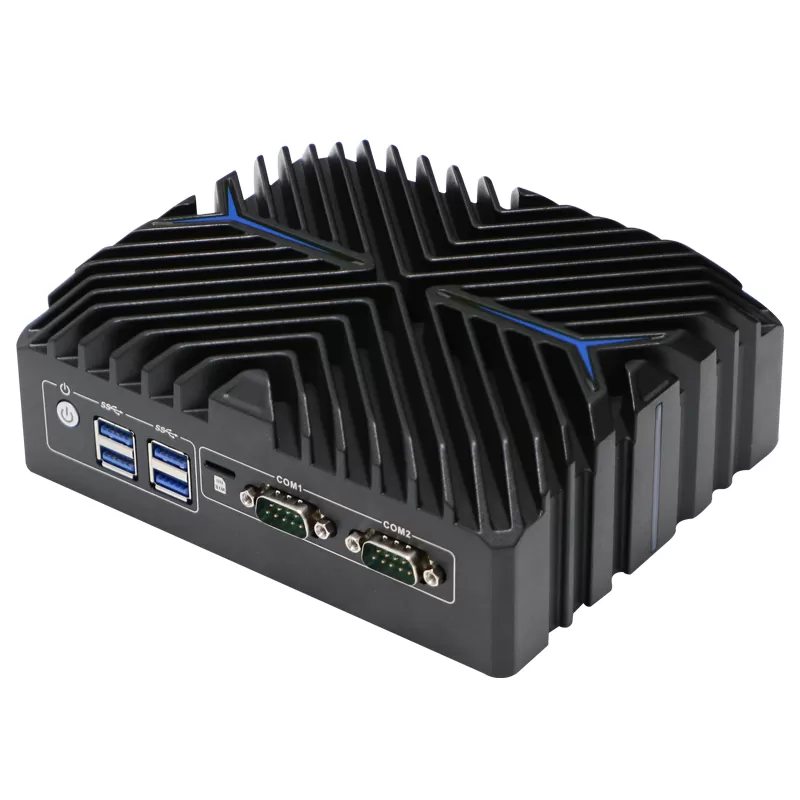

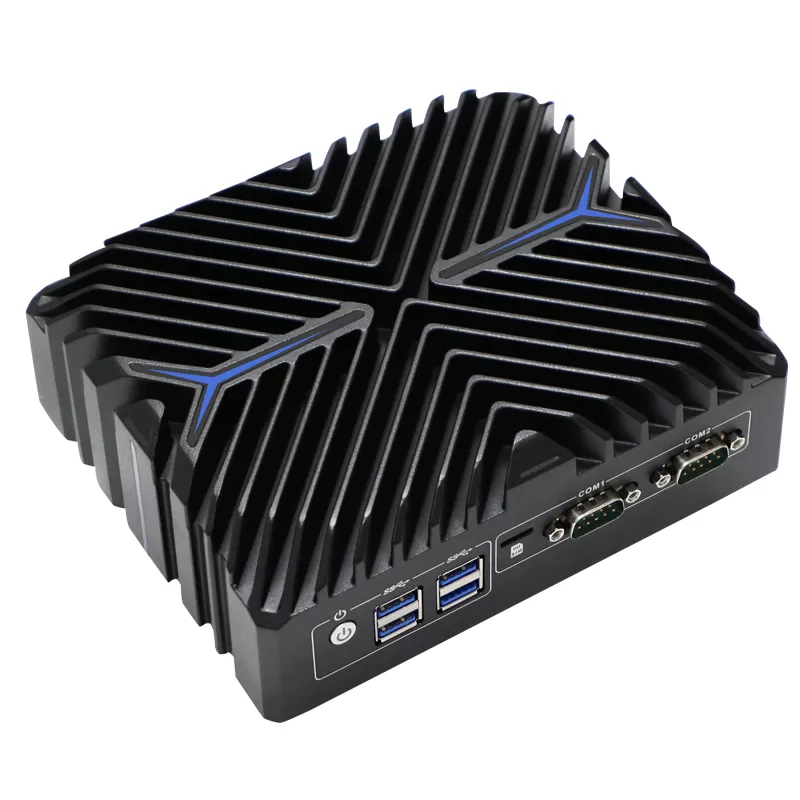

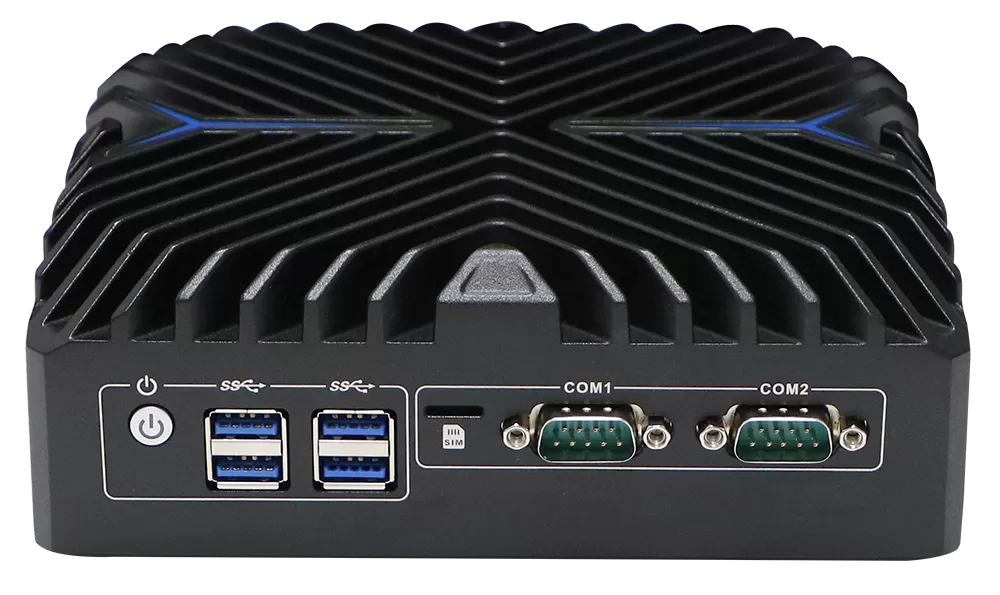

| Front I/O | 2*COM RS232, 1*SIM Slot, 3*USB3.1, 1*Power Switch |

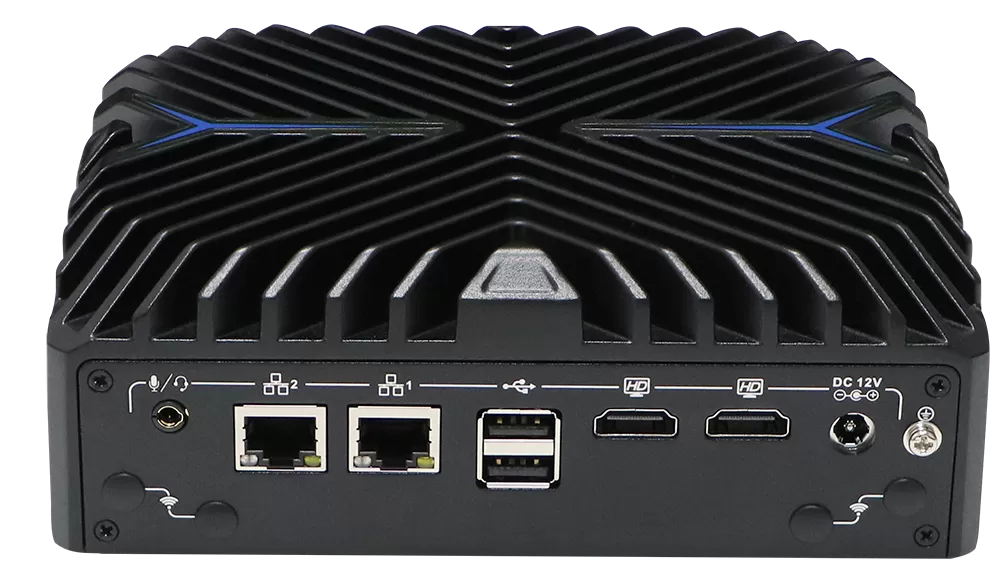

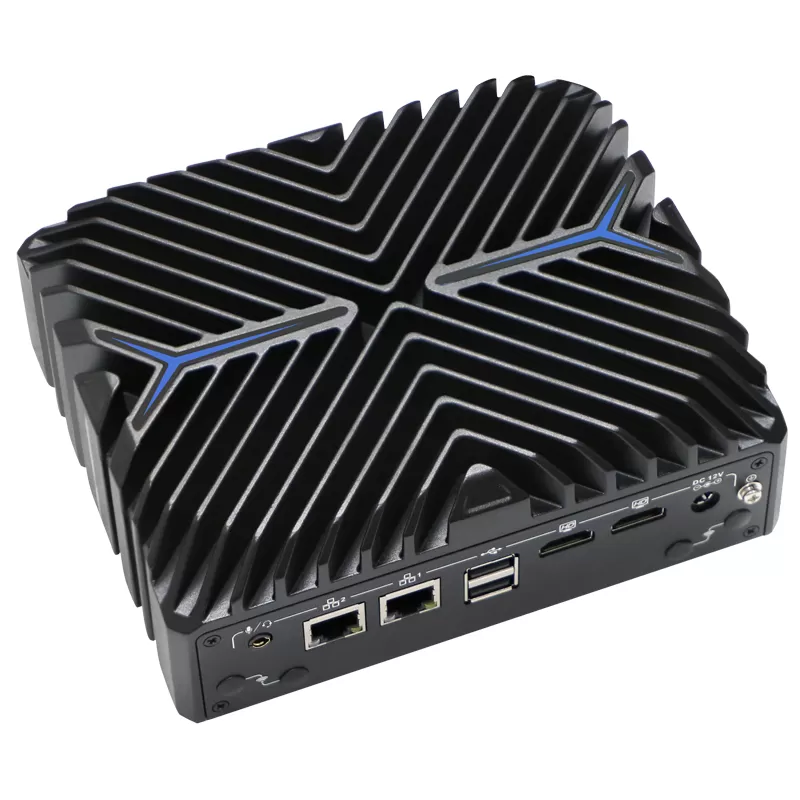

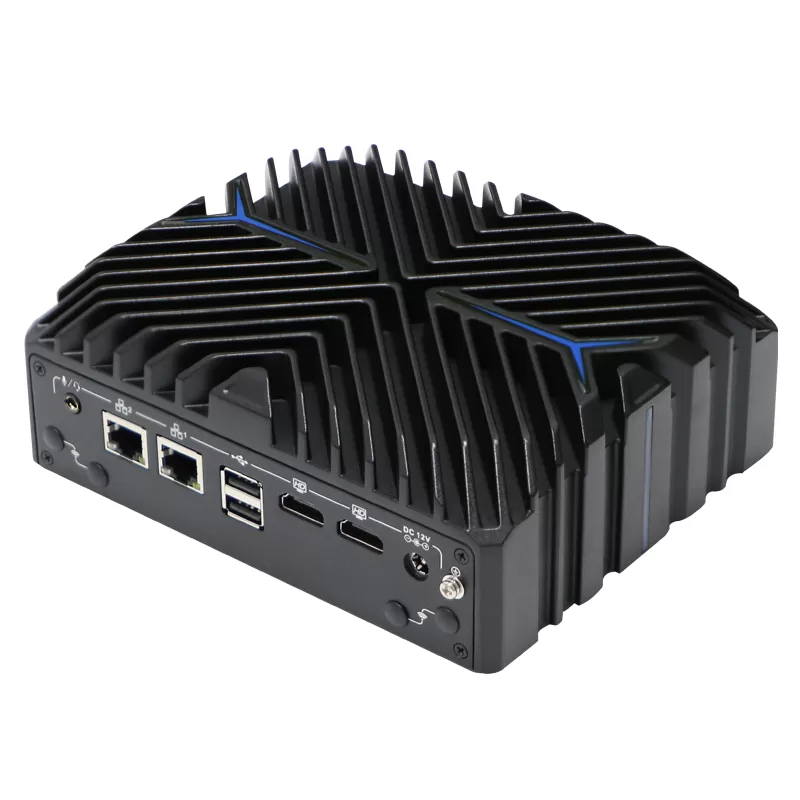

| Rear I/O | 1*DC-IN 12V, 2*HDMI, 2*USB2.0, 2*Intel 1000M LAN, 1*two in one Audio (Support Mic and Speaker at the same time) |
| Expansion Slot | Support 1*M.2 2280 M-key slot (NVME Protocol) |
| Support 1*M.2 3052 B-key slot (USB3.0 signal, support 4G/5G), external SIM socket | |
| Support 1*MINI PCIE Slot (support WIFI/Bluetooth) | |
| Optional: 2*USB2.0 | |
| Network | 2*100/1000M RTL8111H Ethernet LAN |
| Storage | Support 1*M.2 2280 slot, 1*2.5” Hard disk slot |
| Other Function | Power-on, timed startup, network wake up, PXE startup, watchdog (level 0-255), TPM2.0 security encryption |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Enclosure | |
| Material | High quality Aluminum alloy |
| Color | Metallic black (Color can customize) |
| Operating Environment | |
| Temperature Range | Operating: 0°C~ +40°C (HDD), -20°C~ +50°C (Industrial grade SSD), surface air flow |
| Relative humidity | 5%~95%, non-condensing |
| Packing Details | |
| Net weight | 1.1kgs |
| Gross weight | 2kgs |

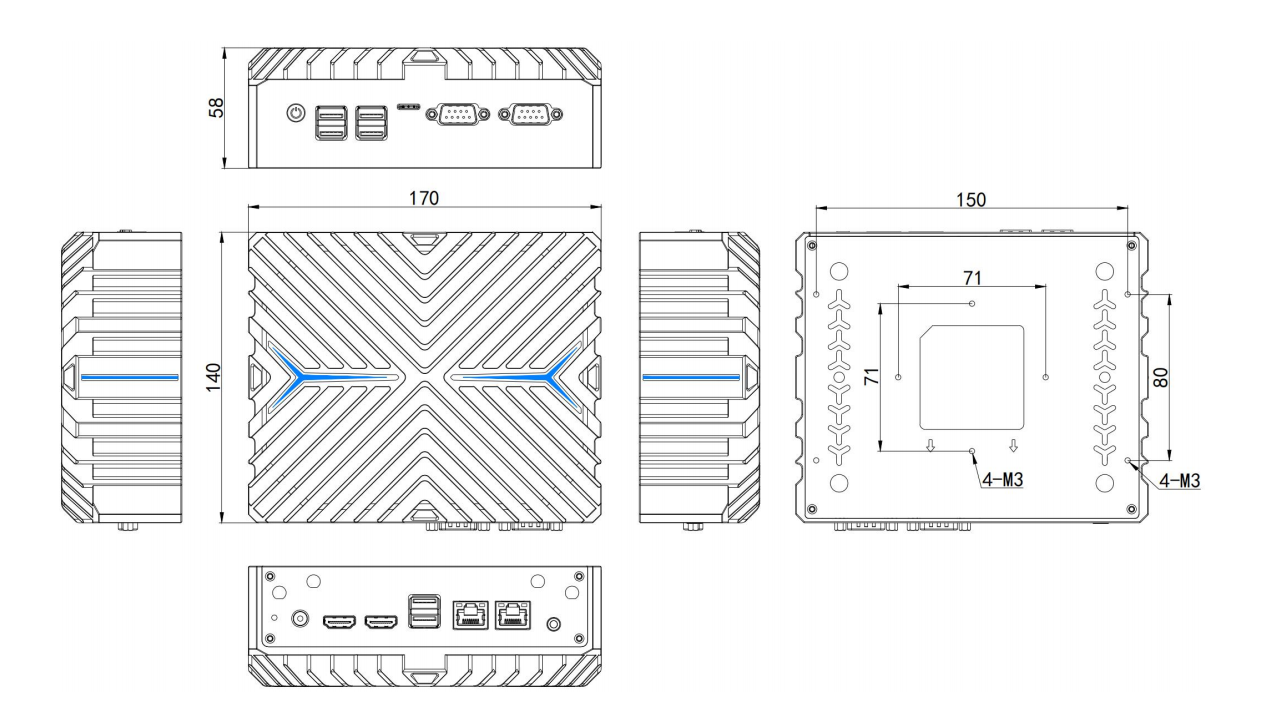

| Product Dimension | 17*14*5.8cm |
| Packing size | TBD |
| Accessories | Power adapter, power cord, Vesa mount, warranty card |
| Other | |
| Mounting (options) | Wall mounting brackets (Optional) |
| Warranty | 3 years warranty |
| Application | Industrial control, Industrial automation, robotics, iot, edge computing, machine vision, AGV/AMR and etc |
| Certificates | CE, FCC, RoHS |
