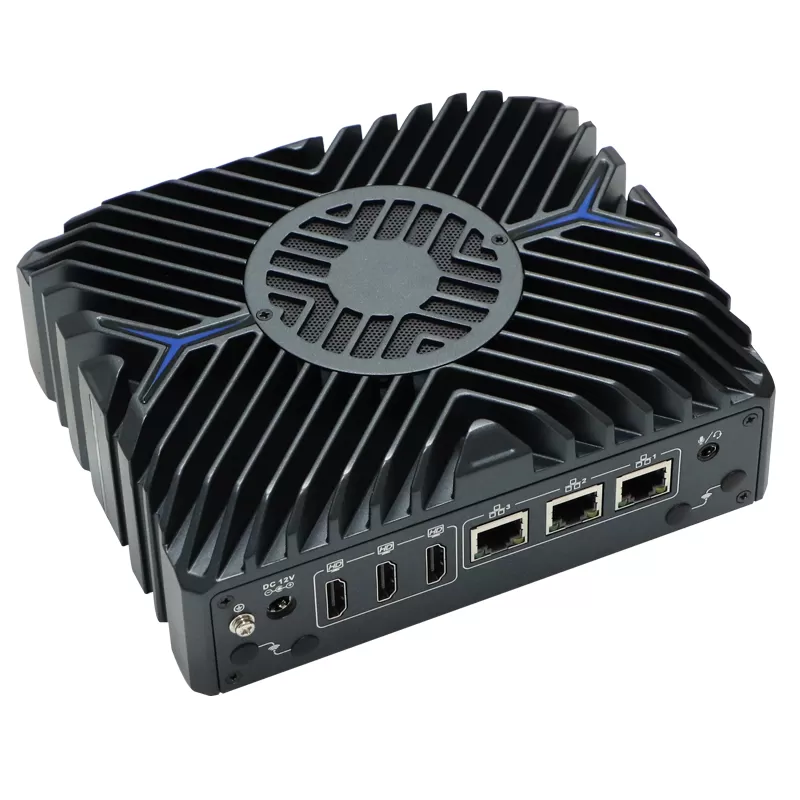

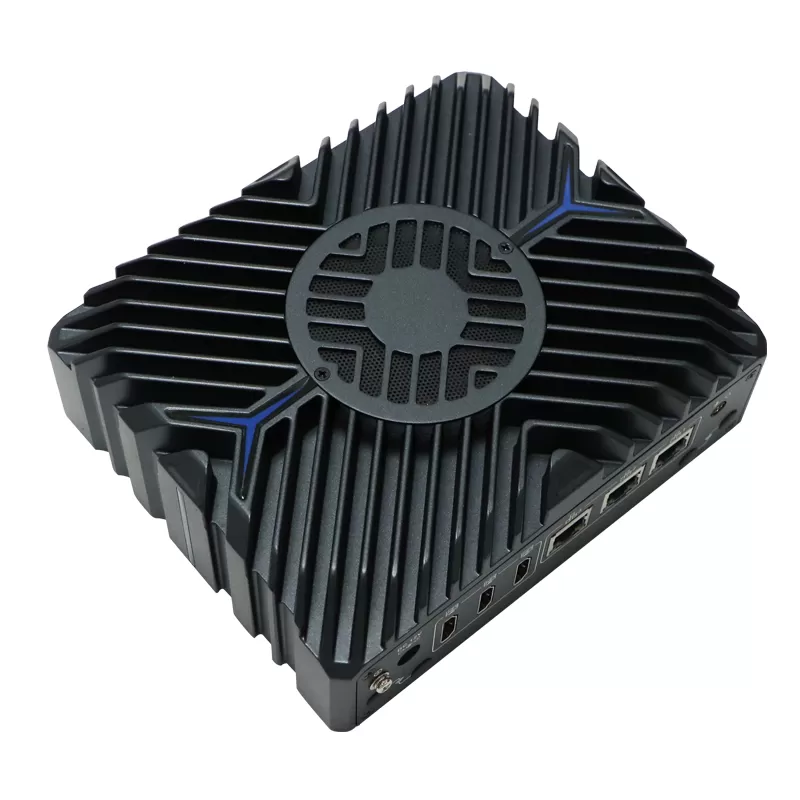

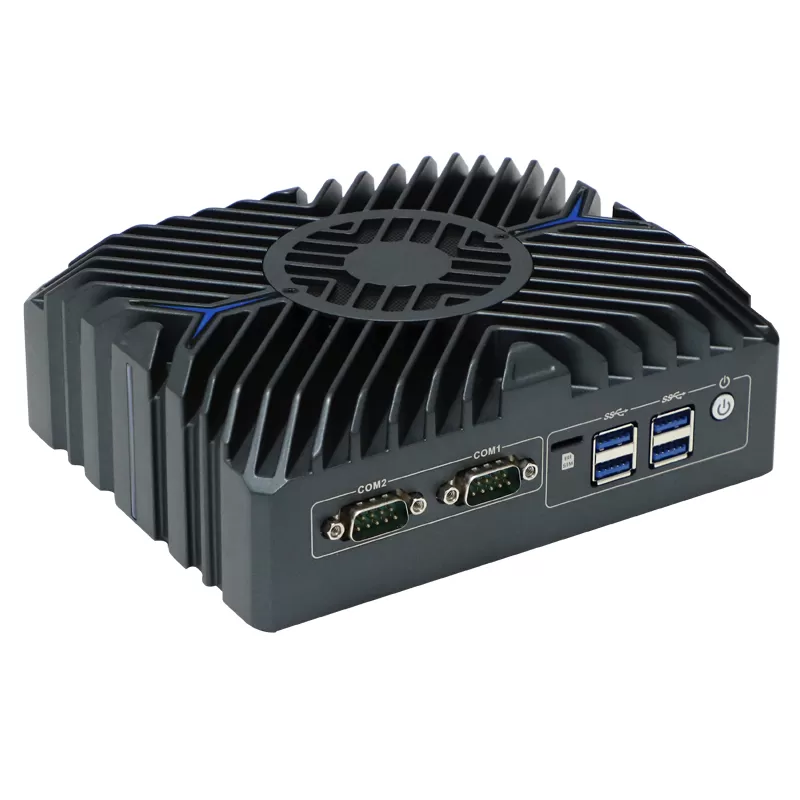

3*HDMI 12th CPU Aluminum alloy i3/i5/i7 mini computer with DDR5 RAM/4*USB3.1(4* GPIO Optional)

Model: SATA3322

Features:

1. All aluminum alloy structure.

2. Onboard 12th generation intelligent Intel ® Core ™ processor.

3. Support 3*HDMI HD display interface, support synchronous/asynchronous three display.

4. Support 3*M.2 slots (can support SSD+WIFI+4G/5G).

5. Support 2*COM ports (2 RS232/485 mode Optional ).

6. Support DC 12V input.

7. Compatible with Windows 10/11, Ubuntu, Debian, Fedora and etc.


PC
CPUOnboard Intel® Core i3 1215U (six core 8 threads, 1.2G, Max. Turbo 4.4G, 10MB Cache)
CPU OptionalOnboard Intel® Core i5 1235U (ten core 12 threads, 1.3G, Max. Turbo 4.4G, 12MB Cache)
CPU OptionalOnboard Intel® Core i7 1255U (ten core 12 threads, 1.7G, Max. Turbo 4.7G, 12MB Cache)
RAMSupport 1*DDR5 4800 SODIMM memory slot, Max. Support 32GB
BIOS AMI EFI BIOS
Display ChipIntel(R) UHD Graphics
Display Port3xHDMI HD display interfaces, support syn/asy tri display, resolution up to 4096x2160

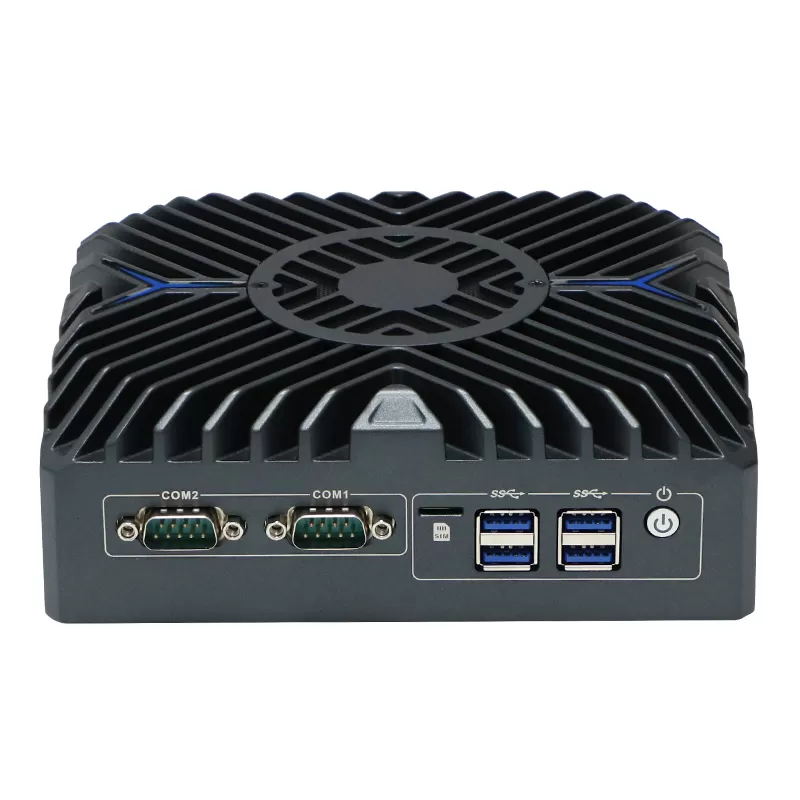

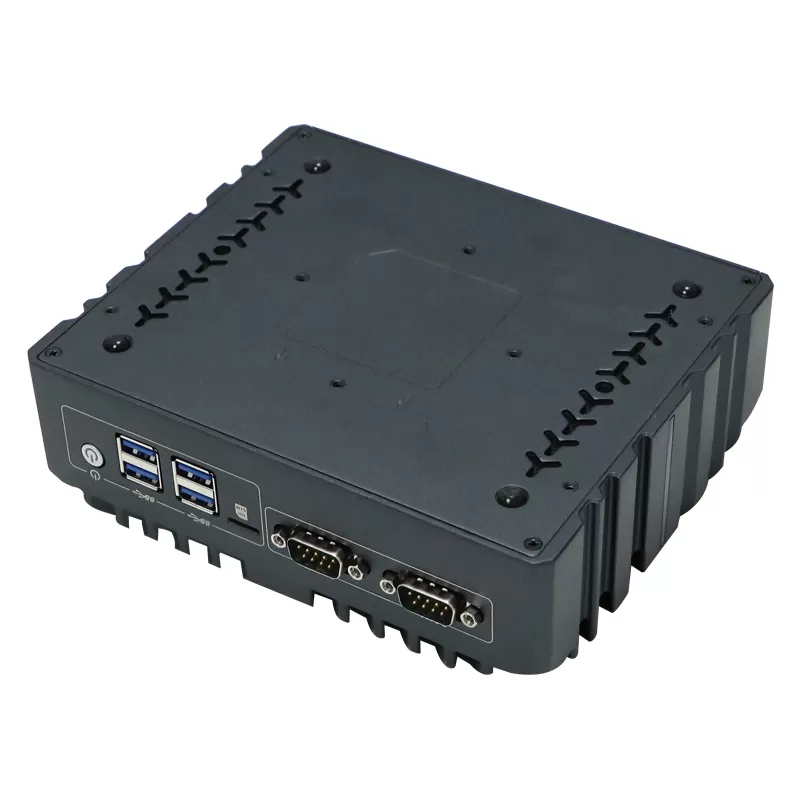

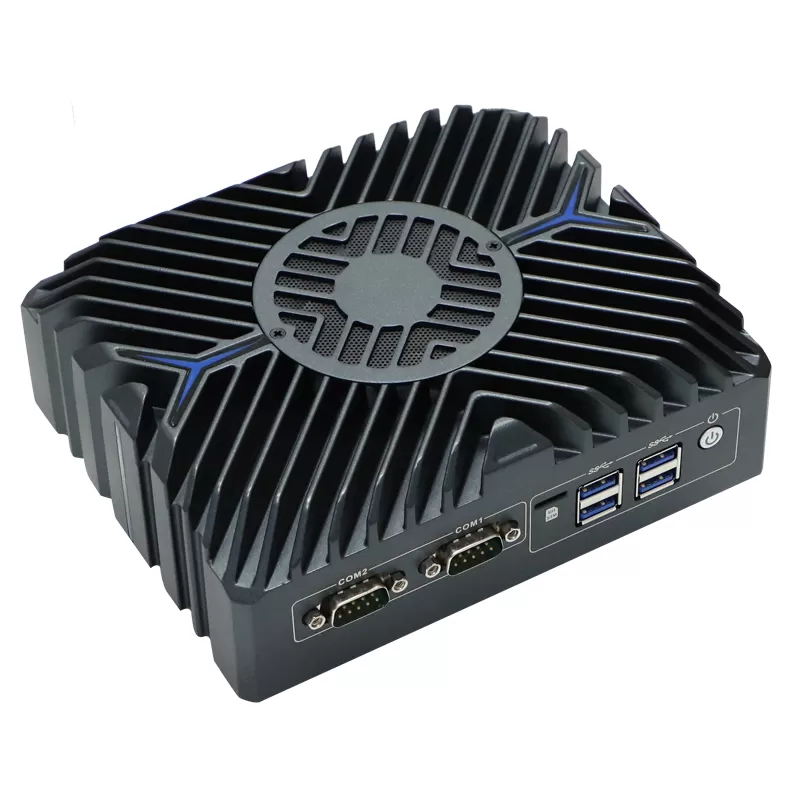

Front I/O2*COM (support RS232/RS485 Optional), 1*SIM Slot, 4*USB3.1, 1*Power Switch

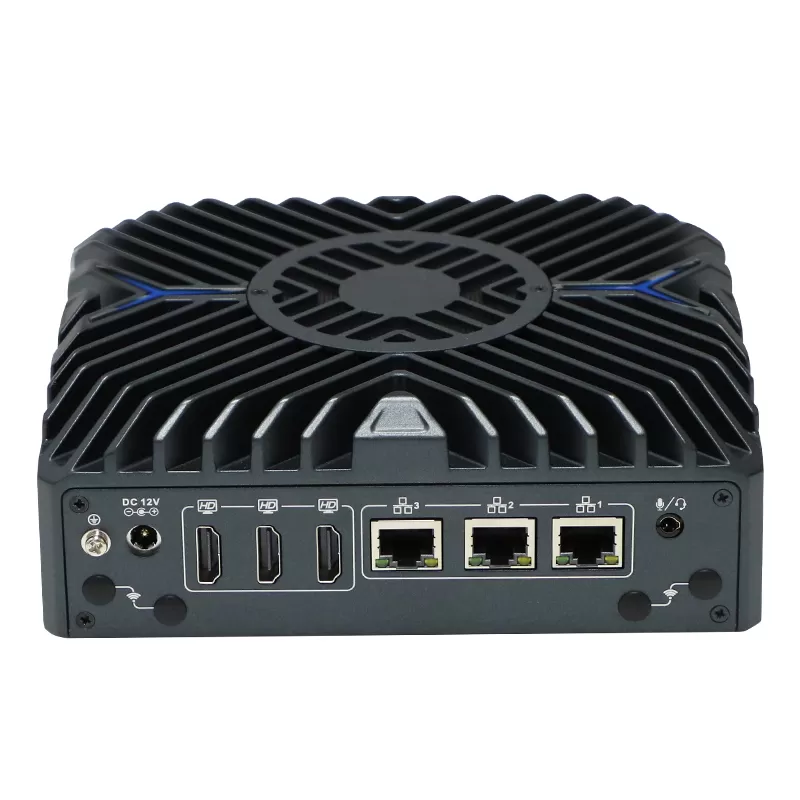

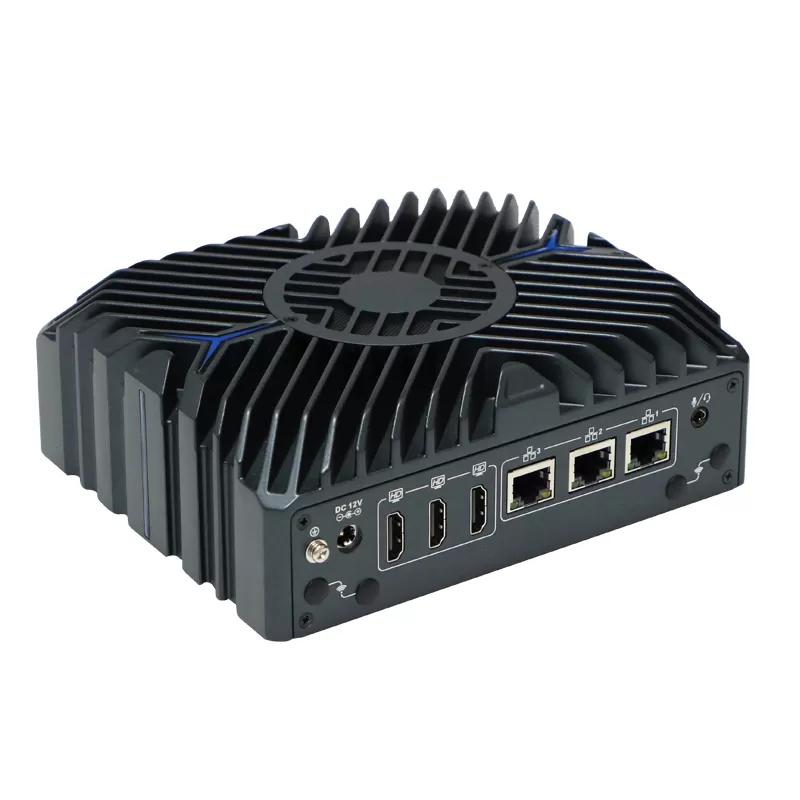

Rear I/O1*DC-IN 12V, 3*HDMI, 3*2.5G LAN,1*two in one Audio (Support Mic and Speaker at the same time), 4*WIFI Antenna slot
Expansion SlotSupport 1*M.2 2280 M-key slot (NVME Protocol)
Support 1*M.2 3052 B-key slot (USB3.0 signal, support 4G/5G), external SIM socket
Support 1*M.2 2230 E-key Slot (support WIFI/Bluetooth)
Optional: 2*USB2.0, 4*GPIO
Network 3*Intel i225-V 100/1000/2500M Ethernet LAN
Storage Support 1*M.2 2280 slot, 1*2.5” Hard disk slot
Other Function Power-on, timed startup, network wake up, PXE startup, watchdog (level 0-255), TPM2.0 security encryption
Power Supply
External Power SupplyAC 100-240V
Working voltageDC 12V
Enclosure
Material High quality Aluminum alloy
Color Metallic grey (Color can customize)
Operating Environment
Temperature RangeOperating: 0°C~ +40°C (Commercial HDD), -20°C~ +50°C (Industrial grade SSD), surface air flow
Relative humidity5%~95%, non-condensing
Packing Details
Net weight1.1kgs
Gross weight2kgs

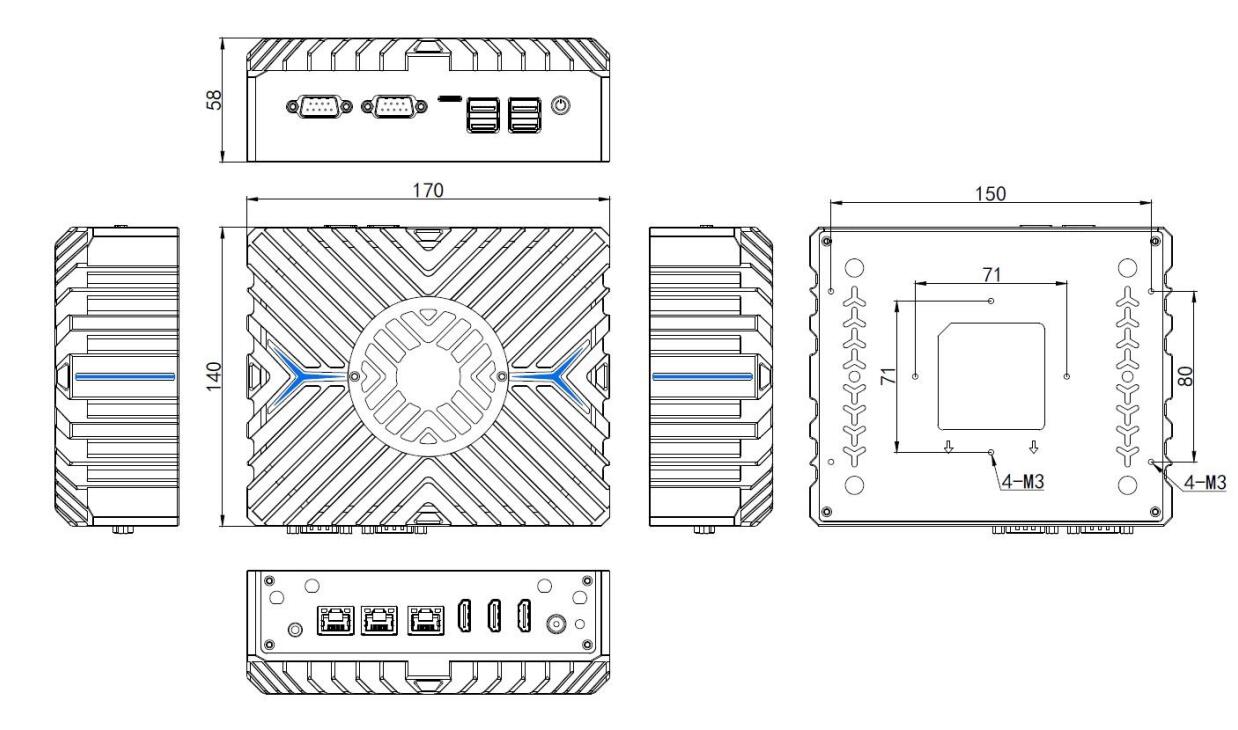

Product Dimension17*14*5.8cm
Packing sizeTBD
AccessoriesPower adapter, power cord, Vesa mount, warranty card
Other
Mounting (options)Wall mounting brackets (Optional)
Warranty3 years warranty
ApplicationIndustrial control, Industrial automation, robotics, iot, edge computing, machine vision, AGV/AMR and etc
CertificatesCE, FCC, RoHS
