Features:
1. Intel EHL J6412/J6413/J6426
Intel ADL-N N95/N100/N200/N300
2. 1*RS-232 serial port, 1*RS-485 serial port;
3. 4*Intel i225V/i226V 2.5G network cards;
4. Watchdog, no disk start;
5. 1xHDMI2.0+1xDP1.4;
6. Low power consumption without fan;
7. Windows® 10/11, Ubuntu, Debian, Fedora and etc.
| PC | |
| CPU | Intel® Alder Lake N100, quad core, quad thread, 3.4GHz Max. 6MB Cache, Fanless |
| CPU Optional | Intel® Celeron J4125, 4 Cores, 4 Threads, Base 2.0 GHz, Turbo 2.7 GHz, 4MB Cache, Fanless |
| CPU Optional | Intel® Celeron J6412, 4 Cores, 4 Threads, Base 2.0 GHz, Turbo 2.6 GHz, 1.5MB Cache, Fanless |
| Memory | DDR4 SODIMM x1(up to 16GB) |
| Storage | 1x MSATA, 1x M.2 NVME 1x HDD/SSD |
| Display | 1x HDMI, 1xDP |
| Display Chip | Integrated Intel HD Graphics card |
| Network | 4xRJ45 Intel i225V/i226V |
| I/O Interface | 2x USB 3.0, 4x USB 2.0, 1x DB9 RS232+4pin phoenix RS485, 1x HDMI2.0, 1xDP1.4, 1xPower button/power input 2x WIFI Antenna |
| Expansion | 1x M.2 WIFI(Optional) |
| Operation System | Support Windows® 10/11, Ubuntu, Debian, Fedora and etc. |
| Other function | Watch dog, no disk start-up |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤40W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Black |
| Operating Environment | |
| Temperature Range | Operating: -20 to 60°C, storage: -30 to 70°C |
| Relative humidity | 10%~90% @30°C, non-condensing |
| Packing Details | |
| Net weight | 1kg |
| Gross weight | 1.8kgs |

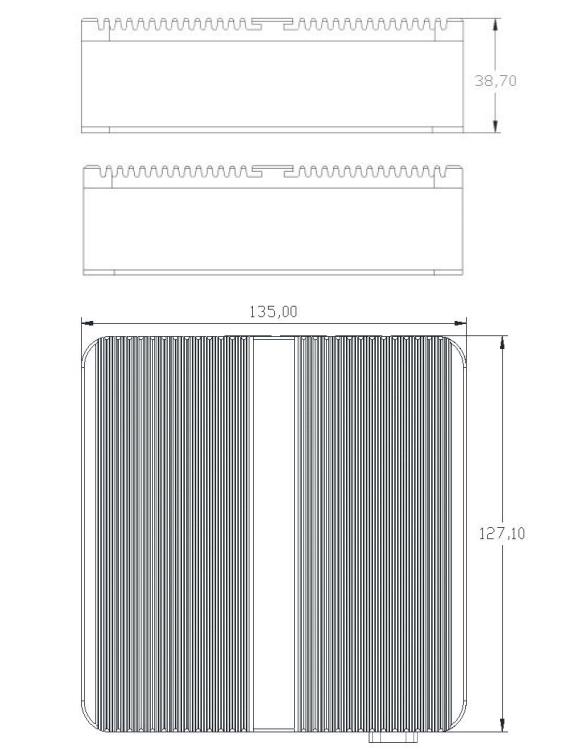

| Product Dimension | 13.5*12.7*3.87cm |
| Packing size | TBD |
| Accessories | Power adapter, VESA brackets, screws, user manual, warranty card |
| Other | |
| Mounting (Options) | VESA brackets (free) |
| Desktop | |
| Warranty | 2 years warranty |
