Model: SATA3061
Features:
1. All aluminum alloy structure, no fan design.
2. Onboard 10th generation intelligent Intel ® Core ™ processor.
3. Support 6*Intel i225-V 2.5G, 4 POE Optional.
4. Support 1 M.23052 B-key, 5G module Optional.
5. Support 3*M.2 slots (WIFI+4G/5G).
6. Support 2*DDR4 memory slots, Max. 64GB memory.
7. Support TPM 2.0 security encryption.
8. Compatible with Windows 10/11, Ubuntu, Debian, Fedora and etc.
| PC | |
| CPU | Onboard Intel® Core i3 10110U (dual core 4 threads, 2.1G, Max. Turbo 4.1G, 4MB Cache) |
| CPU Optional | Onboard Intel® Core i5 10210U (quad core 8 threads, 1.6G,Max. Turbo 4.2G, 6MB Cache) |
| CPU Optional | Onboard Intel® Core i7 10810U (six core 12 threads, 1.1G, Max. Turbo 4.9G, 12MB Cache) |
| RAM | Support 2*DDR4 2666 MHz SODIMM memory slot, Max. Support 64GB |
| BIOS | AMI EFI BIOS |
| Display Chip | Intel(R) UHD Graphics |
| Display Port | 1*DP, 1*HDMI (Support syn/asy dual display, DP Max. 4096x2160@60Hz) |

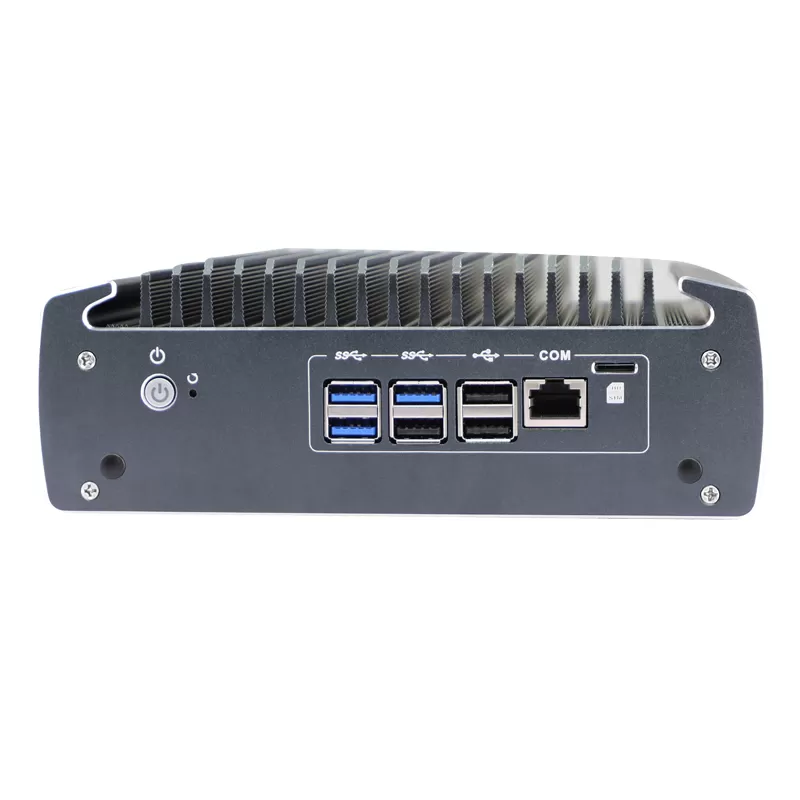

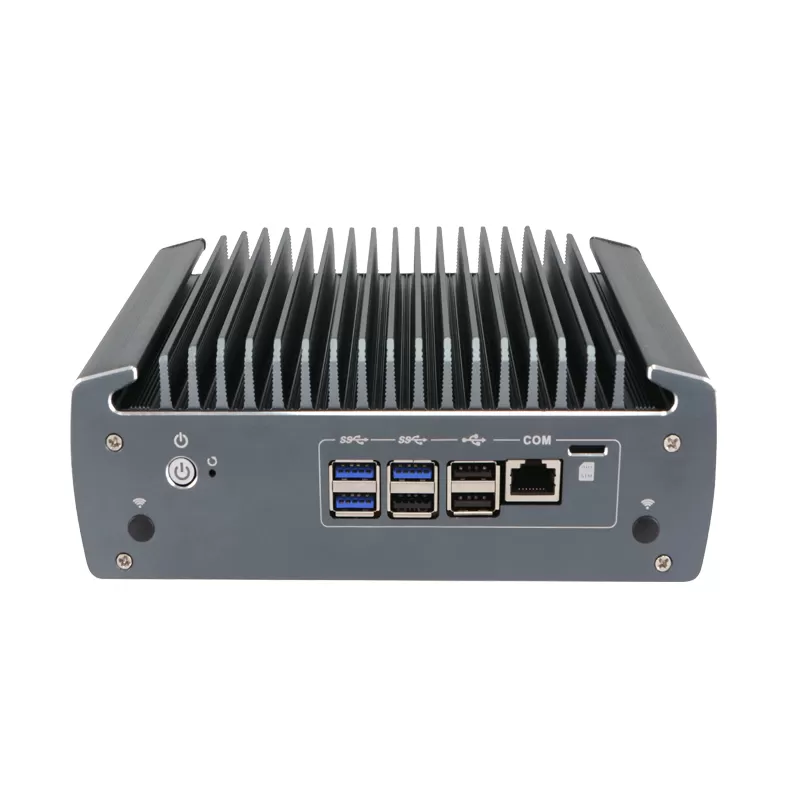

| Front I/O | 3*USB3.1, 3*USB2.0, 1*RJ45 COM (Support Console function) 1*Power Switch |

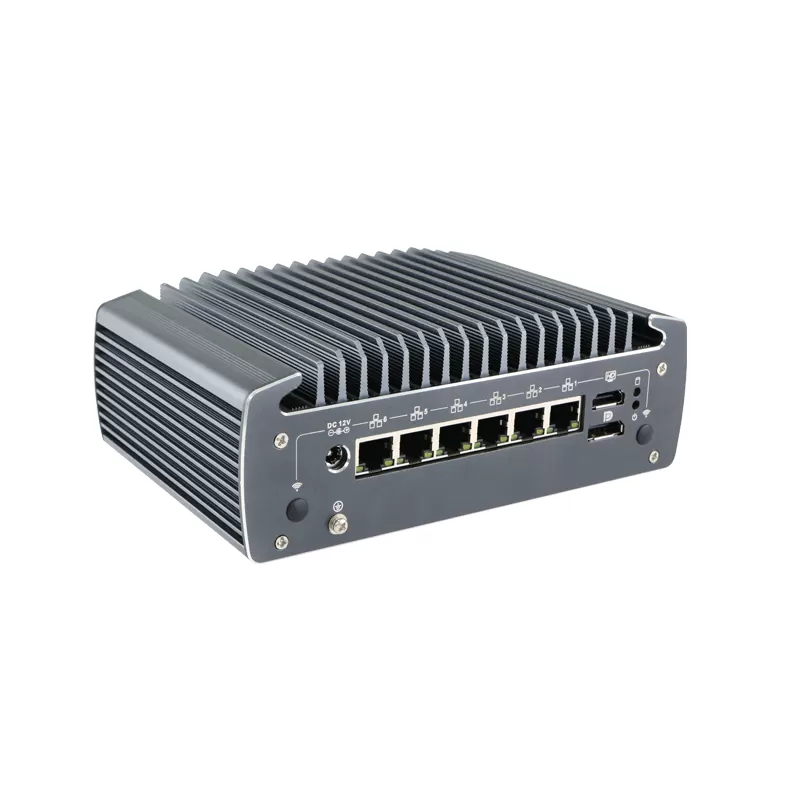

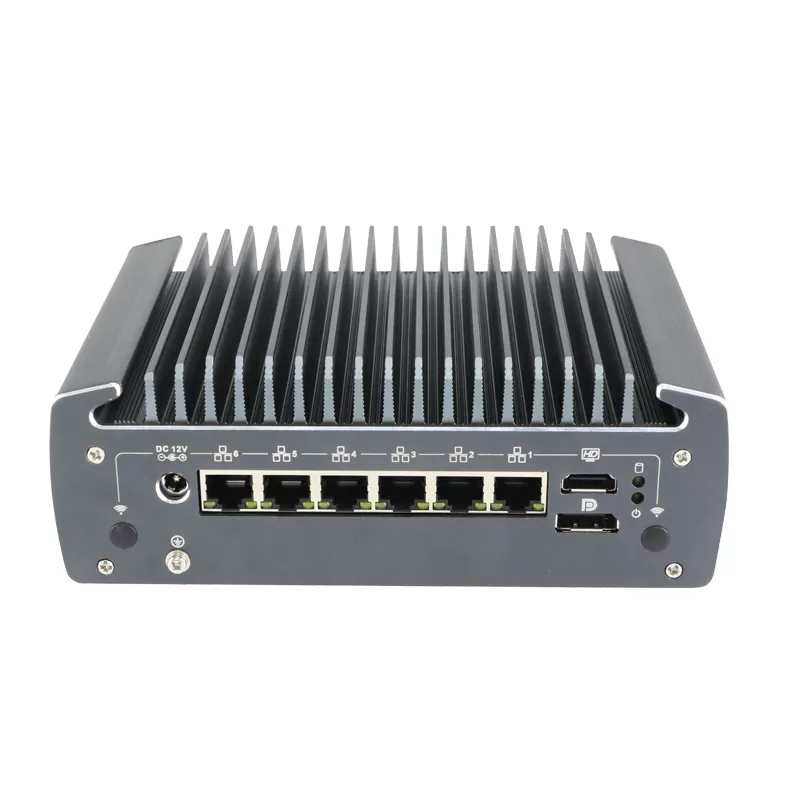

| Rear I/O | 6*RJ45 LAN, 1*DP/HDMI/DC |
| Expansion Slot | Support 1*M.2 2280 M-Key slot (support SATA protocol and NVME Protocol) |
| Support 1*M.2 3052 B-Key slot (USB3.0 signal, support 4G/5G), external SIM socket | |
| Support 1*M.2 2230 E-key slot (support WIFI, Bluetooth) | |
| Network | 6*Intel i225-V 2.5G Ethernet LAN (3 to 6 port support 802.3af POE function Optional) |
| Storage | Support 1*M.2 2280 slot, 1*2.5” HDD, support RAID 0/1 |
| Other Function | Power-on, timed startup, network wake up, PXE startup, watchdog (0~255 level) |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Enclosure | |
| Material | High-quality all aluminum |
| Color | Metallic grey (Color can customize) |
| Operating Environment | |
| Temperature Range | Operating: 0°C~ +50°C (Commercial HDD), -20°C~ +50°C (Industrial SSD), surface air flow |
| Relative humidity | 0%~95%, non-condensing |
| Packing Details | |
| Net weight | 1.3kgs |
| Gross weight | 2kgs |

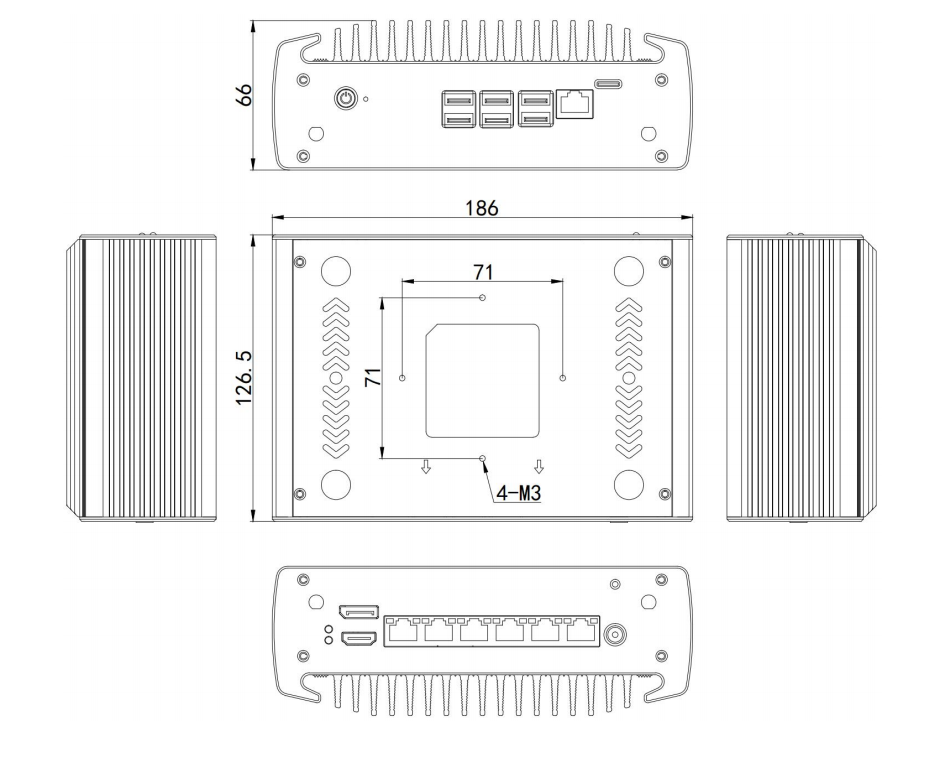

| Product Dimension | 18.6*12.65*6.6cm |
| Packing size | 21*16*13.5cm |
| Accessories | Power adapter, power cord, Vesa mount, warranty card |
| Other | |
| Mounting (options) | Wall mounting brackets (Optional) |
| Warranty | 3 years warranty |
| Application | Firewall, VPN, network server, network security, router and other fields |
| Certificates | CE, FCC, RoHS |
