Model: SATA-DP
Features:
1. Intel 7/8/10th Core i3/i5/i7 CPU Optional.
2. 2x DDR4 SODIMM slots, up to 32GB.
3. DP+HDMI dual display, synchronous/asynchronous mode.
4. Dual storage, 1x2.5" hard disk port, 1x mSATA port
5. Low power consumption, super quiet heat dissipation.
| PC | |
| CPU | Intel® Pentium Gold 5405U, dual core, quad thread, 2.3GHz, 2MB Cache |
| CPU Optional | Intel® Core i3-8145U, dual core, quad thread, 2.1GHz, Turbo 3.9GHz |
| CPU Optional | Intel® Core i5-8365U, quad core, eight thread, 1.6GHz, Turbo 4.1GHz |
| CPU Optional | Intel® Core i7-8569U, quad core, eight thread, 2.8GHz, Turbo 4.7GHz |
| CPU Optional | Intel® Core i3-10110U, dual core, quad thread, 2.1GHz, Turbo 4.1GHz |
| CPU Optional | Intel® Core i5-10310U, quad core, eight thread, 1.7GHz, Turbo 4.4GHz |
| CPU Optional | Intel® Core i7-10610U, quad core, eight thread, 1.8GHz, Turbo 4.9GHz |
| Memory | DDR4 SODIMM x2(up to 32GB) |
| Storage | 1x MSATA, 1x HDD/SSD |
| Display | 1x HDMI, 1xDP |
| Display Chip | Integrated Intel HD Graphics card |
| Network | 2x GbE RJ45 Realtek 8111H |
| I/O Interface | 4x USB 3.0, 4x USB 2.0, 2*RJ45, 1xHDMI/DP/Type-C/Audio Line-out/Audio Mic-in/Power Button/Power input |
| Expansion Slot | Mini-PCIe x 1 half card, support WIFI Bluetooth |
| Operation System | Support WES7, Windows® 10, Ubuntu, Debian, Fedora and etc. |
| Other function | Watch dog, 1~255 seconds programmable setting |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤40W |
| Enclosure | |
| Material | Aluminum+plastic |
| Color | Black+Silver |
| Operating Environment | |
| Temperature Range | Operating: -20 to 60°C, storage: -30 to 70°C |
| Relative humidity | 10%~90% @30°C, non-condensing |
| Packing Details | |
| Net weight | 0.64kg |
| Gross weight | 1kg |

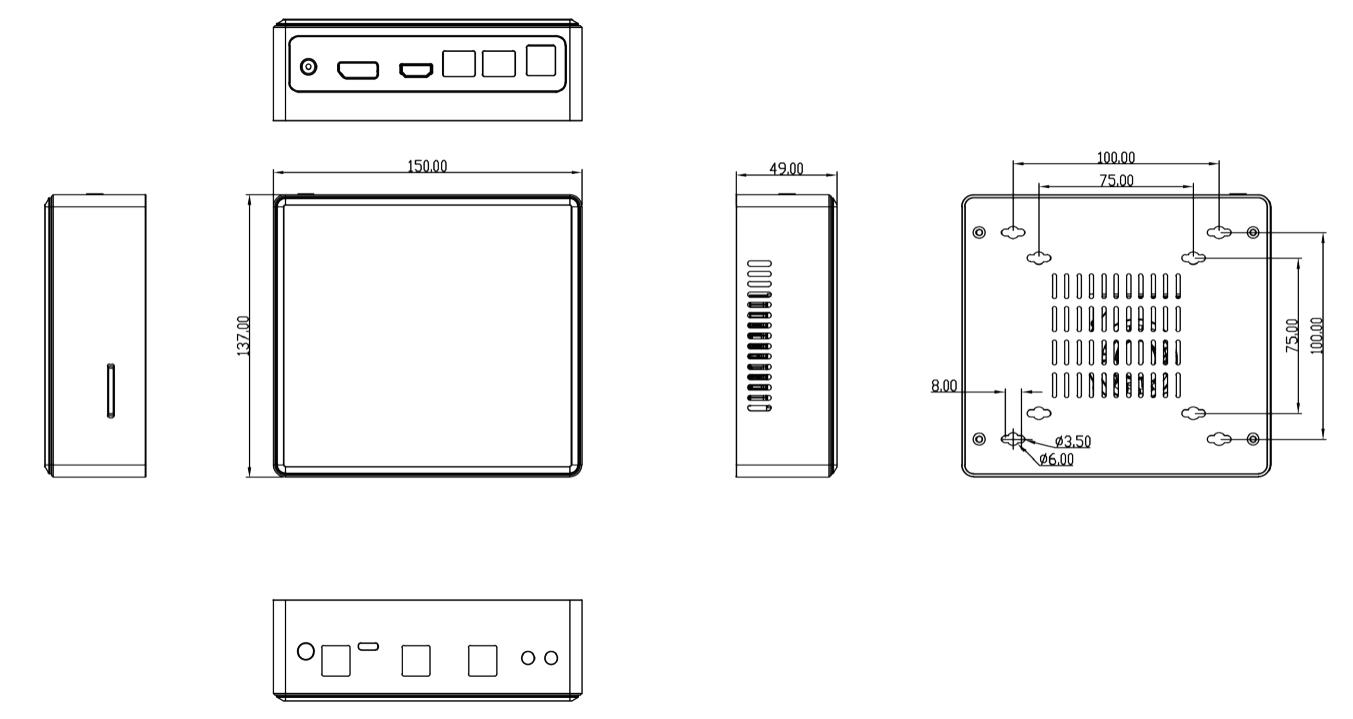

| Product Dimension | 150x 135x49 mm |
| Packing size | TBD |
| Accessories | Power adapter, VESA brackets, screws, user manual, warranty card |
| Other | |
| Mounting (Options) | VESA brackets (free) |
| Desktop | |
| Warranty | 2 years warranty |
