Model: SATA312F
Features:

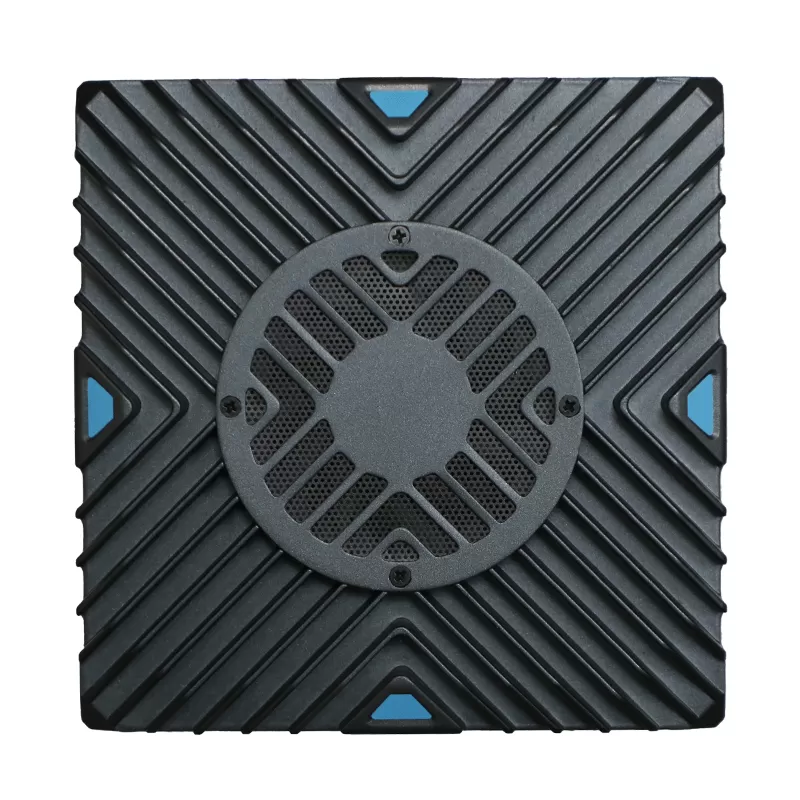

1. All aluminum alloy structure, fan auxiliary cooling design.
2. On-board 8th/10th generation intelligent Intel ® Core ™ processors.
3. Support 4*Intel i210-AT/i211-AT Gigabit network ports.
4. Support 1*DDR4 memory slot, Max 32 GB.
5. Support 6*USB3.1.
6. Support 1*M.2 2280 slot, 1*2.5-inch hard disk.
7. 2*3-pin Phoenix terminal serial ports (both support RS232/485 Optional).
8. Compatible with Windows 10/11, Ubuntu, Debian, Fedora and etc.
| PC | |
| CPU | Intel® Core i3 10110U (Dual core 4 threads, 2.1G, Max. Turbo 4.1G, 4MB Cache) |
| CPU Optional | Intel® Core i5 8260U (Quad core 8 threads, 1.6G, Max. Turbo 3.9G, 6MB Cache) |
| RAM | Support 1*DDR4 2400/2666 SODIMM memory slot, Max. Support 32GB |
| BIOS | AMI EFI BIOS |
| Display Chip | Intel UHD Graphics 620, Intel UHD Graphics |
| Display Port | 1 HDMI HD display interface (resolution up to 4096x2304@24Hz) |

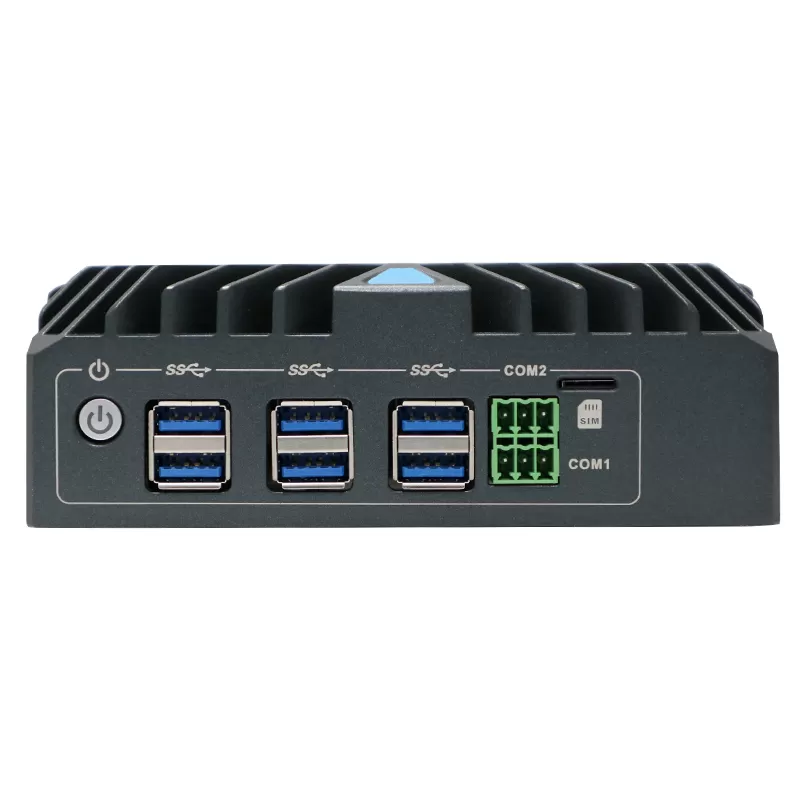

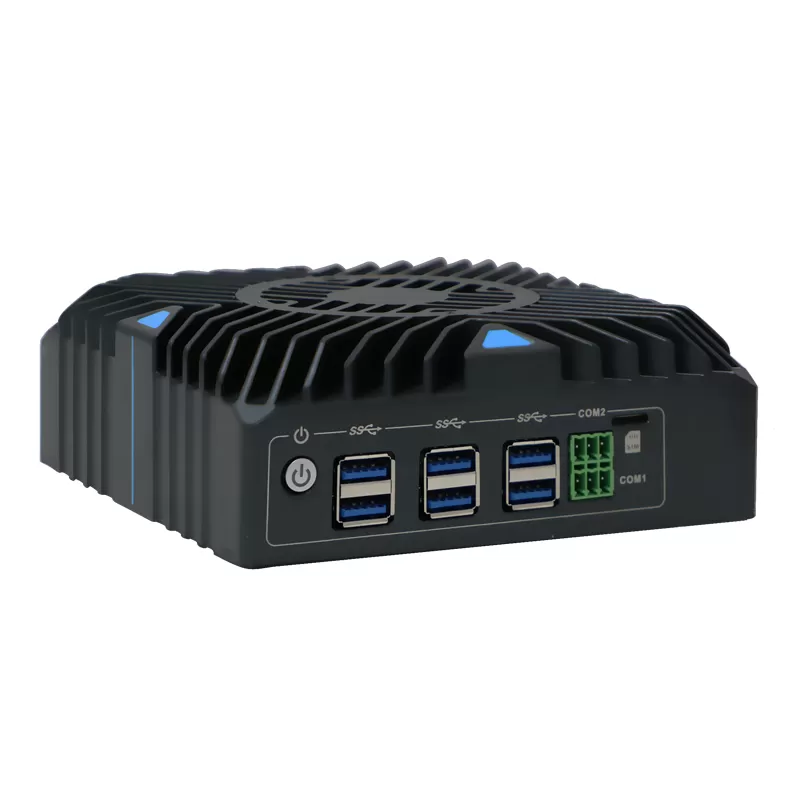

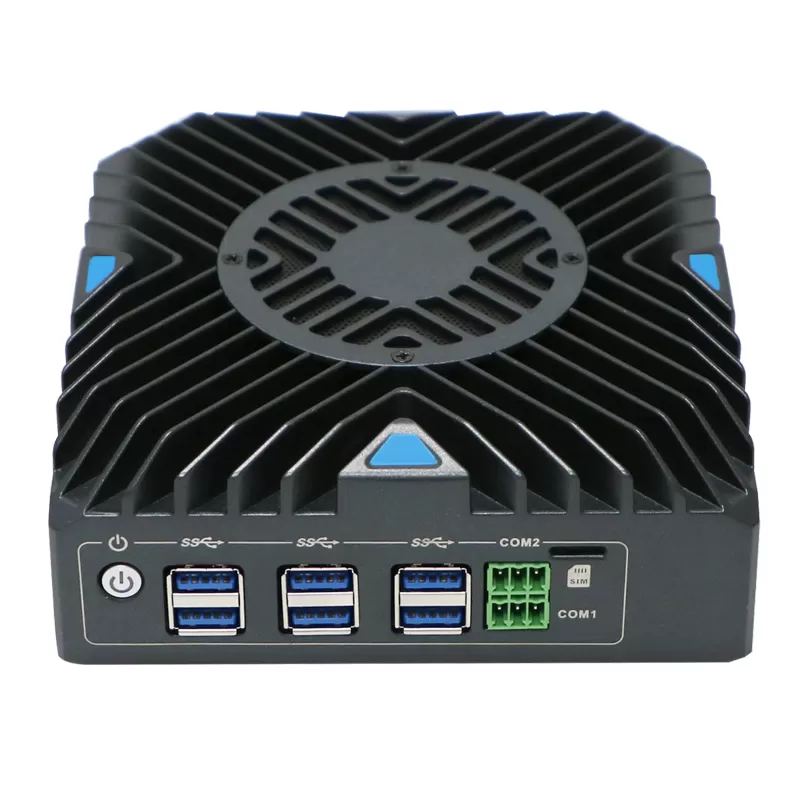

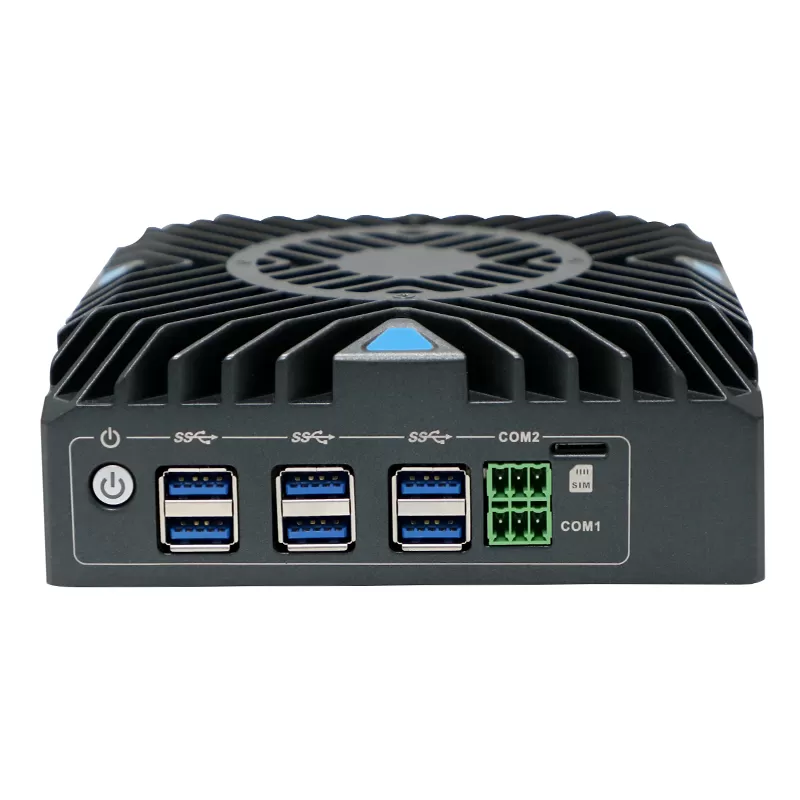

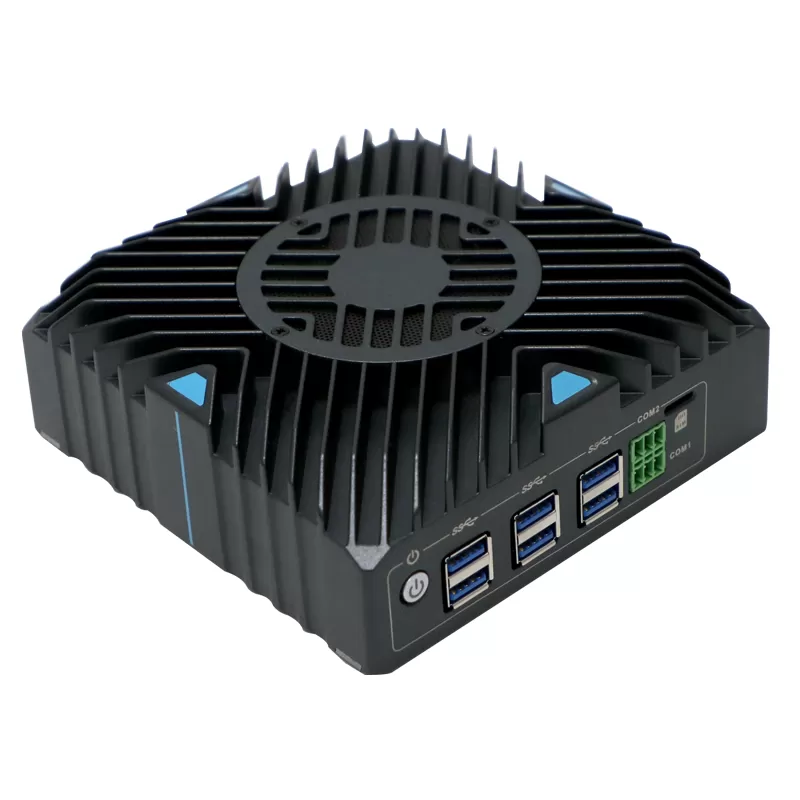

| Front I/O | 6*USB3.1, 1*Power switch, 1*SIM Card slot, 2*3 pin phoenix terminal serial ports (both support RS232/485 is Optional) |

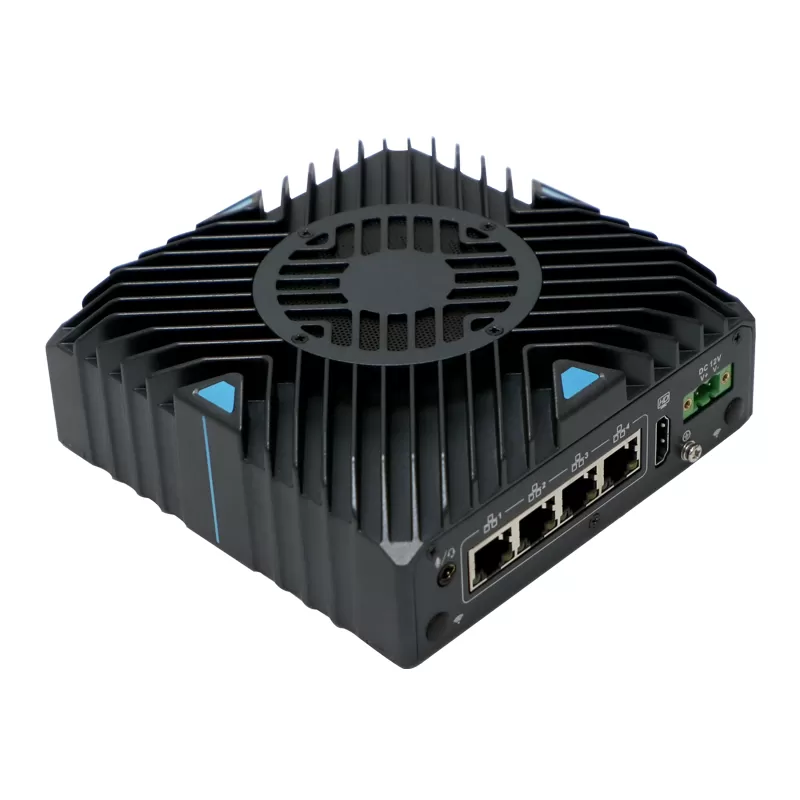

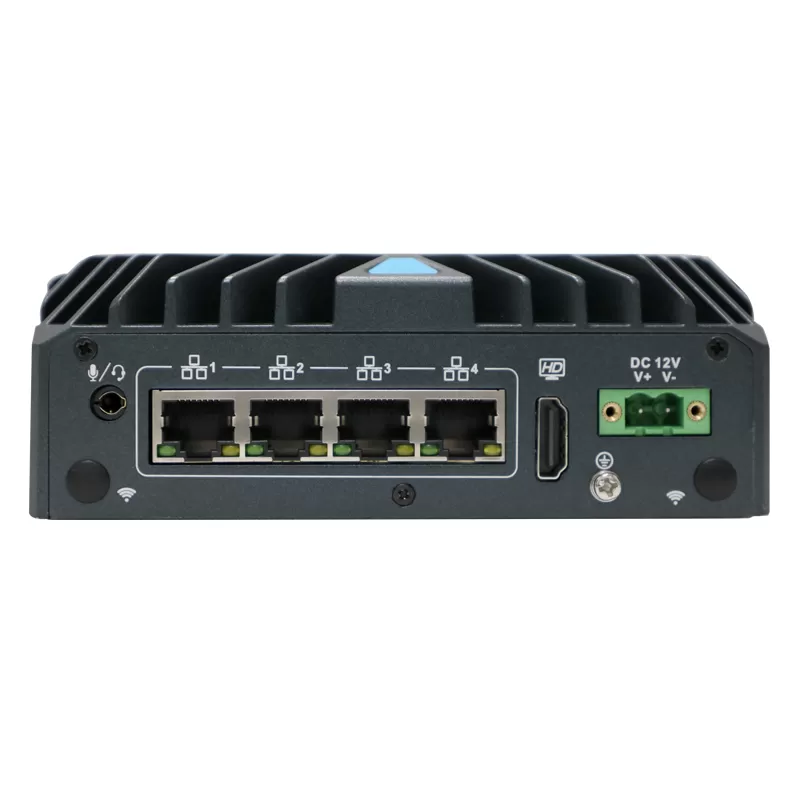

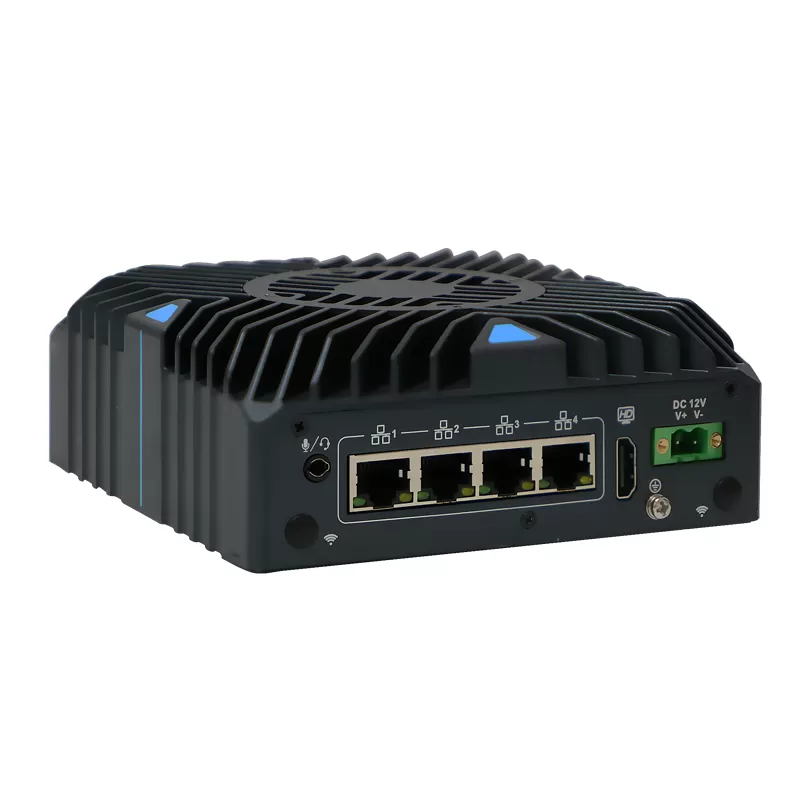

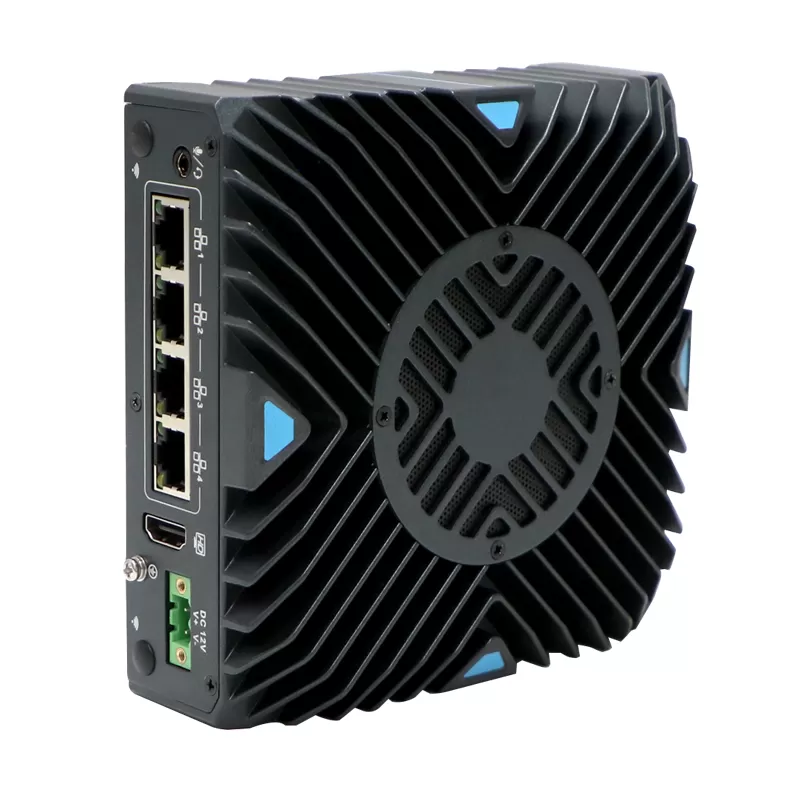

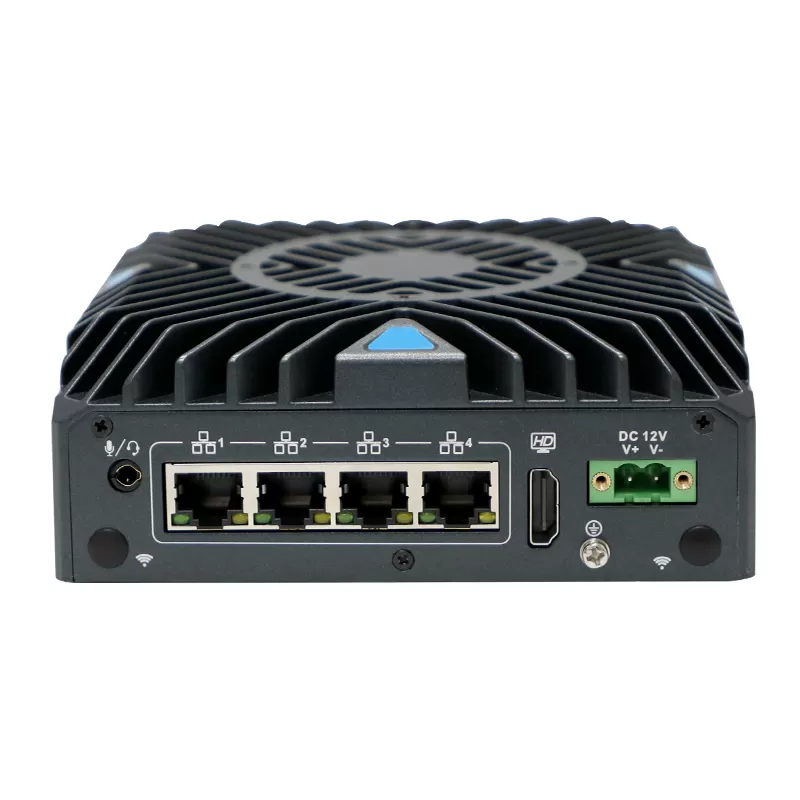

| Rear I/O | 1*2 in 1 Audio, 4*RJ45 LAN, 1*HDMI, 1*DC |
| Expansion Slot | Support 1*M.2 2280 M-Key slot (Support SATA Protocol and NVME Protocol) |
| Support 1*MINI PCIE slot (WIFI/3G/4G choose one from three), Front SIM card seat | |
| Network | 4*Intel i210-AT/i211-AT Ethernet |
| Storage | Support 1*M.2 2280 slot, 1*2.5” HDD, support RAID 0/1 |
| Other Function | Power-on, timed startup, network wake up, PXE startup, watchdog (level 0-255), TPM2.0 security encryption |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Enclosure | |
| Material | High-quality all aluminum |
| Color | Metallic grey (Color can customize) |
| Operating Environment | |
| Temperature Range | Operating: 0°C~ +40°C (HDD), -20°C~ +50°C (Industrial grade SSD), surface air flow |
| Relative humidity | 5%~95% , non-condensing |
| Packing Details | |
| Net weight | 0.83kg |
| Gross weight | 1kgs |

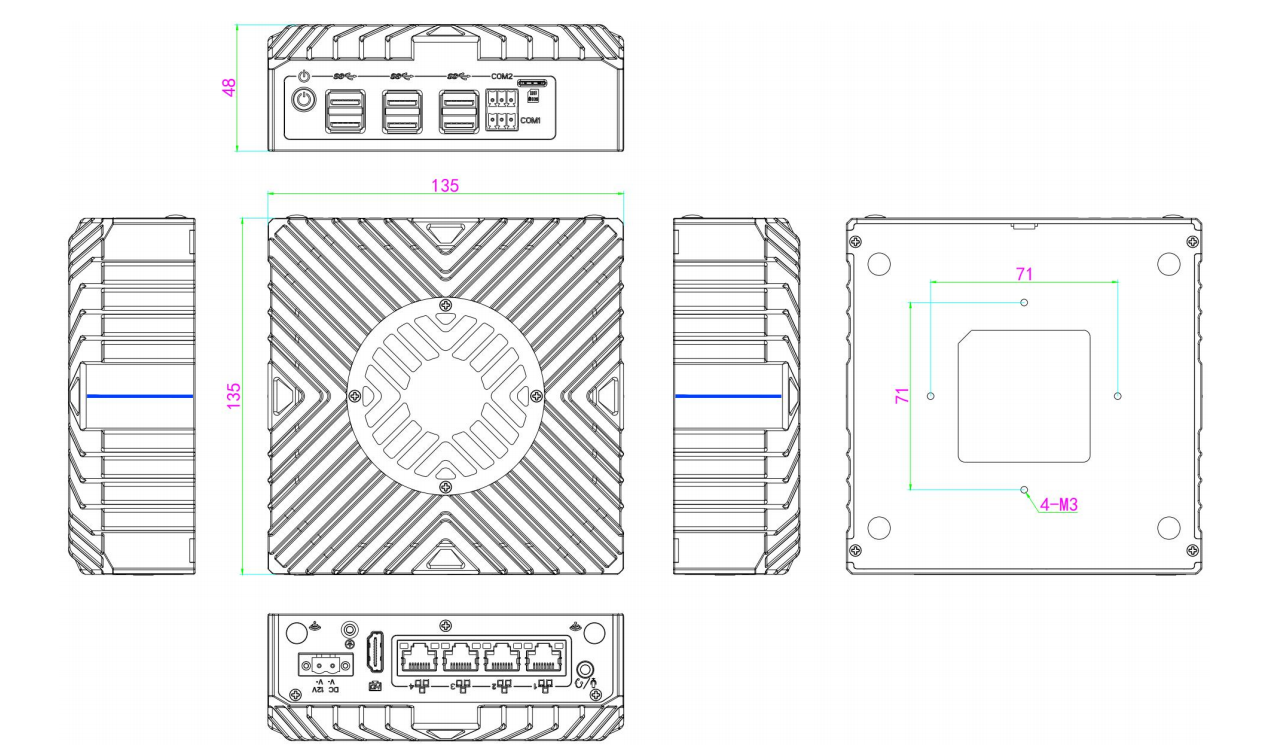

| Product Dimension | 13.5*13.4*4.8cm |
| Packing size | 21*16*13.5cm |
| Accessories | Power adapter, power cord, Vesa mount, warranty card |
| Other | |
| Mounting (options) | Wall mounting brackets (Optional) |
| Warranty | 3 years warranty |
| Certificates | CE, FCC, RoHS |
