Model: SATA15
Features:
1. Full Aluminum alloy enclosure, fanless design.
2. High performance motherboard, 7x24 continuous operation.
3. Support processor Intel core i5 8250U, i7 8550U.
4. Support 1*DDR4 memory slot, Max. Support 16G.
5. Support 1*M.2 2280 slot, 1*2.5”HDD
6. Support WIFI/4G optional.
7. Support 4*USB 3.0.
8. Compatible Windows 7/8/10, Linux.
| Model: SATA15 | |
| PC | |
| CPU | Intel Core i5 8250U (Quad core eight threads, 1.6G, Max. Turbo 3.4G, 6MB Cache) Intel Core i7 8550U (Quad core eight threads, 1.8G, Max. Turbo 4.0G, 8MB Cache) |
| Memory | 1*DDR4 memory slot, Max. Support 16G |
| Storage | 1*M.2 2280 slot, 1*2.5”HDD |
| Display | 1x DP, 1x HDMI |
| Display Chip | Integrated Intel HD Graphics 620 |
| Audio | Integrated Realtek ALC662 6 sound channel |
| Network | 2*Intel i211-AT 10/100/1000M LAN |

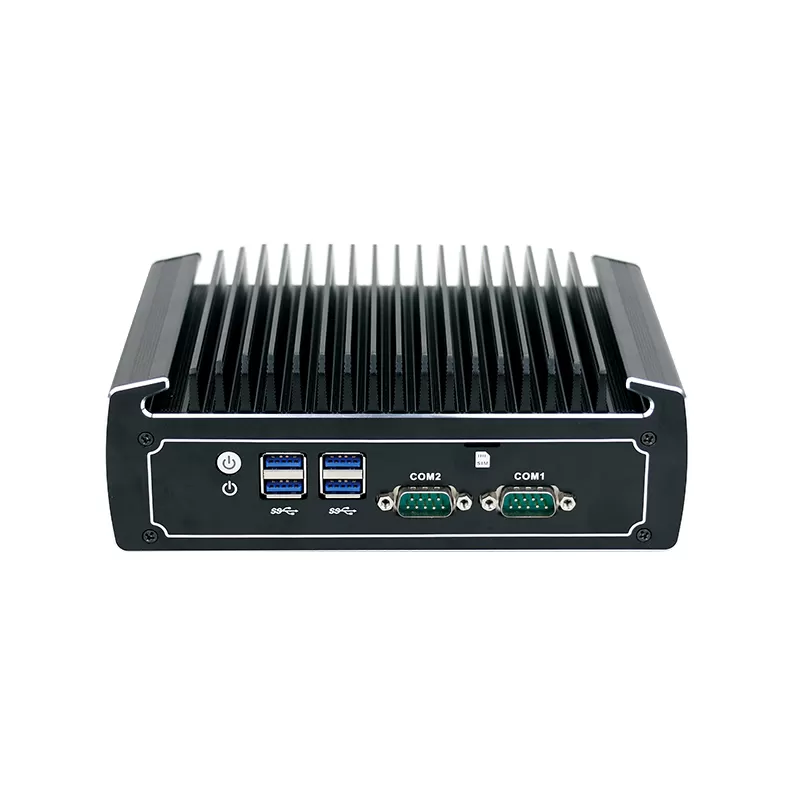

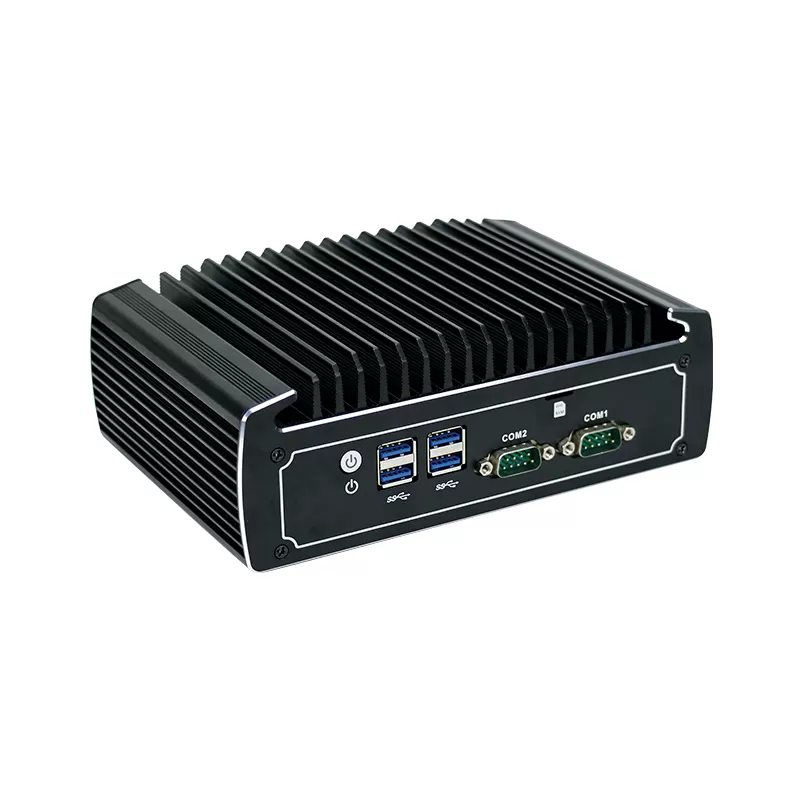

| Front I/O | 2*COM (2*COM RS232/485 Optional), 4*USB3.0, 1*Power Switch, 1*SIM slot |

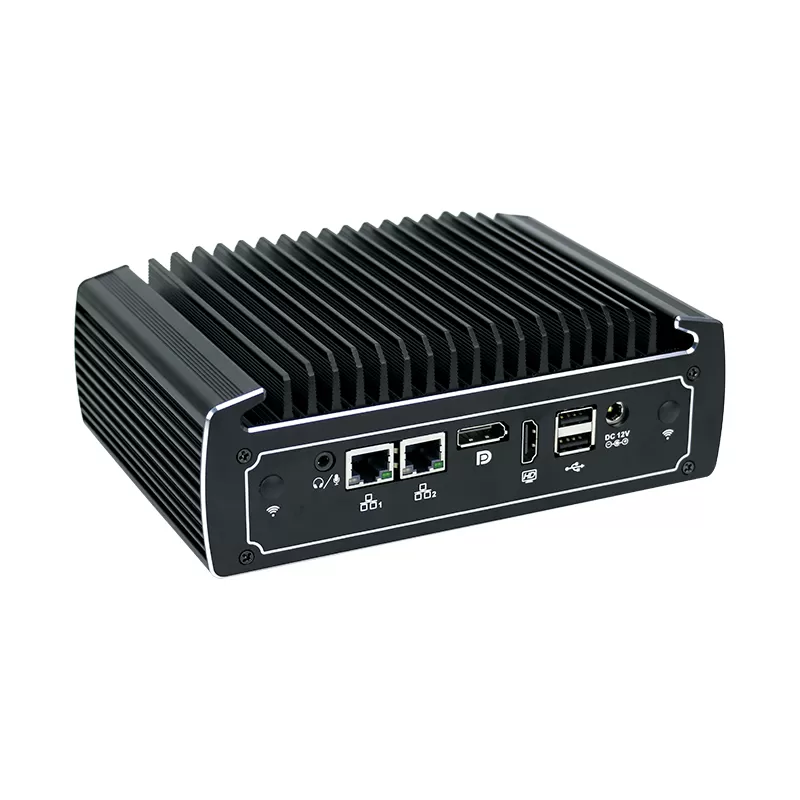

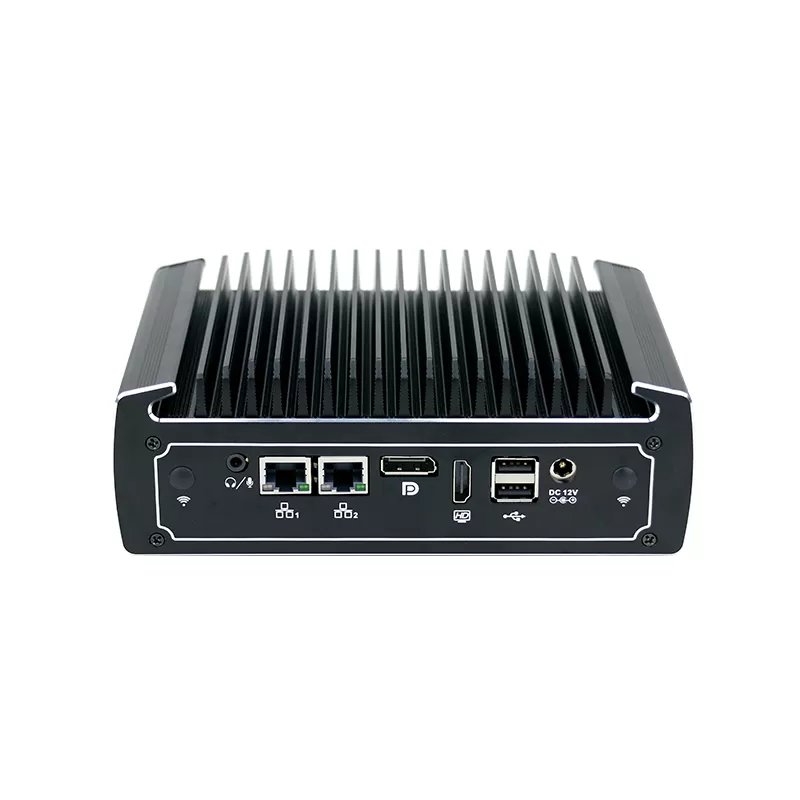

| Rear I/O | 1*DC-IN 12V, 2*USB2.0, 1*HDMI, 1*DP, 2*Intel 1000M LAN, 1*Audio (Support Mic and Speaker at the same time) |
| Expansion Slot | Support 1*M.2 2280 slot (Support M.2 PCIE X4 and M.2 SATA SSD） Support 1*MINI PCIE slot (WIFI/3G/4G choose one from three, embedded SIM socket) |
| BIOS | AMI EFI BIOS |
| WDT | Support hardware reset (256 level, 0-255 sec) |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤50W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Black, color can be customized for bulk orders |
| Operating Environment | |
| Temperature Range | Operating: -20 to 50°C, storage: -10 to 60°C, surface air flow |
| Relative humidity | 5%~95%, non-condensing |
| Packing Details | |
| Net weight | 1.3kgs |
| Gross weight | 2.2kgs |

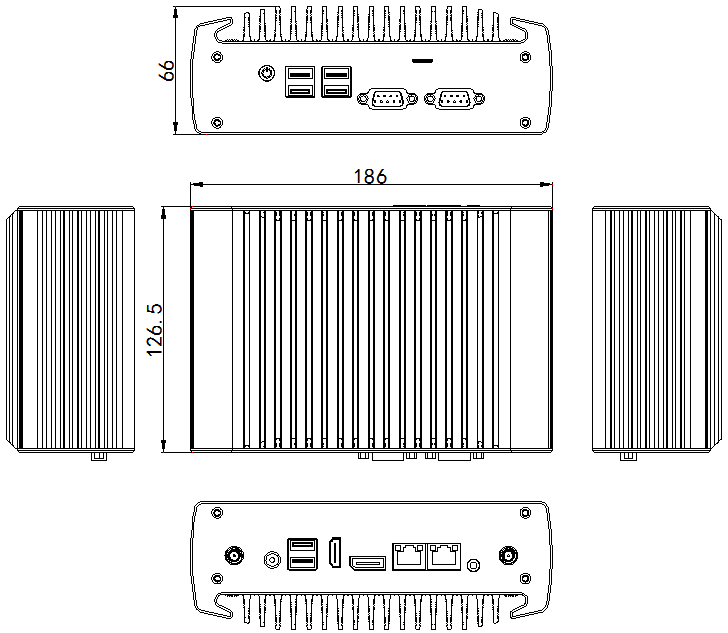

| Product Dimension | 18.6*12.66*6.6cm |
| Packing size | 28*25*8cm |
| Accessories | Power adapter, open frame kits, user manual, warranty card |
| Other | |
| Mounting (options) | Desktop |
| Wall mounting brackets (Optional) | |
| Warranty | 3 years warranty |
