Model: SATA1021
Features:

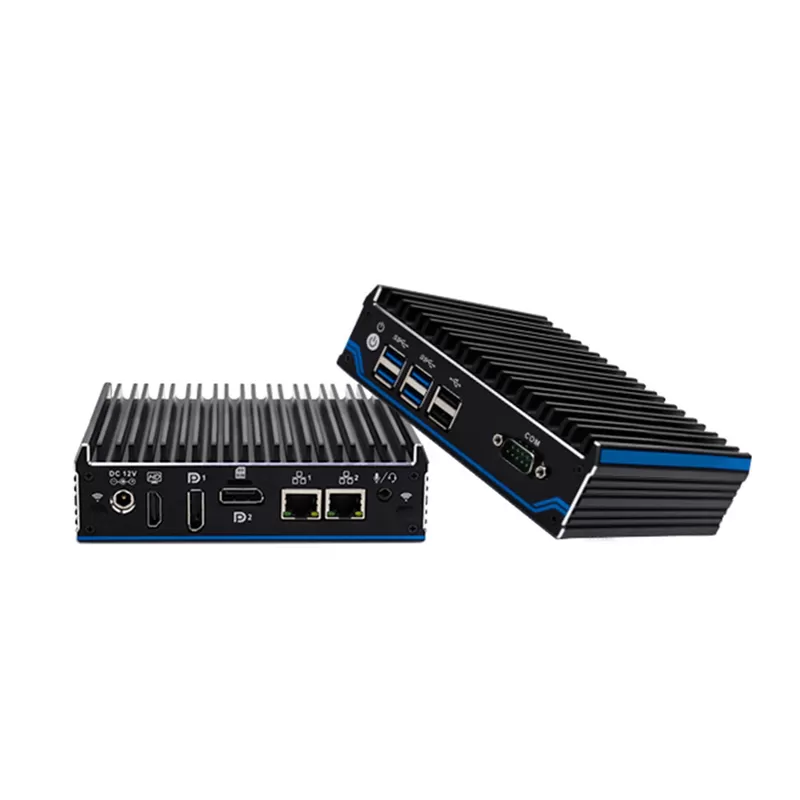

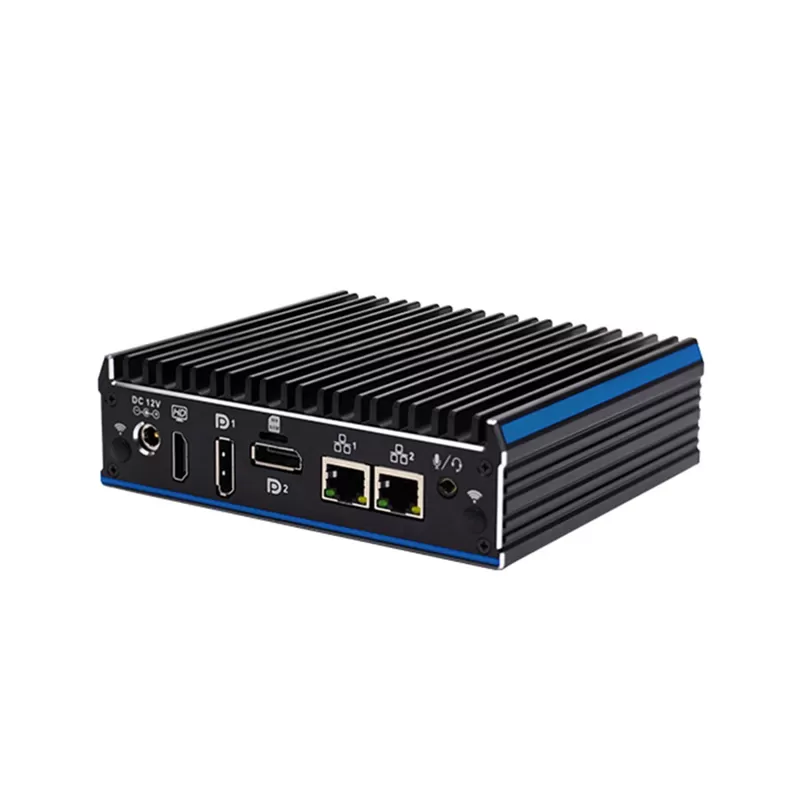

1. Full Aluminum alloy enclosure, fanless design.
2. Onboard Intel Celeron J4125 quad core processor, 2.0GHz.

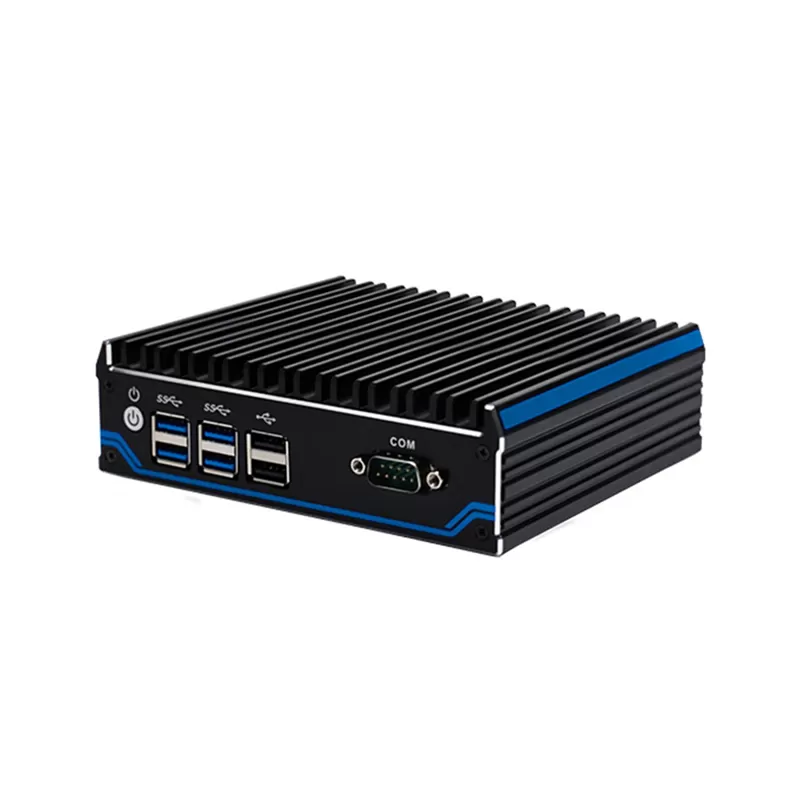

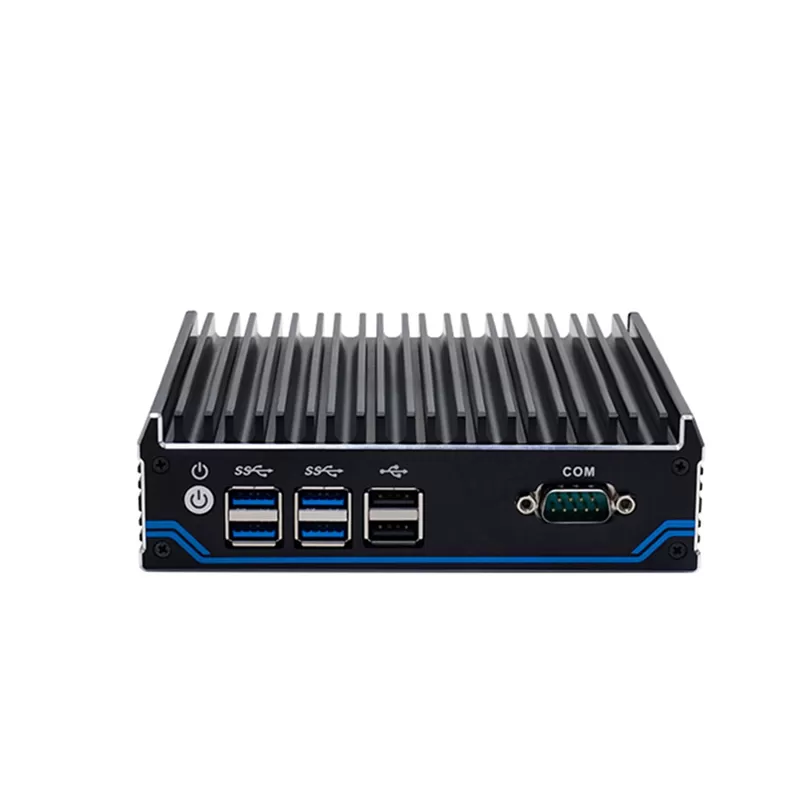

3. Support 6x USB port(4*USB3.0).
4. Support 3*M2 Card Slot (Support both WIFI and 4G).
5. Support syn/asy 1*HDMI, 2*DP HD Display port. 4K support.
6. Support desktop, DIN Railing, Vesa mount and etc
7. Compatible with Windows 7/8/10, Linux.
| Model: SATA1021 | |
| PC | |
| CPU | Intel®Celeron J4125, quad core, quad thread, 4MB Cache, 2.0GHz Max 2.7GHz |
| Architecture | Gemini Lake Refresh |
| Memory | 1x DDR4 2400 MHz SODIMM Memory 8GB |
| Storage | Support 1x MSATA, 1x SATA |
| BIOS | AMI UEFI BIOS |
| Display Chip | Integrated Intel UHD Graphics card 600 |
| Display port | 1xHDMI, 2xDP HD Display port(support syn and asy tri display, support 4096x2160 @60Hz Max) |
| I/O Interface | 4x USB 3.0, 2xUSB2.0, 1x RS232 COM, 2x1000M LAN, 1x HDMI, 2x DP, 1x Audio/MIC two in one/SIM Card slot/DC 12V/Power switch |
| Expansion | Support 1*M.2 2280 M-key Card slot(support SATA protocol) |
| Support 1*M.2 2230 B-key Card slot(support 4G, external SIM Card Slot) | |
| Support 1*M.2 2230 E-key Card slot(WIFI/bluetooth) | |
| Expansion function: TPM pin(support TPM 1.2/2.0 safe module), 1*COM port | |
| Network | 2*10/100/1000M RTL8111H Ethernet port |
| Storage port | 1*M.2 2280 Card slot, 1*2.5 inch hard disk |
| Other function | Power on electricity, Power on by alarm, wake by internet, PXE boot, watch dog(0~255 level) |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤40W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Black |
| Operating Environment | |
| Temperature Range | Operating: 0°C to 50°C(Commercial HDD), -20°C-60°C(industrial SSD), surface air flow |
| Relative humidity | 0%~95%, non-condensing |
| Packing Details | |
| Net weight | 0.8kg |
| Gross weight | 1.25kgs |

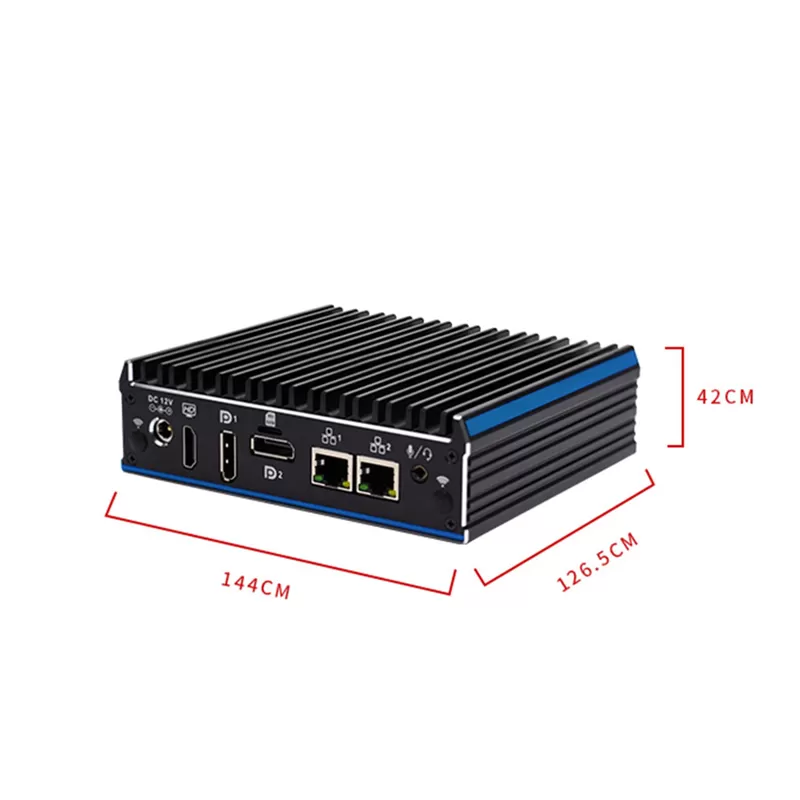

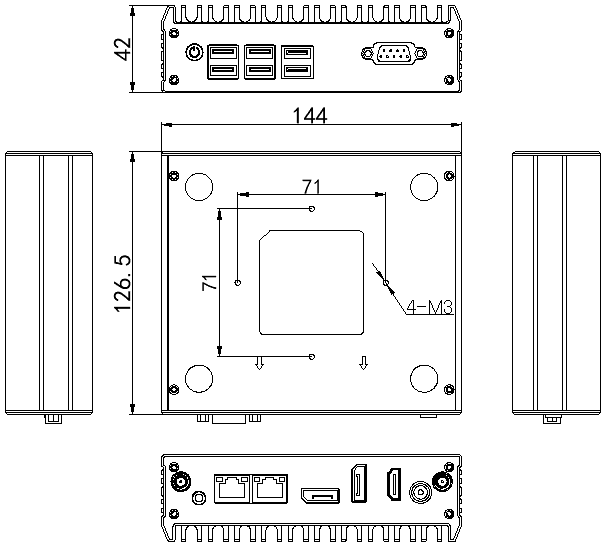

| Product Dimension | 144*126.5*42mm |
| Packing size | 21*16*13.5cm |
| Accessories | Power adapter, VESA brackets, screws, user manual, warranty card |
| Other | |
| Mounting | VESA brackets (free) |
| Desktop (Optional) | |
| Warranty | 3 years warranty |
