Model: SATA3060
Features:
1. Intel I7 i9 11th -H, 12th -H, 13th -H.
2. Exclusive display RTX3060 with 12GB video memory.
3. Supports up to 64GB memory.
4. HDMI 2.0x3, USB TYPE-C, supports 4 4K displays.
5. Dual NVME.
6. Dual 2.5G network cards.
| PC | |
| CPU | Intel® Core i5-12600HX, twelve core, sixteen thread, Base 1.8GHz, Turbo 4.6GHz 18MB Cache |
| CPU Optional | Intel® Core i9-11900H, eight core, sixteen thread, Base 2.5GHz Turbo 4.9GHz 24MB Cache |
| CPU Optional | Intel® Core i9-12900HK, fourteen core, twenty thread, Base 2.5GHz, Turbo 5GHz 24MB Cache |
| Memory | DDR4 SODIMM x2, Max. 64GB(11th) DDR5 SODIMM x2, Max. 64GB(12th/13th) |
| Storage | 2 x M.2 2280 NVME (One SSD support M.2 SATA) |
| Display | 3xHDMI 2.0, 1xUSB Type-C, support 4x4K displaying |
| Display Chip | Integrated Intel HD Graphics card |
| Network | 2x2.5G RJ45 Intel i225V/i226V |

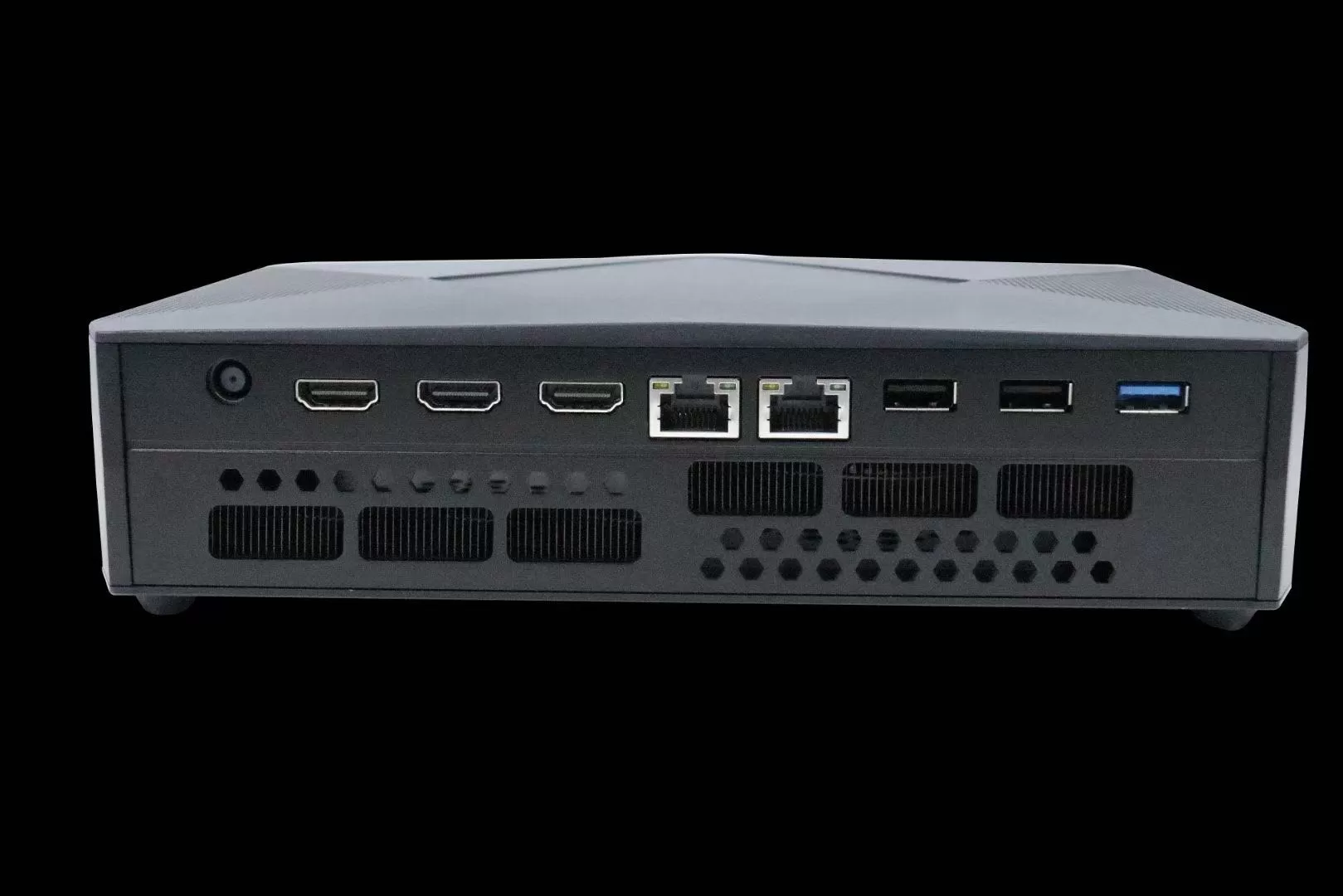

| I/O Interface | 5xUSB3.2 Gen2 (10Gb), 2xUSB2.0, 1xUSB3.2 Gen2 Type-C (10Gb), 2x2.5G LAN, 3xHDMI 2.0, 1xUSB Type-C, support 4个4K displaying 1 x1xSD 3.0/4.0/7.0 Card, 1xAudio/MIC/DC/Power Button |
| Expansion | 1xM.2 2232 WIFI |
| Operation System | Support Windows® 10/11, Ubuntu, Debian, Fedora and etc. |
| Other function | Network wake up, call boot, timed boot, no disk start |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V-19V |
| Power consumption | ≤40W |
| Enclosure | |
| Material | Aluminum Alloy+ABS |
| Color | Black |
| Operating Environment | |
| Temperature Range | Operating: -20 to 60°C, storage: -30 to 70°C |
| Relative humidity | 10%~90% @30°C, non-condensing |
| Packing Details | |
| Net weight | 3kg |
| Gross weight | 3.5kgs |
| Product Dimension | 228.8x148x56.8 mm(including 5mm high silicone feet) |
| Packing size | TBD |
| Accessories | Power adapter, power cord, user manual, warranty card |
| Other | |
| Mounting | Desktop |
| Warranty | 2 years warranty |
