Model: SATA03
Features:
1. Full Aluminum alloy enclosure, fanless design.
2. High performance motherboard, 7x24 continuous operation.
3. Intel Celeron J1900 quad core processor, 2.0GHz
4. 1xVGA+1xHDMI+2x LAN+2xCOM+4xUSB
5. AMI 64MB Flash ROM, support RPL/PXE diskless boot, wake on LAN, electricity boot, WDT
6. Support WIFI and Bluetooth Optional (Not included in standard quotation)
7. 2x RTL8111E 1000M LAN card, support wake on LAN
8. Compatible with Windows 7/8/10, Linux.
| Model: SATA03 | |
| PC | |
| CPU | Intel Celeron J1900, quad core, 2.0GHz |
| Memory | 1x SODDR3L 1.35V (can up to 8GB) |
| Storage | Support 1x MSATA, 1x SATA |
| Display | 1x VGA, 1x HDMI |
| Display Chip | Integrated Intel HD Graphics card |
| Network | 2x Realtek 8111E LAN, support wake on LAN |
| Audio | Integrated Realtek ALC662 6 sound channel |

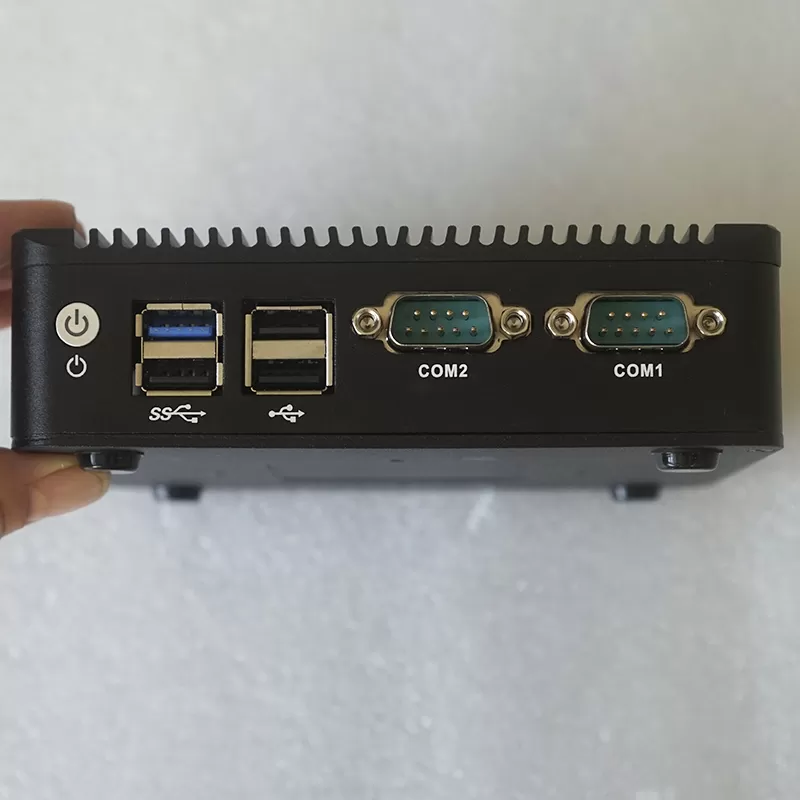

| I/O Interface | 1x USB 3.0, 3x USB 2.0, 2x RS232 COM, 1x HDMI, 1x VGA, 2x RJ45 LAN, 1x Audio, 1x DC 12V port, 1x Power switch |
| I/O Interface (optional) | 1x USB 3.0, 5x USB 2.0, 1x RS232 COM, 1x HDMI, 1x VGA, 2x RJ45 LAN, 1x Audio, 1x DC 12V port, 1x Power switch |
| Expansion | 2x Mini-PCIE, support MSATA and WiFi (WIFI exclude in standard quotation) |
| BIOS | AMI 64M DPI Flash ROM |
| WDT | Support hardware reset (256level, 0~255 sec) |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤40W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Black |
| Operating Environment | |
| Temperature Range | Operating: -10 to 60°C, storage: -10 to 60°C |
| Relative humidity | 0%~95% , non-condensing |
| Packing Details | |
| Net weight | 0.6kg |
| Gross weight | 1.25kgs |

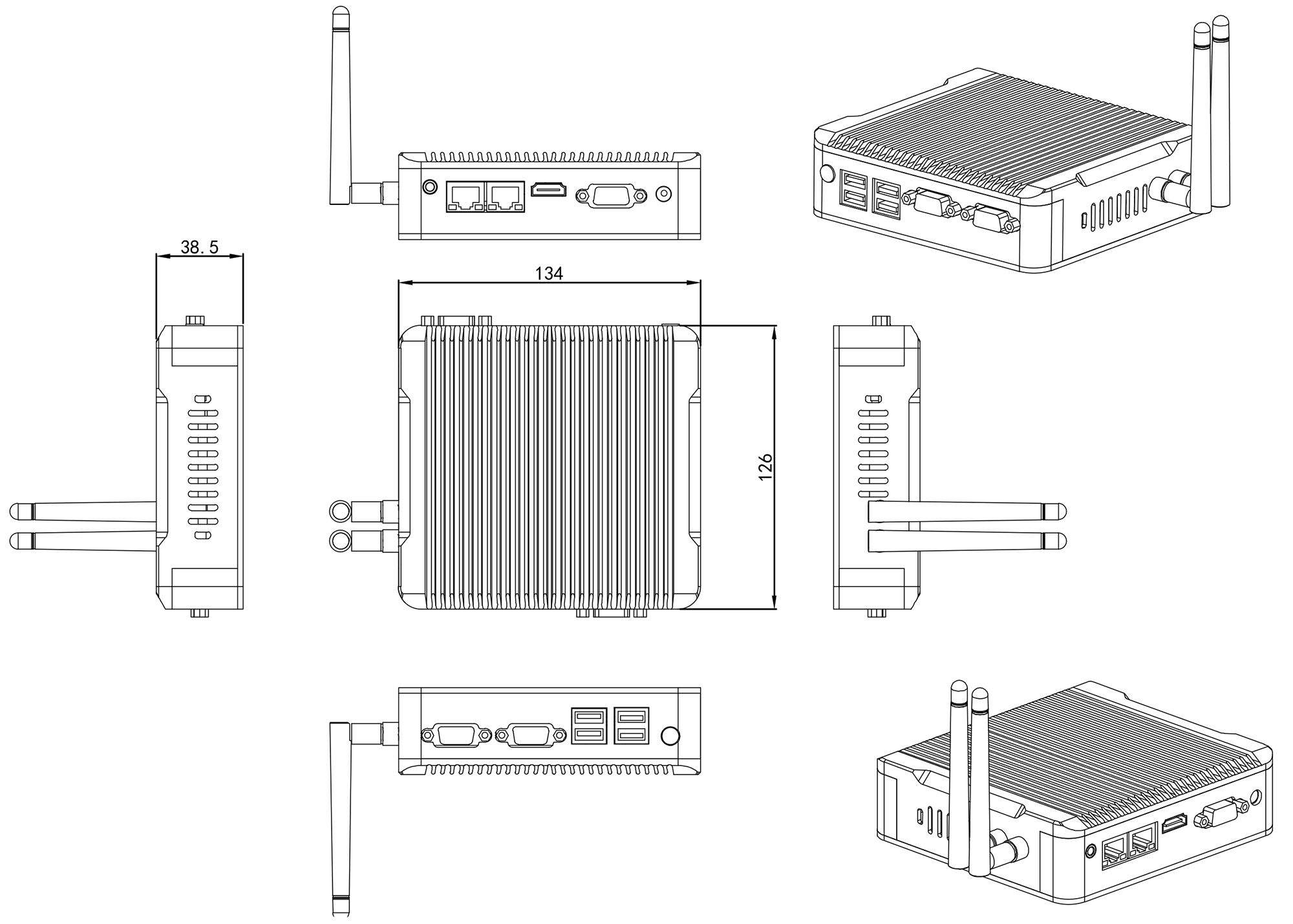

| Product Dimension | 13.4*12.6*3.8cm |
| Packing size | 19*15*15cm |

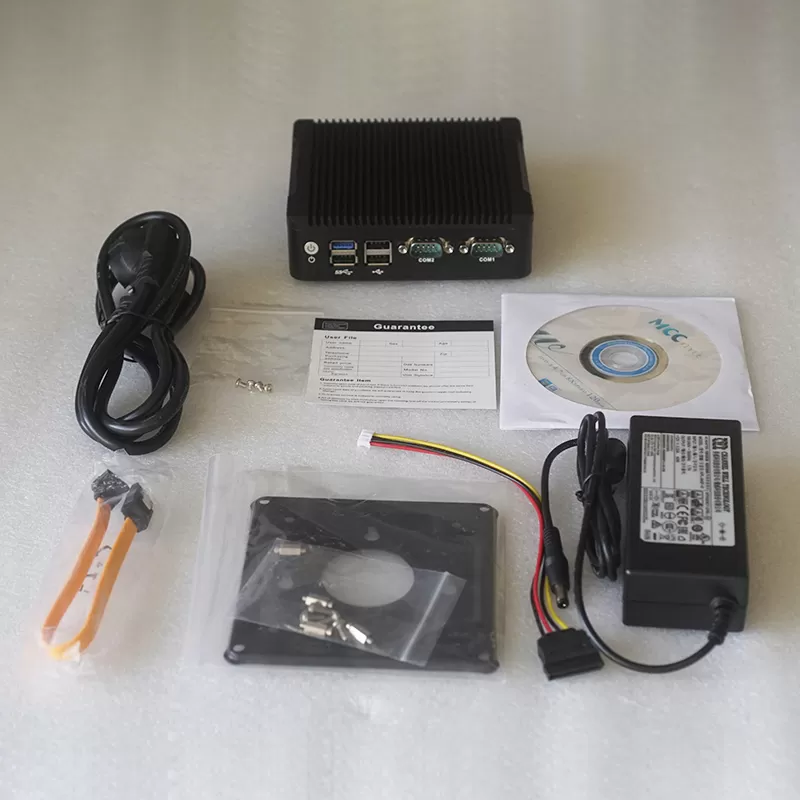

| Accessories | Power adapter, VESA brackets, screws, user manual, warranty card |
| Other | |
| Mounting (options) | VESA brackets (free) |
| Open frame mounting (Optional) | |
| Warranty | 3 years warranty |
