Model: SATA12
Features:
1. All aluminum structure, fanless design.
2. Intel 10th Core i3-10110U, i5-10210U.
3. Support TPM2.0, support windows 11.
4. Support 1*M.2 2280 slot, 1*2.5”HDD.
5. Support 2*COM (2*COM RS232/485 is Optional).
6. Support DC 12V Input.
7. Support OS: Windows 10, Windows 11, Linux.
| Model: SATA12 | |
| PC | |
| CPU | Intel Core i3 10110U (Dual core 4 threads, 2.1G, Max. Turbo 4.1G, 4MB Cache) |
| Intel Core i5 10210U (Quad core 8 threads, 1.6G,Max. Turbo 4.2G, 6MB Cache) | |
| CPU Architecture | Comet Lake |
| RAM | Support 1*DDR4 2666/2933 SODIMM memory slot, Max. Support 32GB |
| BIOS | AMI EFI BIOS |
| Display Chip | Intel UHD Graphics for 10th Gen Intel Processor |
| Display Port | 1*DP, 1*HDMI |

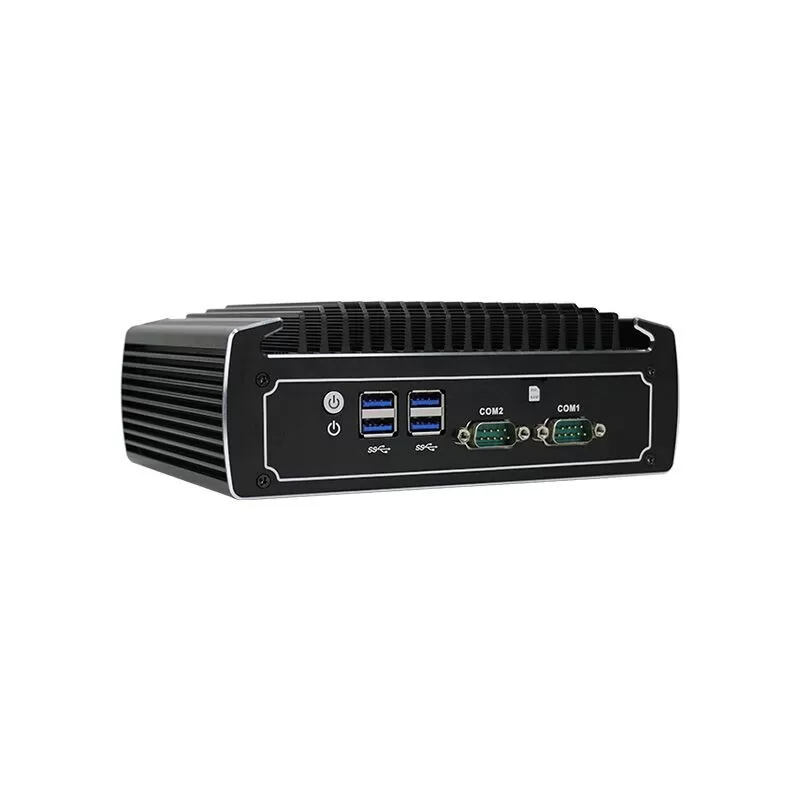

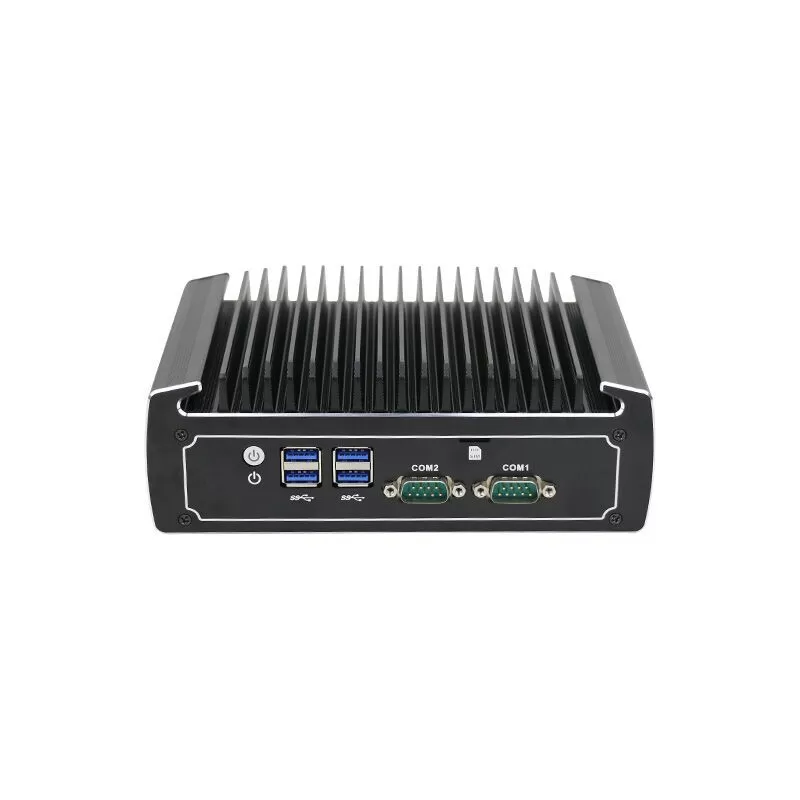

| Front I/O | 2*COM (2*COM RS232/485 is Optional), 4*USB3.0, 1*Power Switch, 1*SIM slot |

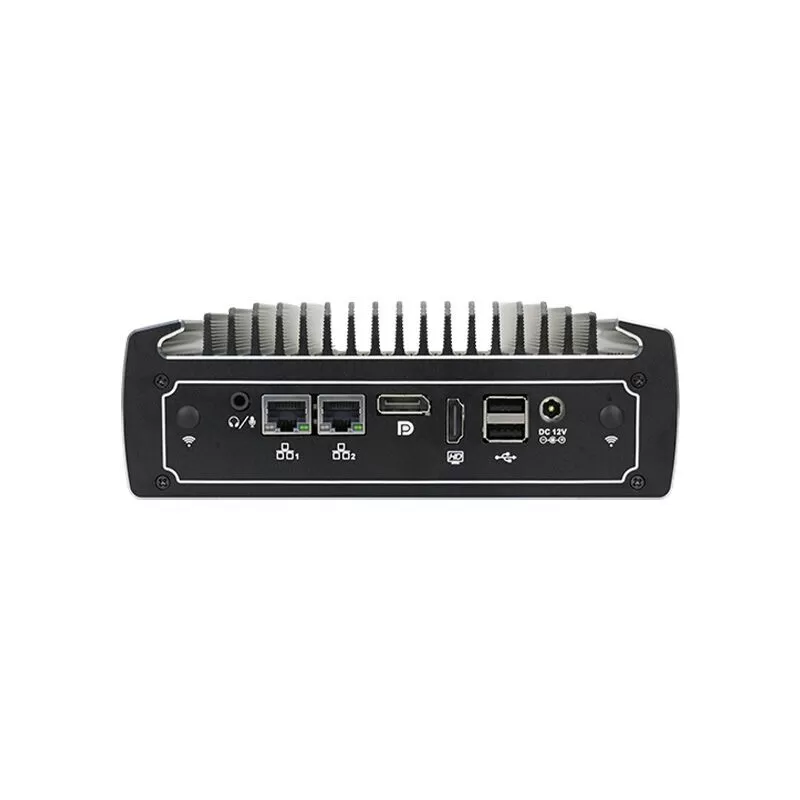

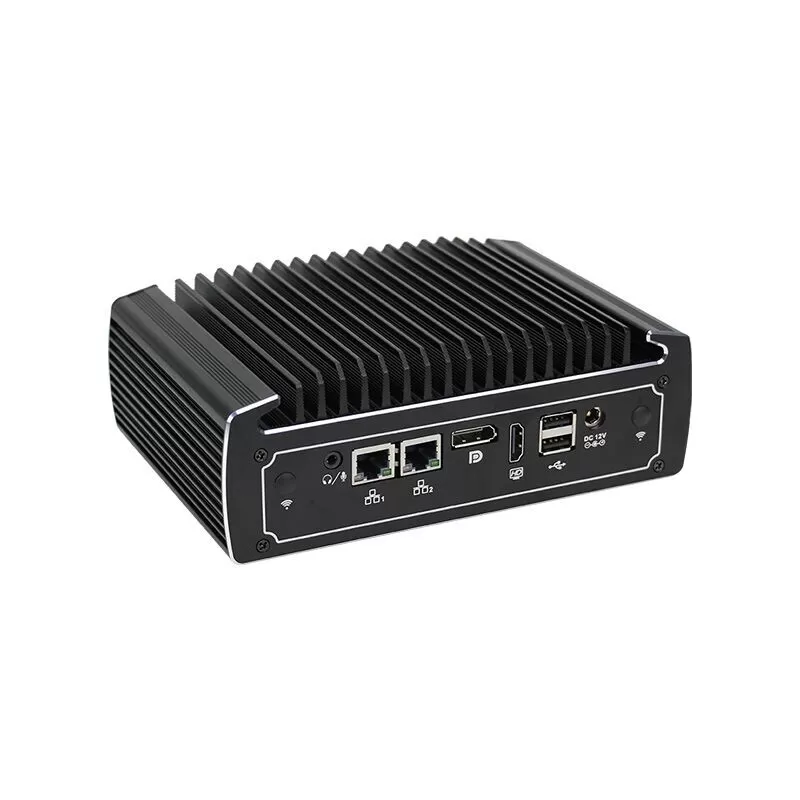

| Rear I/O | 1*DC-IN 12V, 2*USB2.0, 1*HDMI, 1*DP, 2*Intel 1000M LAN, 1*Audio ( Support Mic and Speaker at the same time) |
| Expansion Slot | Support 1*M.2 2280 slot (Support M.2 PCIE X4 and M.2 SATA SSD); Support 1*MINI PCIE slot (WIFI/3G/4G choose one from three),embedded SIM socket; |
| Network | 2*Intel i211-AT 10/100/1000M LAN |
| Storage | Support 1*M.2 2280 slot, 1*2.5” HDD, support RAID 0/1 |
| Other Function | TPM2.0, Auto power on when there is electricity, Wake on LAN, PXE boot, Watch Dog |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Enclosure | |
| Material | High-quality all aluminum |
| Color | Black (Color can be customized) |
| Operating Environment | |
| Temperature Range | Operating: 0°C~ +40°C (HDD), -20°C ~+50°C (Industrial grade SSD), surface air flow |
| Relative humidity | 5%~95%, non-condensing |
| Packing Details | |
| Net weight | 1.3kgs |
| Gross weight | 2kgs |

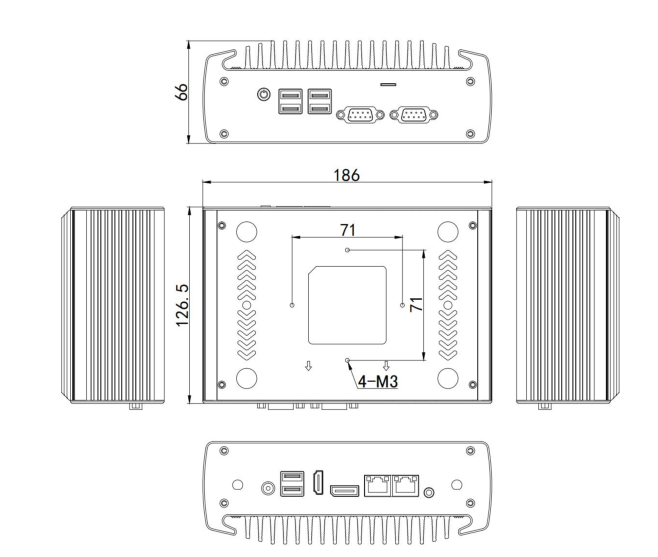

| Product Dimension | 186*126.5*66 mm |
| Packing size | 10 pcs per carton, carton size: 720*300*450 mm |
| Accessories | Power adapter, power cord, Vesa mount,warranty card |
| Other | |
| Mounting (options) | Wall mounting brackets (Optional) |
| Warranty | 3 years warranty |
| Certificates | CE, FCC, RoHS |
