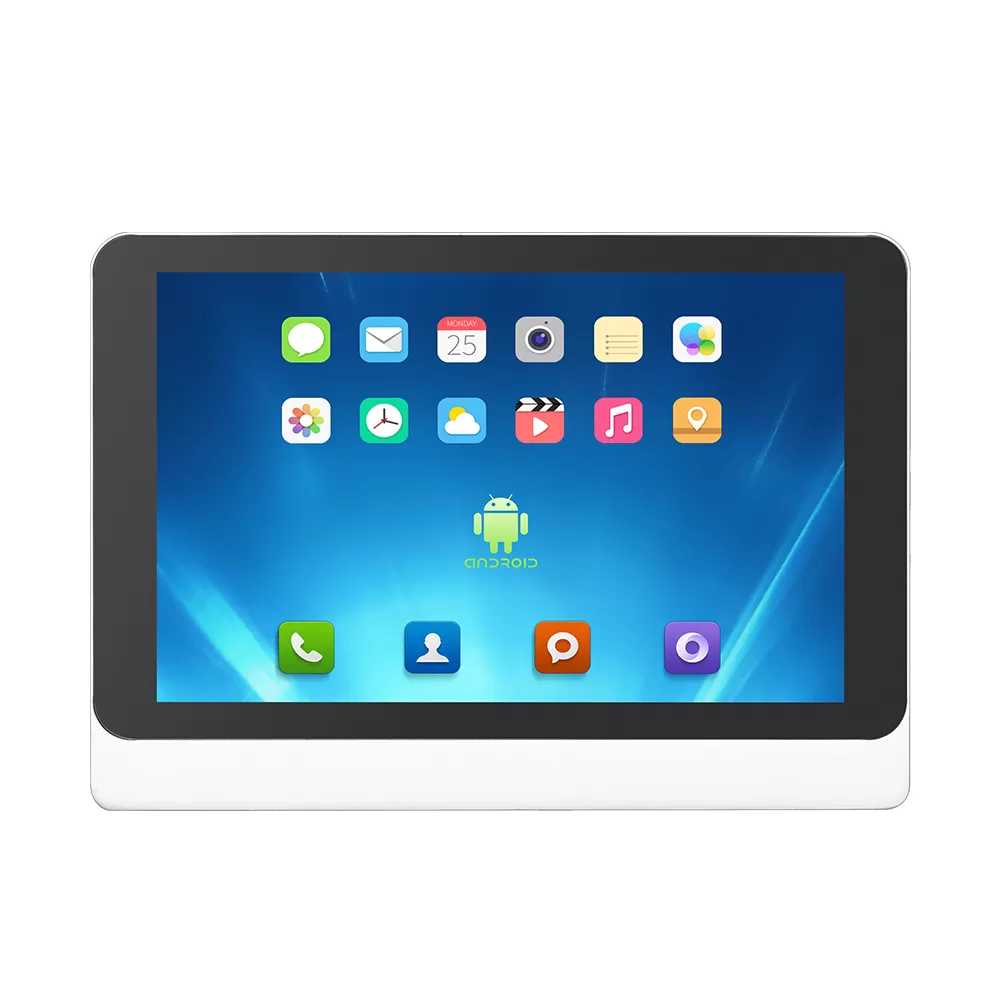

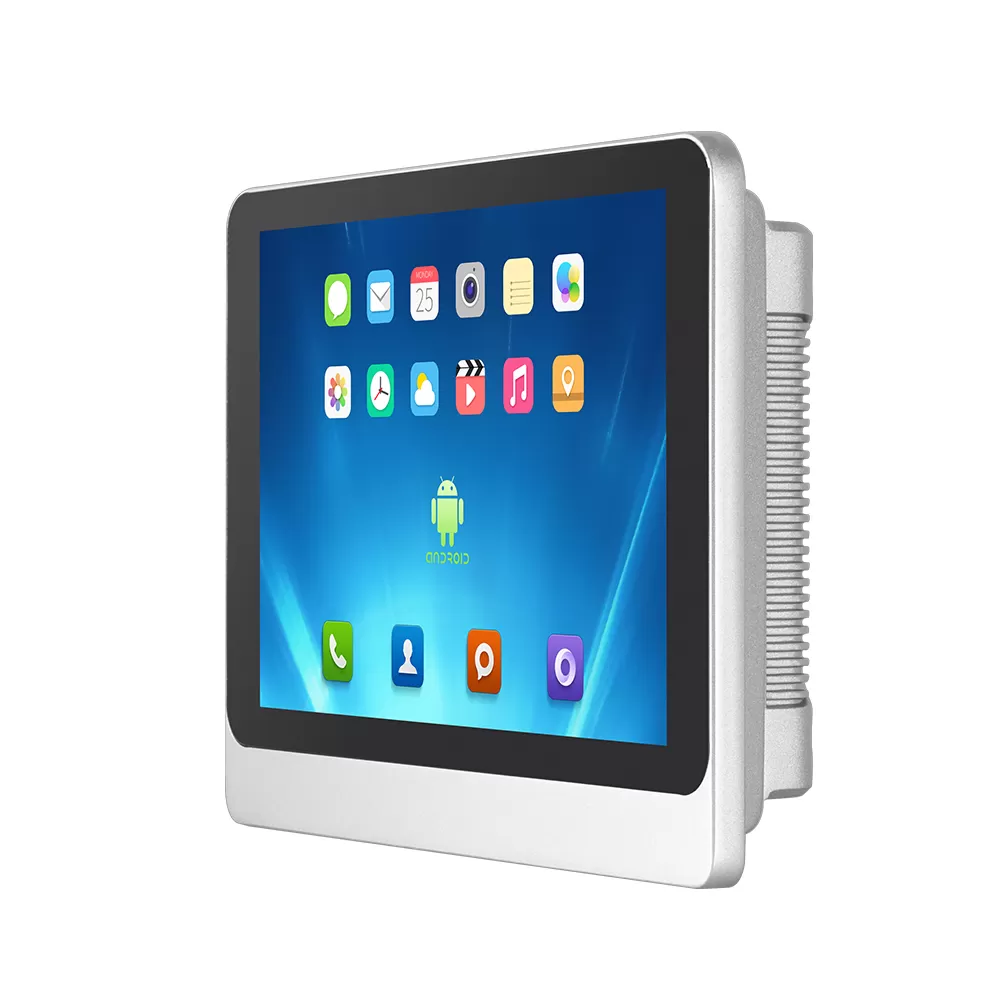

Model: SATA400A
Features:
1. Super thin and ultra narrow bezel, Fully enclosed design, the whole tablet PC is dustproof.
2. Full flat panel aluminum alloy brushed, front panel IP65 waterproof.
3. Full aluminum alloy enclosure with paint spraying and dull polish, anti-EMI, corrosion resistance, excellent performance of heat dissipation.
4. Industrial LCD panel, full viewing angle, high nits, true color.
5. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
6. High performance motherboard, 7x24 continuous operation.

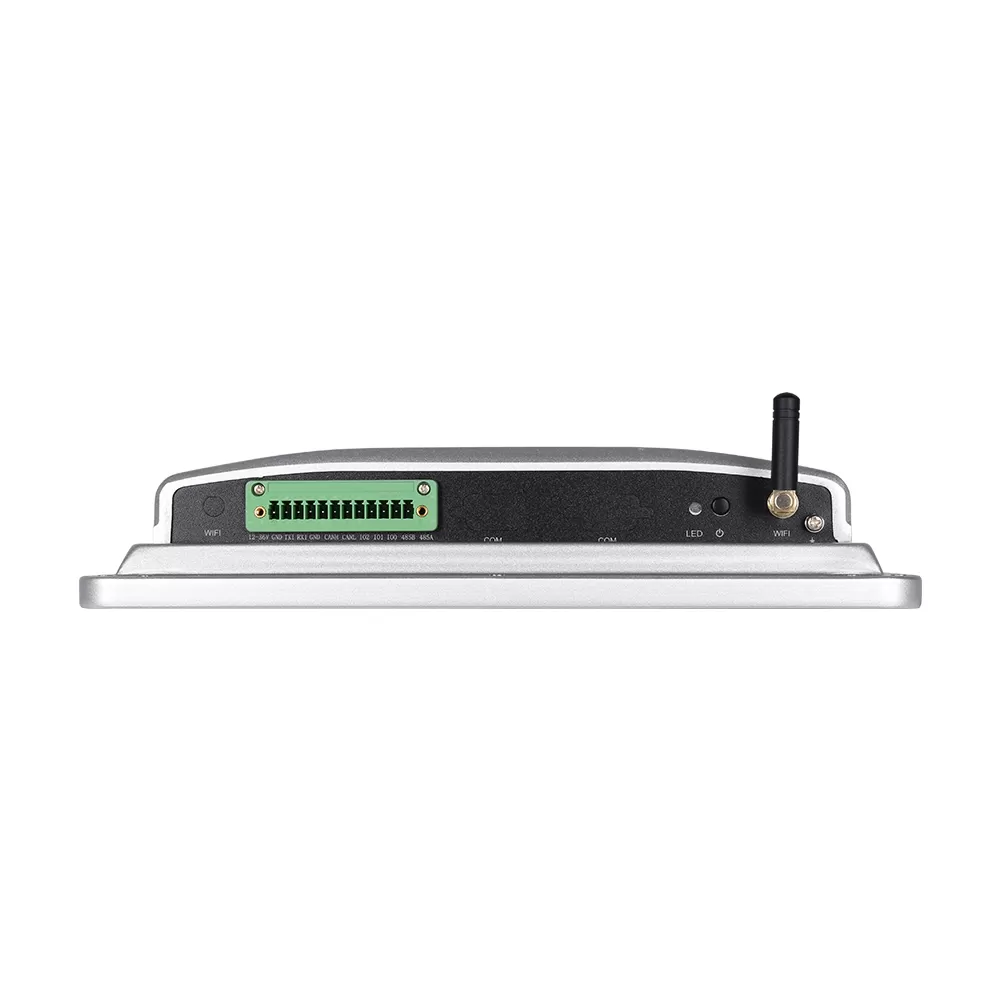

7. 1x12 pin Phoenix termianl(power/RS232*1/RS485*1/CAN/TTL*1/GPIO*3)
8. 12-36V Wide voltage.
| PC | |
| CPU | RK3568 Cortex-A55 Quad Core, 2.0GHz |
| CPU Optional | RK3588 Quad Cortex-A76+Quad Cortex-A55, 2.1GHz |
| CPU Optional | RK3399 Dual Cortex-A72+Quad Cortex-A53 2.0GHz |
| Memory | 2GB DDR3 (4G/8G Optional) |
| eMMC | 32GB (16G/64G/128G/256G Optional) |
| Decoding Resolution | Support 1080P/4K |
| Operation System | Android 7.1/9.0/10.0/11/12/13 |
| Play Modes | Support timing, loop and spots etc. play modes |
| Network Support | RJ45/WIFI/3G/4G/TD-LTE (Optional) |
| Image Format | JPG/BMP/GIF/TIFF/PNG |
| Video Format | RMVB/FLV/MPEG1/2/4/AVI/WMV/MOV/MP4/TS and etc. |
| Audio Format | MP3/WMA/AAC and etc. |
| RTC Real Time Clock | YES |

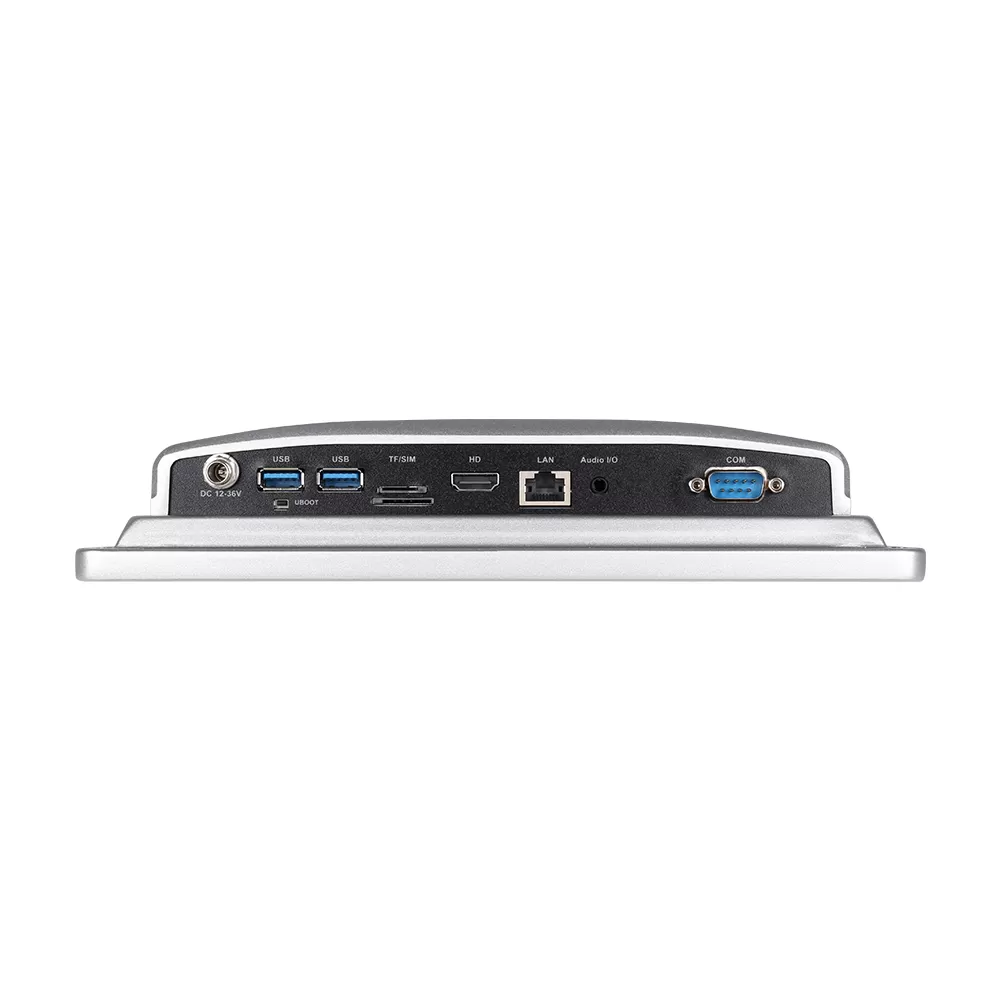

| I/O | |
| USB | 2xUSB3.0 |
| COM | 1xCOM |
| LAN | 1xRJ45, 10M/100M adaptive ethernet |
| HDMI | 1xHDMI, support 1080p |
| Audio I/O | 1xAudio I/O |
| UBOOT | 1xUBOOT |
| DC | 1xDC |
| Card Slot | 1xSD/SIM |
| Phoenix terminal | 1x12 pin Phoenix termianl(power/RS232*1/RS485*1/CAN*1/GPIO*3) |
| LCD panel | |
| Panel size | 10.1" |
| Resolution | 1280*800 |
| Aspect ratio | 16:10 |
| Support Color | 16.7M colors |
| Brightness | 300 cd/m² |
| Response time | 30ms |
| Contrast ratio | 600:1 |
| View angle | 89°/89°/89°/89° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 10 points Capacitive touch |
| Touch response time | <2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working Life | >50 million times |
| Touch options | (5 wires resistive touch, non touch Optional) |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V-36V |
| Power consumption | ≤25W |
| Enclosure | |
| Appearance | Flat panel |
| Material | Aluminum alloy |
| Color | Black, Silver |

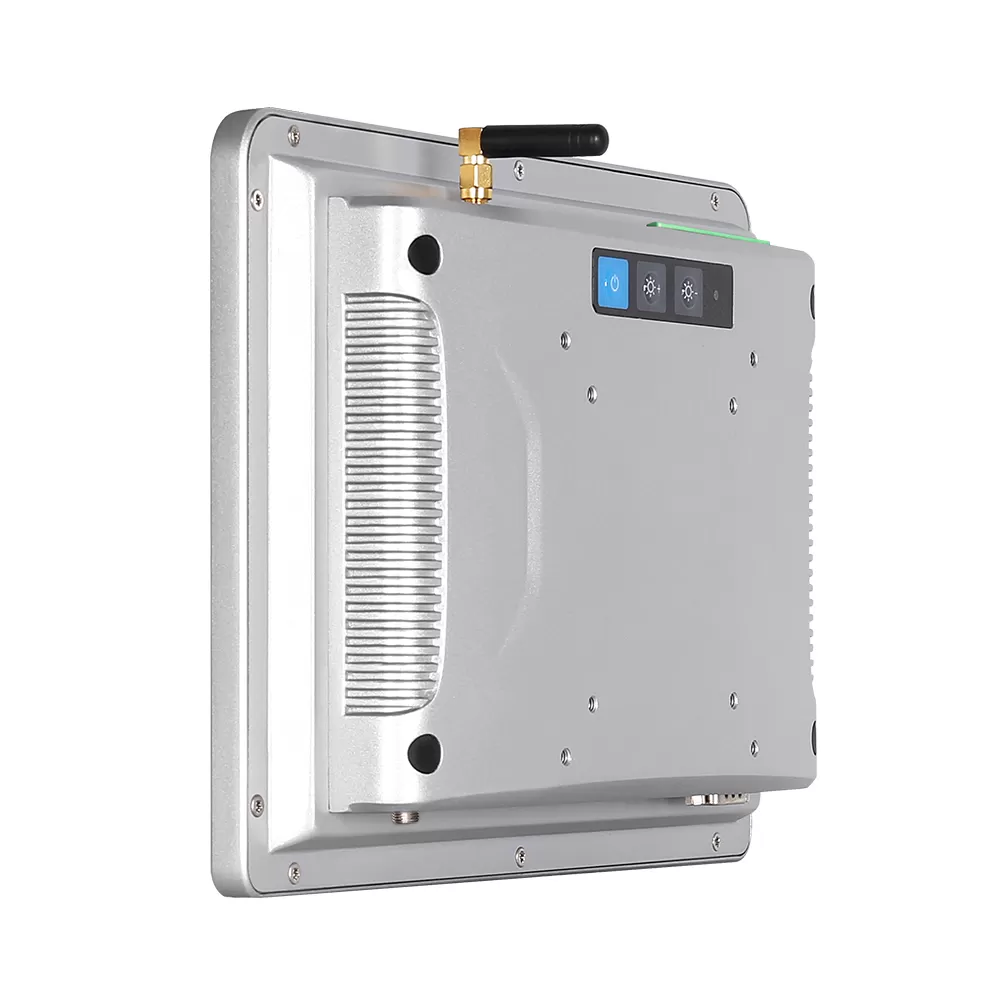

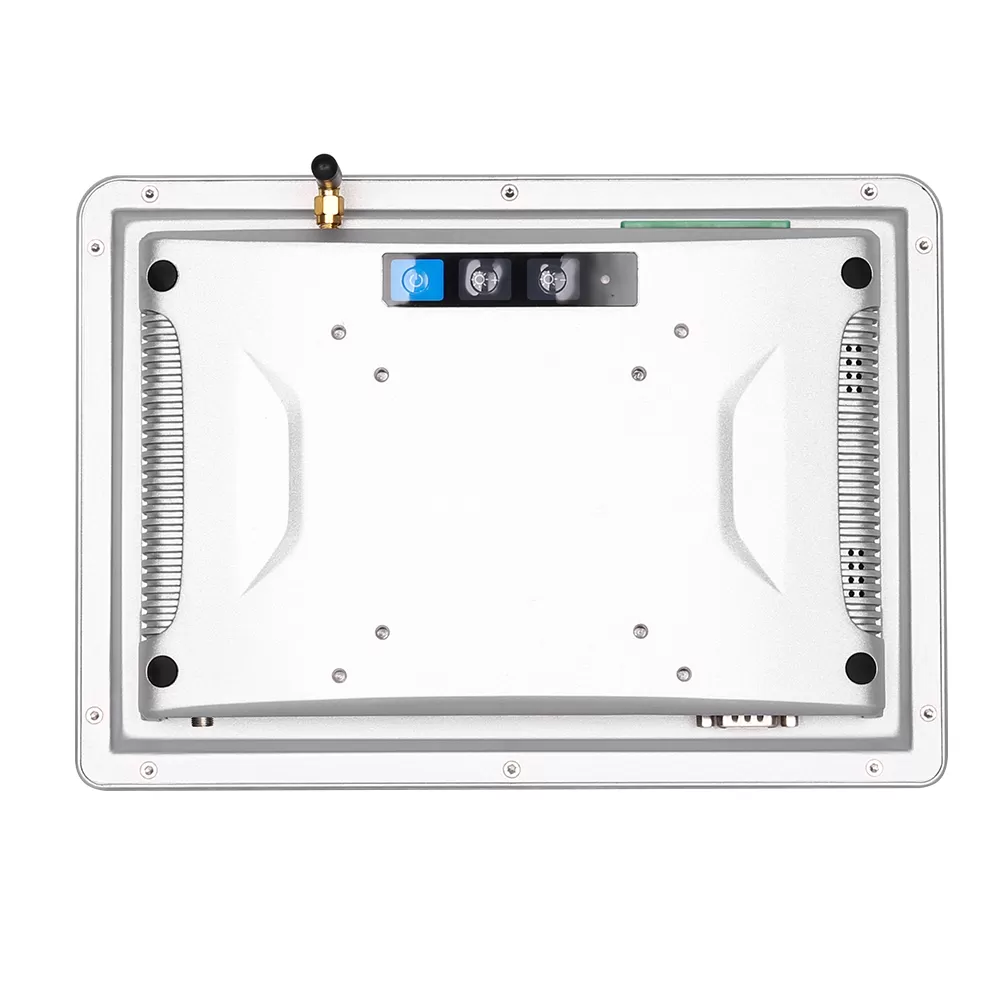

| VESA mounting | 75x75mm/100x100mm |
| IP grade | Front IP65 waterproof |
| Operating Environment | |
| Working temperature | -10°C to 60°C |
| Storage temperature | -20°C to 70°C |
| Relative humidity | 5-85% (non-condensing) |
| Vibration resistance | 5-19Hz/1.0mm amplitude, 19-200Hz/1.0g acceleration |
| Impact resistance | 10g acceleration, 11ms period |
| Packing Details | |
| Net weight | 3kgs |
| Gross weight | 3.5kgs |

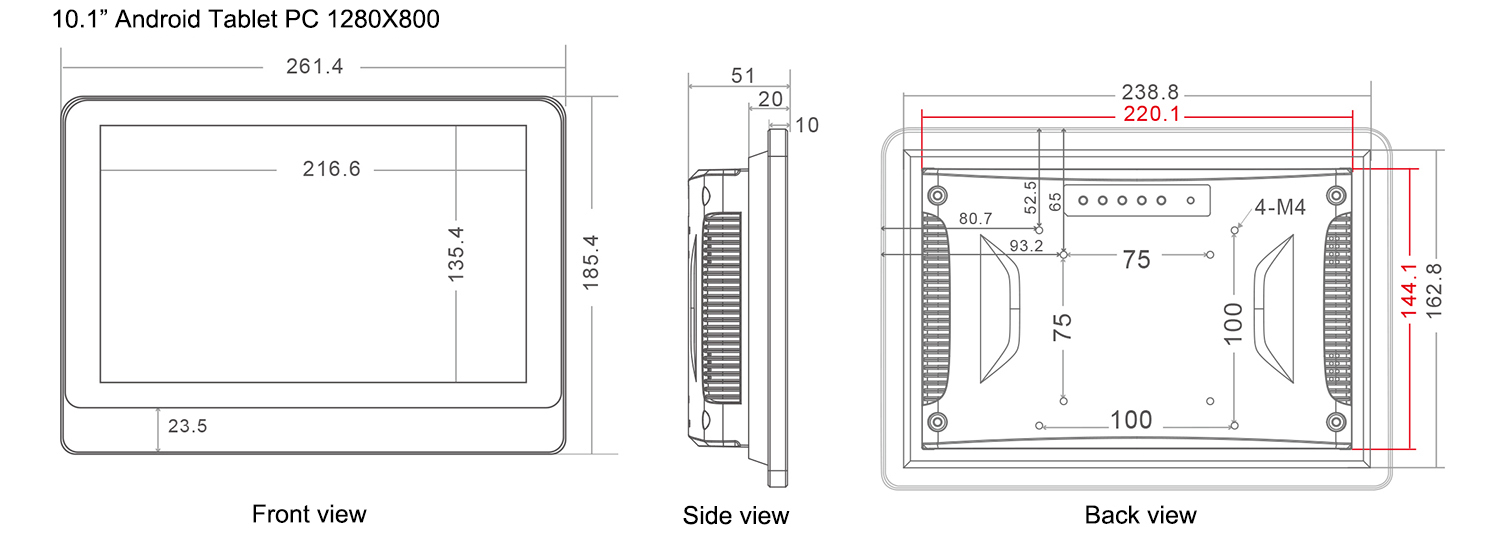

| Product dimension | 29.36x19.36x4.85 cm |
| Packing size | 43x38x18 cm |
| Accessories | Power adapter, embedded screws, warranty card, user manual |
| Other | |
| Mounting way | Embedded mounting screws |
| Wall mounting brackets (Optional) | |
| Desk stand holder (Optional) | |
| Customization (optional) | 3G/4G/Webcam/RFID reader etc. Optional |
| Warranty | 1 year warranty |
| Diagonal | Resolution | Aspect ratio | Touch type |
| 10.1" | 1280*800 | 16:10 | no/resistive/capacitive |
| 10.4" | 1024*768 | 4:3 | no/resistive/capacitive |
| 11.6" | 1920*1080 | 16:9 | no/resistive/capacitive |
| 12.1" | 1024*768 | 4:3 | no/resistive/capacitive |
| 15" | 1024*768 | 4:3 | no/resistive/capacitive |
| 15.6" | 1920*1080 | 16:9 | no/resistive/capacitive |
| 17" | 1280*1024 | 5:4 | no/resistive/capacitive |
| 17.3" | 1920*1080 | 16:9 | no/resistive/capacitive |
| 19" | 1280*1024 | 5:4 | no/resistive/capacitive |
| 19" wide | 1440*900 | 16:10 | no/resistive/capacitive |
| 21.5" | 1920*1080 | 16:9 | no/resistive/capacitive |
