7 inch Capacitive touch panel PC with 4 COM RS232 2 RJ45 9-24V Wide Voltage

Model: SATA07X

Features:

1. Fully enclosed design, the whole PC is dustproof.

2. Seamless design flat bezel, front panel IP65 waterproof.

3. Aluminum alloy shell, good mechanical properties, excellent heat dissipation.

4. Industrial LCD panel, wide viewing angle, high nits, true color.

5. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.

6. High performance motherboard, 7x24 continuous operation.


PC
CPUIntel® Celeron J1900, quad core, 2.0GHz, fanless
ChipsetIntel ValleyView SSA-CUnit
Memory4G DDR3 (8G Optional)
Hard Drive Capacity64G SSD
Hard Drive OptionalSSD: 128GB, 256GB, 512GB
HDD: 500GB, 1TB
GraphicsCPU Integrated graphics HD Graphics and support 1080p HD photo quality
AudioRealtek ALC662, High Definition Audio (HD), Line in, Line out
Network1xRealtek RTL 8111E Gigabit Ethernet controller
Wireless NetworkWIFI(Optional)

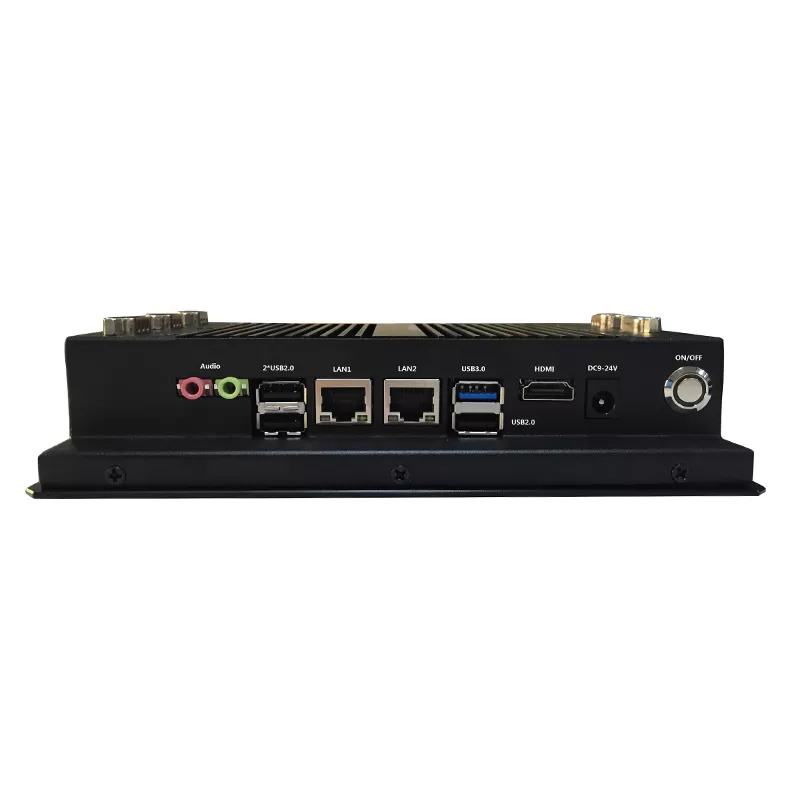

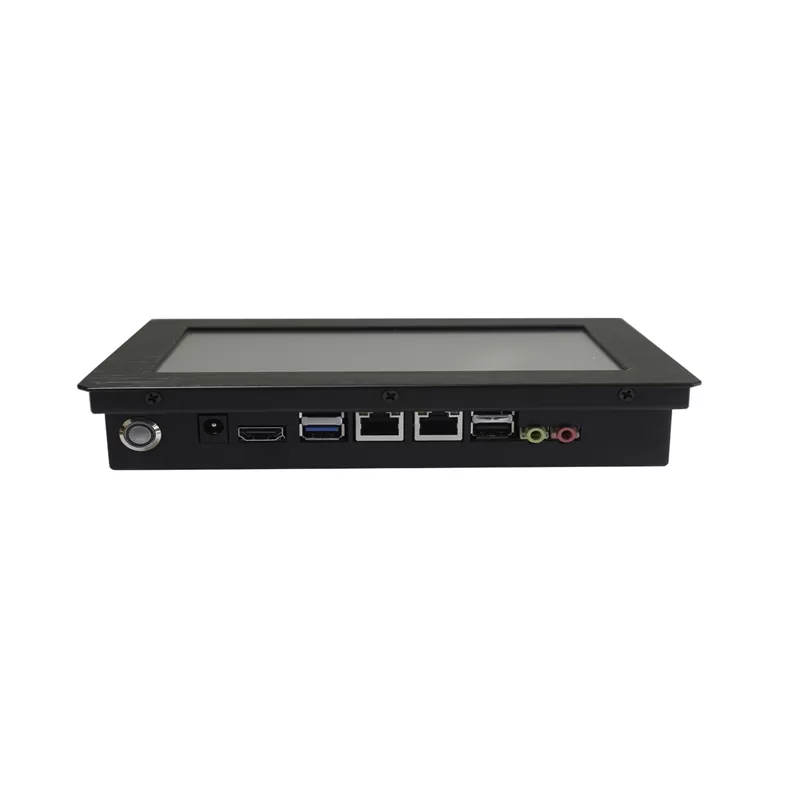

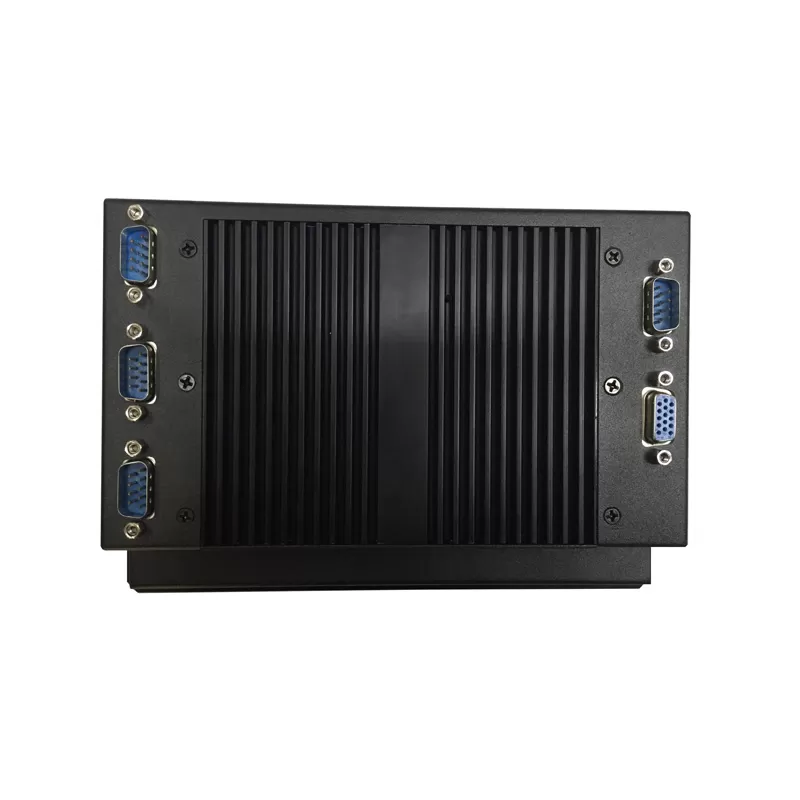

I/O Interface1xUSB 3.0, 3xUSB 2.0, 4xCOM RS232, 2xRJ45
1xVGA/HDMI/Audio OUT/MIC IN/POWER DC/Power button
Operation SystemSupport Windows 7/8/10, Linux, Ubuntu, Debian, etc.
LCD panel
Panel size7"
Resolution1024*600
Aspect ratio16:9
Support Color16.7M colors
Brightness (cd/m²)300
Response time5ms
Contrast ratio800:1
View angle80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen TypeProject Capacitive Touch (10 points)
Touch InterfaceUSB (RS232 Optional)
Touch response time2ms
Luminousness90%
Surface Hardness7H
Working life>50 million times
Touch options(5 wires resistive touch Optional)
Power Supply
External Power SupplyAC 100-240V
Working voltageDC 9V-24V
Power consumption≤19W
Enclosure
MaterialAluminum Alloy
ColorBlack, Silver
VESA mounting75x75mm/100x100mm
IP gradeFront panel IP65 waterproof
Operating Environment
Temperature RangeOperating: -10 to 60°C, storage: -20 to 70°C
Relative humidity5%~95% @ 40° C, non-condensing
Vibration5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight2.4kgs
Gross weight2.9kgs
Product Dimension19.5x13.7x4cm
Packing size43x38x18cm
AccessoriesPower adapter, embedded screws, user manual, warranty card
Other
Mounting (options)Embedded mounting screws
Wall mounting brackets (Optional)
Desk stand holder (Optional)
Warranty1 year warranty
CertificateCE, FCC, RoHS
