Model: SATA500C
Features:
1. Cordless motherboard, high-end industrial panel PC
2. Fully closed type&seamless flat design, aluminum alloy shell, excellent heat dissipation.

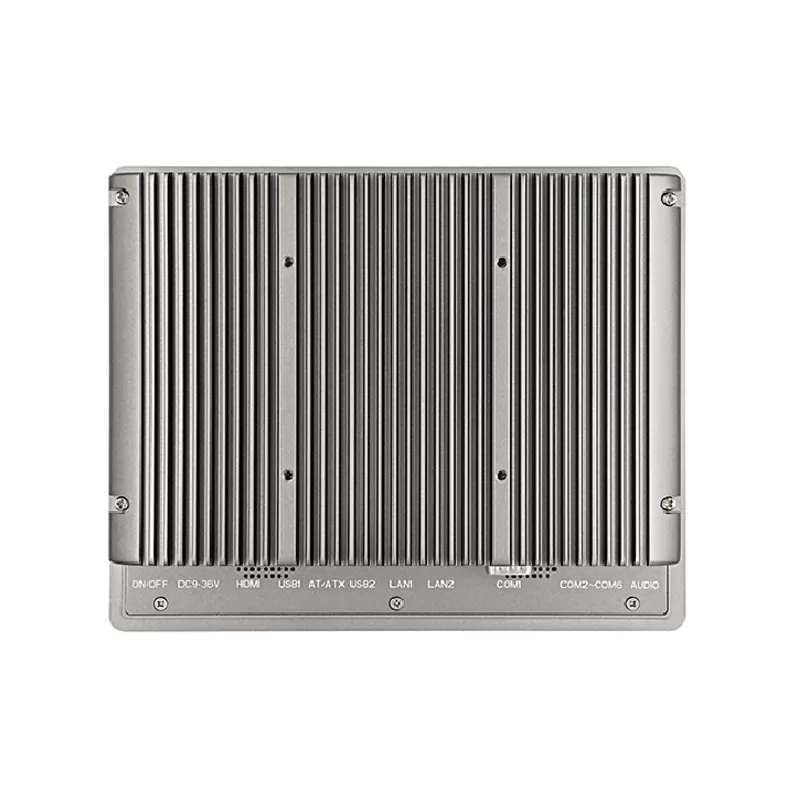

3. Front panel IP65 waterproof. Integrated heat sink on the back side, .

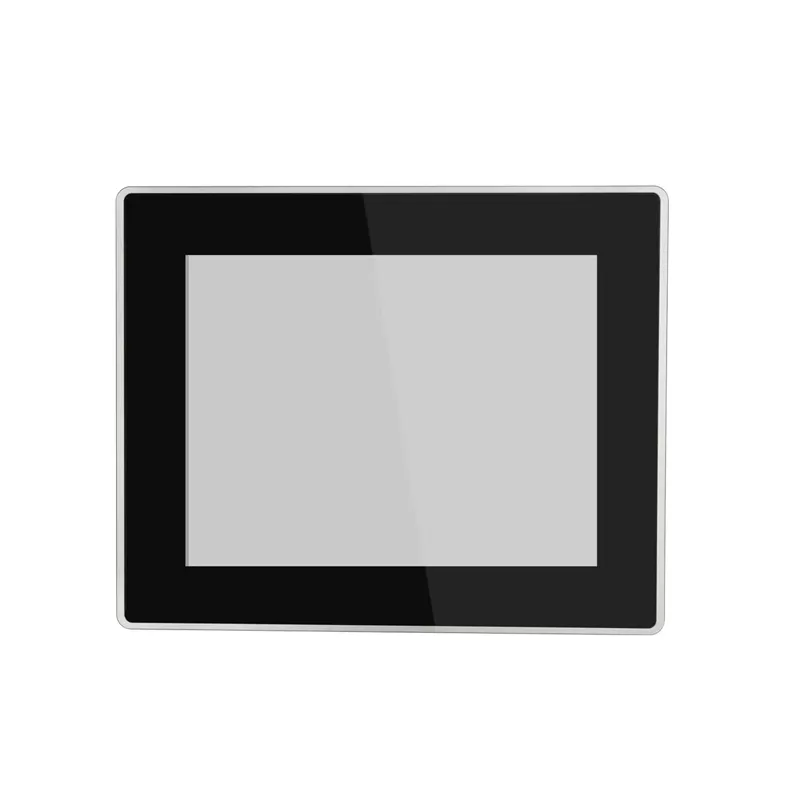

4. Industrial LCD panel, wide viewing angle, high nits, true color.
5. LCD+HDMI Dual Displaying.
6. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
7. 9V-36V wide voltage, 3 Pin Phoenix terminal, not easily loose.
8. Low consumption fanless motherboard, 7x24 continuous working.
| PC | |
| CPU | Intel® Celeron J1900, quad core, 2.0GHz, fanless |
| CPU optional | Intel® Core, i5-4278U dual core, 2.6 GHz, fanless |
| CPU optional | Intel® Core, i7-4578U dual core, 3.0 GHz, fanless |
| CPU optional | Intel® Core, i5-7360U dual core, 2.3 GHz, fanless |
| CPU optional | Intel® Core, i7-7560U dual core, 2.4 GHz, fanless |
| CPU optional | Intel® Core, i5-8250U quad core, 1.8 GHz, fanless |
| CPU optional | Intel® Core, i7-8550U quad core, 1.8 GHz, fanless |
| Memory | 4G DDR3 |
| Hard Drive Capacity | 64G SSD |
| Hard Drive Optional | SSD: 128GB, 256GB, 512G SSD |
| HDD: 500GB, 1TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | 2x GbE RJ45 Intel®i211-AT |
| Wireless Network | WIFI Optional |

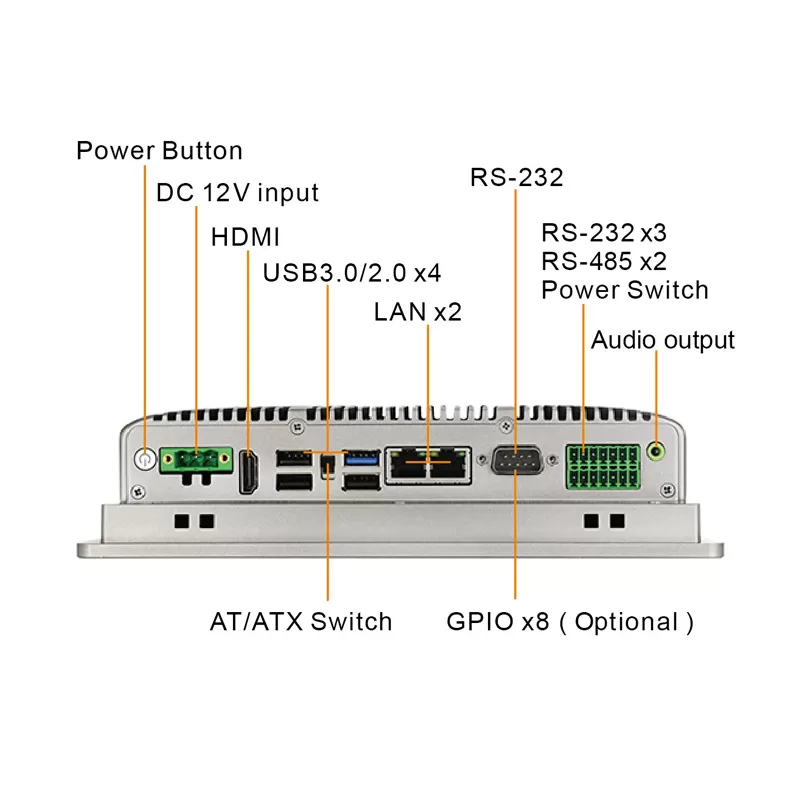

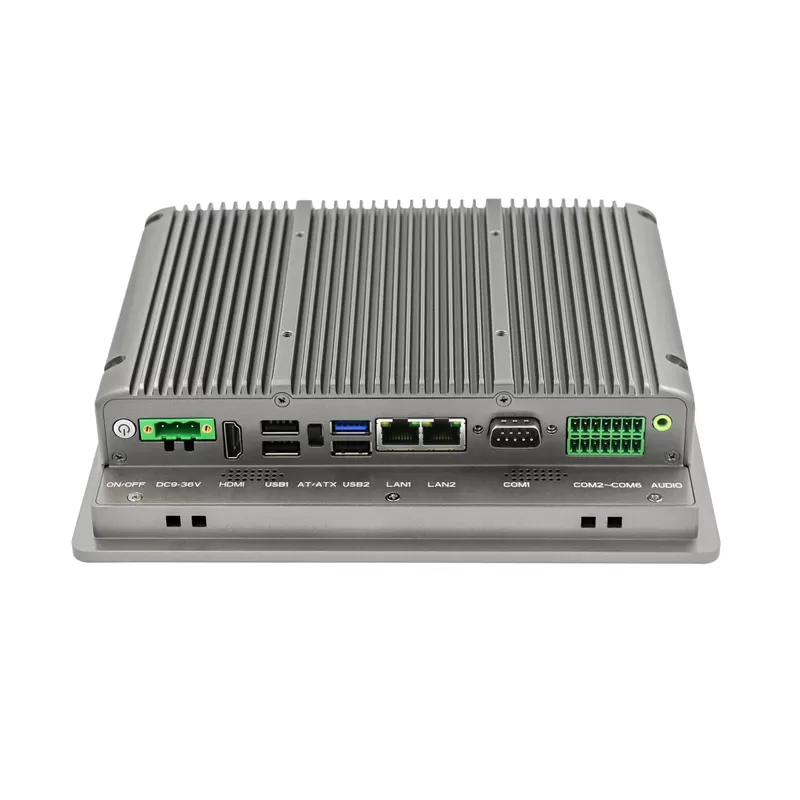

| I/O Interface | 3xUSB 2.0, 1xUSB 3.0, 1x built in USB SoftDog, |
| 2x DB-9 COM1& COM2, RS232/422/485 | |
| 2x3 wire COM3 & COM4 RS232/485 Phoenix terminal, 2x3 wire COM5 & COM6 RS232 | |
| 1xPhoenix terminal remote switch interface | |
| 1x AT/ATX switch | |
| 1x HDMI/Audio Line-out/ Power Button | |
| 1x 14 bit GPIO optional | |
| 2x 8Ω 1W Amplifier out optional | |
| Expansion slot | MINI-PCIE x 1, on board SIM card slot, support 3G/4G module |
| MINI-PCIE x 1, support WIFI/ Bluetooth | |
| Watchdog timer | 1~255 second Programmable Setting |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian, etc. |
| LCD panel | |
| Panel size | 8" |
| Resolution | 800*600 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 500 |
| Response time | 5ms |
| Contrast ratio | 800:1 |
| View angle | 85°/85°/85°/85° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points) |
| Touch Interface | USB (RS232 Optional) |
| Touch response time | 2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working life | >50 million times |
| Touch options | (5 wires resistive touch Optional) |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | 9V-36V wide voltage |
| Power consumption | ≤18W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Grey |
| VESA mounting | 75x75mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | Operating: -20 to 60°C, storage: -30 to 70°C |
| Relative humidity | 10%~90% @ 30° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 2 kgs |
| Gross weight | 2.5 kgs |

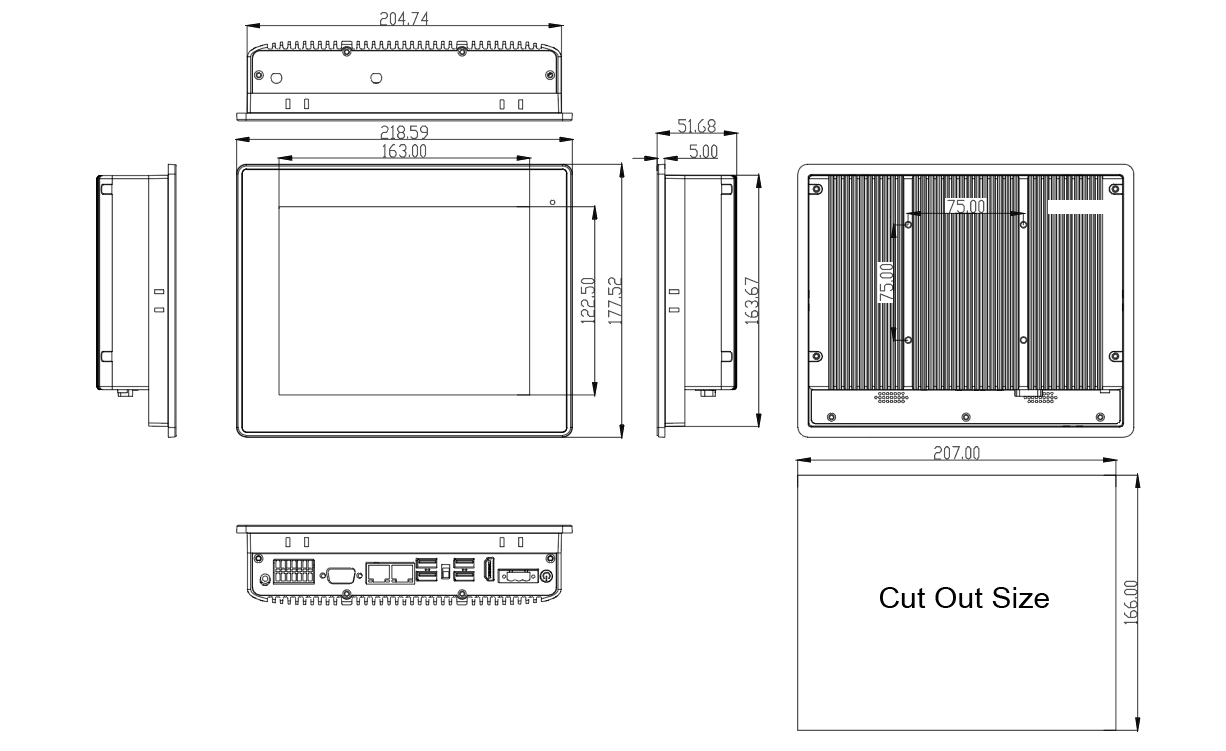

| Product Dimension | 20.474x17.752x5.168cm |
| Packing size | 40x34x16cm |
| Accessories | Power adapter, power cord, embedded screws, 2.5-inch hard drive holder |
| Other | |
| Mounting (options) | Embedded mounting screws |
| Wall mounting brackets (Optional) | |
| Desk stand holder (Optional) | |
| Warranty | 2 years warranty |
| Certificate | CE, FCC, RoHS |
| Diagonal | Resolution | Aspect ratio | Touch type |
| 8" | 1024*768 | 4:3 | no touch/capacitive/resistive |
| 10.1" | 1280*800 | 16:10 | no touch/capacitive/resistive |
| 12.1" | 1024*768 | 4:3 | no touch/capacitive/resistive |
| 15" | 1024*768 | 4:3 | no touch/capacitive/resistive |
| 15.6" | 1920*1080 | 16:9 | no touch/capacitive/resistive |
| 17" | 1280*1024 | 5:4 | no touch/capacitive/resistive |
| 19" | 1280*1024 | 5:4 | no touch/capacitive/resistive |
| 21.5" | 1920*1080 | 16:9 | no touch/capacitive/resistive |
