Model: SATA600C
Features:
1. Win11 system support, cordless motherboard graphic, Full flat touch screen, high-end industrial panel PC.
2. Intel Celeron J4125/J6412 or 8th/10/11th Gen-U Intel Core i5/i7J4125/J6412: DDR4 SODIMM x1; Core 5/i7: DDR4 SODIMM x2.

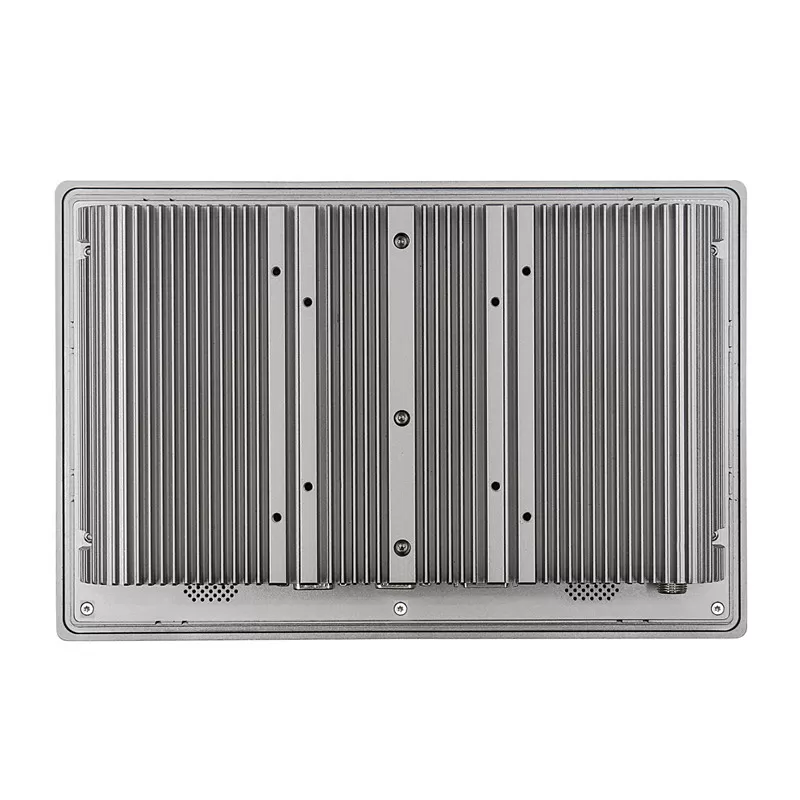

3. Aluminum alloy shell, front panel IP65 waterproof. Integrated heat sink on the back side, excellent heat dissipation.
4. With Rubber waterproof ring on the back side.
5. Industrial LCD panel, wide viewing angle, high nits, true color.
6. LCD+HDMI dual display, synchronous/asynchronous mode
7. 9V-36V Wide Voltage.
8. Fanless mainboard, 7x24 continuing work.
| PC | |
| CPU | Intel® Celeron J4125, quad Cores, quad Threads, Base 2.0 GHz, Turbo 2.7 GHz, 4MB Cache, Fanless |
| CPU Optional | Intel® Celeron J6412, quad Cores, quad Threads, Base 2.0 GHz, Turbo 2.6 GHz, 1.5MB Cache, Fanless |
| CPU Optional | Intel® Alder Lake N100, quad core, quad thread, 3.4GHz Max. 6MB Cache, Fanless |
| CPU Optional | Intel® Core i5-8260U quad Cores, eight Threads, Base 1.6 GHz, Turbo 3.9 GHz, 6MB Cache, Fanless |
| CPU Optional | Intel® Core i7-8560U quad Cores, eight Threads, Base 2.8 GHz, Turbo 4.7 GHz, 8MB Cache, Fanless |
| CPU Optional | Intel® Core i5-10310U quad Cores, eight Threads, Base 1.7 GHz, Turbo 4.4 GHz, 8MB Cache, Fanless |
| CPU Optional | Intel® Core i7-10610U quad Cores, eight Threads, Base 1.8 GHz, Turbo 4.9 GHz, 8MB Cache, Fanless |
| CPU Optional | Intel® Core i5-1135G7, 4 Cores, 8 Threads, Base 2,4GHz, Turbo 4.2GHz, 8MB Cache, Fanless |
| CPU Optional | Intel® Core i7-1195G7, 4 Cores, 8 Threads, Base 2.8 GHz, Turbo 4.7 GHz, 12MB Cache, Fanless |
| Memory | J4125/J6412: DDR4 SODIMM x1 Core i5/i7: DDR4 SODIMM x2 |
| Hard Drive Capacity | 64G SSD |
| Hard Drive Optional | SSD: 128GB, 256GB, 512GB, 1TB SSD |
| HDD: 500GB, 1TB, 2TB | |
| Network | 2x 2.5 GbE RJ45 Intel i225V (4x2.5GbE RJ45 Intel i225V Optional) |
| Wireless Network | WIFI/Bluetooth Optional |

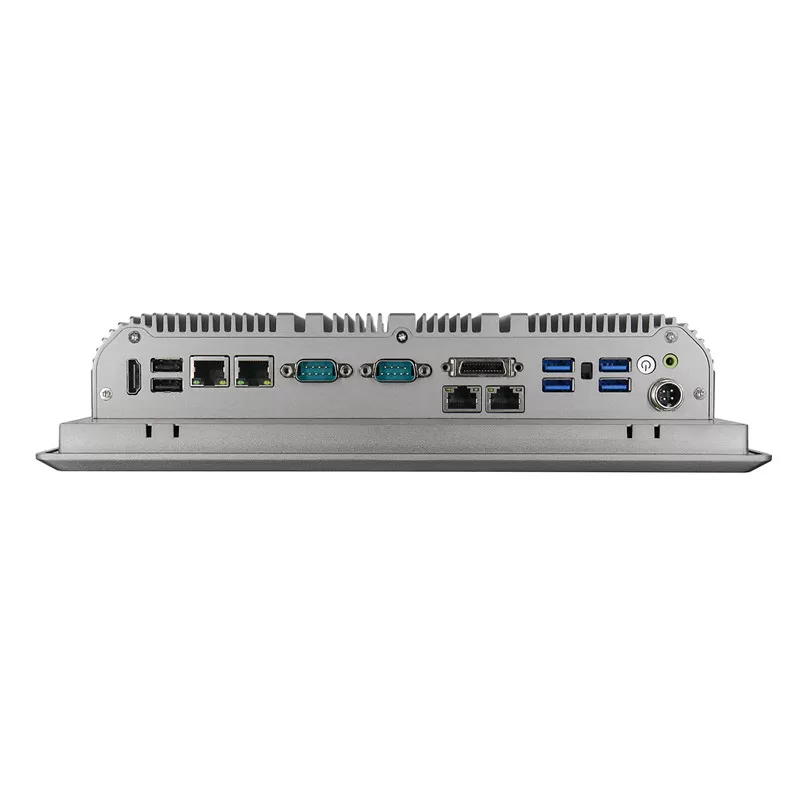

| I/O Interface | 4xUSB2.0, 2xUSB3.0 (J4125/J6412) 2xUSB2.0, 4xUSB3.0 (8th/10th/11th generation intel Core i5/i7) |
| 2xDB-9 COM1& COM2, RS232/422/485 | |
| 1xHDMI/Audio Line-out/ Power Button | |
| 1xAT/ATX switch | |
| Extended IO: 4xRS232(4x3 wire COM3&COM4&COM5&COM6), GPIOx10, 1x Remote Switch | |
| 2x8Ω 1W Amplifier out Optional | |
| Expansion slot | M.2 3042/3052 3G/4G/5G Module, onboard SIM Card Slot |
| M.2 2230 WiFi Bluetooth | |
| Storage | 1xM.2 2242/2260/2280 SATA 1xSATA(2.5'' SATA ) 1xM.2 2280 NVME |
| Watchdog timer | 1 to 65535 seconds programmable setting |
| Operation System | Support Windows® 10/11, WES 10, LINUX, etc. |
| Support | TPM 2.0 |
| Support | PXE Boot |
| Support | UUID |
| LCD panel | |
| Panel size | 10.1" |
| Resolution | 1280*800 |
| Aspect ratio | 16:10 |
| Support Color | 16.2M colors |
| Brightness (cd/m²) | 500 |
| Response time | 5ms |
| Contrast ratio | 800:1 |
| View angle | 85°/85°/85°/85° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points) |
| Touch Interface | USB (RS232 Optional) |
| Touch response time | 2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working life | >50 million times |
| Touch options | (5 wires resistive touch Optional) |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | 9-36V DC Wide Voltage with 4PIN Phoenix |
| Power consumption | ≤20W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Grey |
| VESA mounting | 75x75/100x100mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | Operating: -20 to 60°C, Storage: -30 to 70°C |
| Relative humidity | 10%~90% @ 30° C, Non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 3kgs |
| Gross weight | 4kgs |

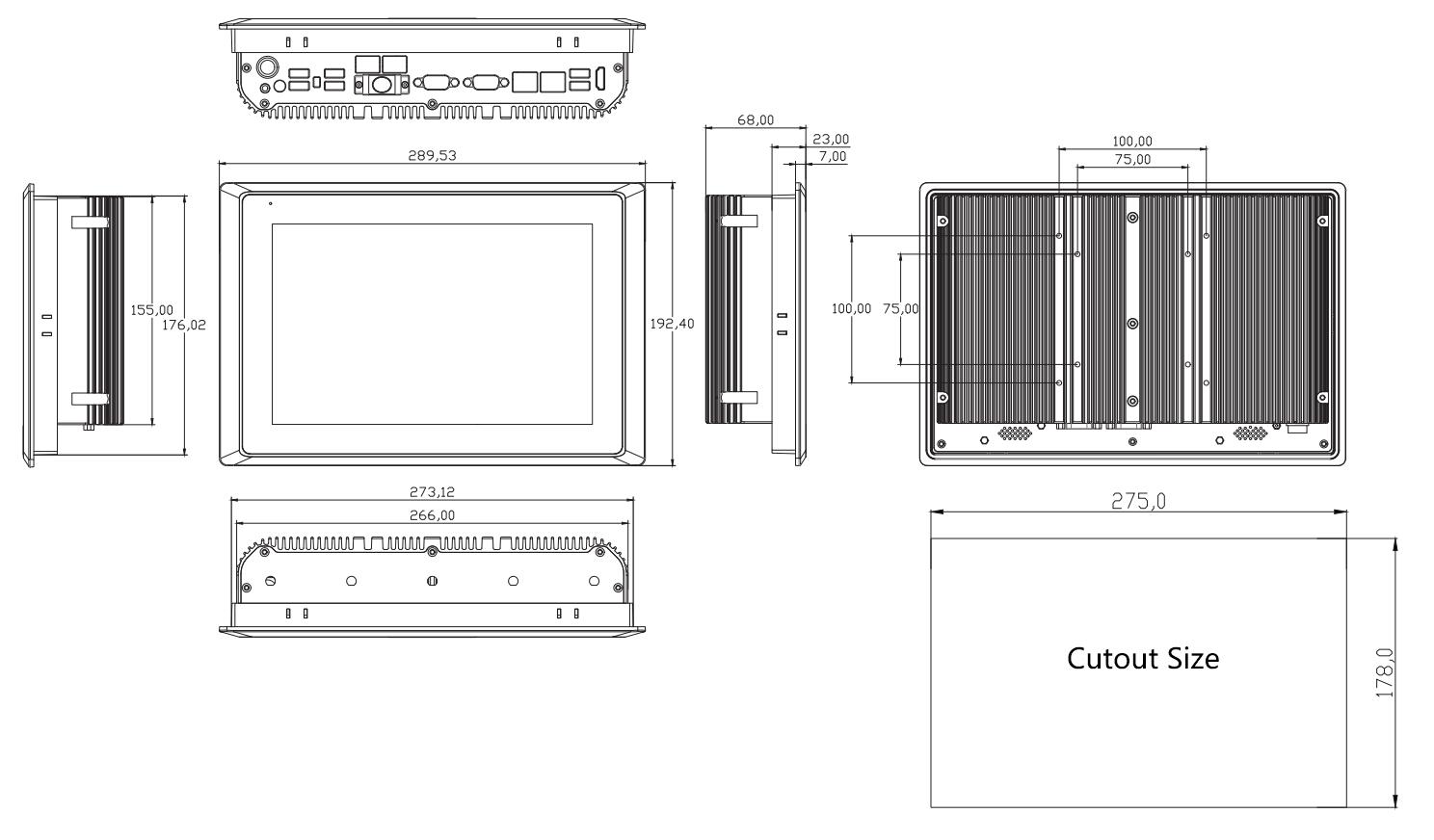

| Product Dimension | 289.53x192.40x68.0 mm |
| Packing size | 43x38x18cm |

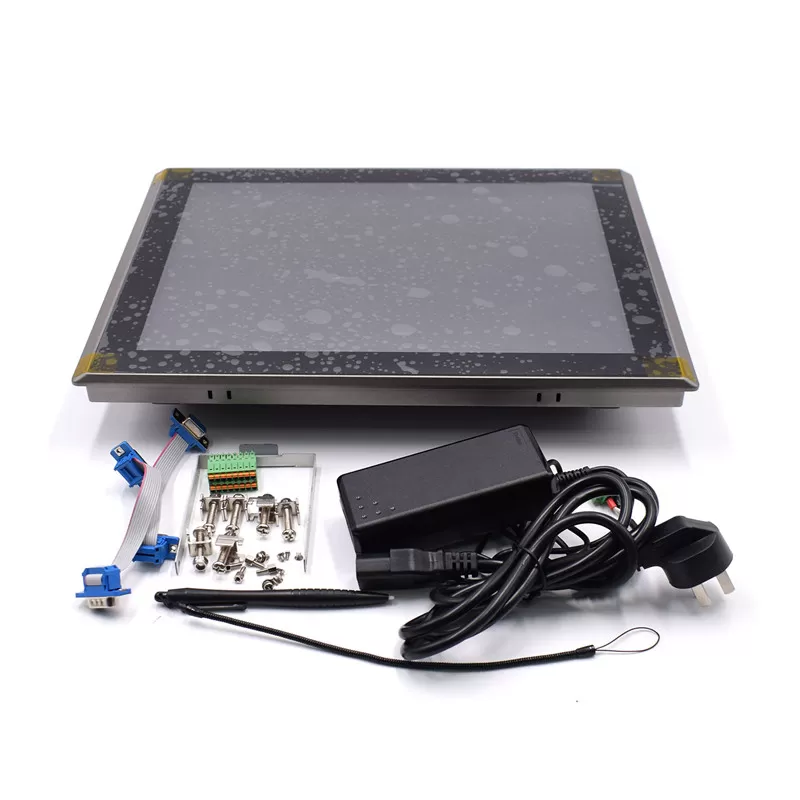

| Accessories | Power adapter, Power cord, Embedded screws, Phoenix terminal |
| Accessories optional | WIFI module, 3G/4G/5G module, VESA bracket |
| Other | |
| Mounting (Options) | Embedded mounting screws |
| Wall mounting brackets (Optional) | |
| Desk stand holder (Optional) | |
| Warranty | 2 years warranty |
| Certificate | CE, FCC, RoHS |
| Diagonal | Resolution | Aspect ratio | Touch type |
| 10.1" | 1280*800 | 16:10 | no touch/capacitive/resistive |
| 12.1" | 1024*768 | 4:3 | no touch/capacitive/resistive |
| 15" | 1024*768 | 4:3 | no touch/capacitive/resistive |
| 15.6" | 1920*1080 | 16:9 | no touch/capacitive/resistive |
| 17" | 1280*1024 | 5:4 | no touch/capacitive/resistive |
| 19" | 1280*1024 | 5:4 | no touch/capacitive/resistive |
| 21.5" | 1920*1080 | 16:9 | no touch/capacitive/resistive |
| 23.8" | 1920*1080 | 16:9 | no touch/capacitive/resisitve |
