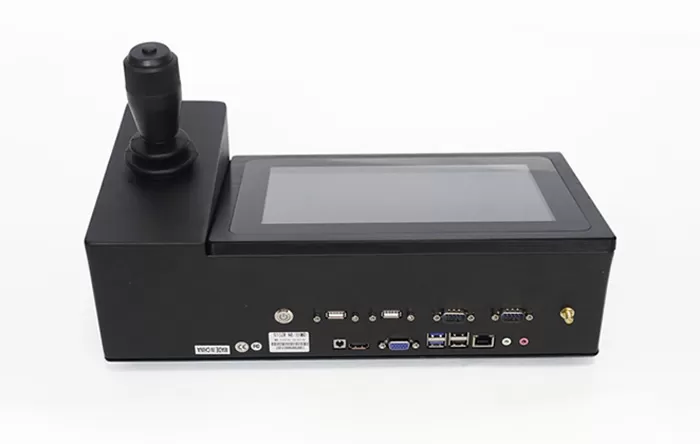

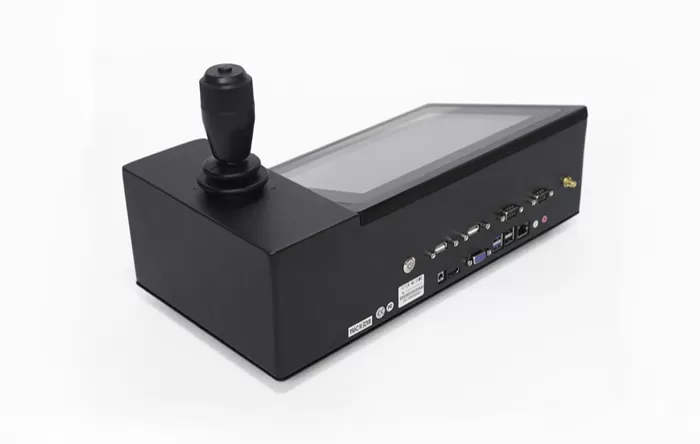

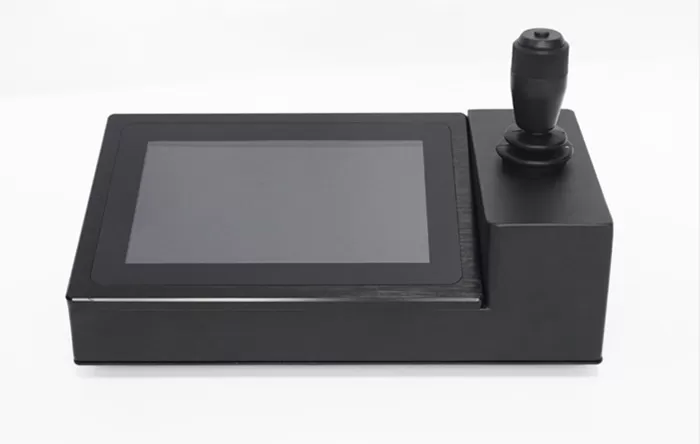

10.1 inch Panel PC SATA101J Capacitive Touch from SATA IPC

Model: SATA101J

Features:

1. Fully enclosed design, front IP65 waterproof , fully dustproof.

2. Industrial LCD panel, wide viewing angle, high nits, true color.

3. Adopt multi-points PCAP touch panel, covered with 2mm tempered glass for vandalproof.

4. High performance motherboard, 7x24 continuous operation.

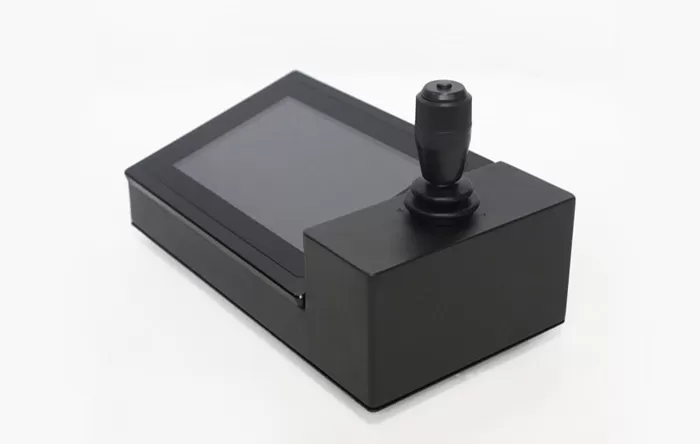

5. Integrated HID Programmable 3 axis joystick.

6. High resolution screen 1920×1200

7. Used for monitoring and broadcast video


Model: SATA101J
PC
CPUIntel® Core i5-5200U Dual Core, 2.2GHz
ChipsetIntel ValleyView SSA-CUnit
Memory8G DDR3
Hard Drive Capacity128G SSD
GraphicsCPU Integrated graphics HD Graphics and support 1080p HD photo quality
AudioRealtek ALC662, High Definition Audio (HD), Line in, Line out
Network1xRealtek RTL 8111E Gigabit Ethernet controller

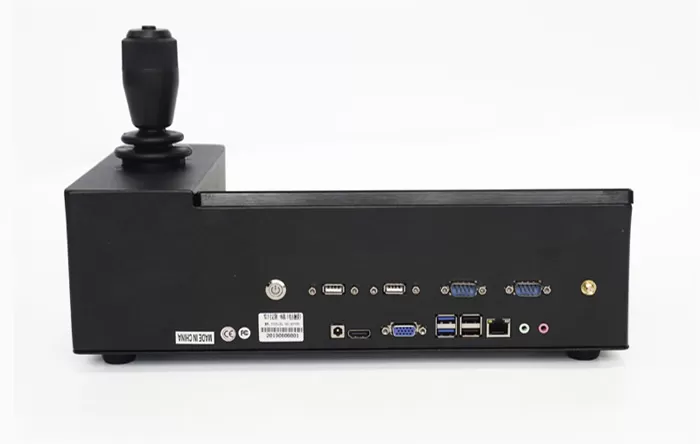

I/O Interface4xUSB 2.0, 2xUSB3.0, 2xCOM RS232
1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC
Operation SystemSupport Windows 7/8/10, Linux, Ubuntu, Debian, etc.
LCD panel
Panel size10.1"
Resolution1920*1200
Aspect ratio16:10
Support Color16.7M colors
Brightness (cd/m²)400+
Response time5ms
Contrast ratio1000:1
View angle80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen TypeProject Capacitive Touch (10 points)
Touch InterfaceUSB (RS232 optional)
Touch response time2ms
Luminousness90%
Surface Hardness7H
Working life>50 million times
Touch options(5 wire resistive touch, IR touch Optional)
Power Supply
External Power SupplyAC 100-240V
Working voltageDC 12V
Power consumption≤35W
Enclosure
MaterialAluminum Alloy front bezel+High strength rolled steel back base
ColorBlack, silver, white, color can be customized
IP gradeFront panel IP65 waterproof
Operating Environment
Temperature RangeOperating: -10 to 60°C, storage: -20 to 80°C
Relative humidity5%~95% @ 40° C, non-condensing
Vibration5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight3.35kgs
Gross weight5.85kgs

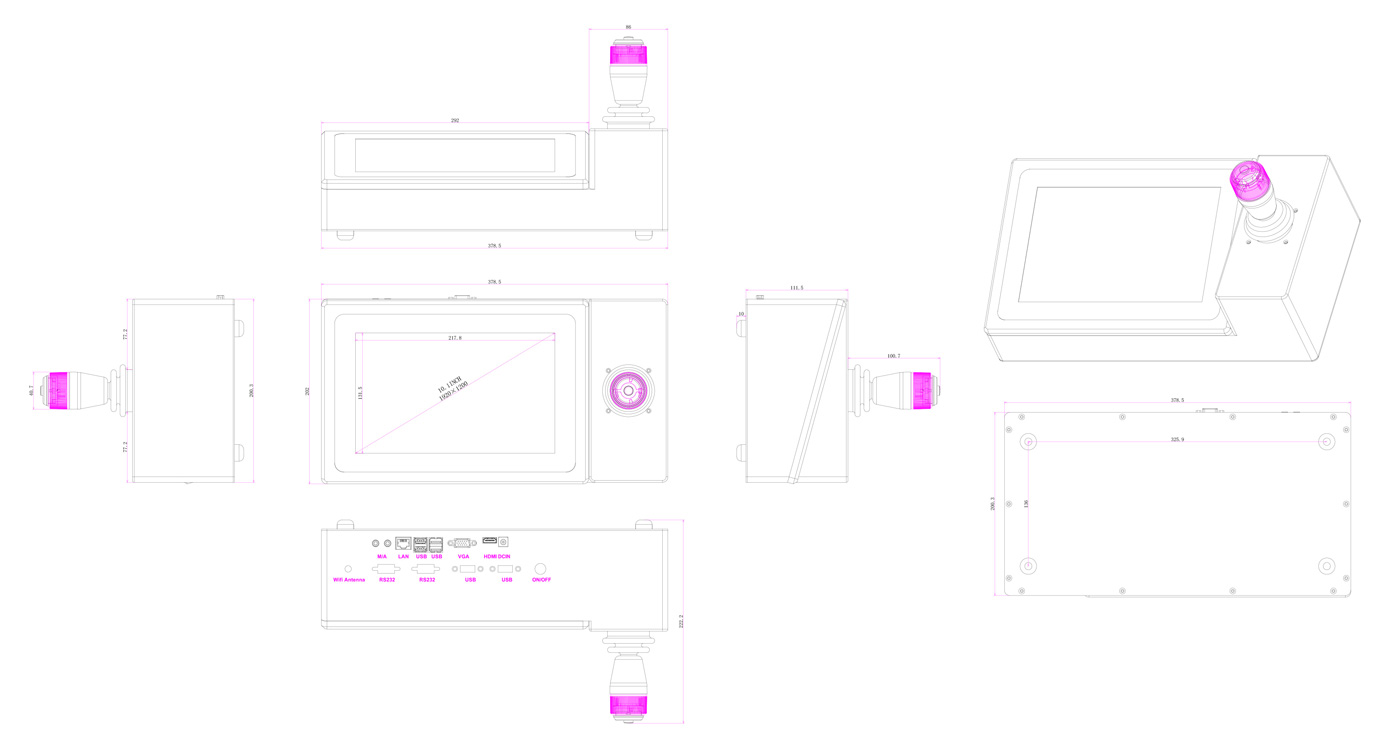

Product Dimension37.85x20.2x22.22 mm
Packing size62x37x33cm
AccessoriesPower adapter, embedded screws, user manual, warranty card
Other
Mounting (options)Embedded mounting screws
Wall mounting brackets (Optional)
Desk stand holder (Optional)
Warranty1 year warranty
CertificateCE, FCC, RoHS
