Features:
1. Fully enclosed design, front IP65 waterproof , fully dustproof.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt multi-points PCAP touch panel, covered with 2mm tempered glass for vandalproof.
4. High performance motherboard, 7x24 continuous operation.

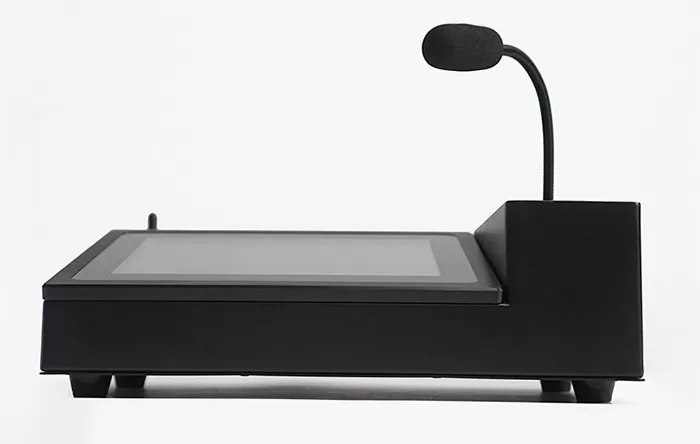

5. Integrated with gooseneck microphone.
6. High resolution screen 1920×1200.
7. Used for monitoring and broadcast video.
| Model: SATA101M | |
| PC | |
| CPU | Intel® Core i5-6360U, dual Core, 2.0GHz |
| Chipset | Intel ValleyView SSA-CUnit |
| Memory | 8G DDR3 |
| Hard Drive Capacity | 128G SSD |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | 1xRealtek RTL 8111E Gigabit Ethernet controller |

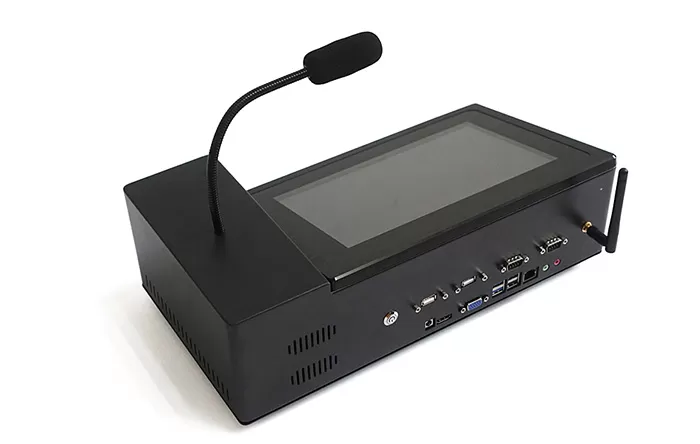

| I/O Interface | 4xUSB 2.0, 2xUSB3.0, 2xCOM RS232 |
| 1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC/Power button | |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian, etc. |
| LCD panel | |
| Panel size | 10.1" |
| Resolution | 1920*1200 |
| Aspect ratio | 16:10 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 400+ |
| Response time | 5ms |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points) |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working life | >50 million times |
| Touch options | (5 wire resistive touch, IR touch Optional) |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤35W |
| Enclosure | |
| Material | Aluminum Alloy front bezel+High strength rolled steel back base |
| Color | Black, silver, white, color can be customized |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | Operating: -10 to 60°C, storage: -20 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 3.4kgs |
| Gross weight | 4.75kgs |
| Product Dimension | 37.85x20.2x35.92cm |
| Packing size | 47.5*29*25cm |

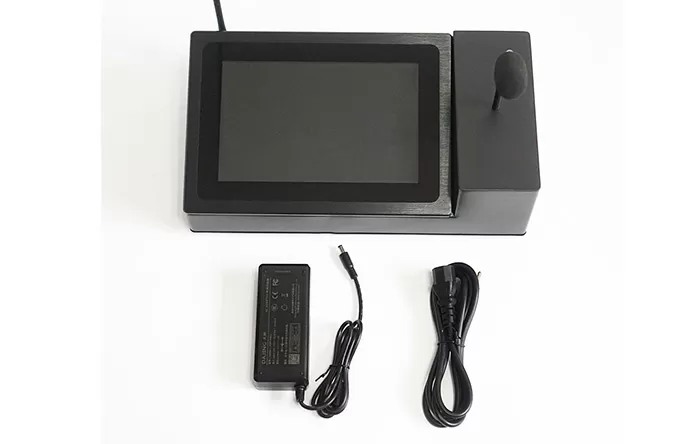

| Accessories | Power adapter, embedded screws, user manual, warranty card |
| Other | |
| Mounting (options) | Embedded mounting screws |
| Wall mounting brackets (Optional) | |
| Desk stand holder (Optional) | |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |
