12 inch Panel PC SATA12X Capacitive Touch from SATA IPC

Model: SATA121X

Features:

1. Fully enclosed design, front IP65 waterproof , fully dustproof.

2. Industrial LCD panel, wide viewing angle, high nits, true color.

3. Adopt multi-points PCAP touch panel, covered with 2mm tempered glass for vandalproof.

4. High performance motherboard, 7x24 continuous operation.

5. Built-in RFID Reader(Dual frenquency 125khz 13.56MHz)

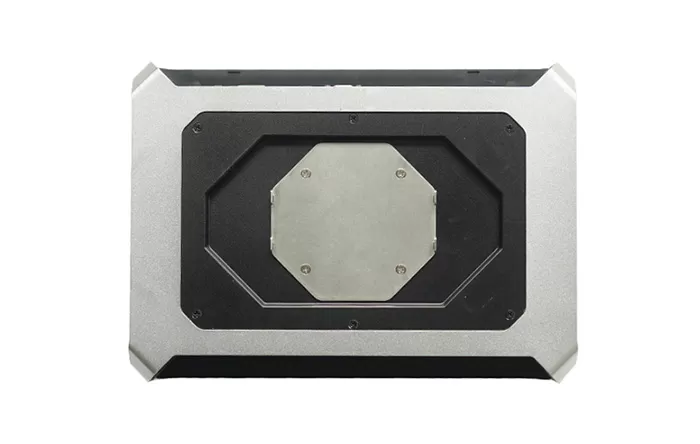

6. Support magnetic attraction on back base.

7. 24V DC


Model: SATA121X
PC
CPUIntel® Core i3-6100U, dual core, 2.3GHz
ChipsetIntel ValleyView SSA-CUnit
Memory4G DDR3
Hard Drive Capacity32G SSD
GraphicsCPU Integrated graphics HD Graphics and support 1080p HD photo quality
AudioRealtek ALC662, High Definition Audio (HD), Line in, Line out
Network1xRealtek RTL 8111E Gigabit Ethernet controller

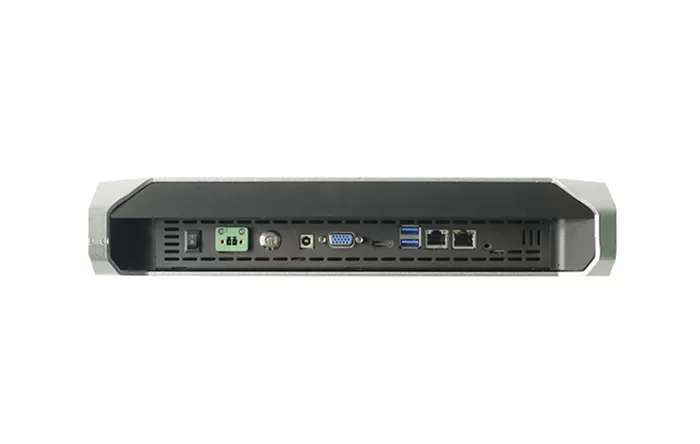

I/O Interface2xUSB 3.0, 2xRJ45, 1xVGA/HDMI/Audio OUT/POWER DC/Power button
1xPhoenix terminal/Power switch button
Operation SystemSupport Windows 7/8/10, Linux, Ubuntu, Debian, etc.
LCD panel
Panel size12"
Resolution1024*768
Aspect ratio4:3
Support Color16.7M colors
Brightness (cd/m²)400+
Response time5ms
Contrast ratio1000:1
View angle80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen TypeProject Capacitive Touch (10 points)
Touch InterfaceUSB (RS232 optional)
Touch response time2ms
Luminousness90%
Surface Hardness7H
Working life>50 million times
Touch options(5 wire resistive touch, IR touch optional)
Power Supply
External Power SupplyAC 100-240V
Working voltageDC 24V
Power consumption≤35W
Enclosure
MaterialABS+Aluminum alloy
ColorBlack, silver, white, color can be customized
IP gradeFront panel IP65 waterproof
Operating Environment
Temperature RangeOperating: -10 to 60°C, storage: -20 to 80°C
Relative humidity5%~95% @ 40° C, non-condensing
Vibration5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight4.5kgs
Gross weight5.15kgs

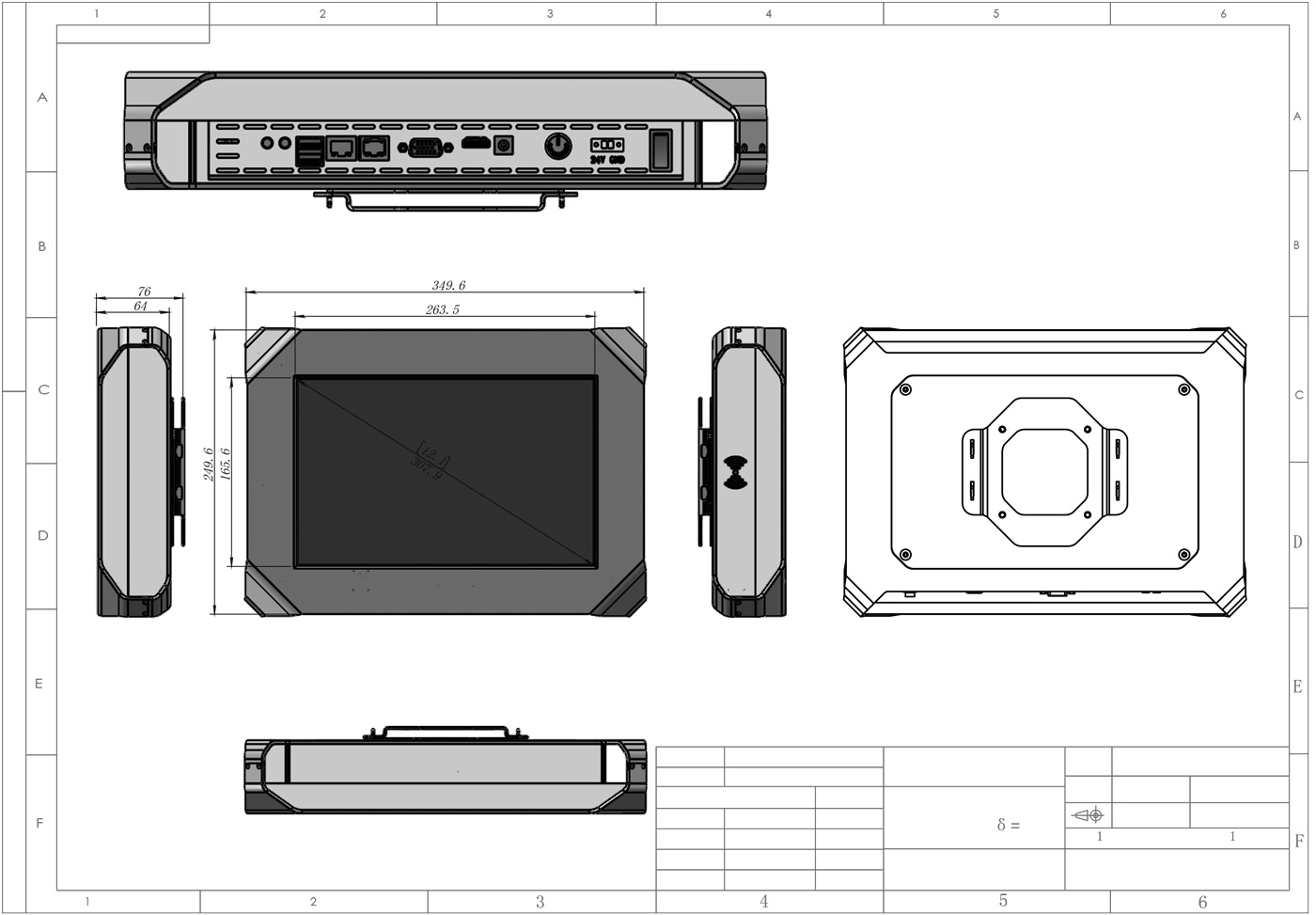

Product Dimension34.96x24.96x7.6 cm
Packing size45x17x37CM
AccessoriesPower adapter, user manual, warranty card
Other
Mounting (options)Embedded mounting
Wall mounting brackets (Optional)
Desk stand holder (Optional)
Warranty1 year warranty
CertificateCE, FCC, RoHS
